Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Position the vehicle on the lift. Refer to HOISTING, STANDARD PROCEDURE .
    GC0193811Courtesy of CHRYSLER GROUP, LLC

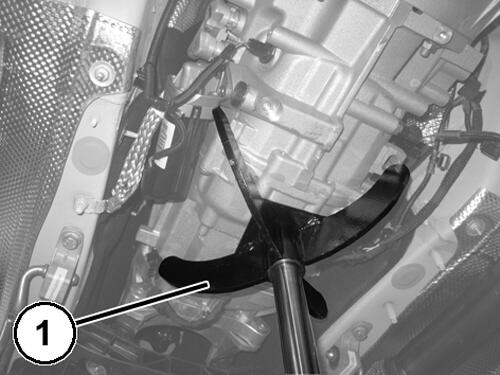

  2. Position a suitable hydraulic lift (1) underneath the transmission.
    GC0197137Courtesy of CHRYSLER GROUP, LLC

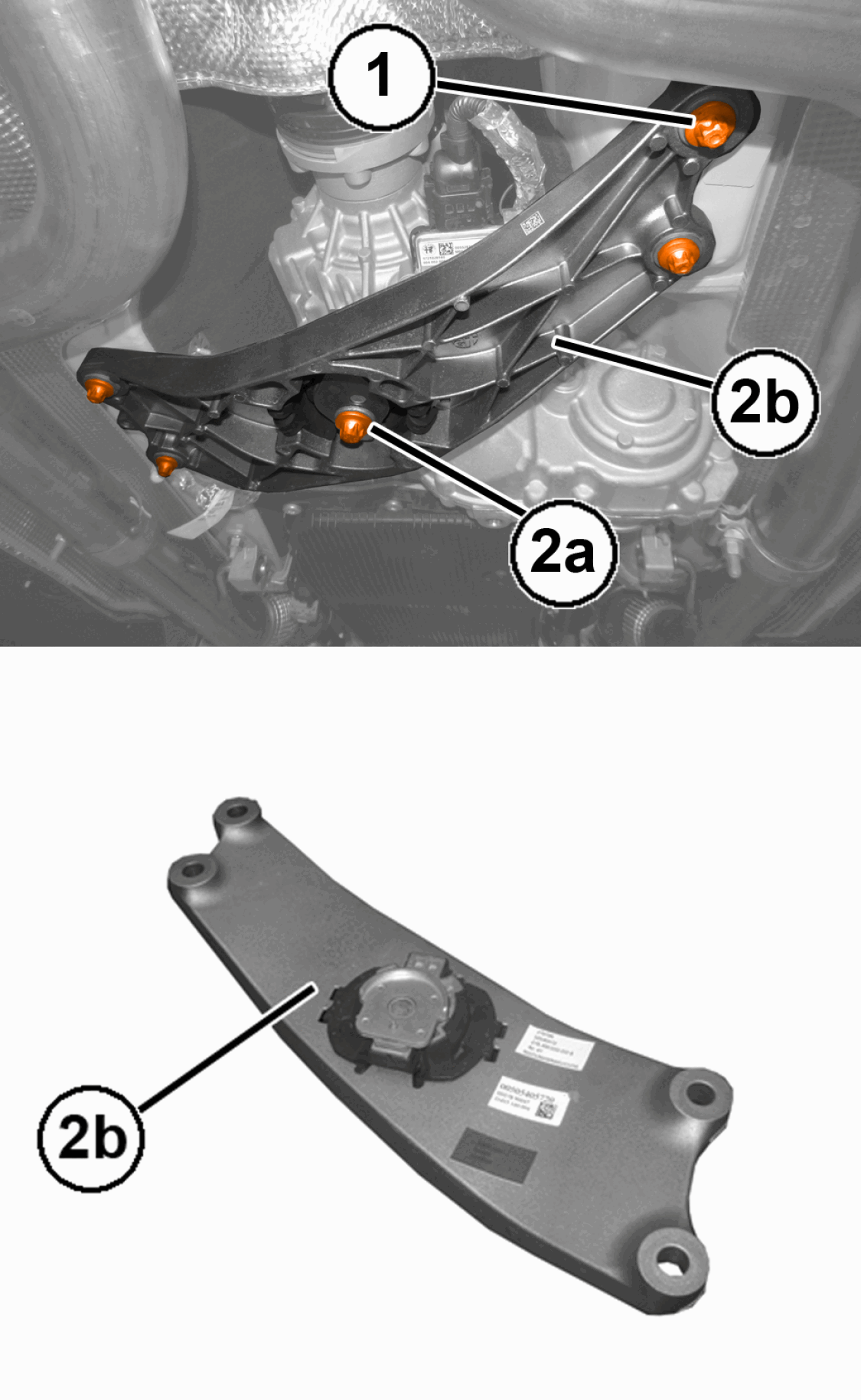

  3. Remove the bolts (1) securing the transmission crossmember to body.
  4. Remove the bolt (2a) and transmission crossmember (2b).

INSTALLATION

GC0197286Courtesy of CHRYSLER GROUP, LLC

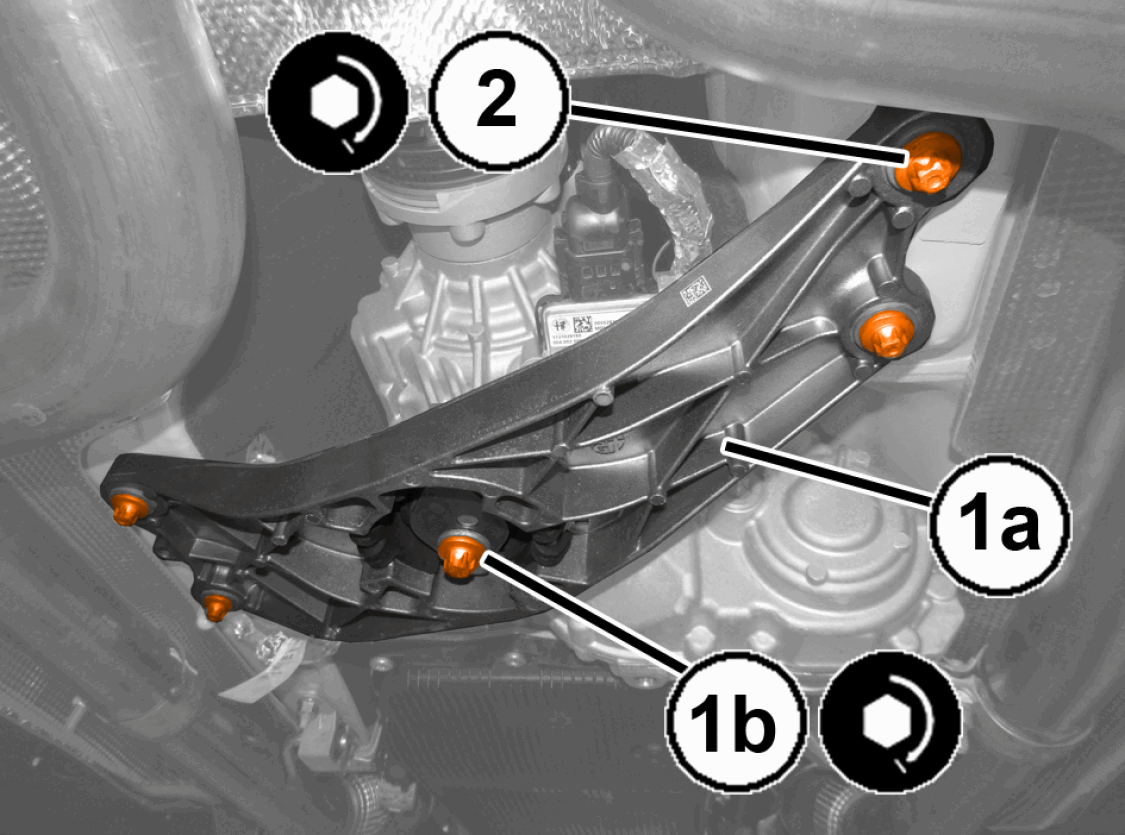

  1. Install the rear transmission crossmember (1a) complete with mount and tighten the NEW  bolt (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  2. Tighten the NEW  transmission crossmember to body bolts (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0193811Courtesy of CHRYSLER GROUP, LLC
  3. Remove the hydraulic lift (1) from underneath the transmission.
  4. Remove the vehicle from the lift.
