Removal And Installation

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the front suspension crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

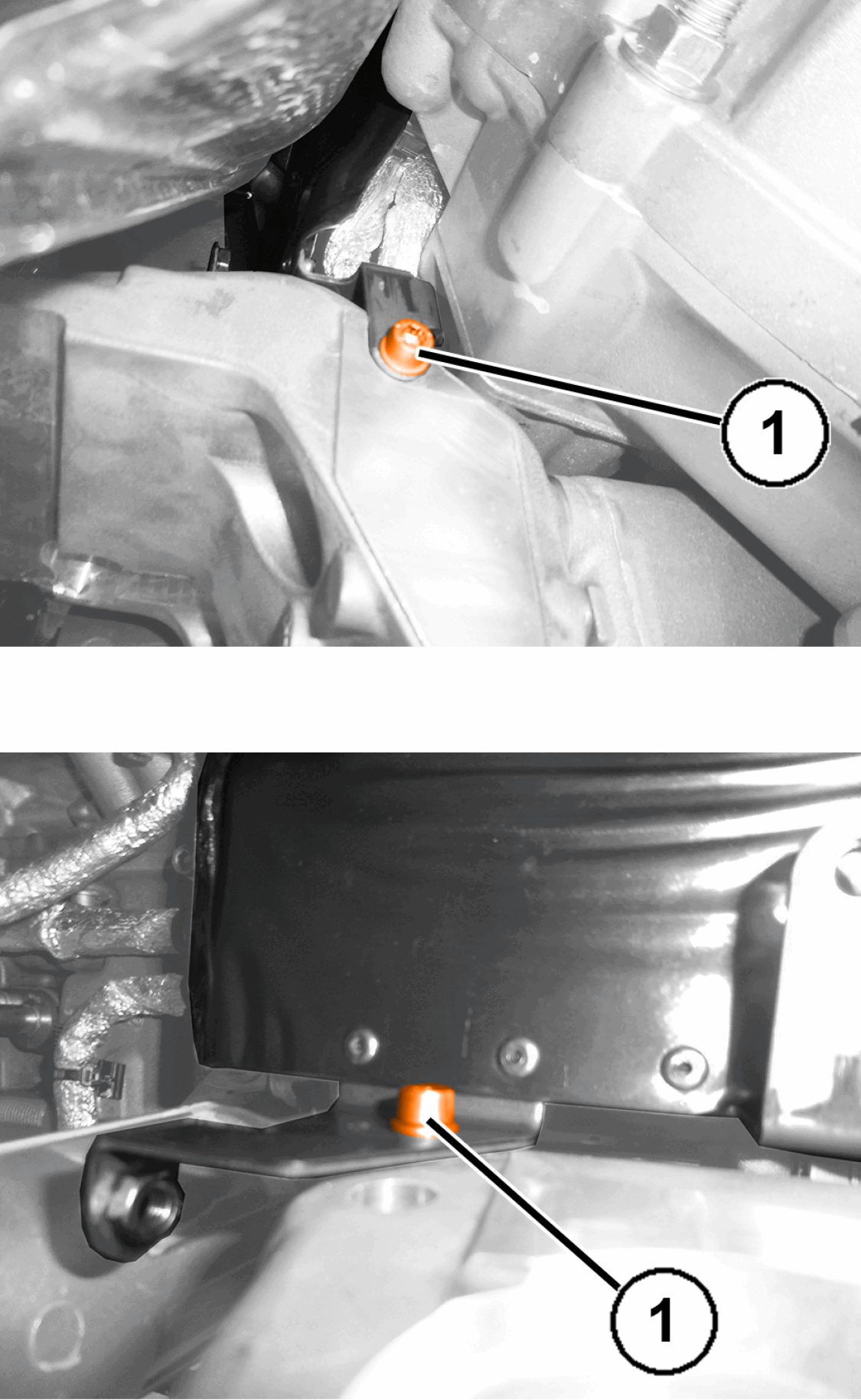

3. Remove the bolts (1) securing the heat shield to the left engine mount bracket.

   Courtesy of CHRYSLER GROUP, LLC

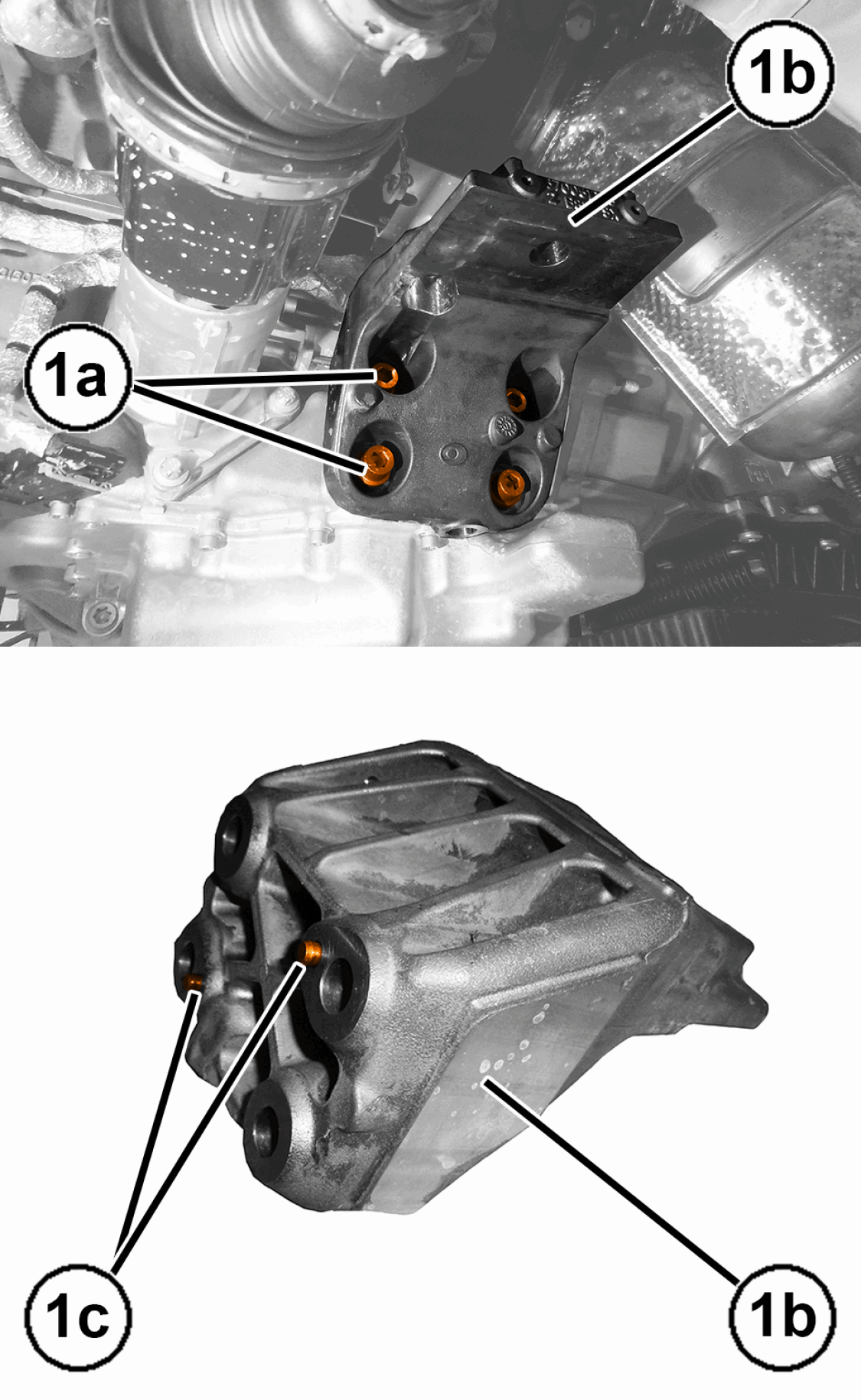

4. Remove the bolts (1a) and remove the left engine mount bracket (1b), complete with centering bushings (1c).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

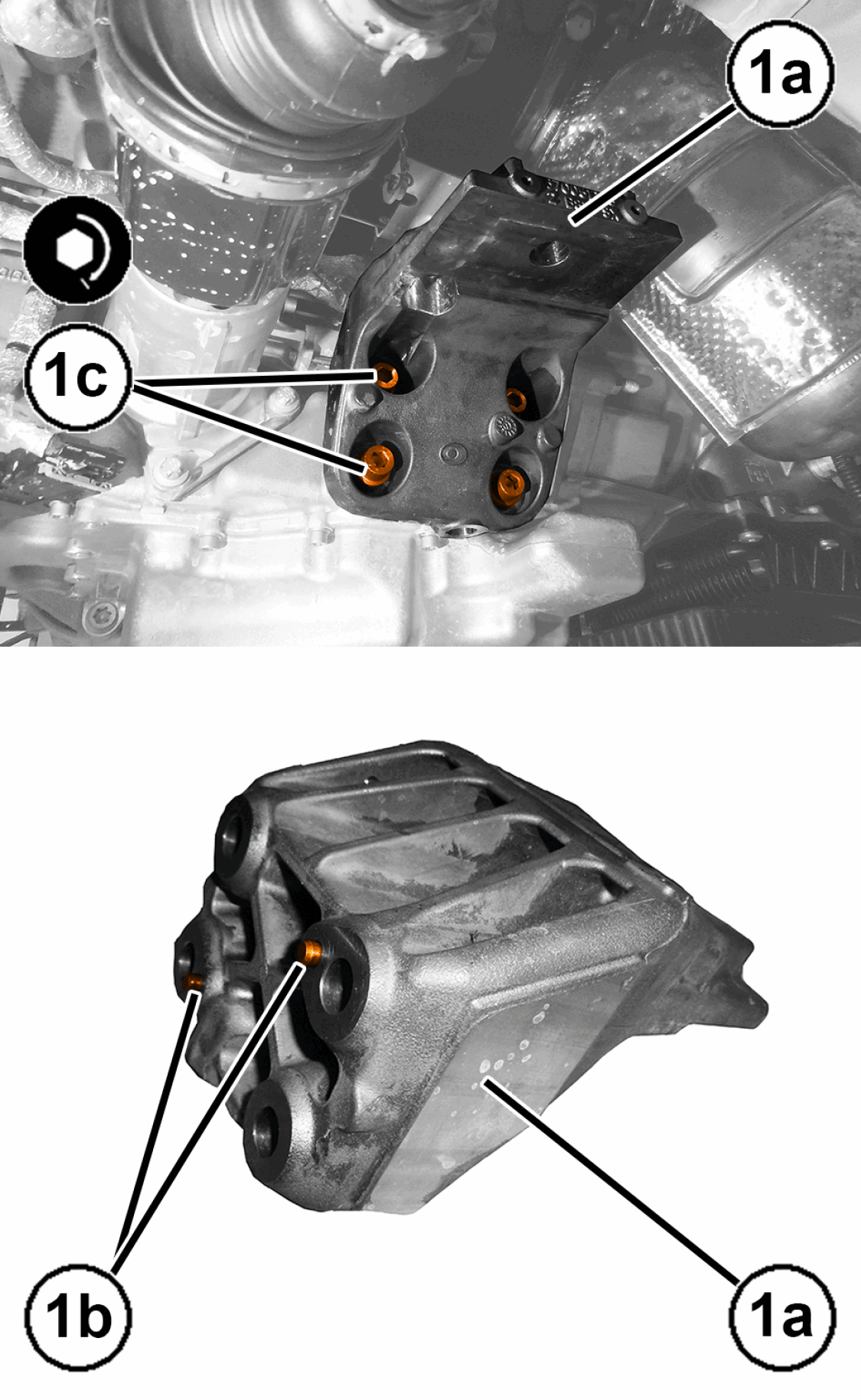

1. Install the left engine mount bracket (1a) with bushings (1b) and tighten the bolts (1c) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

2. Securely tighten the bolts (1) securing the heat shield to the left engine mount bracket.
3. Install the front suspension crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .
4. Remove the support and lower the vehicle.
