Left Side

REMOVAL

1. Remove the left camshaft. Refer to CAMSHAFT, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

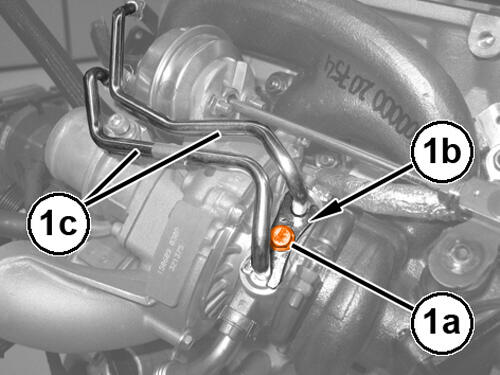

2. Remove the bolt (1a), the forked flange (1b) and disconnect the turbocharger (1c) water supply and return pipes, complete with O-ring.

   Courtesy of CHRYSLER GROUP, LLC

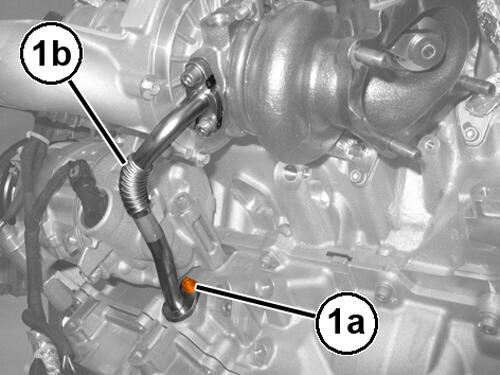

3. Remove the bolt (1a) and disconnect the engine oil supply pipe to the turbocharger (1b), complete with O-ring.

   Courtesy of CHRYSLER GROUP, LLC

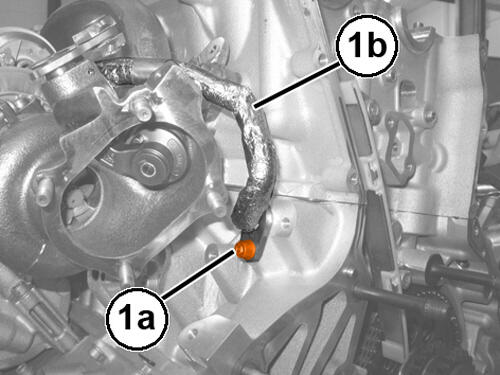

4. Remove the bolt (1a) and disconnect the engine side engine oil return pipe from the turbocharger (1b) complete with O-ring.

   Courtesy of CHRYSLER GROUP, LLC

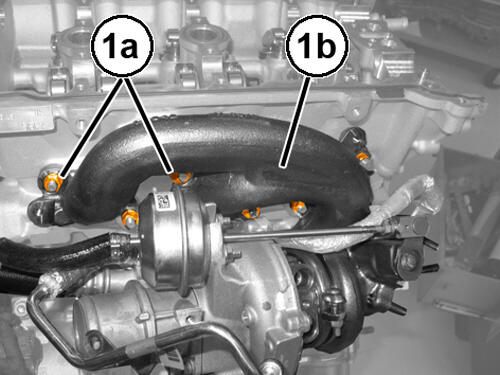

5. Remove the nuts (1a) and the turbocharger (1b) complete with pipes.
6. Remove the gasket.

   Courtesy of CHRYSLER GROUP, LLC

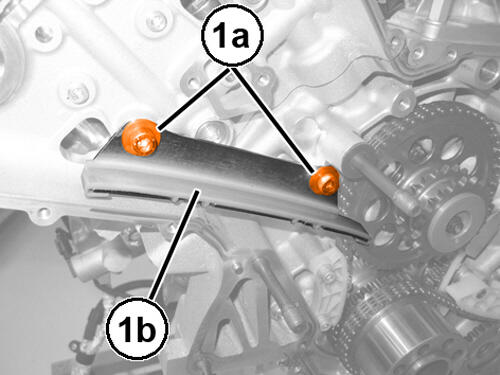

7. Remove the bolts (1a) and the left cylinder head timing chain fixed pad (1b).

   Courtesy of CHRYSLER GROUP, LLC

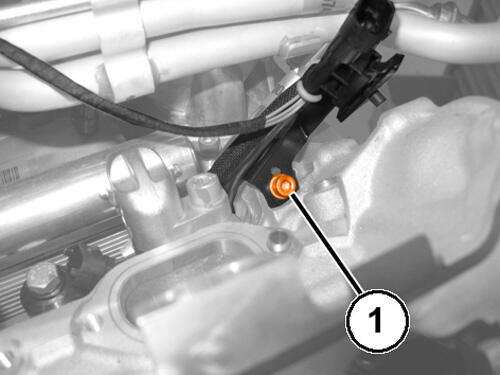

8. Remove the bolt (1) that secures the fuel pressure sensor wire harness connector retaining bracket to the engine block.

   Courtesy of CHRYSLER GROUP, LLC

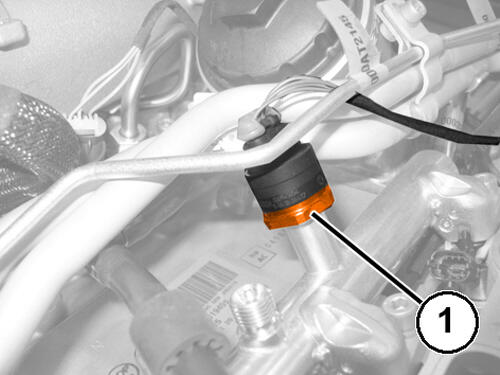

9. Remove the fuel pressure sensor (1).

   Courtesy of CHRYSLER GROUP, LLC

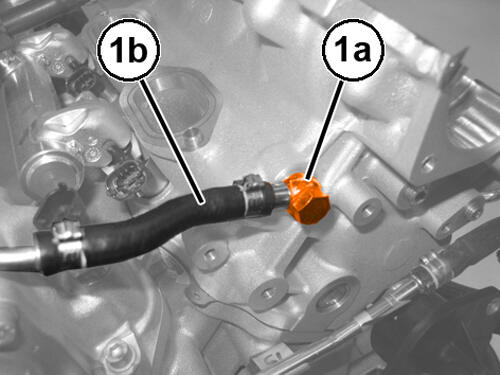

10. Remove the banjo bolt (1a) and disconnect the degassing pipe (1b), complete with copper gasket.

    Courtesy of CHRYSLER GROUP, LLC

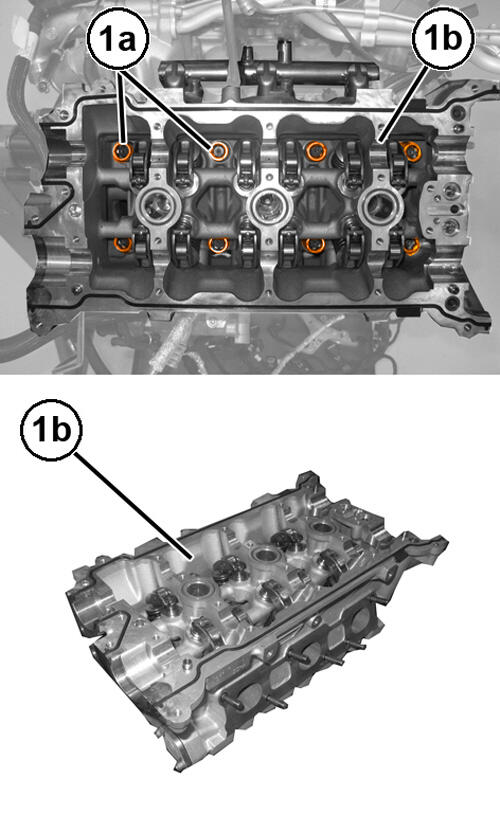

11. Remove the nuts (1a) and the left cylinder head (1b).

    Courtesy of CHRYSLER GROUP, LLC

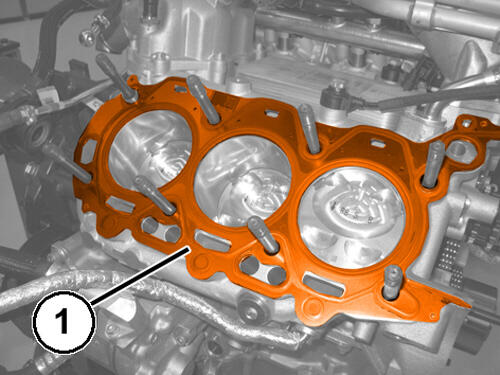

12. Remove the left cylinder head gasket (1).
13. Clean the gasket sealing surfaces. Refer to appropriate service information .

INSTALLATION

1. Install a NEW  left cylinder head gasket.
2. Install the left cylinder head.
3. Dry fit the washers with the ground parts in contact with the cylinder head.
4. Lubricate the cylinder head nuts (M12 x 1.25) threads, their lower parts and the stud side, with Molycote® BR2 grease.
5. Install the nuts securing the cylinder head to the engine block, without tightening them.

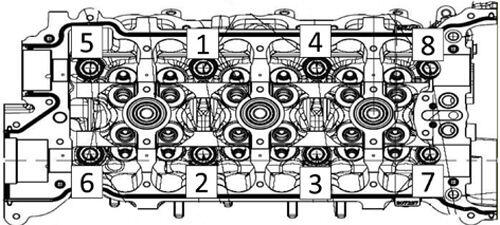

   Fig 1: Cylinder Head Nuts Tightening Sequence

   Courtesy of CHRYSLER GROUP, LLC
6. Using the tightening sequence shown in illustration, tighten the central nuts (1-2-3-4) and the outside nuts (5-6-7-8) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

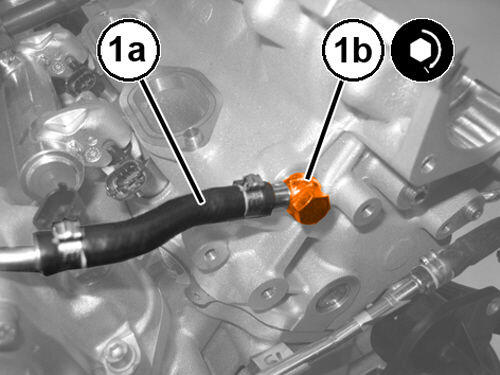

7. Using NEW  copper gaskets, install the cylinder head degassing pipe (1a) and tighten the banjo bolt (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
8. Install the fuel pressure sensor and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
9. Install the fuel pressure sensor connector retaining bracket and tighten the bolt securing it to the engine block to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

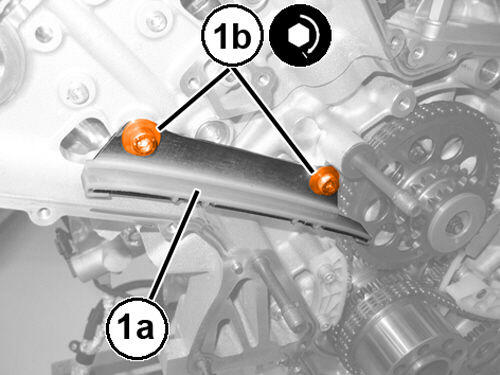

10. Install the fixed pad of the left head timing chain (1a) and tighten the bolts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
11. Install a NEW  exhaust manifold gasket.
    Fig 2: Turbocharger Assembly Complete With Pipes Nuts Tightening Sequence

    Courtesy of CHRYSLER GROUP, LLC
12. Using NEW  nuts, install the turbocharger assembly complete with pipes and tighten the nuts finger tight.
13. Using the tightening sequence shown in illustration, tighten the NEW  nuts to proper torque specification. Refer to TORQUE SPECIFICATIONS .

    Courtesy of CHRYSLER GROUP, LLC

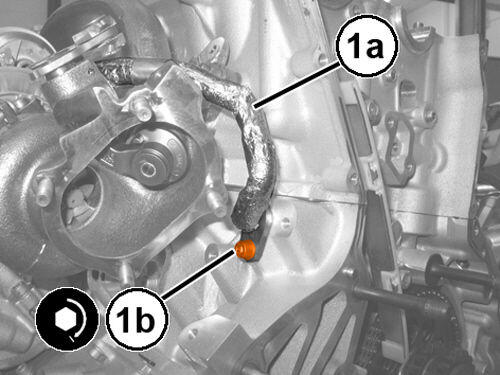

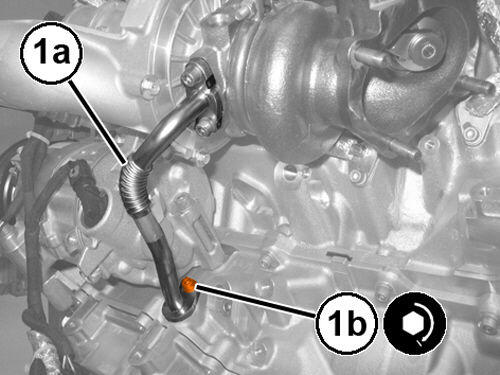

14. Using a NEW  O-ring, install the engine side turbocharger engine oil return pipe (1a) and tighten the bolts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

    Courtesy of CHRYSLER GROUP, LLC

15. Using a NEW  gasket and NEW  O-ring, install the engine oil supply pipe to the turbocharger (1a) and tighten the bolt (1b), to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

    Courtesy of CHRYSLER GROUP, LLC

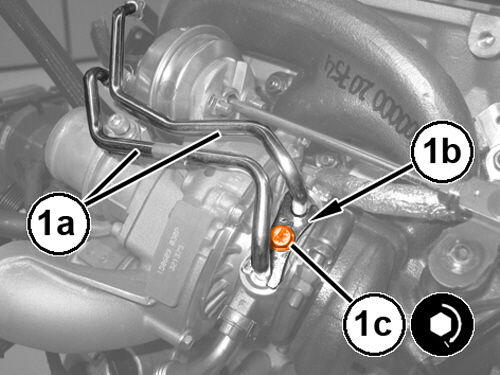

16. Using a NEW  O-ring, install the turbocharger water supply and return pipes (1a), and the forked flange (1b). Tighten the bolt (1c) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
17. Install the left camshaft. Refer to CAMSHAFT, ENGINE, REMOVAL AND INSTALLATION .
