Right Side

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the right intake and exhaust camshaft. Refer to CAMSHAFT, ENGINE, REMOVAL AND INSTALLATION .

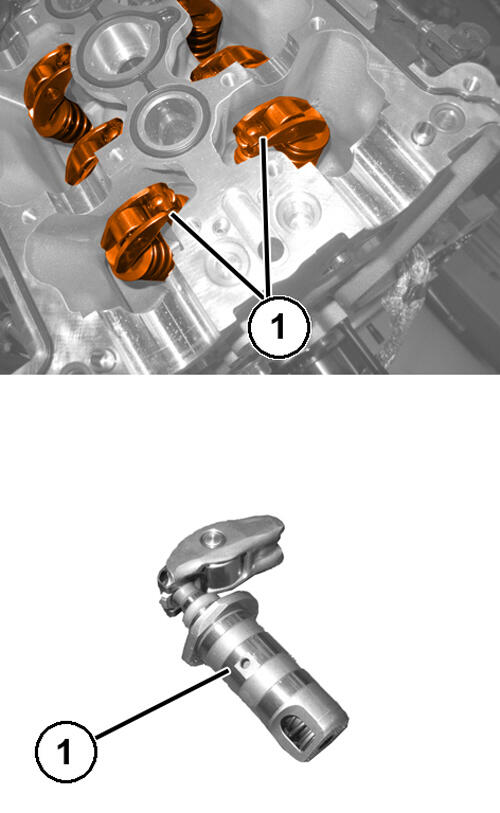

    GC0193291Courtesy of CHRYSLER GROUP, LLC
  2. Remove the intake and exhaust side hydraulic tappets (1).

INSTALLATION

  1. Install the intake and exhaust side hydraulic tappets.
  2. Install the right intake and exhaust camshaft. Refer to CAMSHAFT, ENGINE, REMOVAL AND INSTALLATION .
