Left Side

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the left intake and exhaust camshaft. Refer to CAMSHAFT, ENGINE, REMOVAL AND INSTALLATION .

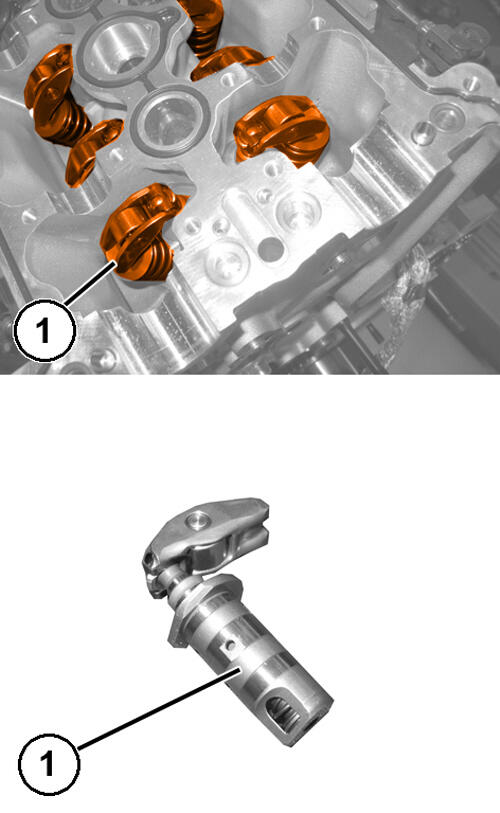

    GC0195413Courtesy of CHRYSLER GROUP, LLC
  2. Remove the intake and exhaust side hydraulic tappets (1).

INSTALLATION

  1. Install the intake and exhaust side hydraulic tappets.
  2. Install the left intake and exhaust camshaft. Refer to CAMSHAFT, ENGINE, REMOVAL AND INSTALLATION .
