Right Camshaft

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the right cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION .

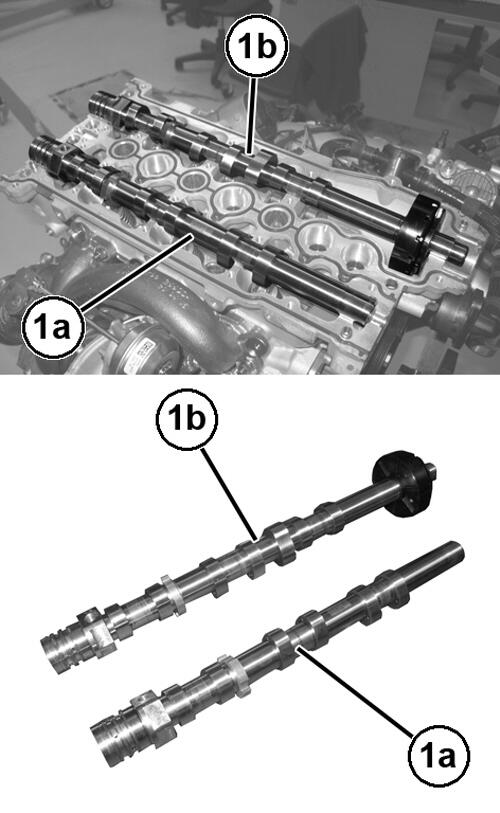

    GC0194454Courtesy of CHRYSLER GROUP, LLC
  2. Remove the exhaust side (1a) and intake camshafts (1b).

INSTALLATION

  1. Install the right exhaust side and intake side camshaft on the cylinder head.
  2. Install the left cylinder head cover

    Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION .
