Left Camshaft

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the left cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION .

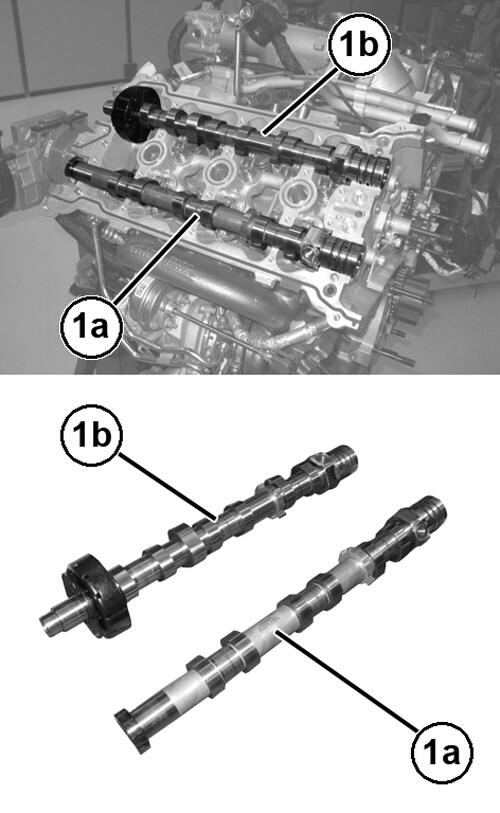

    GC0193608Courtesy of CHRYSLER GROUP, LLC
  2. Remove the camshaft on exhaust side (1a) and intake camshafts (1b).

INSTALLATION

  1. Install the left exhaust side and intake side camshaft on the cylinder head.
  2. Install the left cylinder head cover

    Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION .
