Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Drain the low temperature (LT) cooling system. Refer to COOLING/STANDARD PROCEDURE .
    GC0196330Courtesy of CHRYSLER GROUP, LLC

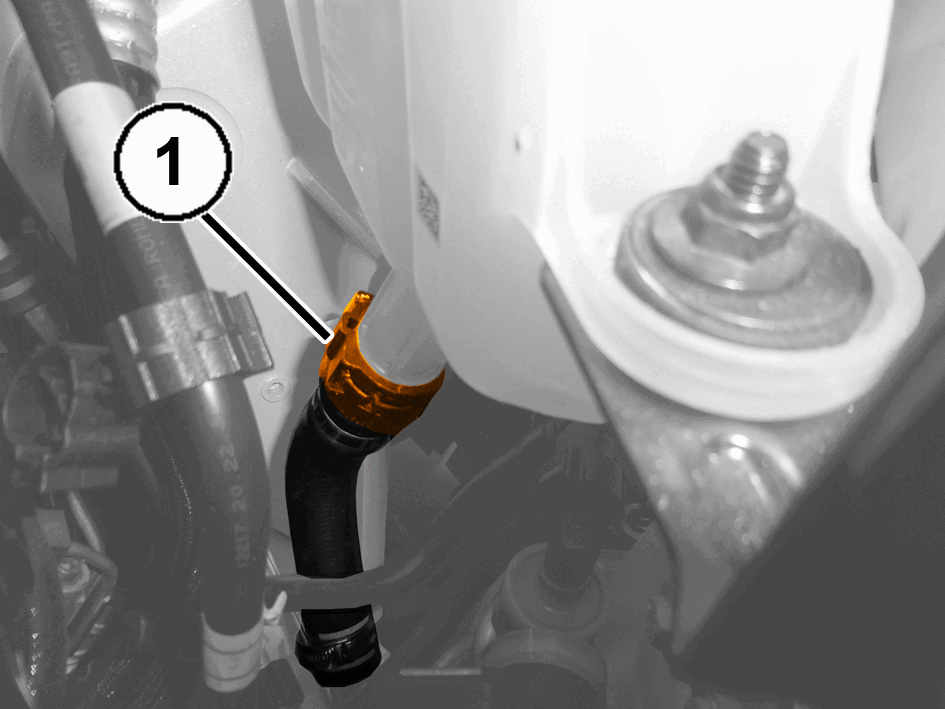

  2. Remove the low temperature pressurized coolant bottle supply hose quick connector (1).
    GC0196393Courtesy of CHRYSLER GROUP, LLC

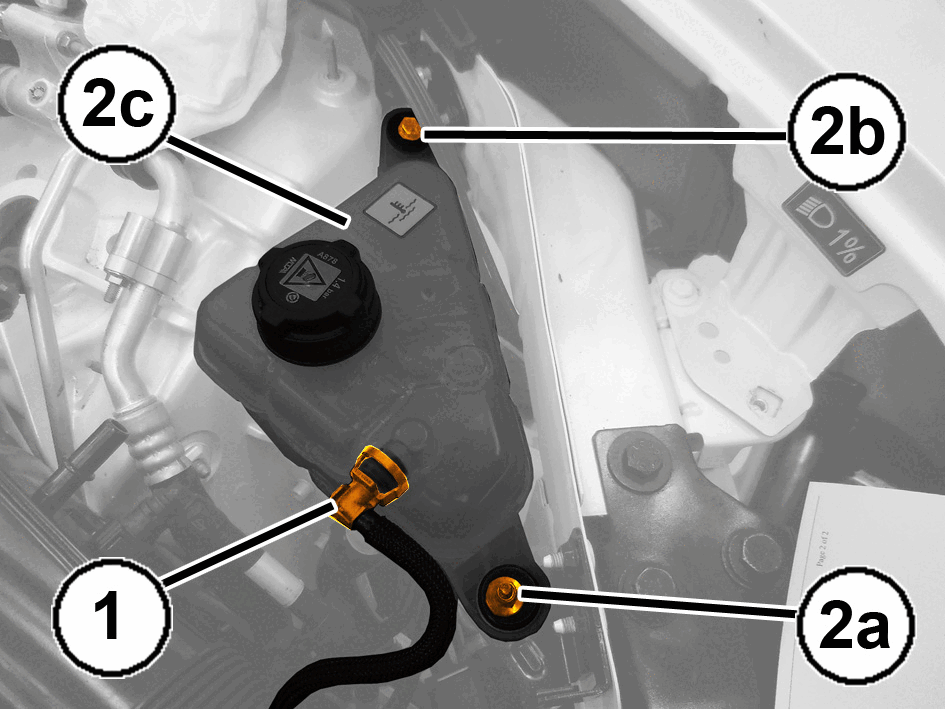

  3. Disconnect the degassing hose quick connector (1).
  4. Remove the nut (2a), bolt (2b) and the low temperature pressurized coolant bottle (2c).

INSTALLATION

  1. Install the low temperature pressurized coolant bottle and securely tighten the nut and bolt.
  2. Install the degassing hose quick connector.
  3. Install the low temperature pressurized coolant bottle supply hose quick connector.
  4. Fill the low temperature (LT) cooling system. Refer to COOLING/STANDARD PROCEDURE .
