Removal And Installation

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

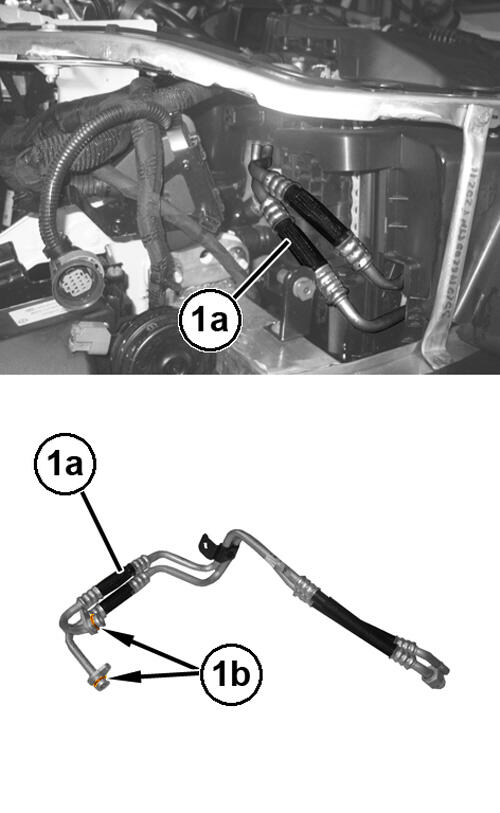

2. Remove the transmission fluid cooler tube bracket bolt (1a), from the fluid cooler bracket (1b).

   Courtesy of CHRYSLER GROUP, LLC

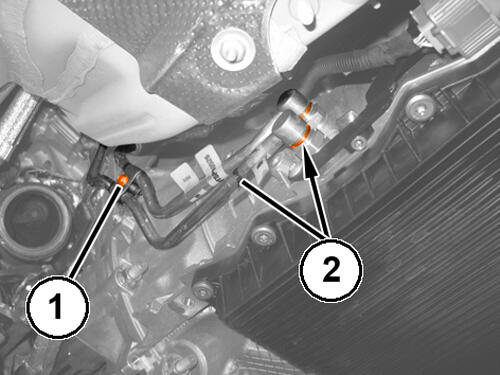

3. Remove the transmission fluid cooler tube bracket bolt (1) and remove the transmission cooler tubes (2) from the transmission.

   Courtesy of CHRYSLER GROUP, LLC

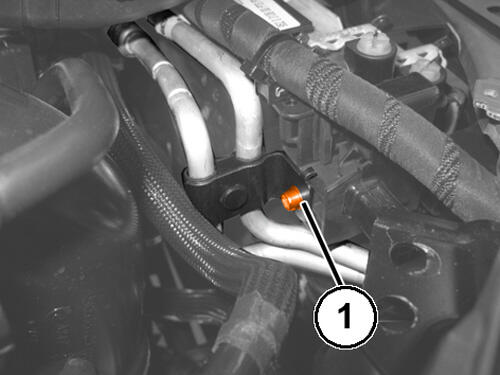

4. Remove the transmission fluid cooler tube bracket bolt (1).

   Courtesy of CHRYSLER GROUP, LLC

5. Remove the thermal bypass valve bracket bolts (1a).
6. Remove the radiator air inlet upper duct. Refer to DUCT, RADIATOR AIR INLET, UPPER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

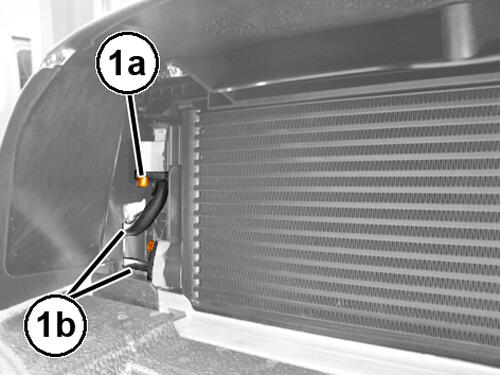

7. Remove the transmission fluid cooler tube bolts (1a) from the transmission fluid cooler.

   Courtesy of CHRYSLER GROUP, LLC

8. Remove the transmission fluid cooler tube bracket bolt (1).

   Courtesy of CHRYSLER GROUP, LLC

9. Remove the transmission fluid cooler tubes (1a) from the vehicle.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Position the transmission fluid cooler tubes (1a) in place.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the transmission fluid cooler tube bracket bolt (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

3. Install the transmission fluid cooler tube bolts (1a) on the transmission fluid cooler and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
4. Install the radiator air inlet upper duct. Refer to DUCT, RADIATOR AIR INLET, UPPER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

5. Install the thermal bypass valve bracket bolts (1a) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

6. Install the transmission fluid cooler tube bracket bolt (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

7. Install the transmission fluid cooler tubes (2) on the transmission and install the transmission fluid cooler tube bracket bolt (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

8. Position the transmission fluid cooler tubes (2) in place, install the fluid cooler tube bracket (1b), install the transmission fluid cooler tube bracket bolt (1a) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
9. Fill the transmission with the specified transmission fluid. Refer to appropriate diagnostic information .
