Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Remove the radiator air inlet upper duct. Refer to DUCT, RADIATOR AIR INLET, UPPER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

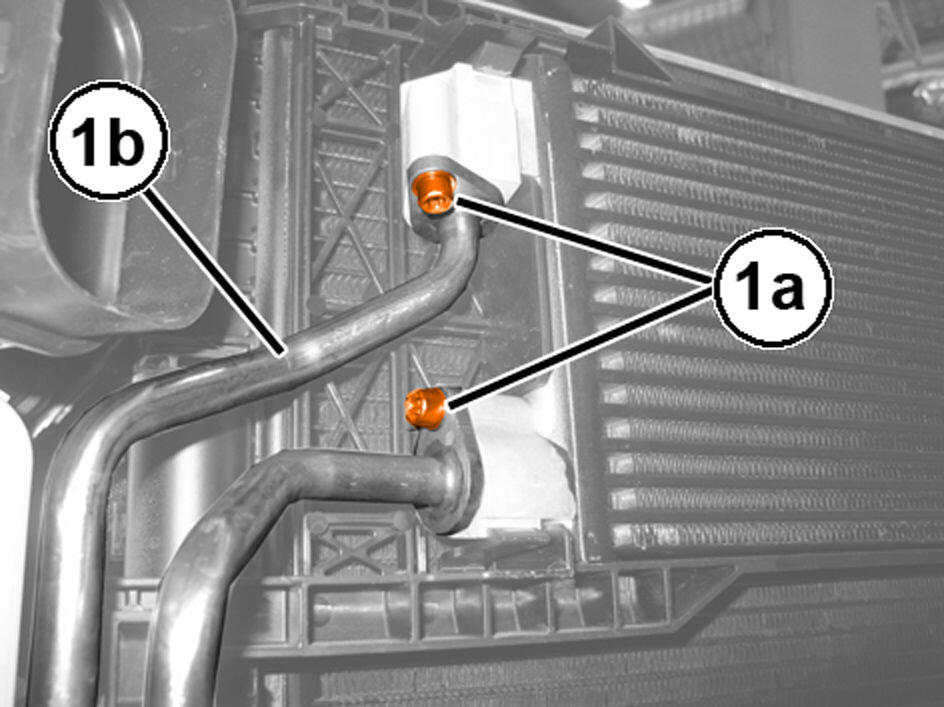

Remove the transmission cooler tube bolts (1a) and the cooler tubes (1b) from the transmission cooler.

Courtesy of CHRYSLER GROUP, LLC

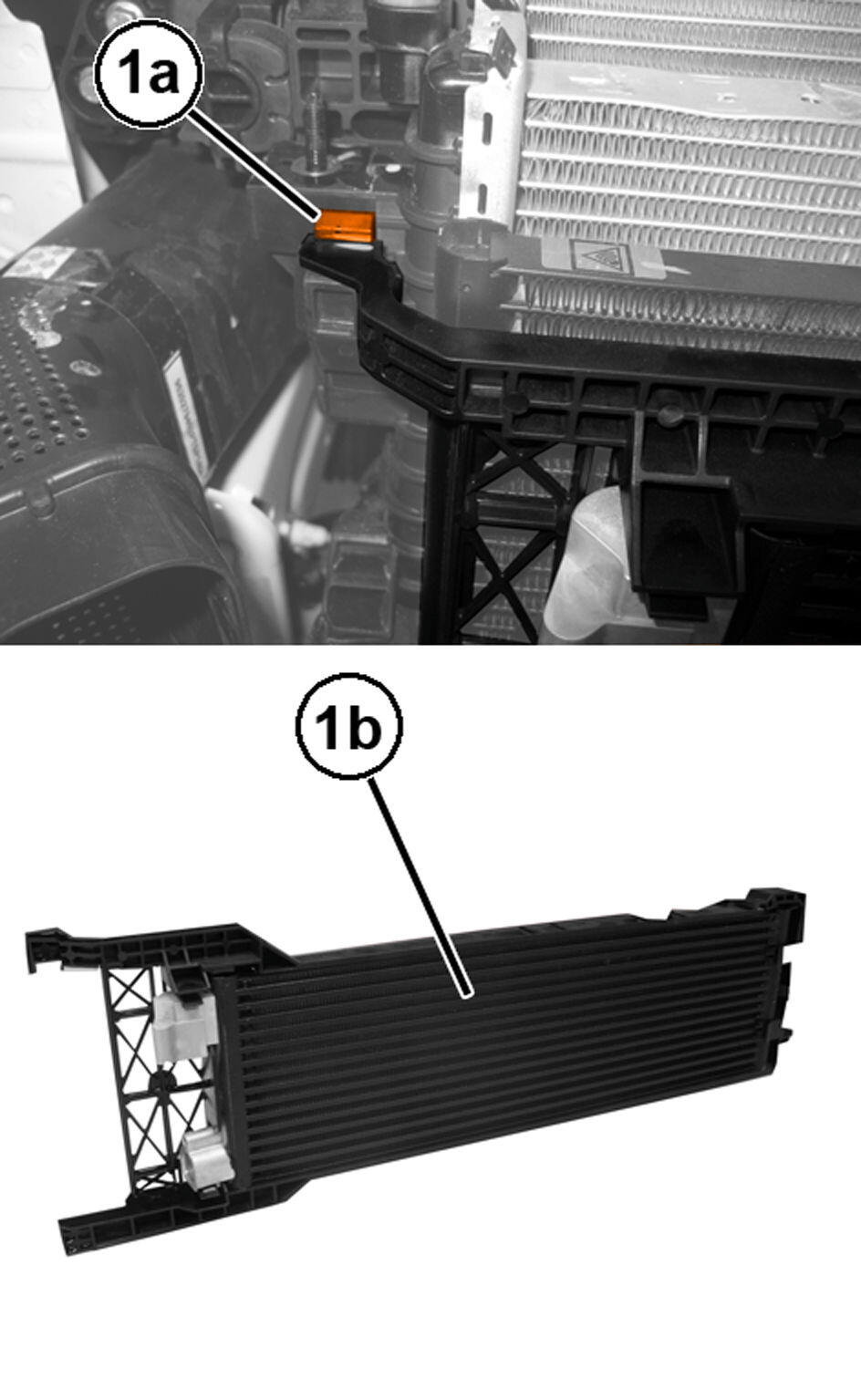

Disconnect the transmission oil cooler clips (1a) from brackets and remove the transmission oil cooler assembly (1b).

Courtesy of CHRYSLER GROUP, LLC

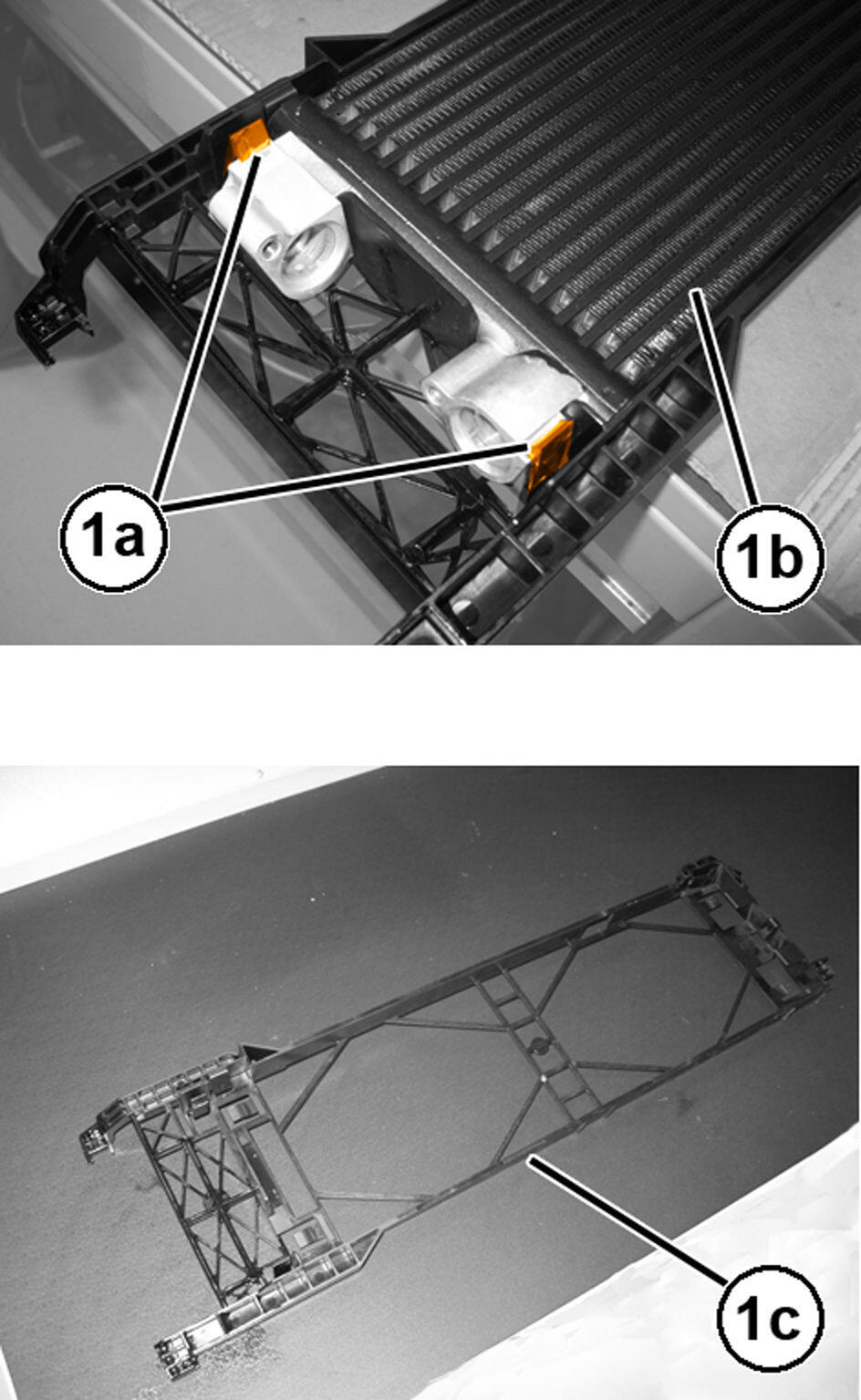

Disconnect the clips (1a) to release and remove the transmission cooler (1b) from the support (1c).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

Position the transmission oil cooler (1b) in place on the support (1c) and connect the clips (1a) to attach the transmission oil cooler to the support.

Courtesy of CHRYSLER GROUP, LLC
Position the transmission oil cooler assembly (1b) in place in the vehicle and connect the transmission oil cooler assembly clips (1a) to the radiator.

Courtesy of CHRYSLER GROUP, LLC
Position the transmission oil cooler tubes (1b) in place and install the transmission oil cooler tube bolts (1a) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
Install the radiator air inlet upper duct. Refer to DUCT, RADIATOR AIR INLET, UPPER, REMOVAL AND INSTALLATION .
Fill the transmission with the specified transmission fluid. Refer to appropriate diagnostic information .
