Thermostat Support

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect and isolate the negative battery cable.
3. Drain the high temperature (HT) cooling system. Refer to COOLING/STANDARD PROCEDURE .
4. Remove the left side cylinder head intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL AND INSTALLATION .
5. Remove the right throttle body. Refer to THROTTLE BODY, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

6. Remove the automatic transmission cooling lines bracket bolt (1).
7. Disconnect the quick coupling (2) and move the fuel vapor hose to one side.

   Courtesy of CHRYSLER GROUP, LLC

8. Disconnect the right fuel pressure sensor electrical connection (1).

   Courtesy of CHRYSLER GROUP, LLC

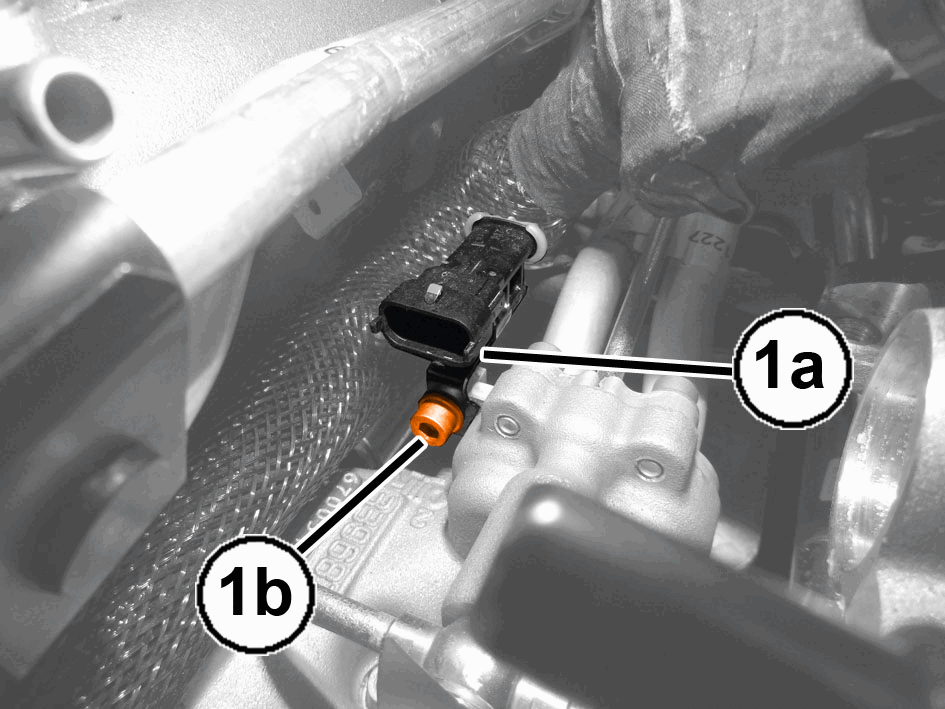

9. Remove the bolt (1a) and remove the right fuel pressure sensor electrical connection support bracket (1b).

   Courtesy of CHRYSLER GROUP, LLC

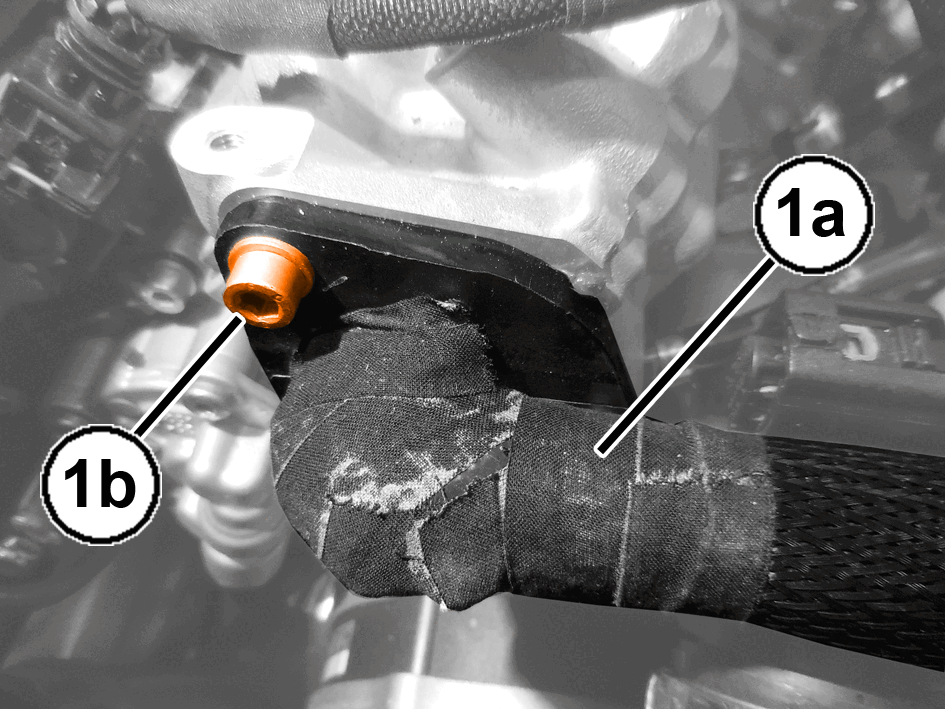

10. Remove the bolts (1a) and move the oil vapor hose (1b) to one side.

    Courtesy of CHRYSLER GROUP, LLC

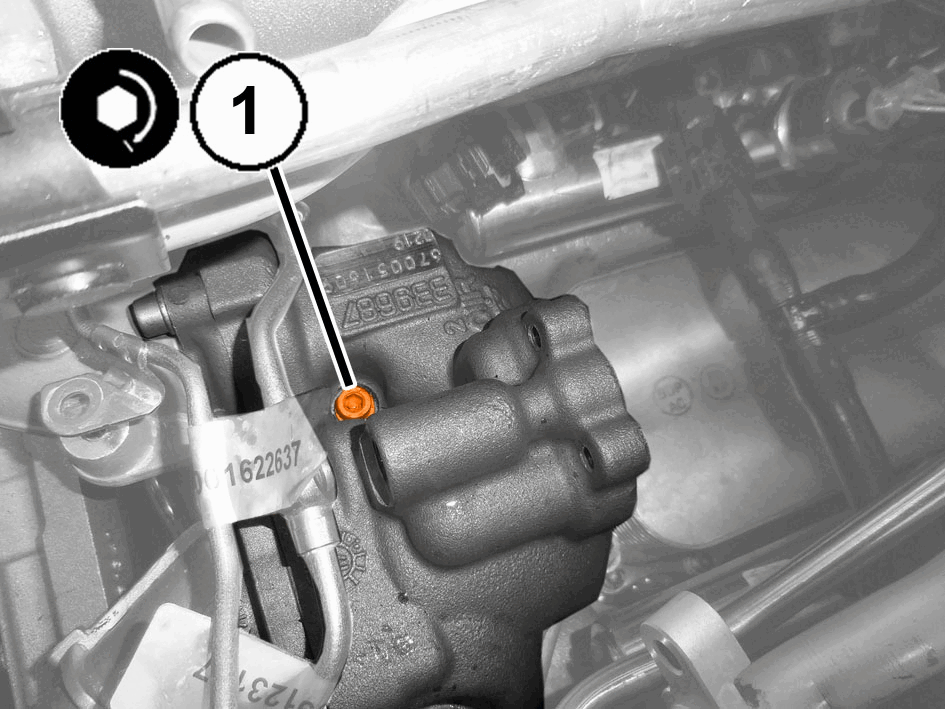

11. Remove the thermostat coolant return pipes mounting bracket bolt (1).

    Courtesy of CHRYSLER GROUP, LLC

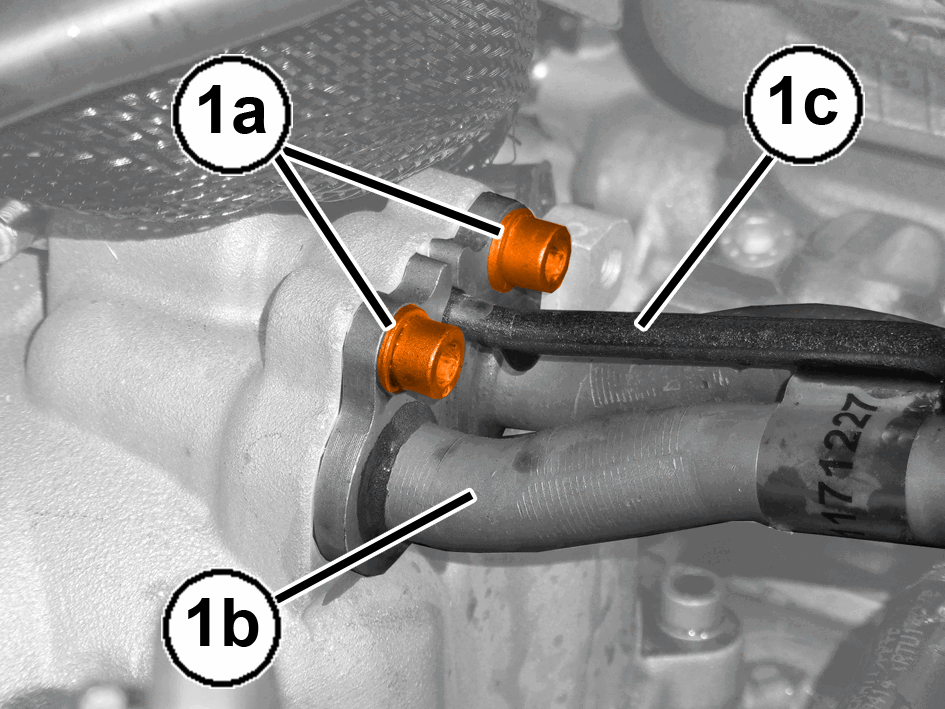

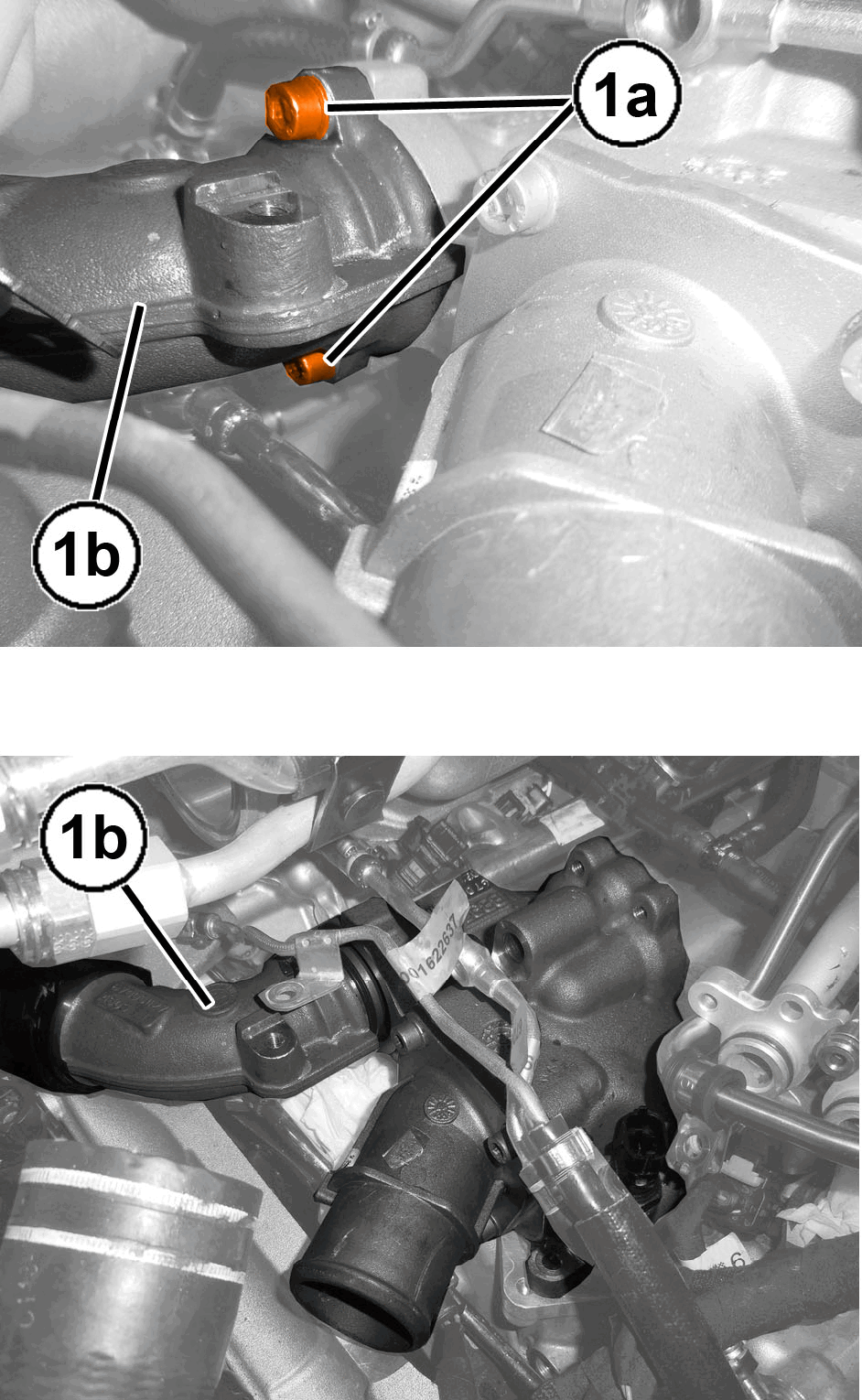

12. Remove the bolts (1a) and disconnect the thermostat coolant return pipes (1b) and the degassing pipe (1c) from the thermostat support.

    Courtesy of CHRYSLER GROUP, LLC

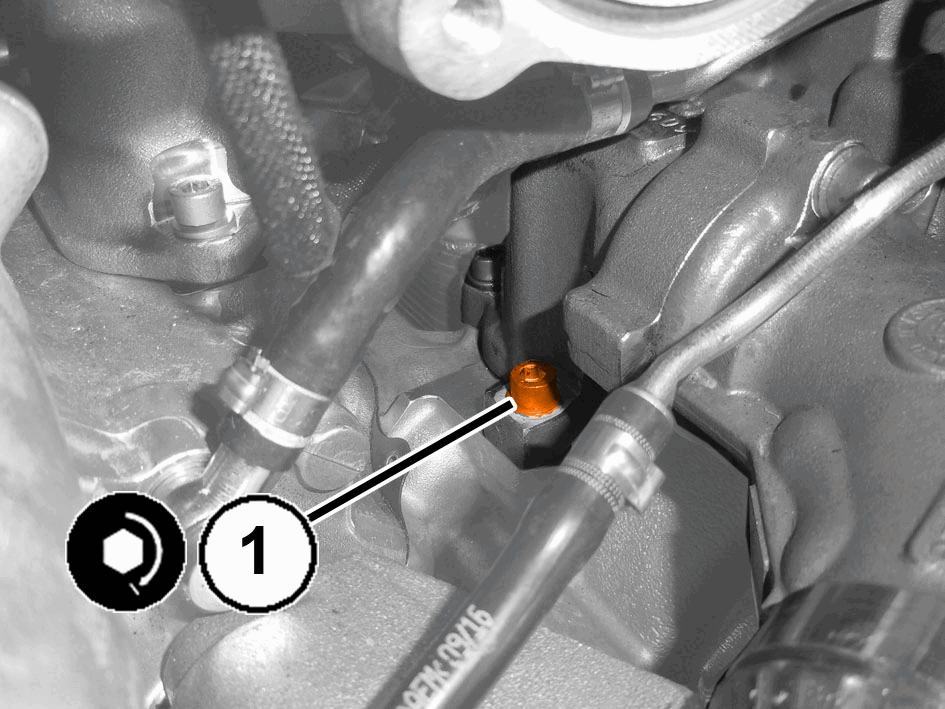

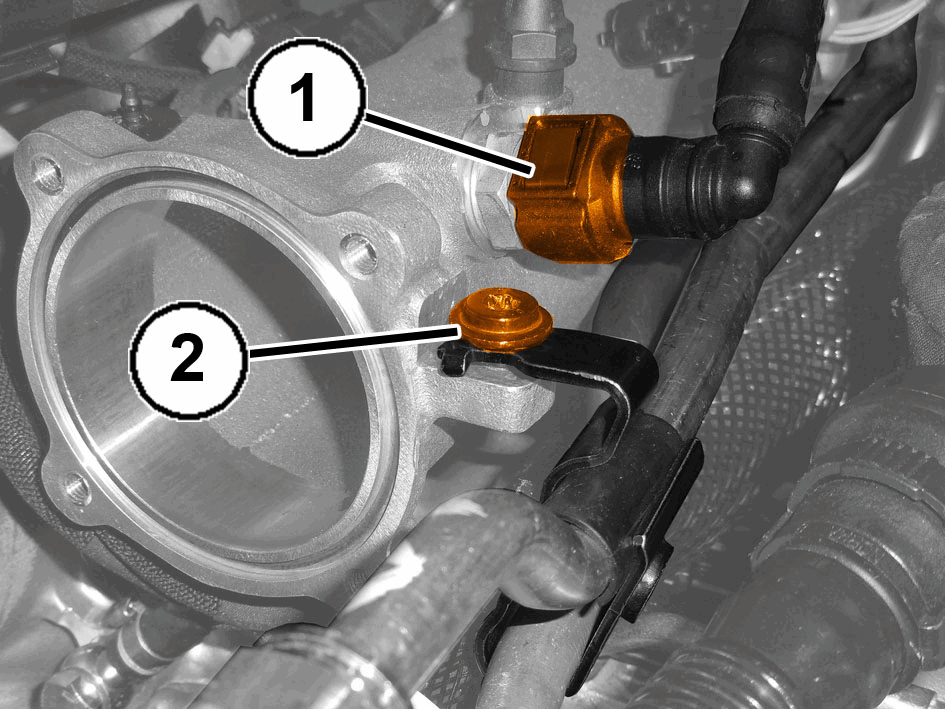

13. Remove the waste-gate solenoid valve vacuum pipe bolt (1).
14. Remove the union bolt (2a) and the degassing pipe (2b) from the thermostat support.

    Courtesy of CHRYSLER GROUP, LLC

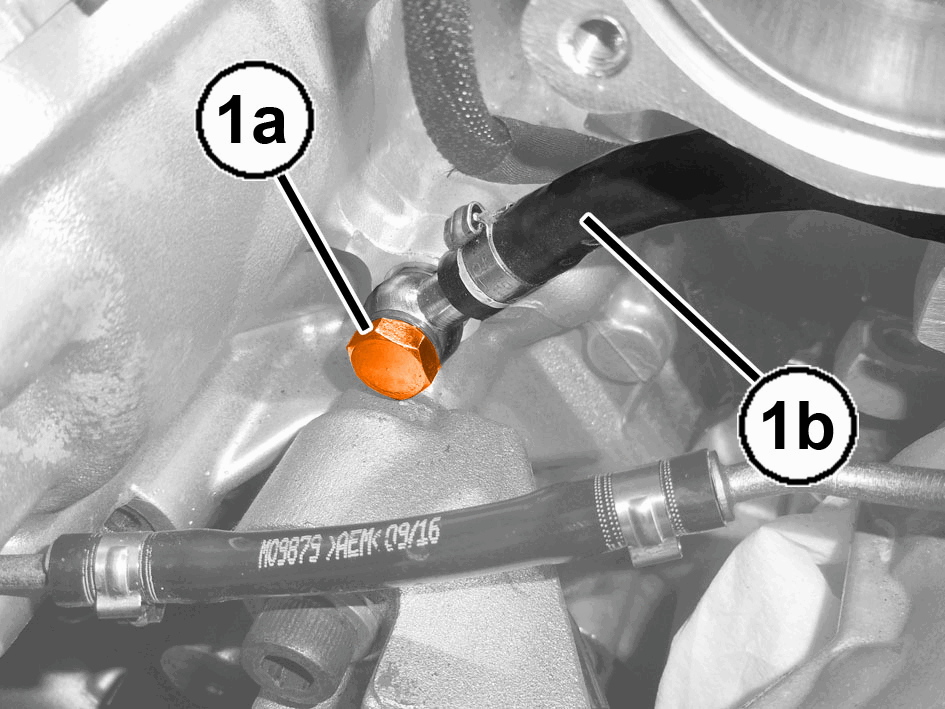

15. Remove the union bolt (1a) and the degassing pipe (1b) from the right cylinder head and move it to one side.

    Courtesy of CHRYSLER GROUP, LLC

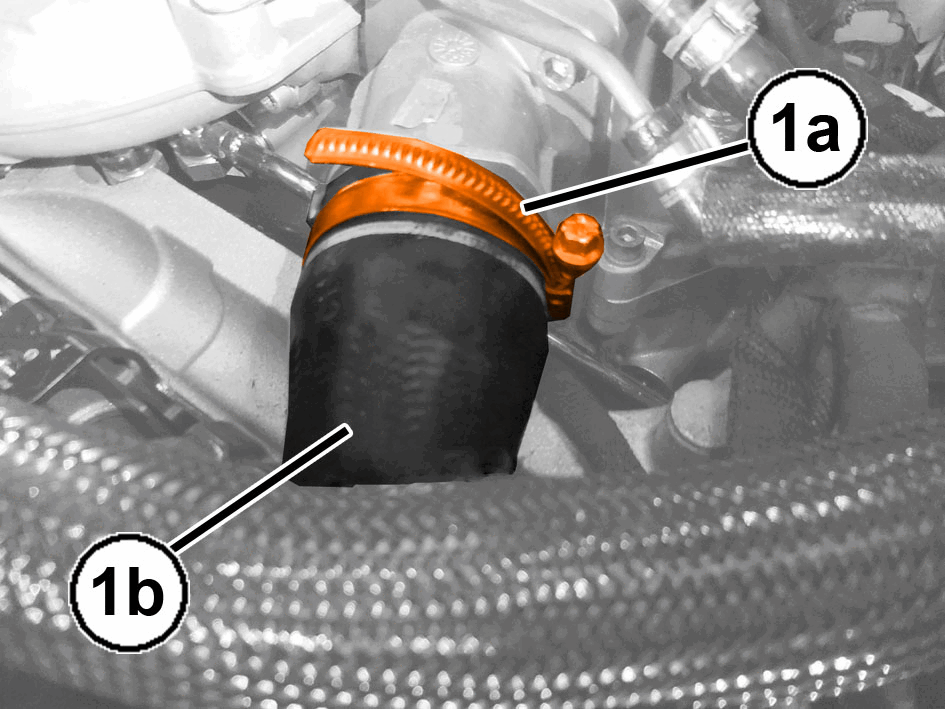

16. Loosen band clamp (1a) and remove the radiator water supply hose (1b).

    Courtesy of CHRYSLER GROUP, LLC

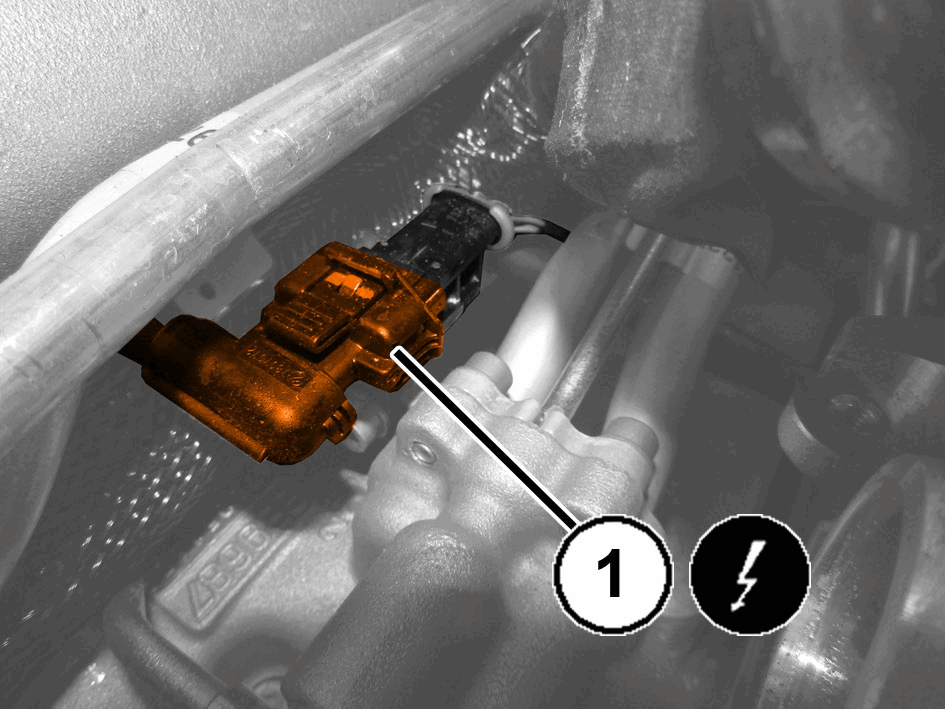

17. Disconnect the air temperature sensor electrical connection.

    Courtesy of CHRYSLER GROUP, LLC

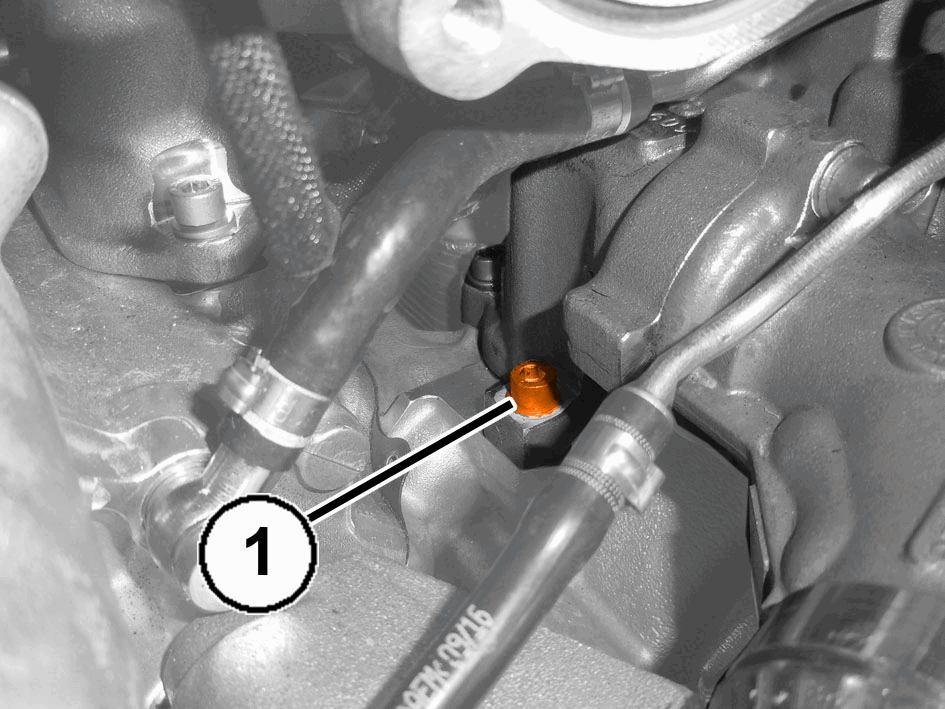

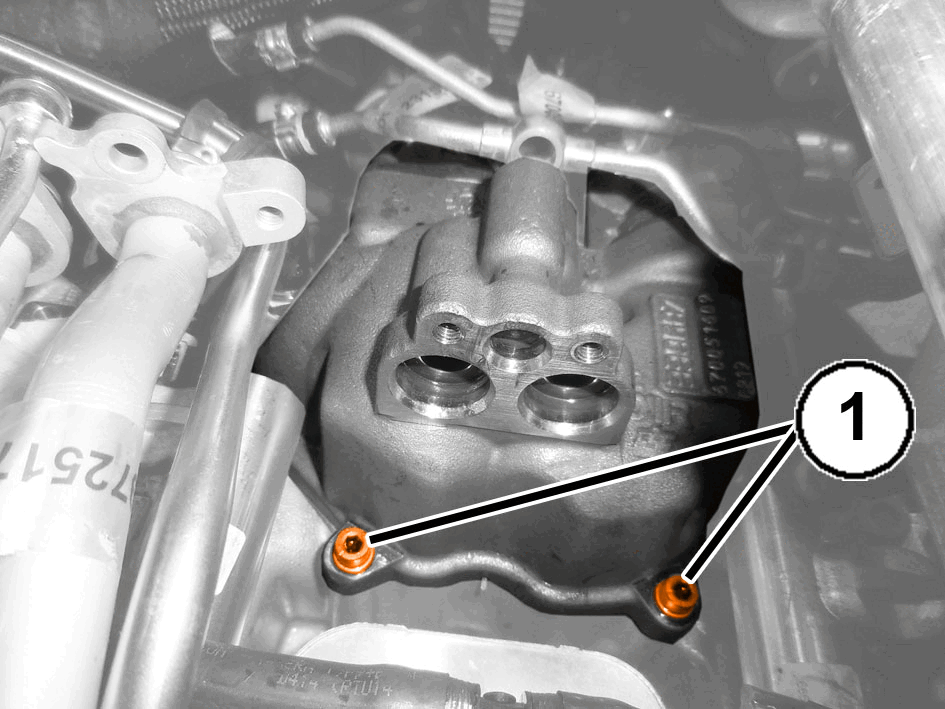

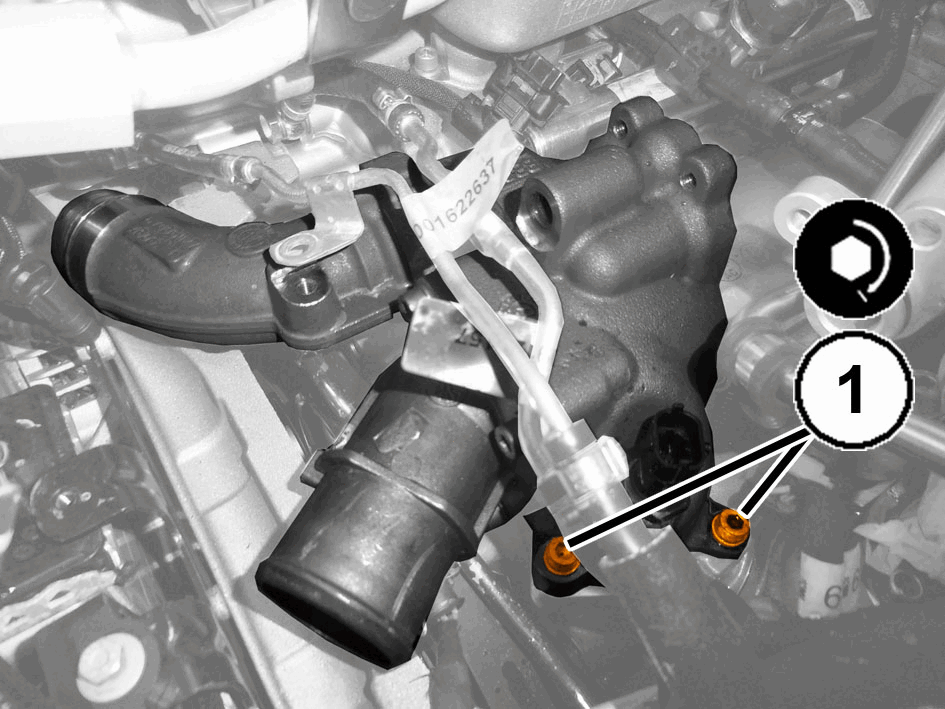

18. Remove the left-hand side thermostat support bolts (1).

    Courtesy of CHRYSLER GROUP, LLC

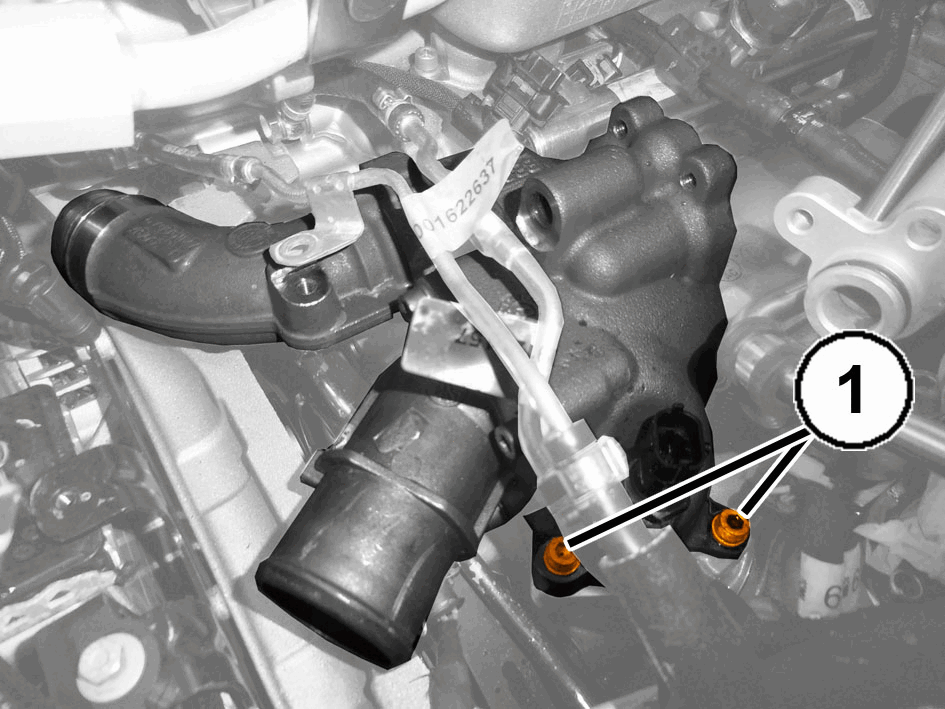

19. Remove the right-hand side thermostat support bolts (1).

    Courtesy of CHRYSLER GROUP, LLC

20. Remove the rear thermostat support bolts (1).

    Courtesy of CHRYSLER GROUP, LLC

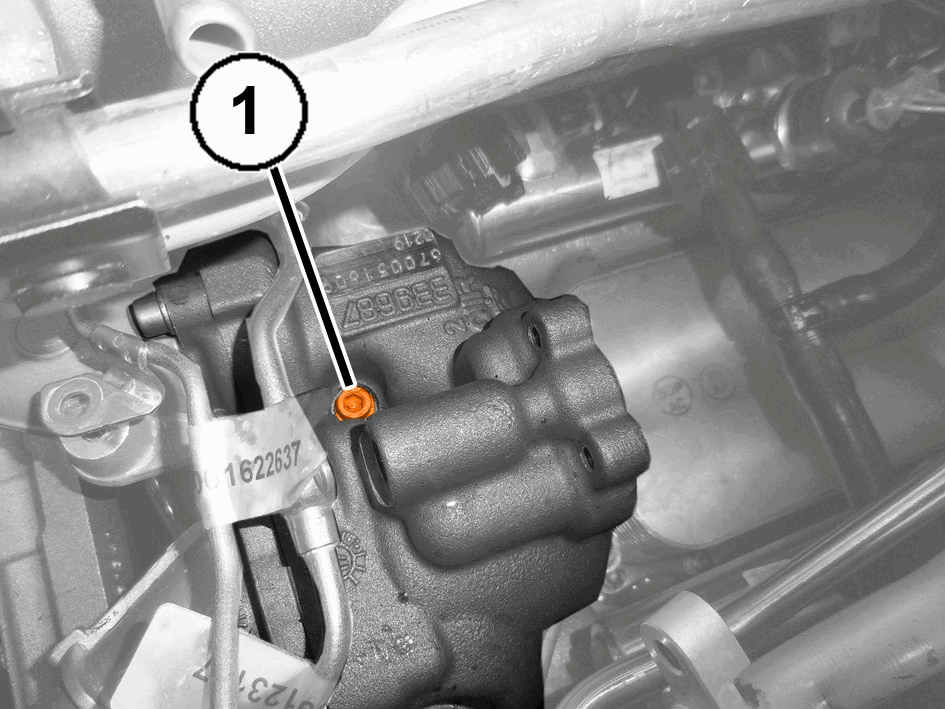

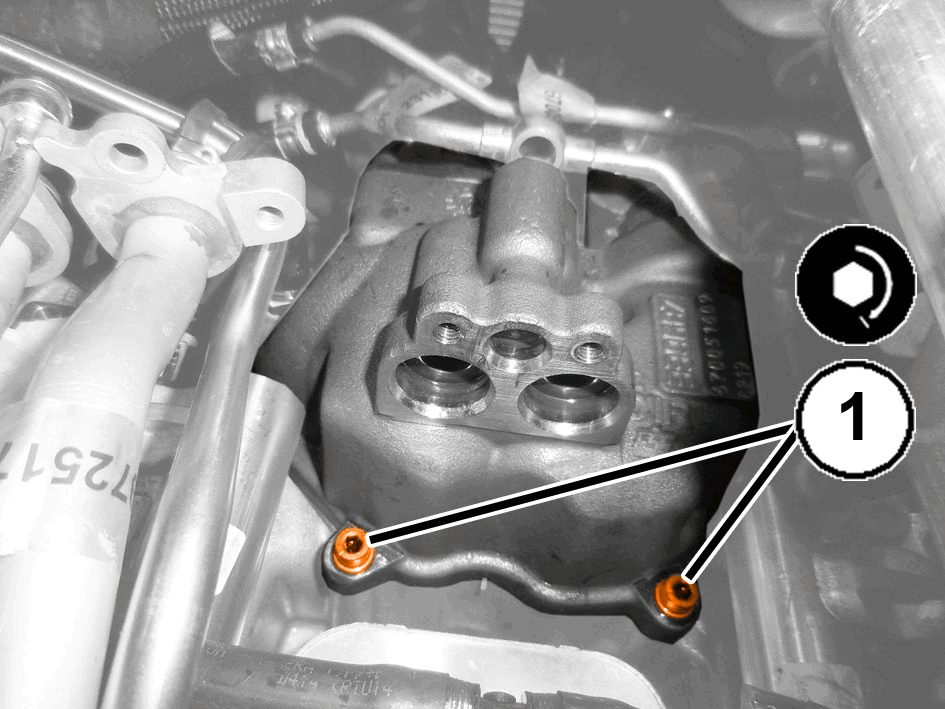

21. Remove the center thermostat support bolt (1).

    Courtesy of CHRYSLER GROUP, LLC

22. Remove the bolts (1a) and disconnect the pump coolant inlet connector (1b) from the thermostat support.

    Courtesy of CHRYSLER GROUP, LLC

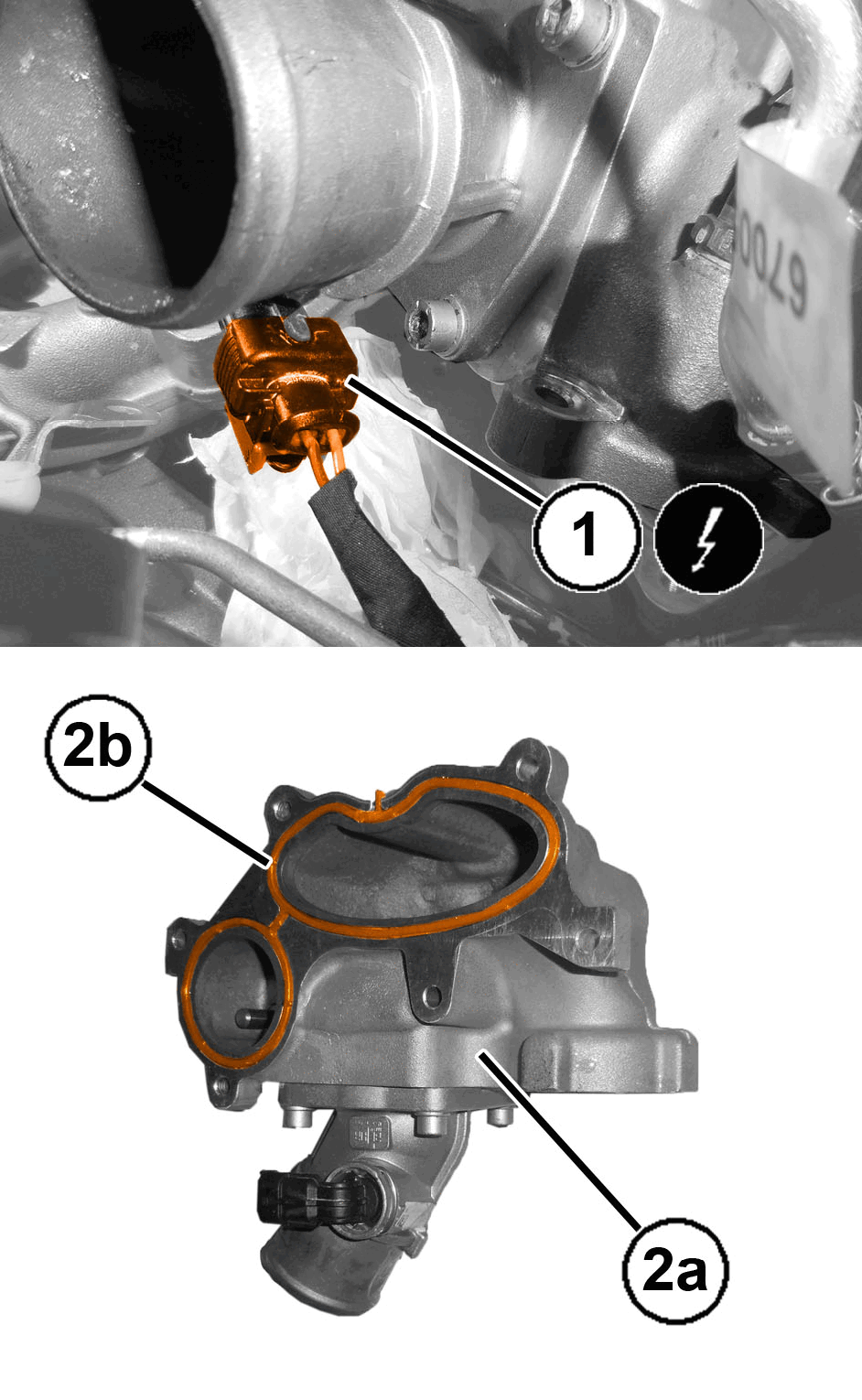

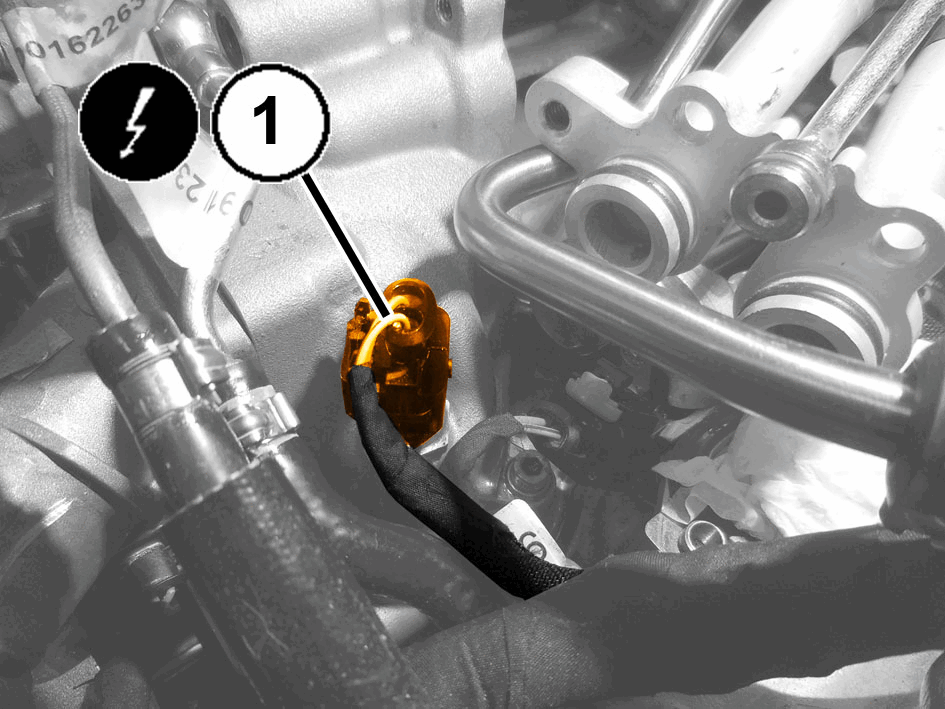

23. Disconnect the thermostat electrical connection (1).
24. Remove the thermostat support (2a) complete with seal (2b).

    Courtesy of CHRYSLER GROUP, LLC

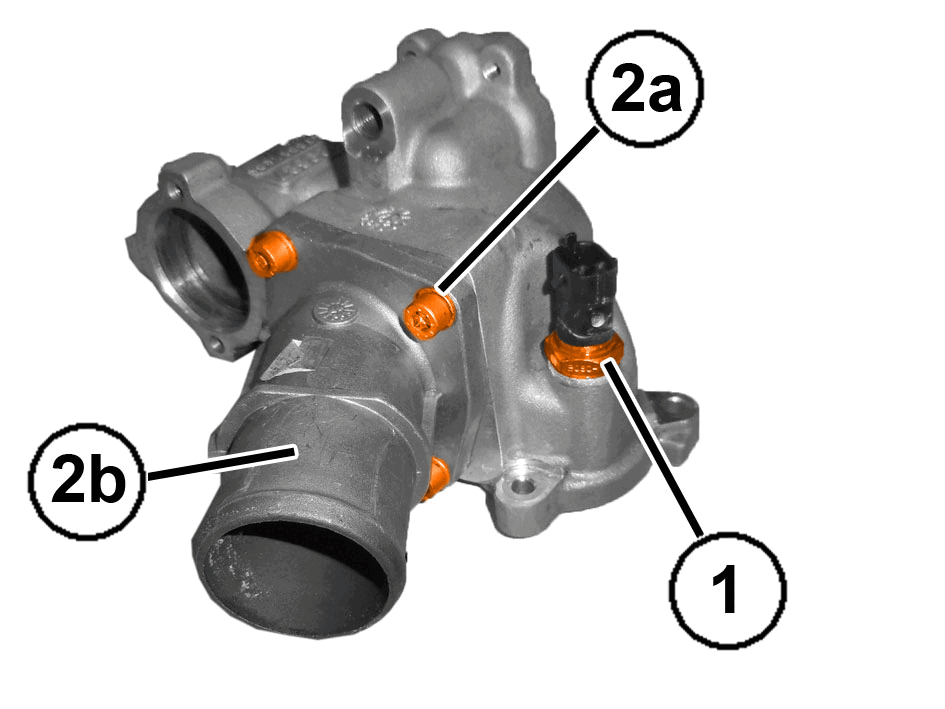

25. If required, remove the Engine Coolant Temperature (ECT) sensor (1).
26. Remove the bolts (2a) and remove the thermostat (2b).

INSTALLATION

1. Inspect the O-rings for damage.

   Courtesy of CHRYSLER GROUP, LLC

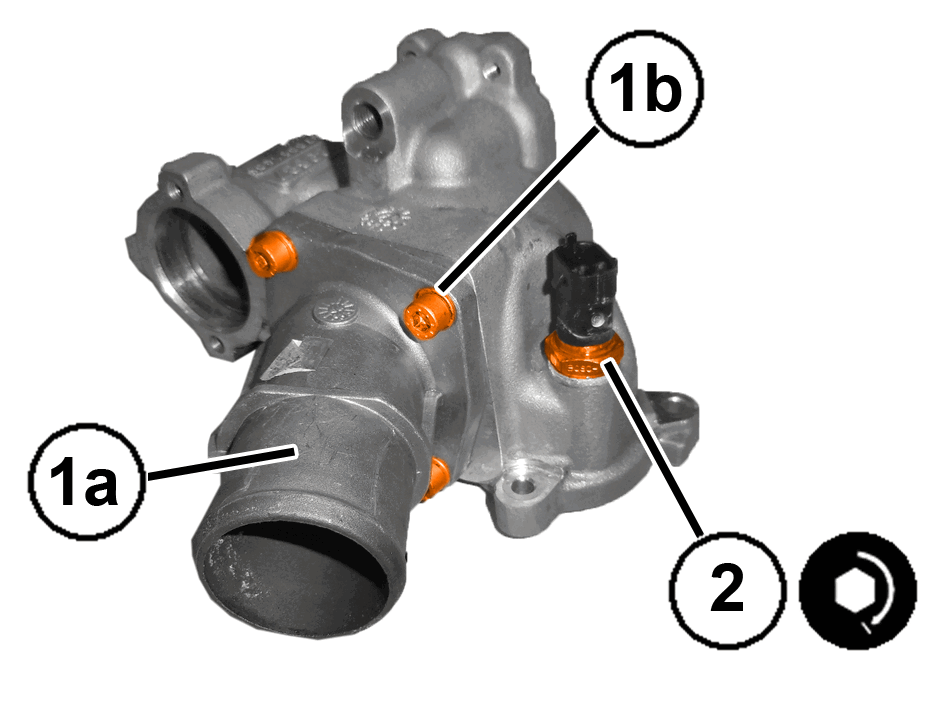

2. Install the thermostat (1a) and securely tighten the bolts (1b).
3. Install the Engine Coolant Temperature (ECT) sensor (2) and tighten it to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

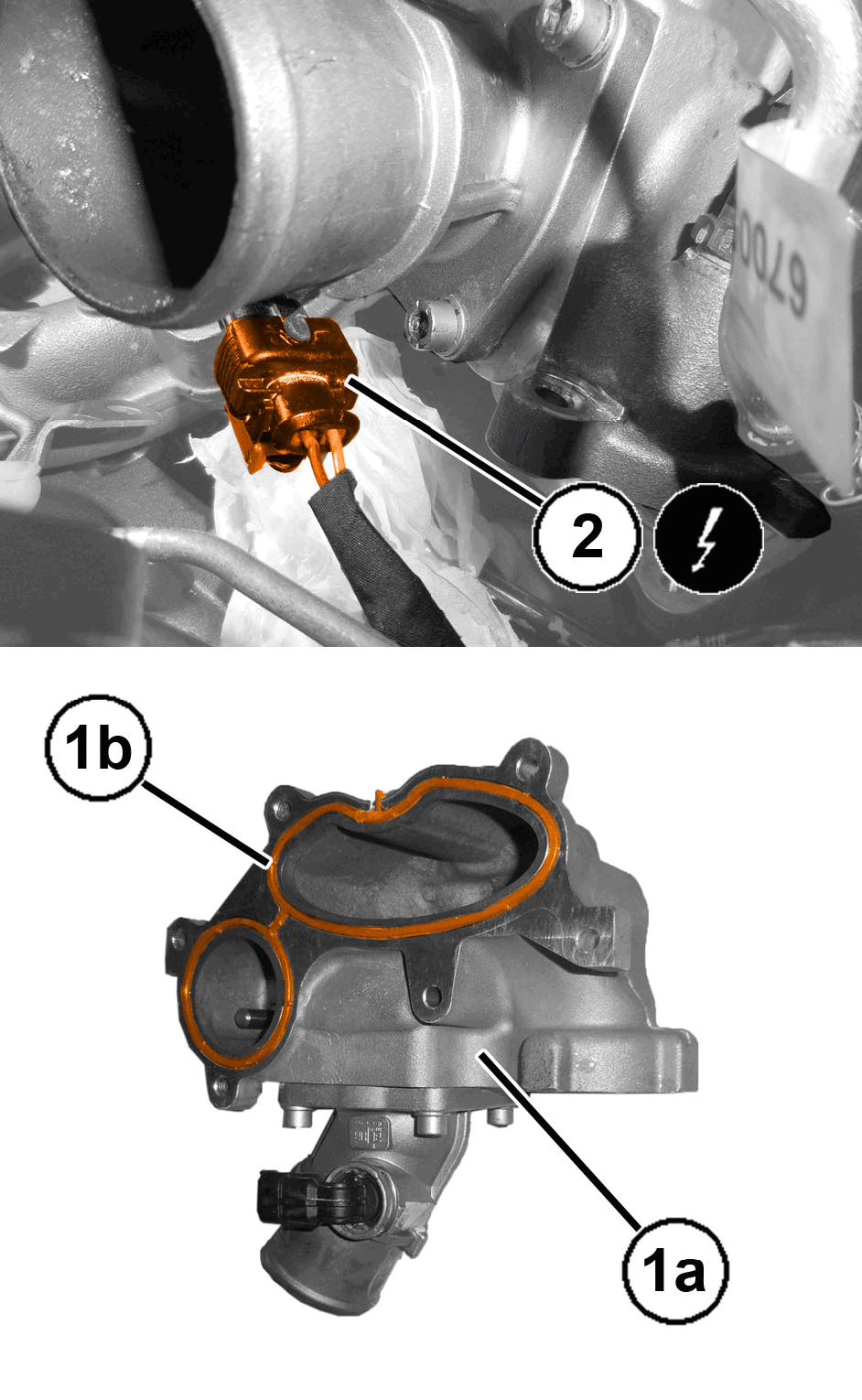

4. Install the thermostat support (1a) complete with seal (1b).
5. connect the thermostat electrical connection (2).

   Courtesy of CHRYSLER GROUP, LLC

6. Install the pump coolant inlet connector (1a) to the thermostat support and tighten the bolts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

7. Tighten the center thermostat support bolt (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

8. Tighten the rear thermostat support bolts (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

9. Tighten the right-hand side thermostat support bolts (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

10. Tighten the left-hand side thermostat support bolts (1) to the proper. Refer to TORQUE SPECIFICATIONS .

    Courtesy of CHRYSLER GROUP, LLC

11. Connect the air temperature sensor electrical connection (1).

    Courtesy of CHRYSLER GROUP, LLC

12. Install the radiator water supply hose (1a) and tighten the band clamp (1b).

    Courtesy of CHRYSLER GROUP, LLC

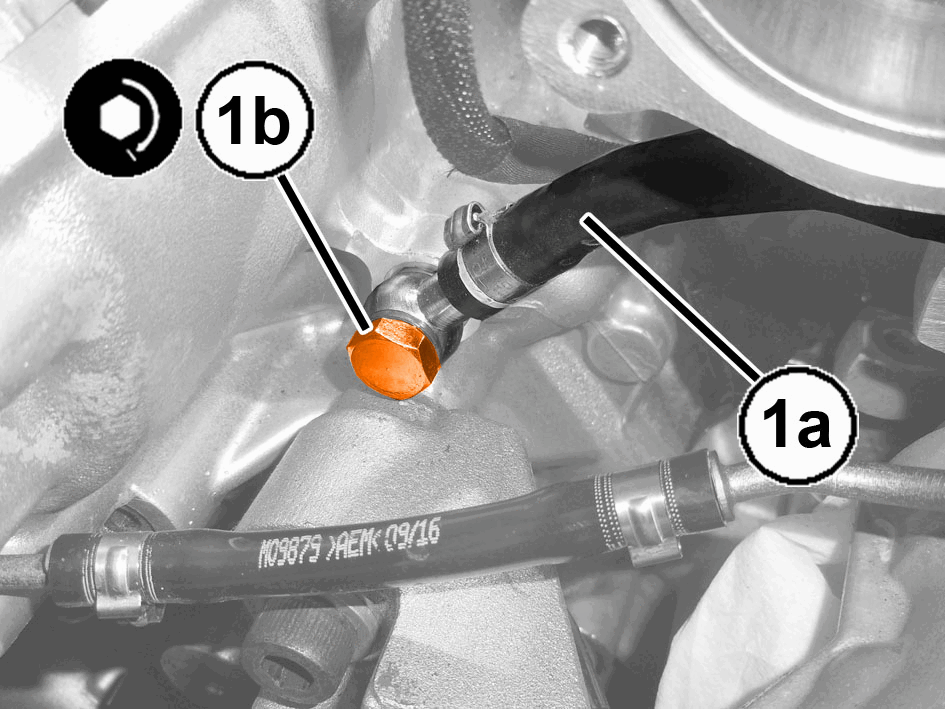

13. Install the degassing hose (1a) on the right cylinder head and tighten the union bolt (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

    Courtesy of CHRYSLER GROUP, LLC

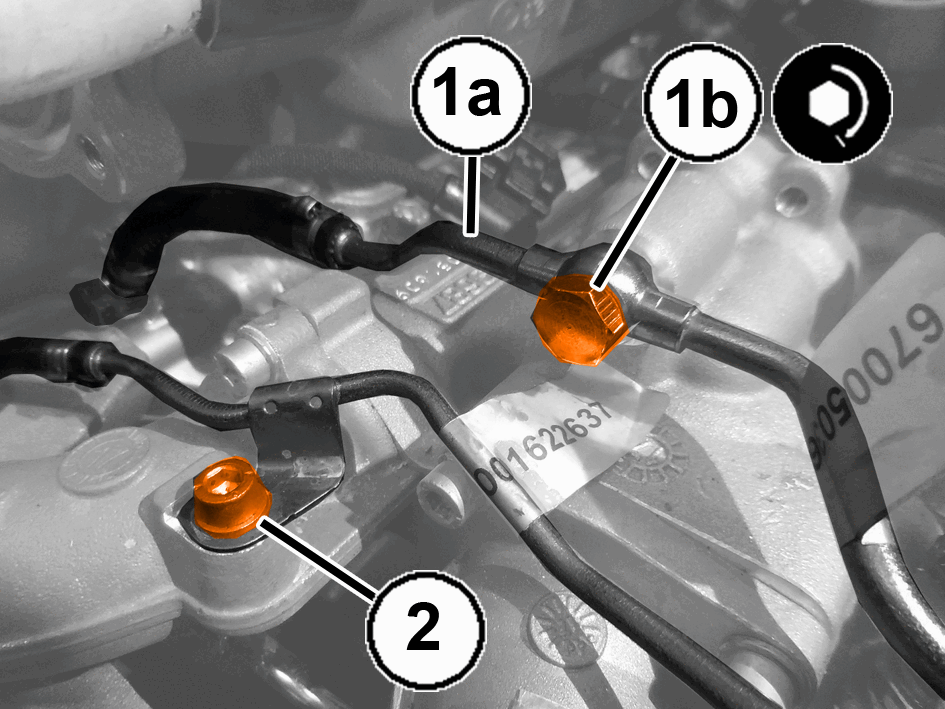

14. Install the degassing pipe (1a) on the thermostat support and tighten the union bolt (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
15. Install and securely tighten the waste-gate solenoid valve vacuum pipe bolt (2).

    Courtesy of CHRYSLER GROUP, LLC

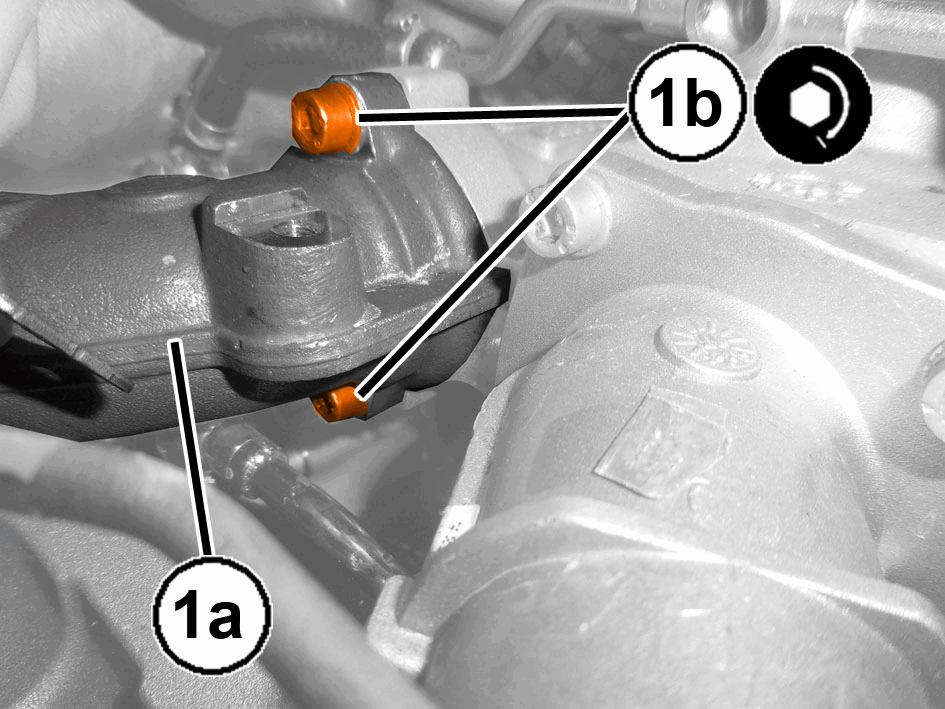

16. Connect the thermostat coolant return pipes (1a) and the degassing pipe (1b) to the thermostat support and securely tighten the screws (1c).

    Courtesy of CHRYSLER GROUP, LLC

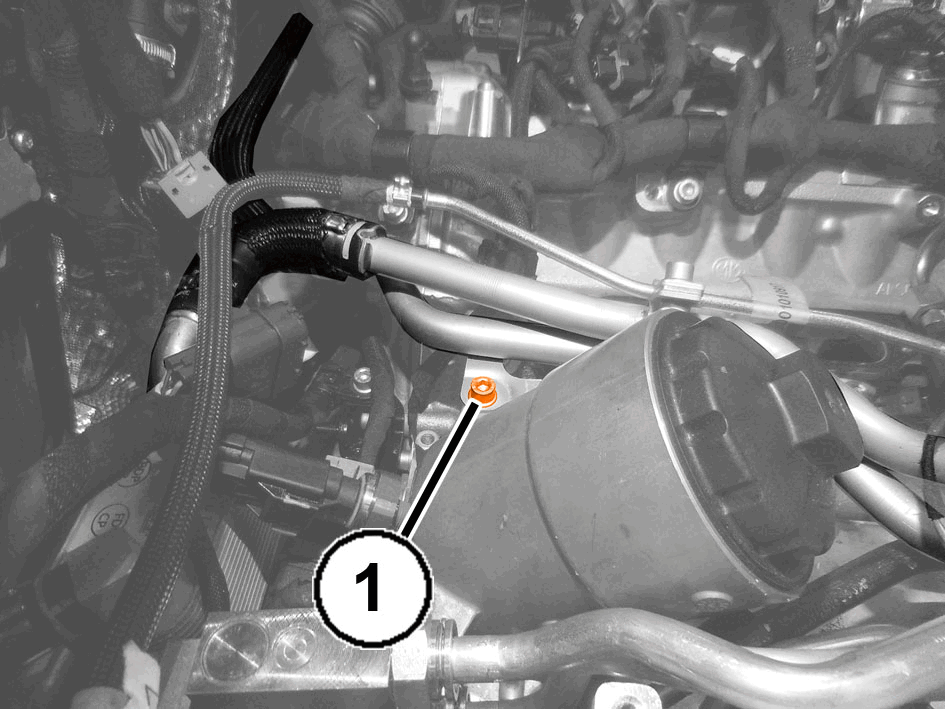

17. Install and securely tighten the thermostat coolant return pipes mounting bracket bolt (1).

    Courtesy of CHRYSLER GROUP, LLC

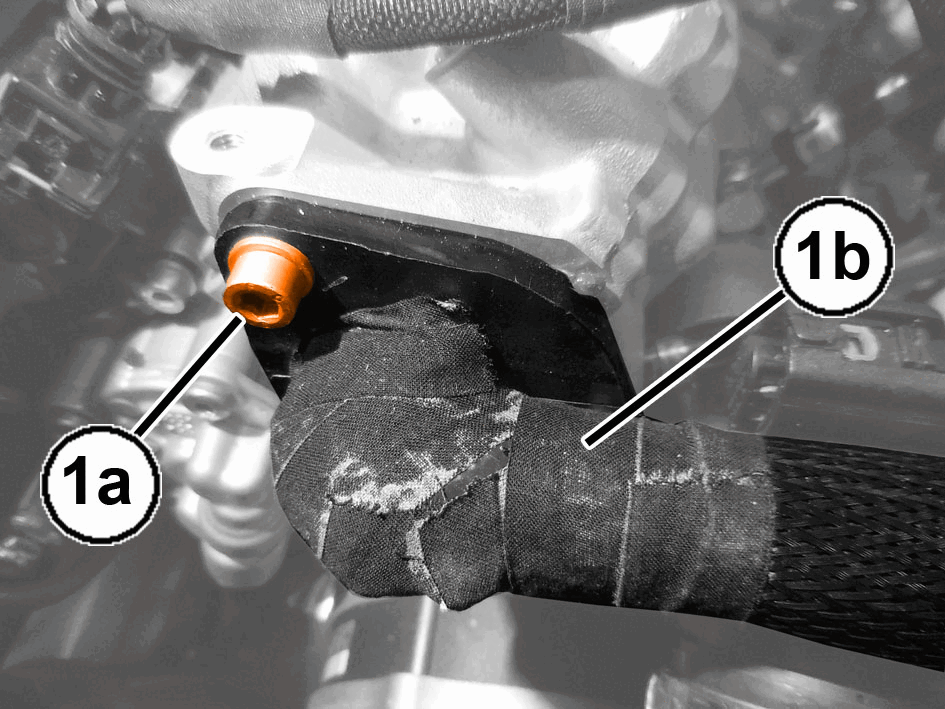

18. Install the oil vapor hose (1a) and securely tighten the bolts (1b).

    Courtesy of CHRYSLER GROUP, LLC

19. Install the right fuel pressure sensor electrical connection support bracket (1a) and securely tighten the bolt (1b).

    Courtesy of CHRYSLER GROUP, LLC

20. Connect the right fuel pressure sensor electrical connection (1).

    Courtesy of CHRYSLER GROUP, LLC

21. Connect the quick coupling (1) for the fuel vapor hose.
22. Install and securely tighten the automatic transmission cooling lines bracket bolt (2).
23. Install the right throttle body. Refer to THROTTLE BODY, REMOVAL AND INSTALLATION .
24. Install the left side cylinder head intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL AND INSTALLATION .
25. Fill the hight temperature (HT) cooling system. Refer to COOLING/STANDARD PROCEDURE .
26. Connect the negative battery cable.
27. Remove the support and lower he vehicle.
