Removal And Installation

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect and isolate the negative battery cable.
3. Drain the high temperature (HT) cooling system. Refer to COOLING/STANDARD PROCEDURE .
4. Remove the primary low temperature (LT) radiator. Refer to RADIATOR, LOW TEMPERATURE, REMOVAL AND INSTALLATION  .

   Courtesy of CHRYSLER GROUP, LLC

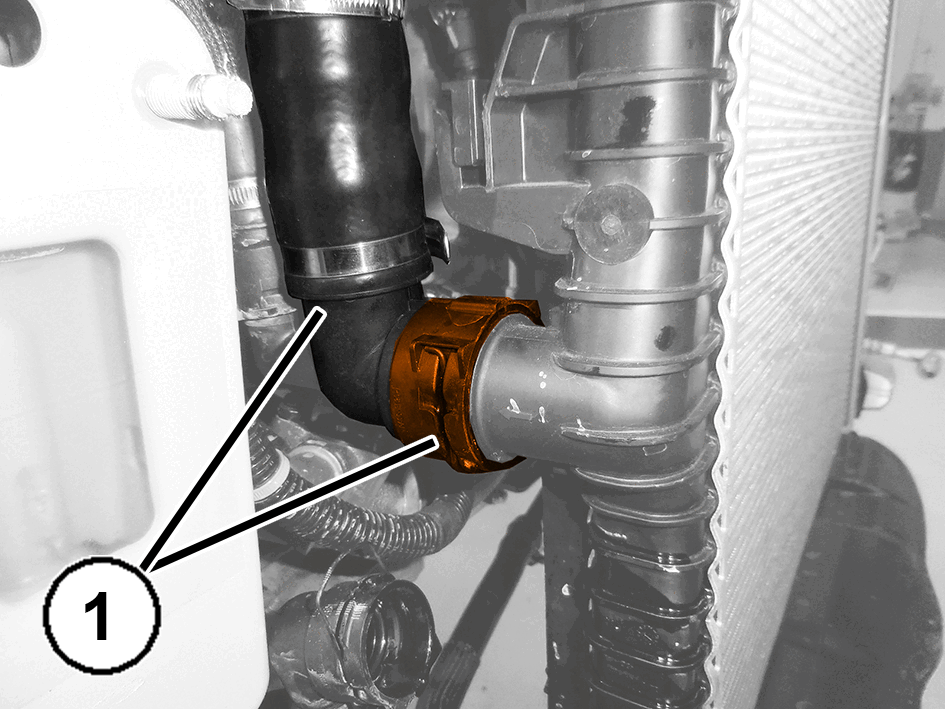

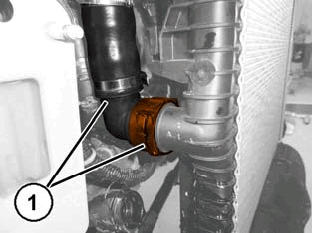

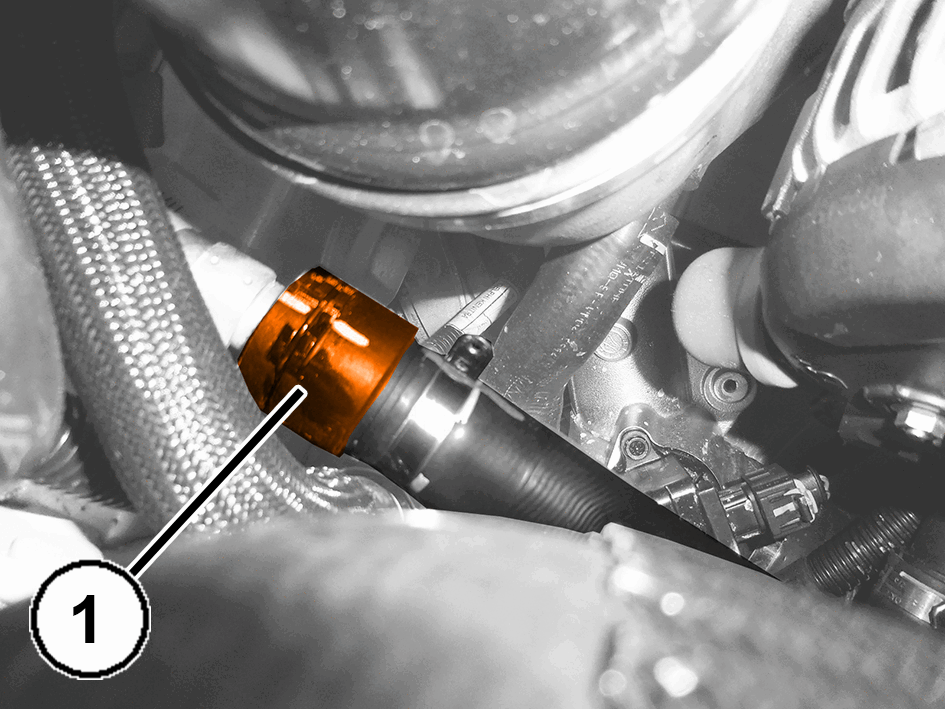

5. Release the retaining clip and remove the water supply hose quick coupling (1) from the radiator.

   Courtesy of CHRYSLER GROUP, LLC

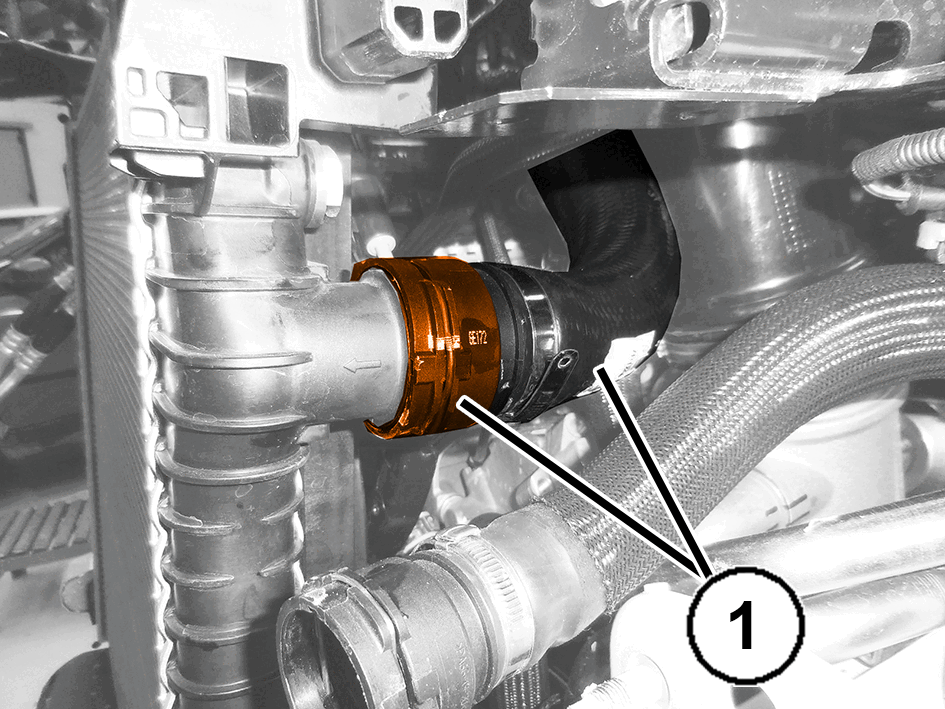

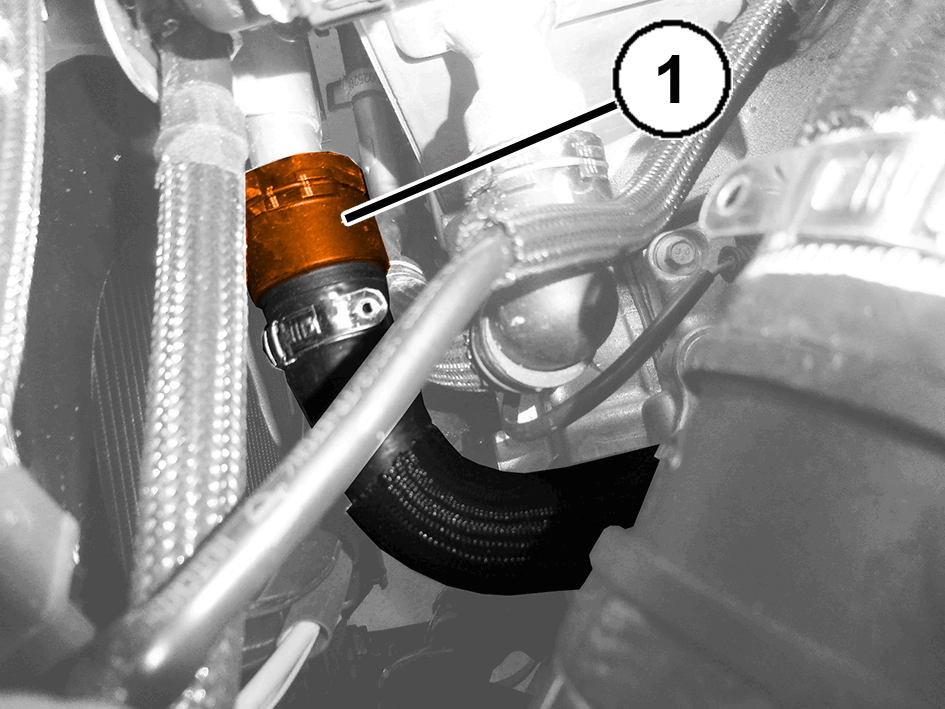

6. Release the retaining clip and remove the water outlet hose quick coupling (1) from the radiator.

   Courtesy of CHRYSLER GROUP, LLC

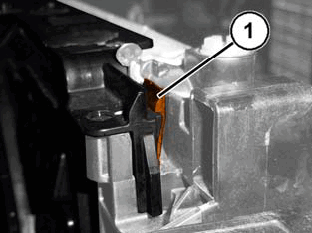

7. Release the retaining clip and remove the coolant inlet hose quick coupling (1) from the rigid coolant supply pipe.

   Courtesy of CHRYSLER GROUP, LLC

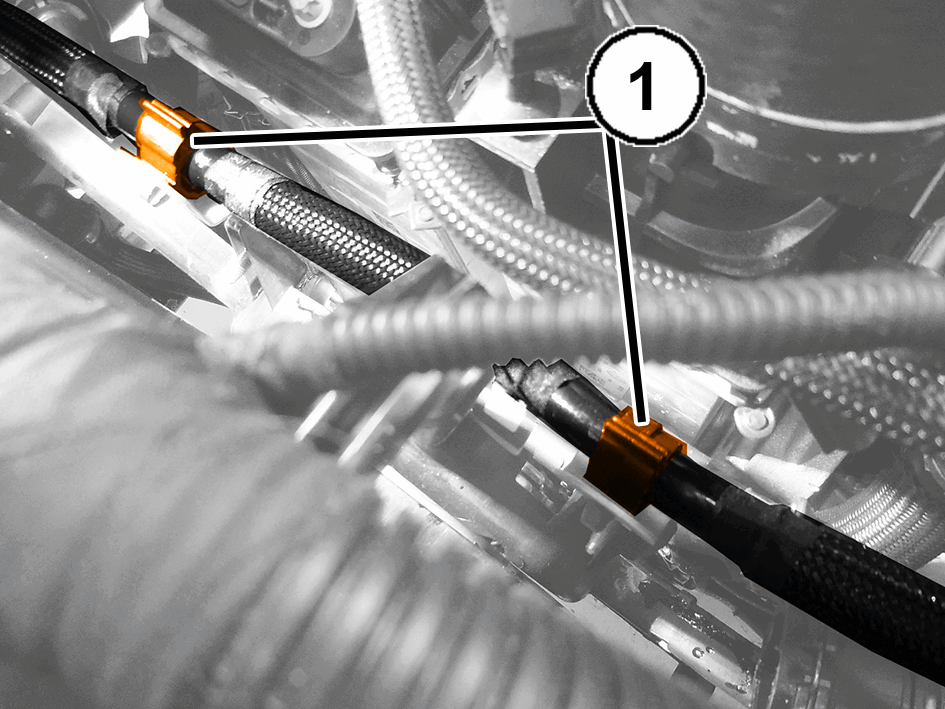

8. Disengage the fuel vapor hose from the retaining clips (1).

   Courtesy of CHRYSLER GROUP, LLC

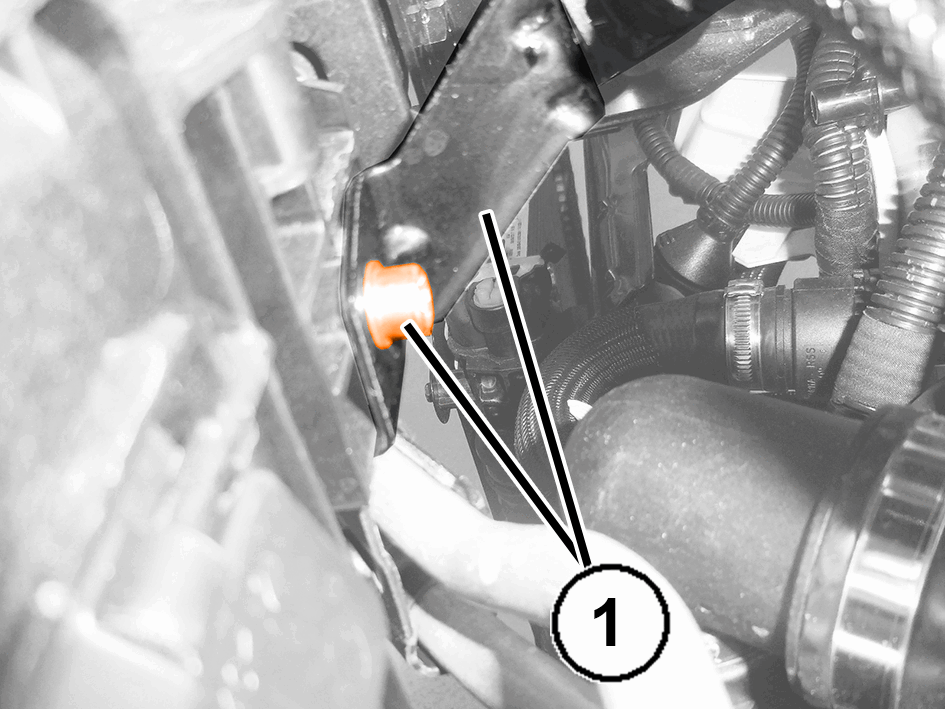

9. Release the retaining clip and remove the coolant outlet hose quick coupling (1) from the rigid coolant supply pipe.

   Courtesy of CHRYSLER GROUP, LLC

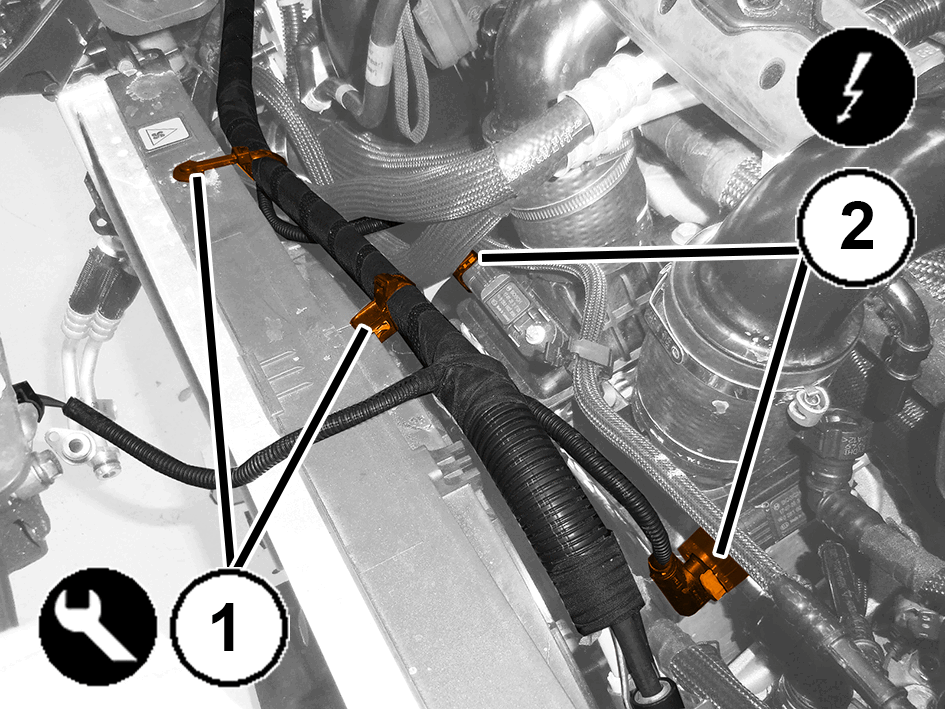

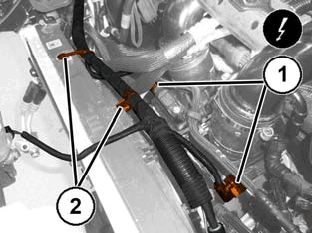

10. Use the (special tool #C-4829A, Remover, Trim) (1a) to release the wiring retaining clips (1).
11. Disconnect the air pressure/temperature wire harness connectors (2) and reposition the wire harness.

    Courtesy of CHRYSLER GROUP, LLC

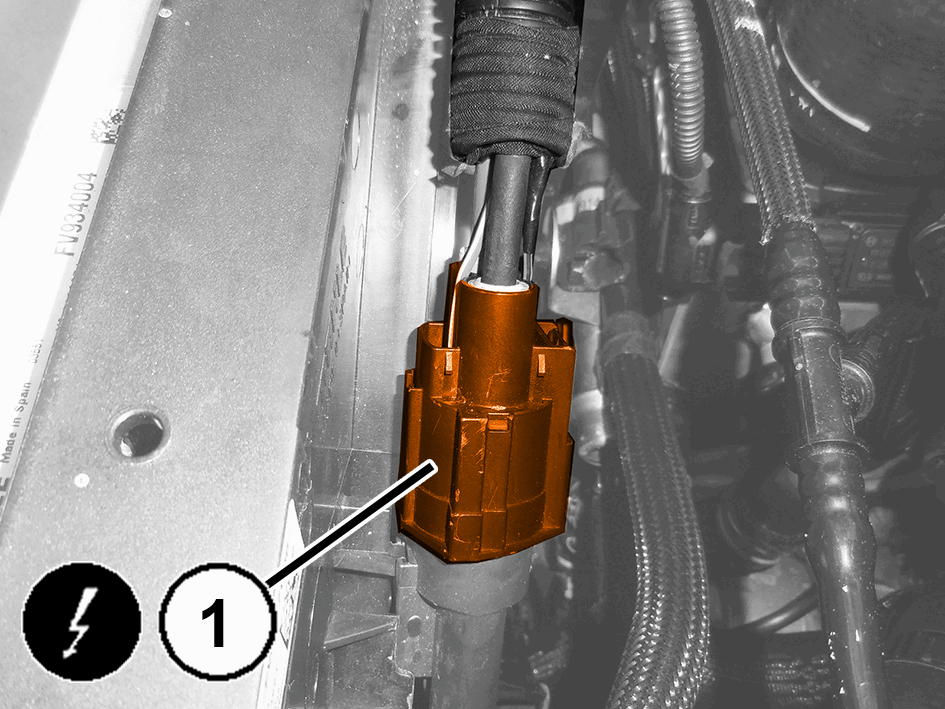

12. Disconnect the cooling fan wire harness connector (1).

    Courtesy of CHRYSLER GROUP, LLC

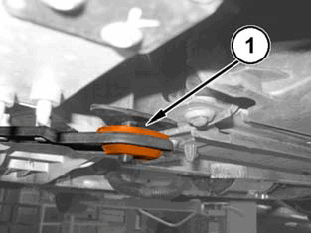

13. Remove the bolt from the transmission cooling lines support bracket (1).

    Courtesy of CHRYSLER GROUP, LLC

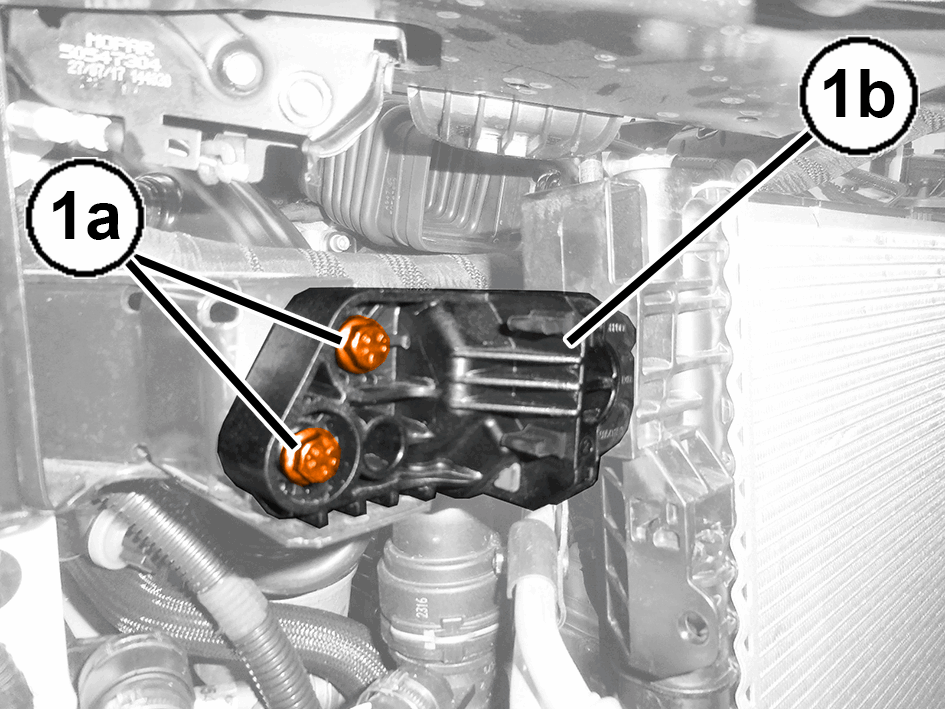

14. Remove the bolts (1a) from the right radiator support mount (1b).

    Courtesy of CHRYSLER GROUP, LLC

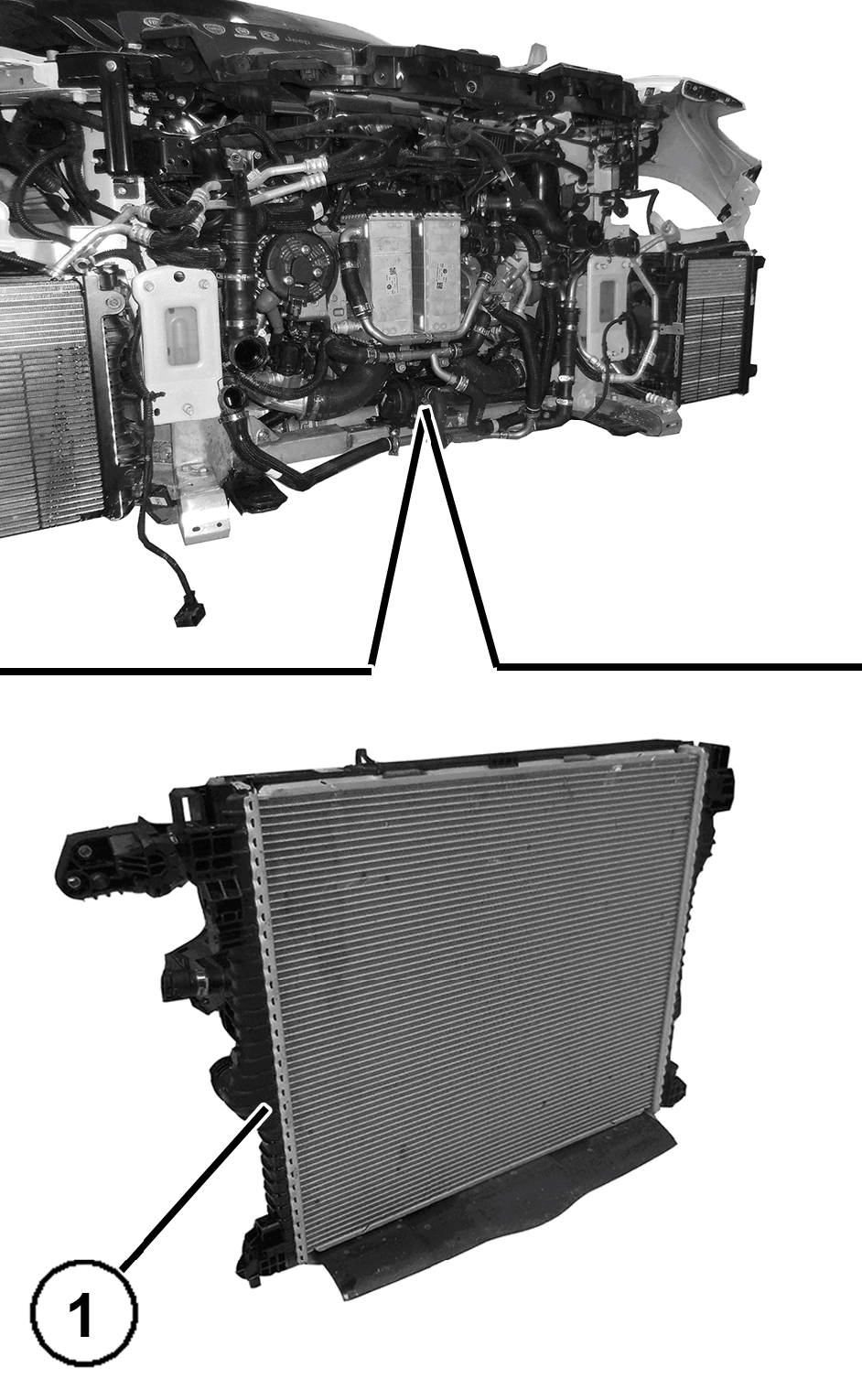

15. Release the lower locating pins from the radiator support mounts and remove the radiator (1).

    Courtesy of CHRYSLER GROUP, LLC

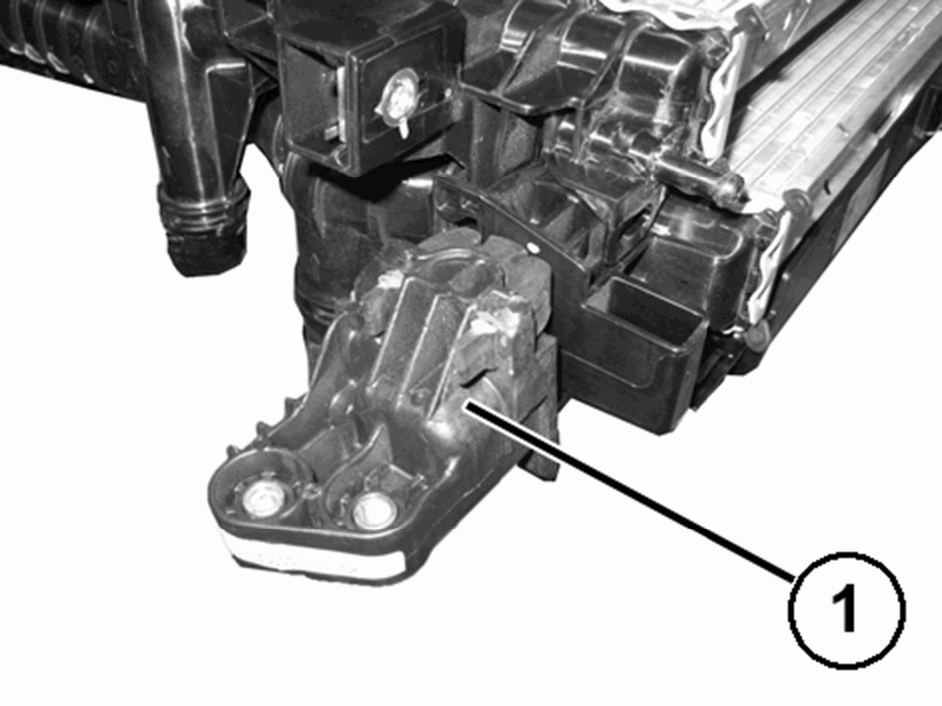

16. Remove the radiator support mount (1).

    Courtesy of CHRYSLER GROUP, LLC

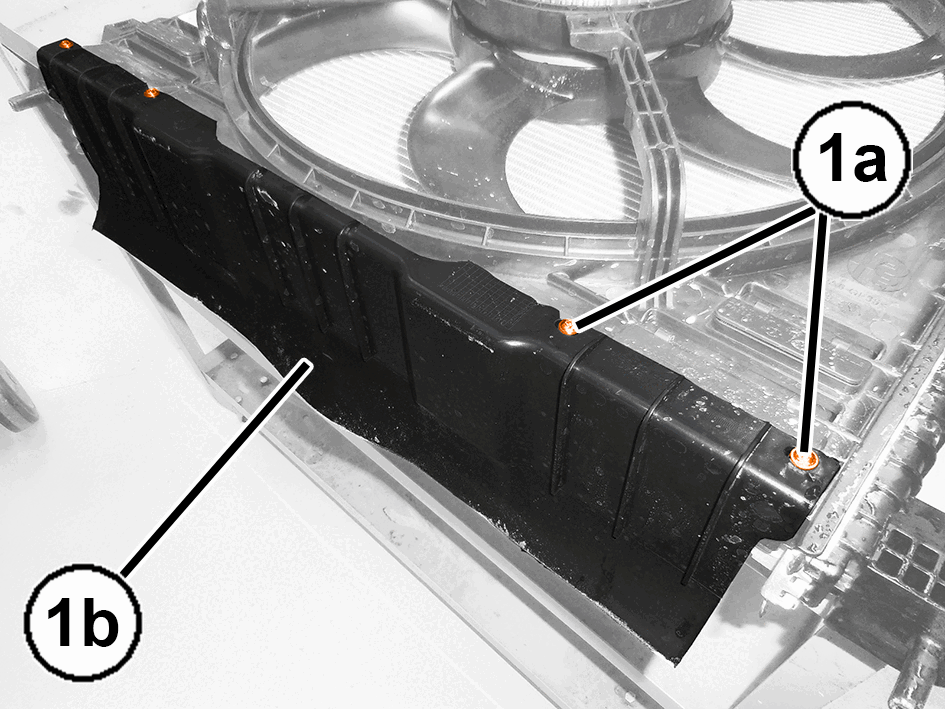

17. Remove the bolts (1a) and remove the lower air deflector (1b) from the cooling fan shroud.

    Courtesy of CHRYSLER GROUP, LLC

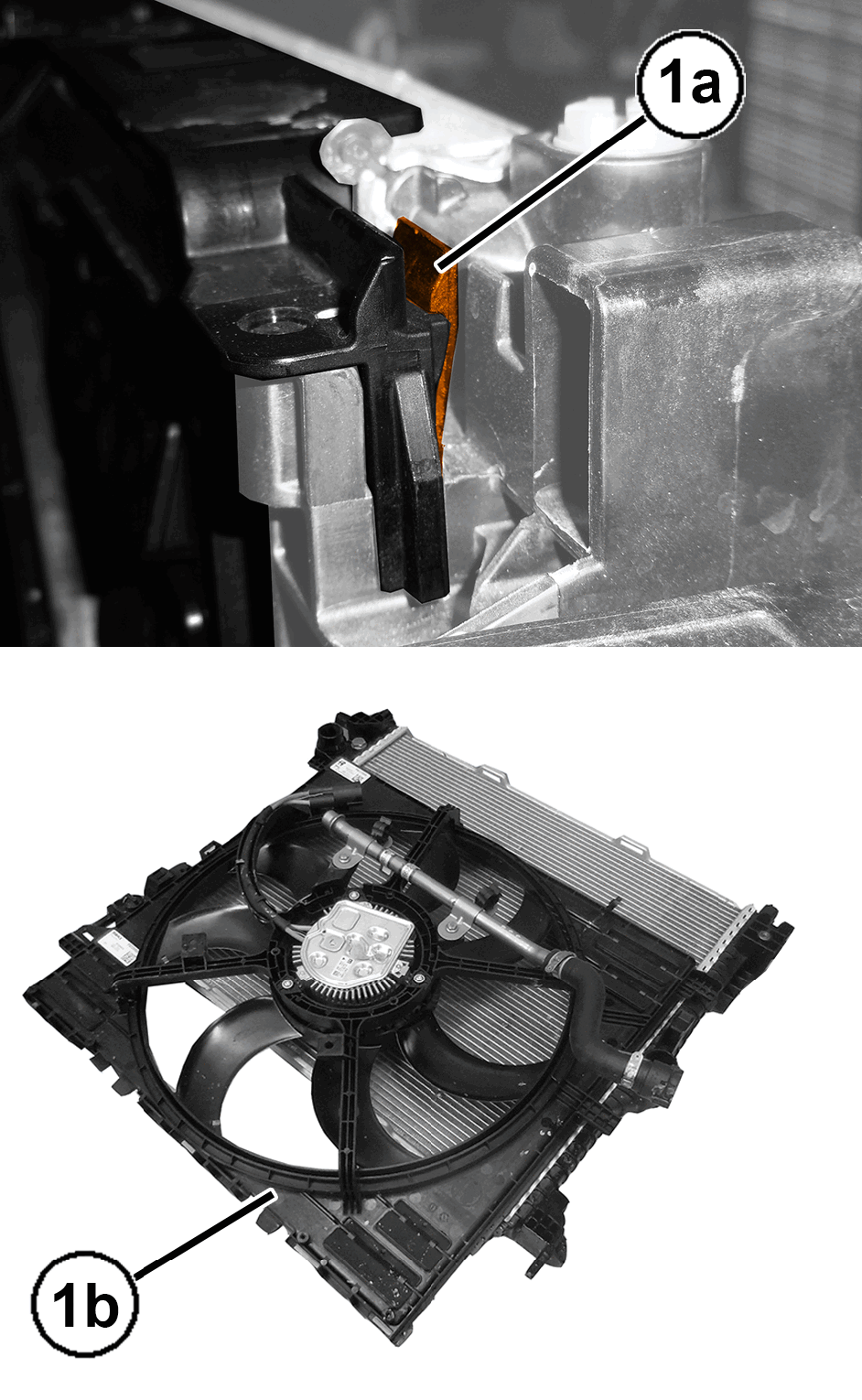

18. Release the retaining clips (1a) and remove the cooling fan (1b) from the radiator.

    Courtesy of CHRYSLER GROUP, LLC

19. Remove the bolts (1a) and remove the rigid coolant supply pipe (1b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

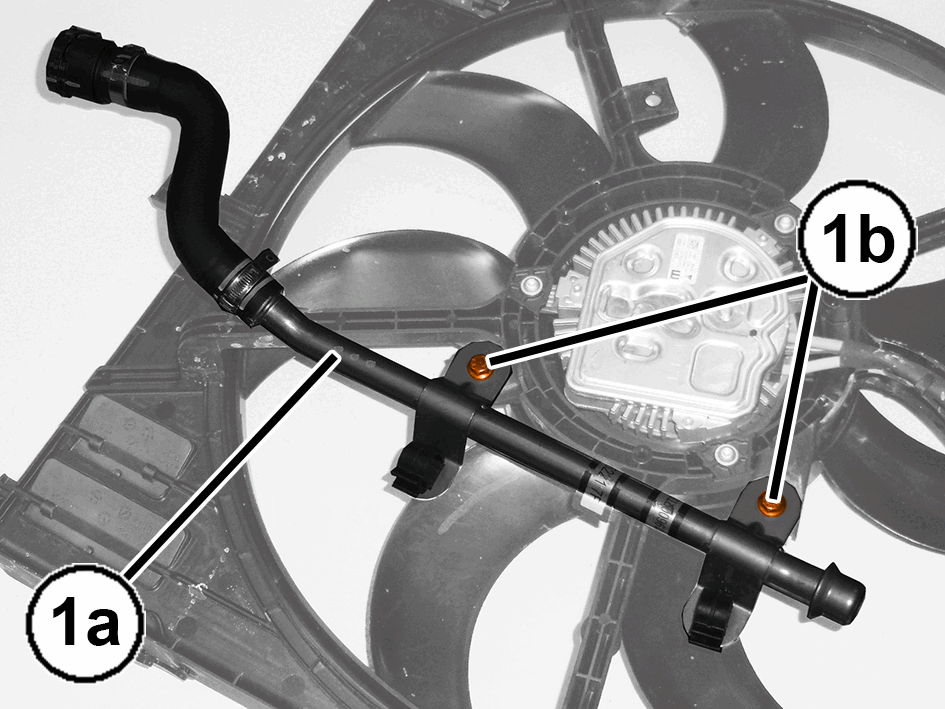

1. Install the rigid coolant supply pipe (1a) on the fan shroud and securely tighen he bolts (1b).

   Courtesy of CHRYSLER GROUP, LLC

2. Install the cooling fan on the radiator and engage the retaining clips (1).

   Courtesy of CHRYSLER GROUP, LLC

3. Install the lower air deflector (1a) onto the cooling fan shroud and securely tighten the bolts (1b).

   Courtesy of CHRYSLER GROUP, LLC

4. Install the radiator and engage the lower locating pins in the radiator support mounts.
5. On both sides, insert a suitable tool (spacer) at the point indicated in the figure (1) to obtain a 9 mm gap between the bracket and the radiator.

   Courtesy of CHRYSLER GROUP, LLC

6. Install the right radiator support mount (1b) and securely tighten the bolts (1a).

   Courtesy of CHRYSLER GROUP, LLC

7. Install the transmission cooling lines support bracket and securely tighten the bolt (1).

   Courtesy of CHRYSLER GROUP, LLC

8. Connect the cooling fan wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

9. Connect the air pressure/temperature wire harness connectors (1).
10. Engage the wiring retainers (2).

    Courtesy of CHRYSLER GROUP, LLC

11. Connect the coolant outlet hose quick coupling (1) to the rigid coolant supply pipe and engage the retaining clip.

    Courtesy of CHRYSLER GROUP, LLC

12. Engage the fuel vapor hose to the retaining clips (1).

    Courtesy of CHRYSLER GROUP, LLC

13. Connect the coolant inlet hose quick coupling (1) to the rigid coolant supply pipe and engage the retaining clip.

    Courtesy of CHRYSLER GROUP, LLC

14. Connect the water outlet hose quick coupling (1) to the radiator and engage the retaining clip.

    Courtesy of CHRYSLER GROUP, LLC

15. Connect the water supply hose quick coupling (1) to the radiator and engage the retaining clip.
16. Install the primary low temperature (LT) radiator. Refer to RADIATOR, LOW TEMPERATURE, REMOVAL AND INSTALLATION  .
17. Fill the high temperature (HT) cooling system. Refer to COOLING/STANDARD PROCEDURE .
18. Connect the negative battery cable.
19. Remove the support and lower the vehicle.
