Removal And Installation: Installation
WARNING: This page is about a different variant/trim than selected.

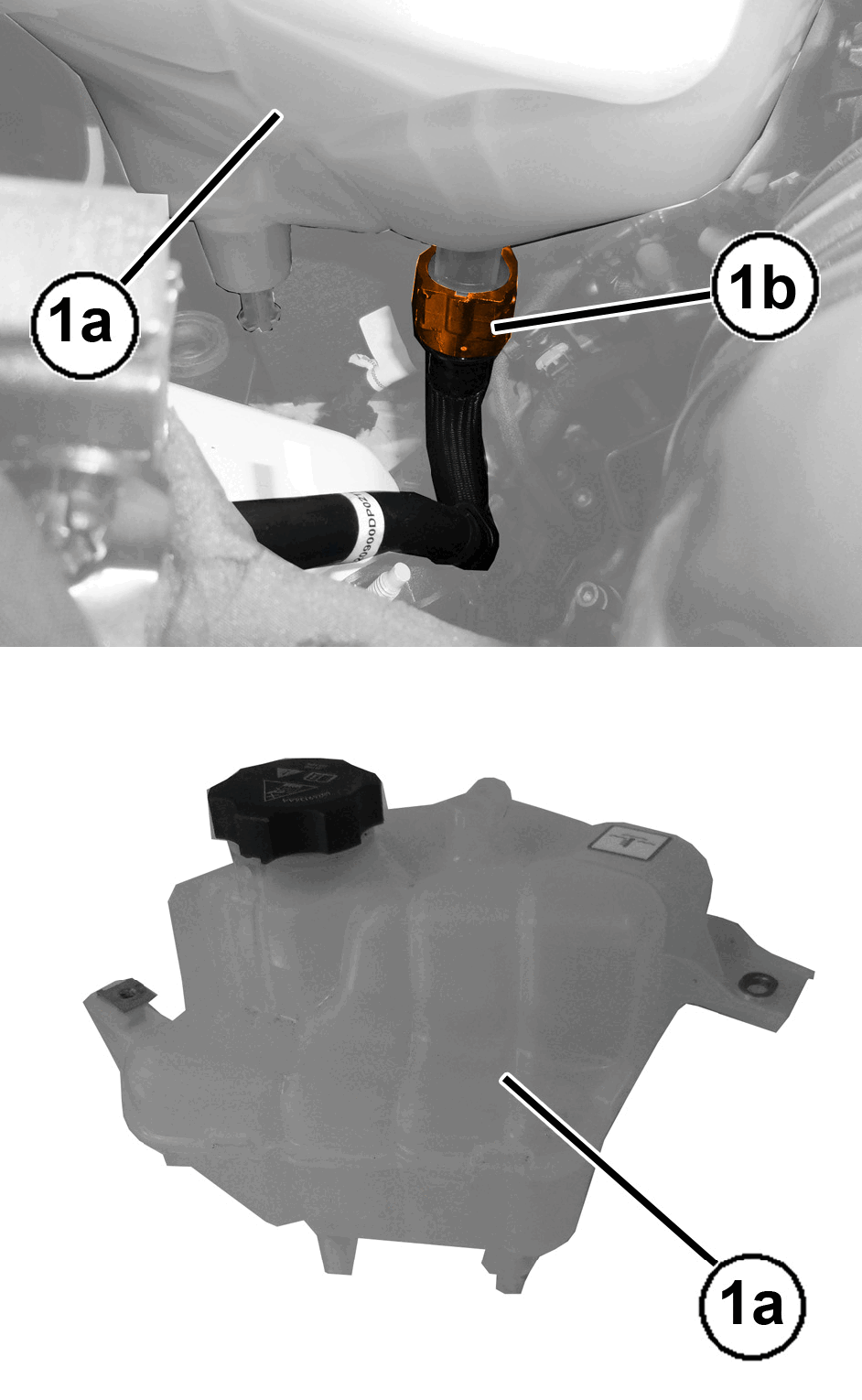

- Install the pressurized coolant bottle (1a) and engage the rubber retaining grommets.
- Connect the coolant hose quick connect coupling (1b).

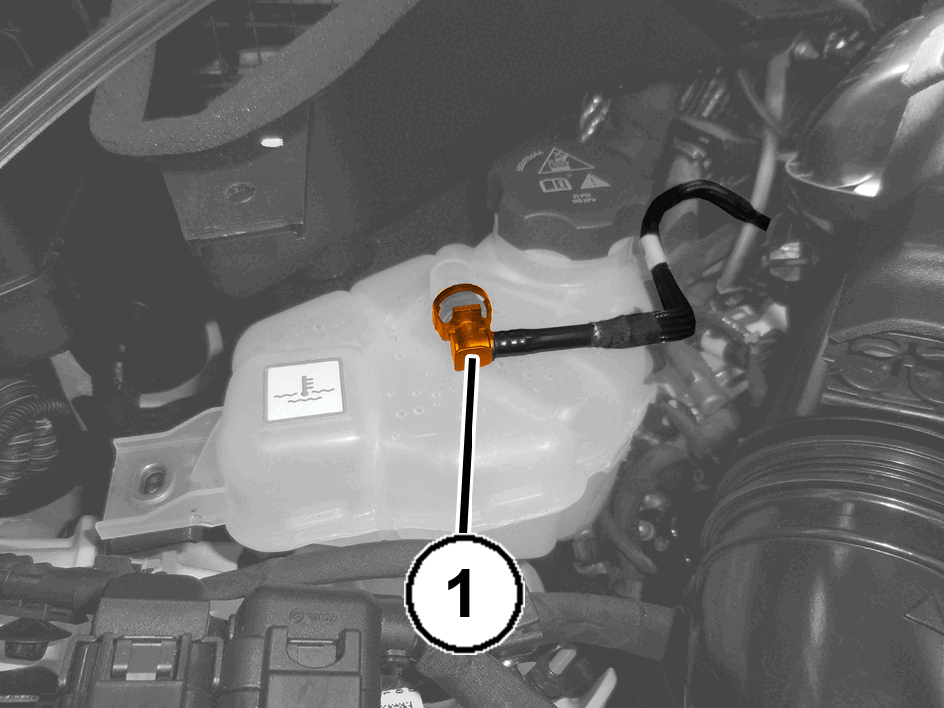

- Install the degassing hose quick connect coupling (1) to the pressurized coolant bottle.
- Fill the high temperature (HT) cooling system. Refer to COOLING/STANDARD PROCEDURE .
- Install the right side engine box reinforcement brace. Refer to BRACE, ENGINE BOX REINFORCEMENT, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
