Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the Charge Air Cooler (CAC) and support bracket. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .

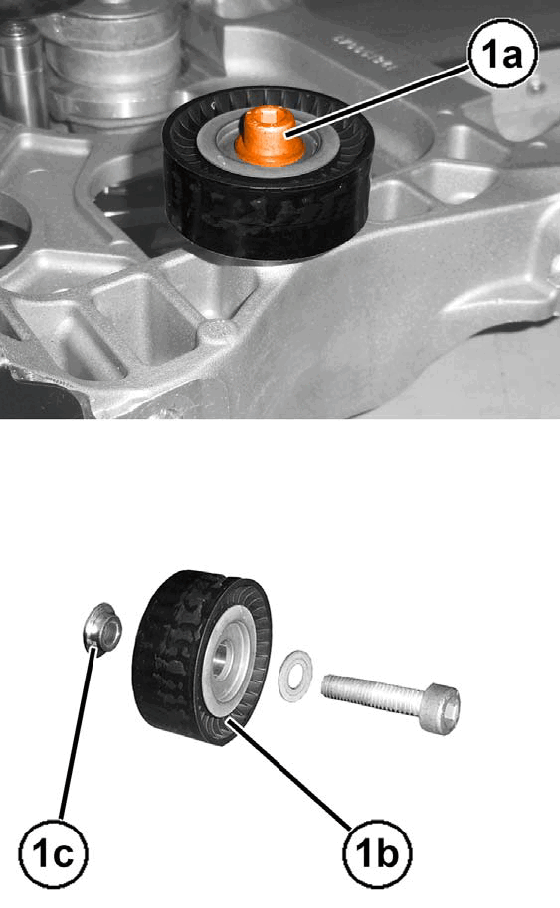

    GC0195567Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolt (1a) and the idler pulley (1b) with the conical washer (1c).

INSTALLATION

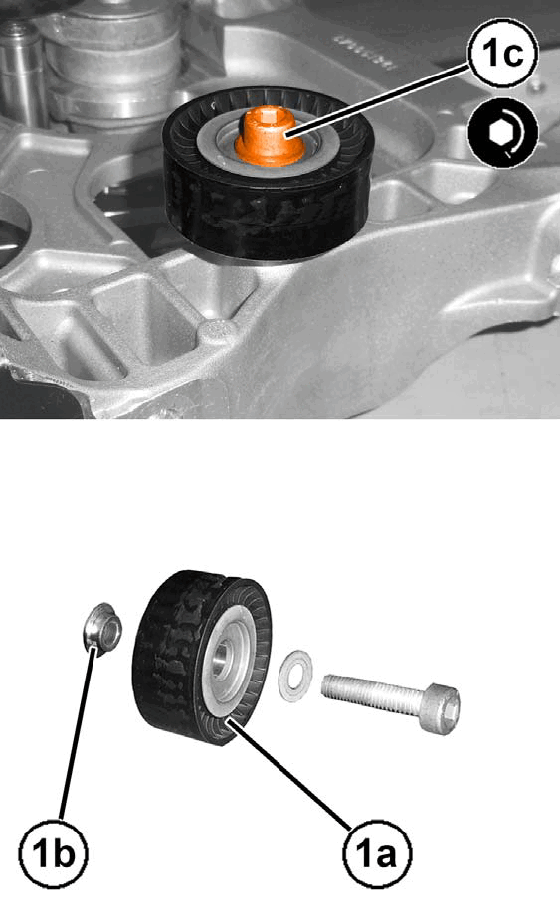

GC0195820Courtesy of CHRYSLER GROUP, LLC
  1. Install the idler pulley (1a) with the conical washer (1b) and tighten the bolt (1c) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  2. Install the Charge Air Cooler (CAC) and support bracket. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .
  3. Connect the negative battery cable.
