Front Under-Body Heat Shield

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

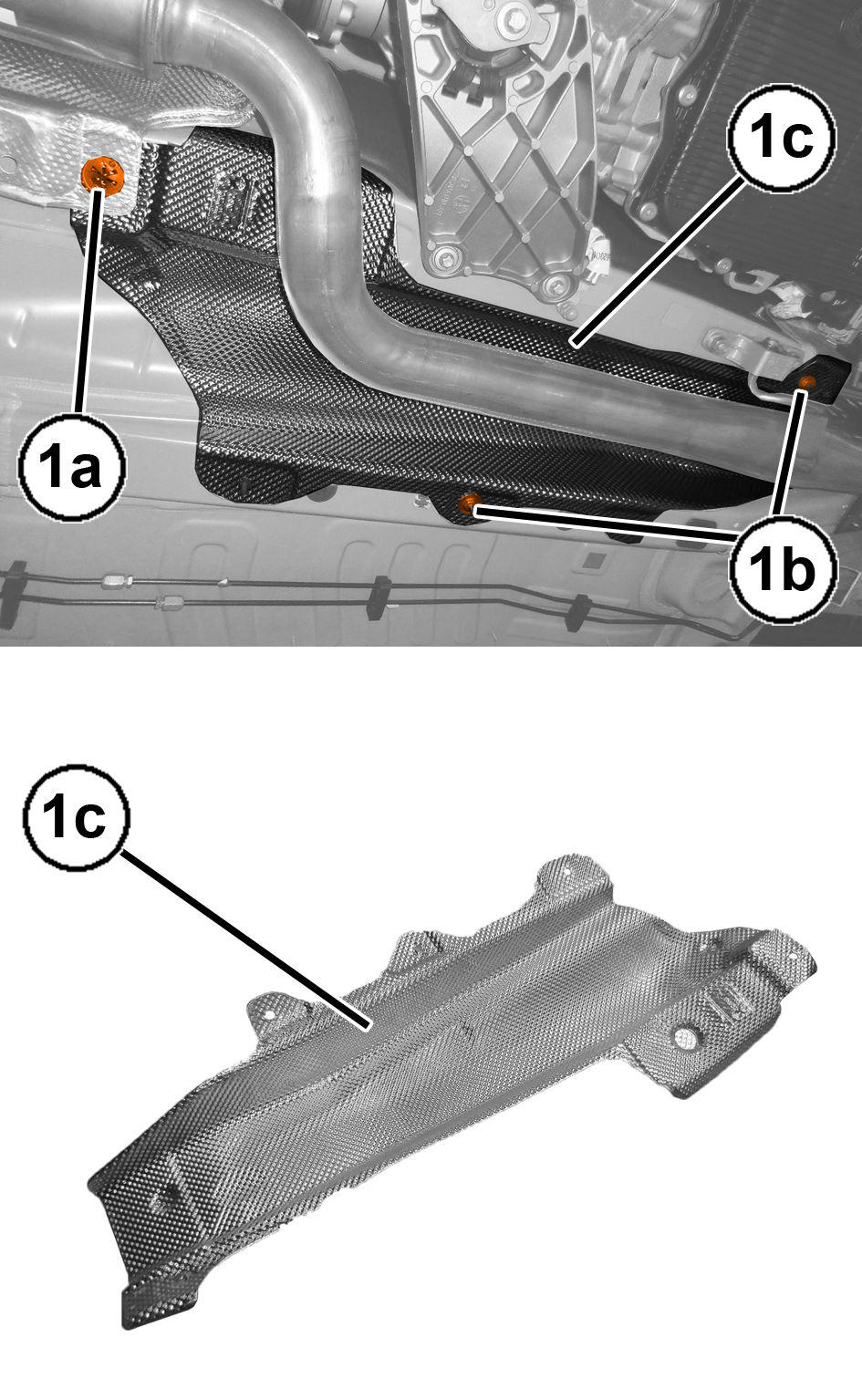

2. Remove the corrugated washer (1a), the retaining nuts (1b) and remove the front under-body heat shield (1c).

INSTALLATION

1. Position the front under-body heat shield in place, install the corrugated washers and tighten the retaining nuts.
2. Remove the support and lower the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
