Rear Vacuum Line

REMOVAL

Courtesy of CHRYSLER GROUP, LLC

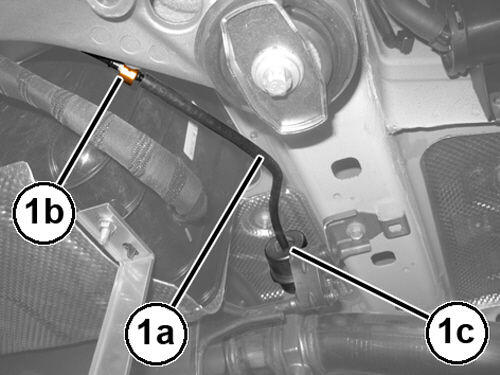

1. Release the pipe (1a) from the retaining clip (1b) and remove it from the right exhaust muffler by-pass actuator (1c).

   Courtesy of CHRYSLER GROUP, LLC

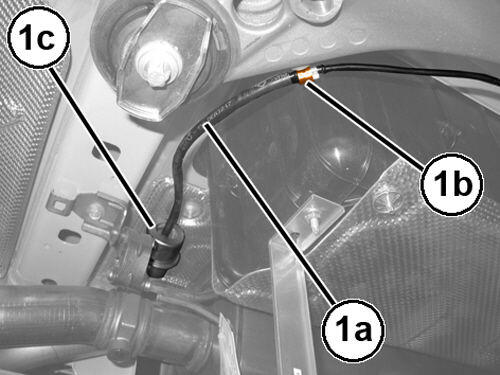

2. Release the pipe (1a) from the retaining clip (1b) and remove it from the left exhaust muffler by-pass actuator (1c).

   Courtesy of CHRYSLER GROUP, LLC

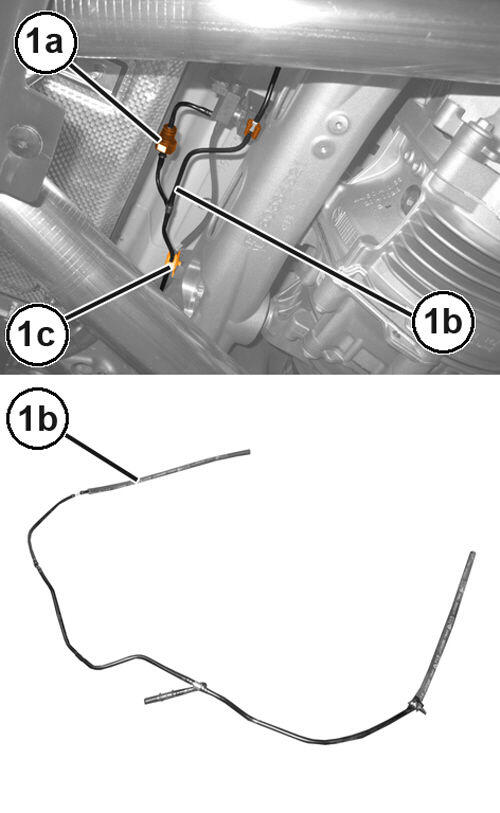

3. Disconnect the quick coupling (1a), release the pipe between the control solenoid valve and the exhaust muffler by-pass actuators (1b) from the retaining clips (1c) and remove it.

INSTALLATION

1. Install the pipe between the control solenoid valve and the exhaust muffler by-pass actuators, connect the quick coupling and engage the retaining clips.
2. Connect the exhaust muffler by-pass actuators pipe and secure the retaining clips.
