Intermediate Vacuum Line

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Courtesy of CHRYSLER GROUP, LLC

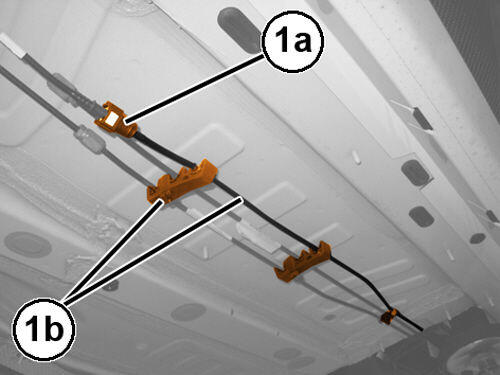

Disconnect the quick coupling (1a) and remove the intermediate vacuum line (1b) from the retaining clips.

Courtesy of CHRYSLER GROUP, LLC

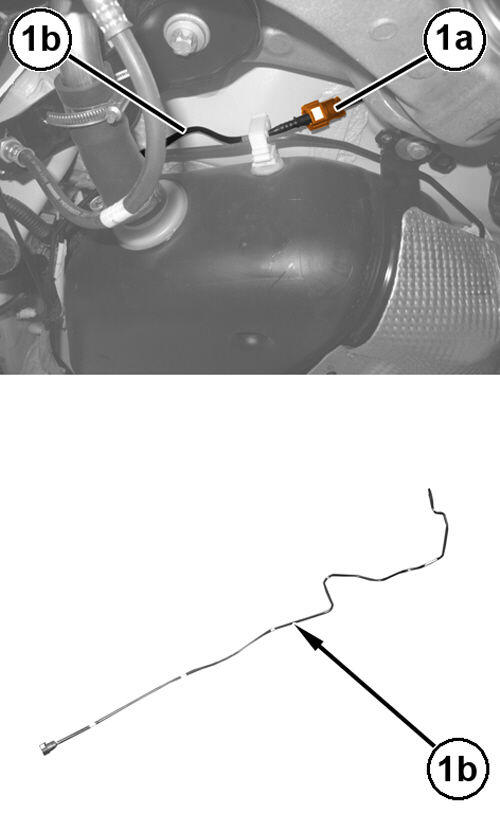

Disconnect the quick coupling (1a) and remove the intermediate vacuum line between the front pipe and the exhaust muffler by-pass actuators control solenoid valve (1b).

INSTALLATION

Install the intermediate vacuum line between the front vacuum line and the exhaust muffler by-pass actuators control solenoid valve, connect the quick couplings and engage the retaining clips.
