Description And Operation
WARNING: This page is about a different variant/trim than selected.

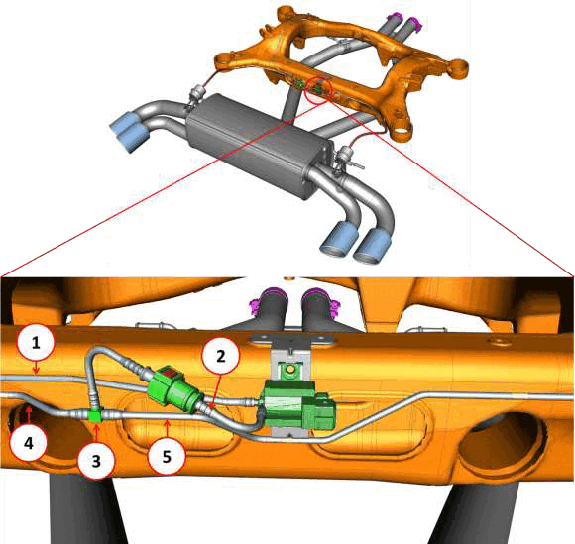

- 1 - Vacuum pipe coming from the vacuum/reservoir accumulator.
- 2 - Solenoid valve connection pipe - pneumatic actuators.
- 3 - T joint.
- 4 - Offshoot of pipe towards the left dynamic exhaust actuator.
- 5 - Offshoot of pipe towards the right dynamic exhaust actuator.
The solenoid valve is held by a support bracket which is in turn mounted on the rear suspension crossbar.

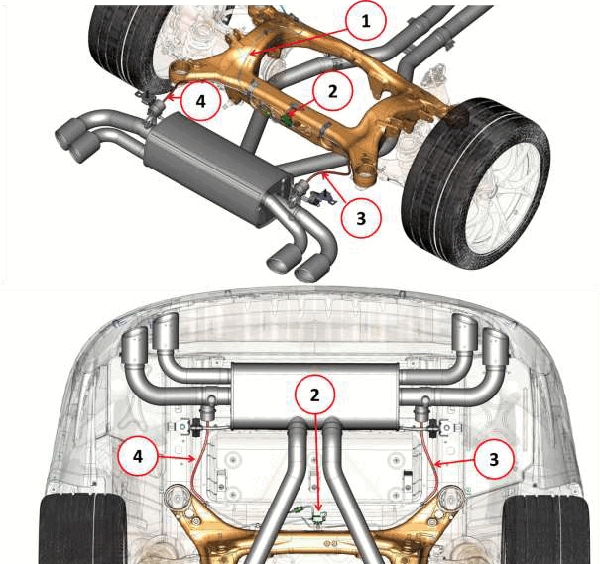

- 1 - Vacuum pipe coming from the vacuum/reservoir accumulator.
- 2 - By-pass solenoid valve.
- 3 - Solenoid valve connection pipe - pneumatic actuators.
- 4 - Solenoid valve connection pipe - pneumatic actuators.
