Description And Operation
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

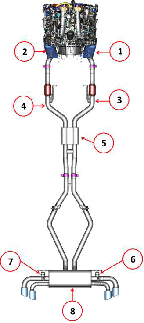

The exhaust system supports its respective engine bank with the following components:
- 1 - Right bank catalytic converter
- 2 - Left bank catalytic converter
- 3 - Right drainage pipe
- 4 - Left drainage pipe
- 5 - Pre-silencer
- 6 - Right by-pass exhaust pipe
- 7 - Left by-pass exhaust pipe
- 8 - Muffler
