Removal And Installation

REMOVAL

1. Remove the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION or BELLY PAN, REAR, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

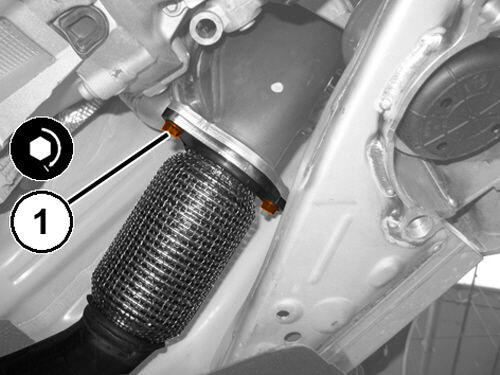

2. Remove and discard the front exhaust pipe to the catalytic converter nuts (1).

   Courtesy of CHRYSLER GROUP, LLC

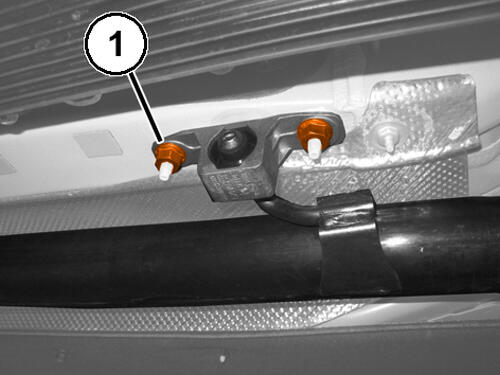

3. Remove the isolator mount of the front exhaust pipe flexible mounting to the body nuts (1).

   Courtesy of CHRYSLER GROUP, LLC

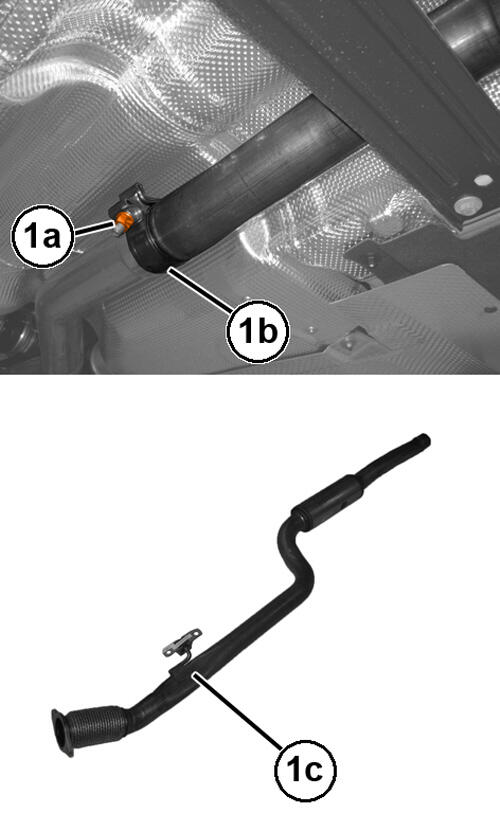

4. Loosen the nut (1a), the collar (1b), and remove the exhaust pipe with flexible stretch (1c).
5. Remove the gasket.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

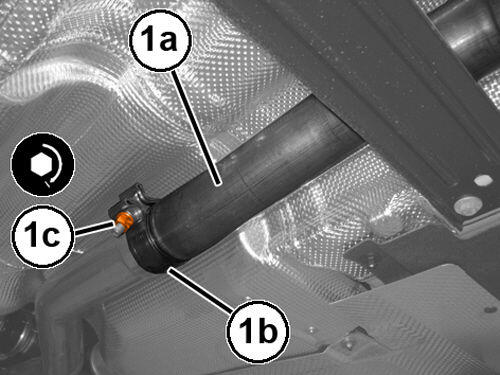

1. Install the front exhaust pipe with flexible stretch (1a) in its housing, complete with NEW  gasket, secure the collar (1b) and tighten the nut (1c) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

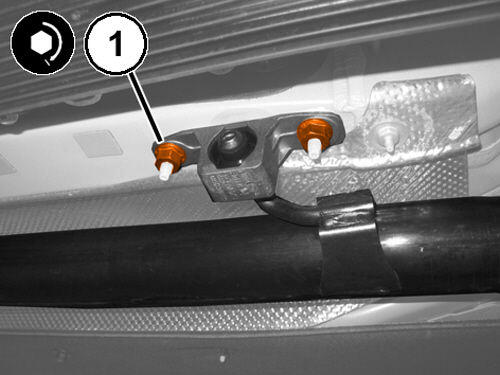

2. Tighten the isolator mount of the front exhaust pipe flexible mounting to the body nuts (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

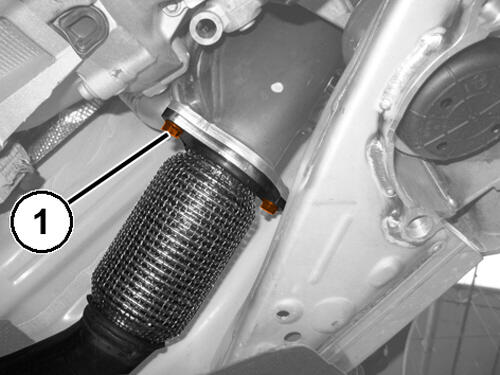

3. Install the NEW  nuts (1) securing the exhaust pipe to the catalytic converter and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
4. Install the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION or BELLY PAN, REAR, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
