Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
2. Remove the center air outlet that houses the hazard warning switch. Refer to OUTLET, AIR, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

3. Disconnect the wire harness connector from the hazard warning switch.

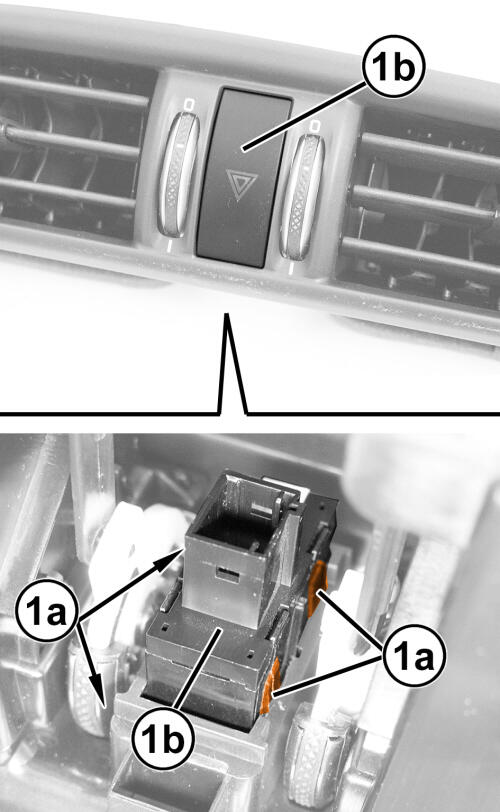

4. Release the side retainers (1a) to remove the hazard warning switch (1b).

INSTALLATION

1. Inspect the hazard warning switch and wire harness connector integrity.

   Courtesy of CHRYSLER GROUP, LLC

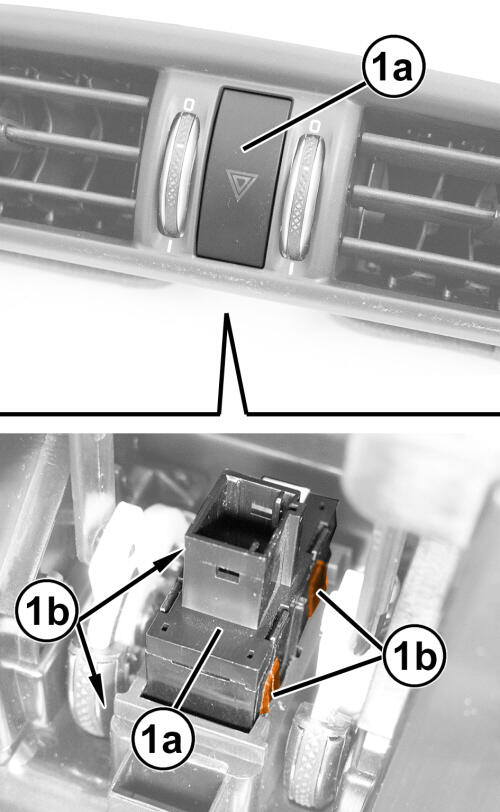

2. Engage the hazard warning switch (1a) to the center air outlet, making sure to engage all retainers (1b).
3. Connect the wire harness connector to the hazard warning switch.
4. Install the center air outlet that houses the hazard warning switch. Refer to OUTLET, AIR, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
