Description And Operation: Description

Courtesy of CHRYSLER GROUP, LLC

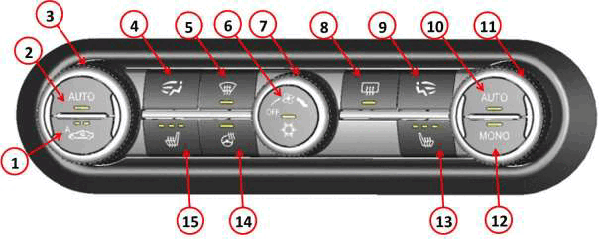

1. Air recirculation on/off button
2. AUTO function activation button (automatic operation)
3. Left driver side temperature adjustment knob
4. Left air distribution selection button
5. Defrost activation button (fast front window defrosting)
6. A/C on/off button
7. Blower motor speed adjustment knob
8. Heated rear window on/off button
9. Right air distribution selection button
10. AUTO function activation button (automatic operation)
11. Right passenger side temperature adjustment knob
12. MONO function button (set temperature alignment) driver/passenger side
13. Passenger's seat heater control button
14. Steering wheel heater button
15. Driver's seat heater control button

Passenger compartment climate control change requests are sent from the HVAC control head which is connected directly via the LIN to the HVAC module.

The A/C heater control cannot be adjusted or repaired and must be replaced if inoperative or damaged.
