Recommended Carbon Fiber Cosmetic Finishing Procedure:

NOTE:

Always wear appropriate eye, skin and ear protection.

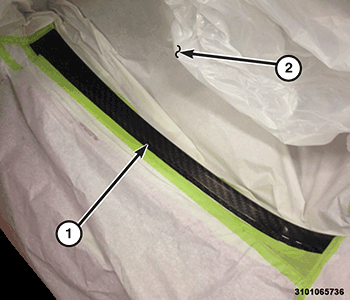

GC0168883Courtesy of CHRYSLER GROUP, LLC
1 - Left Lower Door Opening
2 - Protection Material
  1. Mask and protect adjacent areas of the repair area prior to beginning the finishing procedure.
  2. Set rotary buffer to an RPM setting less than 1200RPM.
    NOTE:

    A rotary buffer must be used by a trained technician as it can permanently damage the adjacent painted surfaces if not used correctly. Damaged painted surfaces can only be repaired by refinishing the affected vehicle panel.

  3. Place Meguiars W8207 Soft Buff® 2.0 polishing pad or equivalent on rotary backing plate.
    NOTE:

    Prime all new and dry pads with the desired wax or compound to prevent additional scratches on the carbon fiber finish.

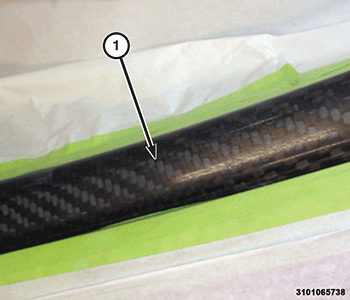

    GC0168950Courtesy of CHRYSLER GROUP, LLC
  4. Apply Meguiars M86 Solo™ Cut & Polish Cream or equivalent directly to rotary Meguiars W8207 Soft Buff® 2.0 polishing pad or equivalent and begin using moderate pressure and overlapping passes followed by 2-3 light pressure passes.

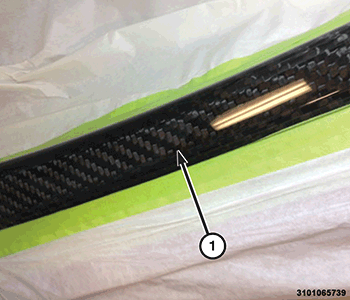

    GC0168871Courtesy of CHRYSLER GROUP, LLC
  5. After the defects have been removed and the finish is polished, wipe the polished areas with Meguiars M34 Mirror Glaze® Final Inspection or equivalent using Meguiars M99 Ultimate Wipe Detailing Cloth or equivalent. This will yield added depth, shine and protection.
    NOTE:

    If the defect has not been removed, repeat the carbon fiber cosmetic correction and finishing procedure.
