Cosmetic Carbon Fiber Repair: Notes
The following procedures involves removing light to moderate surface conditions on carbon fiber finishes revealing a swirl-free, durable, protected finish.
Symptom/Condition
- Isolated light to moderate surface conditions (scratches, scuffs, staining, hard water spots, etc.) on carbon fiber.
NOTE:
Thoroughly wash the suspect area before inspection or repair.
Diagnosis
- If the customer describes the symptom, inspect the carbon fiber to determine the extent of the defect. If the conditions below are found, proceed to the referenced procedure.
| Surface Defect | Procedure |
|---|---|
| Significant Scratches | Carbon Fiber Cosmetic Correction Procedure |
| Light Scratches and Scuffs | Carbon Fiber Cosmetic Finishing Procedure |
| Staining and Hard Water spots | Carbon Fiber Cosmetic Clay Bar Procedure |

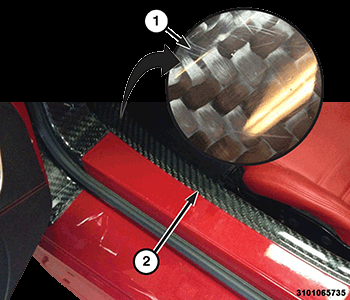

| 1 - Significant Scratches and Scuffs |
| 2 - Left Lower Door Jamb |
Model - 2015 Alpha Romeo 4C (4C)
PARTS REQUIRED:
| Quantity | Description |
|---|---|
| 1 | Meguiars M86 Solo™ Cut and Polish Cream, 320z or equivalent |
| 1 | Meguiars M99 Ultimate Wipe Detailing Cloth or equivalent |
| 1 | Meguiars WWLC7 Solo™ Wool Light Cutting Pad 7" or equivalent. |
| 1 | Meguiars W8207 High-Tech Backing Pad or equivalent |
| 1 | Meguiars W8207 Soft Buff® 2.0 Polishing Pad or equivalent. |
| 1 | Meguiars M34 Final Inspection, 16oz or equivalent. |
| 1 | Mequiars Mild Detailing Clay C2000 or equivalent. |
| 1 | Meguiars S1525 Mirror Glaze® Unigrit Finishing Paper 1500 Grit or equivalent. |
| 1 | Meguiars S2015 Unigrit Finishing Paper 2000 Grit or equivalent. |
| 1 | Meguiars S2525 Unigrit Finishing Paper 2500 Grit or equivalent. |
| 1 | Meguiars W68 Rotary Backing Plate For Soft Buff 2.0 Foam Pads or equivalent. |
EQUIPMENT REQUIRED:
| Description |
|---|
| Rotary Buffer |
| Safety Glasses |
| Extension Cord |
NOTE:
Measure and document clear resin film thickness before, during and after repair. Only.5 mil of clear resin removal is permissible for condition repair.
NOTE:
Work in a 305mm (12in) x 305mm (12in) at a time. Always work on a cool paint surface, free of environmental contaminates.
NOTE:
Always begin using the least aggressive method based on the condition.
