Gap And Flush Dimensions
Measurements for the adjustments of the moving parts.
To facilitate and verify moving parts disassembly operations, the existing gaps are shown (in millimeters) to allow appropriate adjustment.
The adjustment procedure is explained in the sections describing moving part removal and installation procedures.

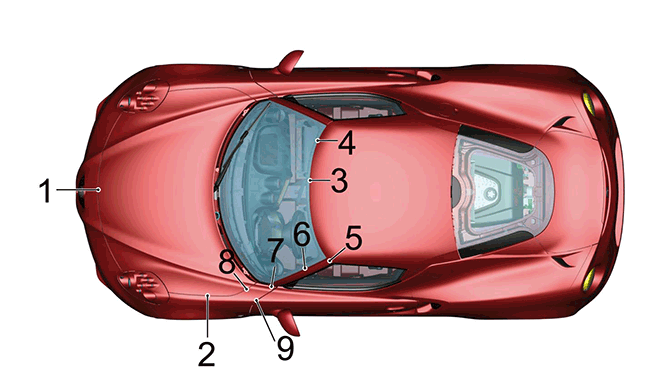

 Courtesy of CHRYSLER GROUP, LLC
|
| 1: Front fascia - Hood |
6: Windshield - Windshield housing outer edge |
| 2: Hood - Front fender |
7: Front fender - A-pillar |
| 3 and 4: Windshield - Roof |
8: Front fender - Hood |
| 5: A-pillar - Roof |
9: Door outer edge - Front fender |

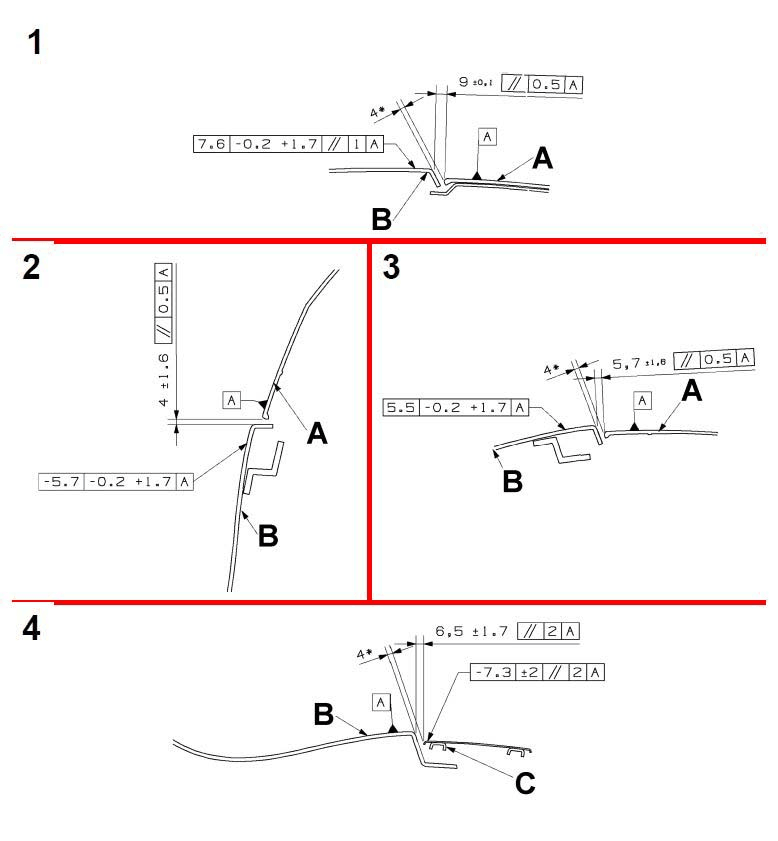

 Courtesy of CHRYSLER GROUP, LLC
|

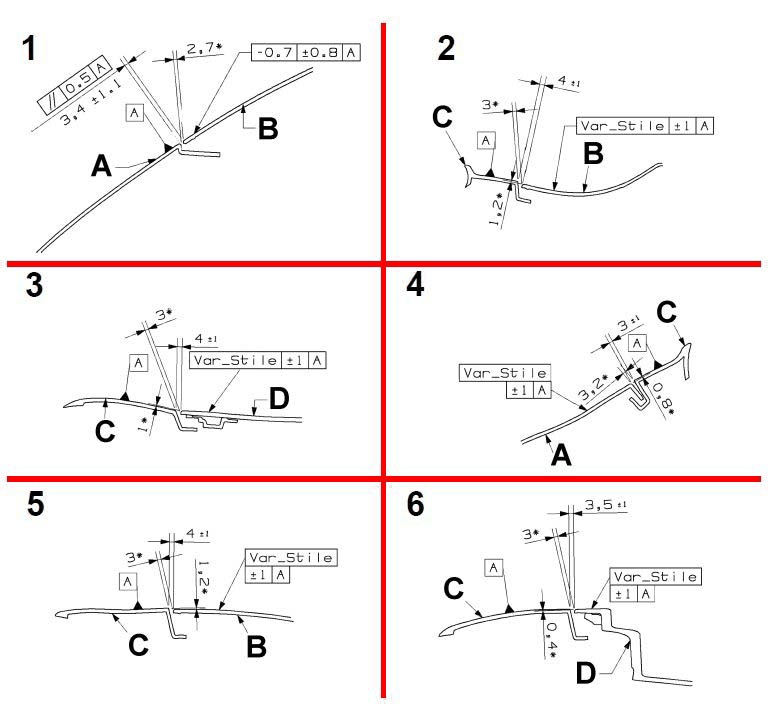

| A: Front bumper |
D: Windshield |
G: Windshield housing outer edge |
| B: Hood |
E: Roof |
H: A-pillar |
| C: Front fender |
F: A-pillar |
I: Door outer edge |

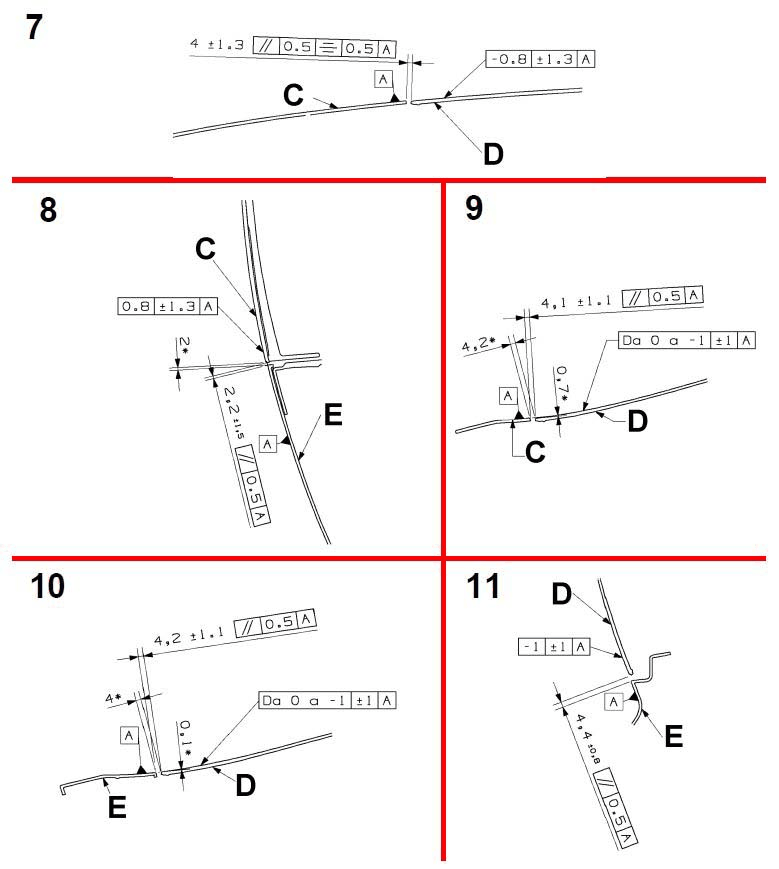

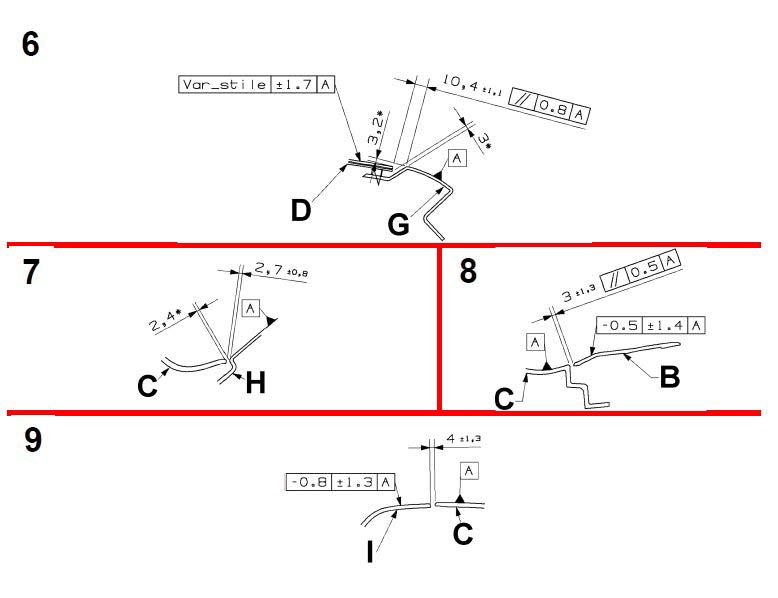

 Courtesy of CHRYSLER GROUP, LLC
|
| A: Front bumper |
D: Windshield |
G: Windshield housing outer edge |
| B: Hood |
E: Roof |
H: A-pillar |
| C: Front fender |
F: A-pillar |
I: Door outer edge |
 Courtesy of CHRYSLER GROUP, LLC
|

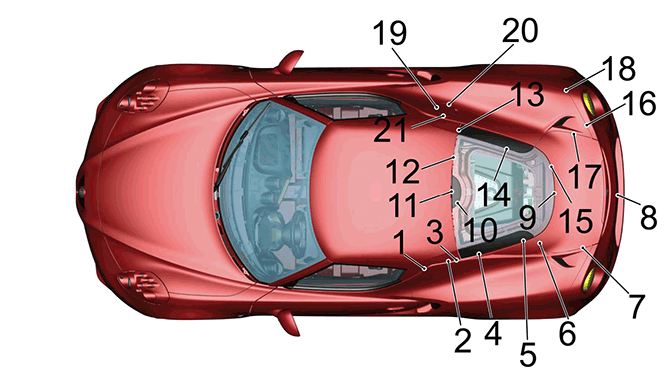

| 1, 2 and 3: Roof - Quarter panel |
12: Roof - Liftgate glass |
| 4 and 5: Quarter panel - Liftgate grille trim |
13: Roof - Rear grille |
| 6 and 7: Quarter panel - Liftgate outer edge |
14: Liftgate glass - Liftgate grille trim |
| 8: Rear fascia - Liftgate |
16 and 18: Quarter panel - Rear fascia |
| 9 and 15: Liftgate glass - Liftgate |
17: Quarter panel - Liftgate |
| 10: Liftgate trim panel - Liftgate glass |
19, 20 and 21: Quarter panel - Fuel door |
| 11: Roof - Liftgate trim panel |
|

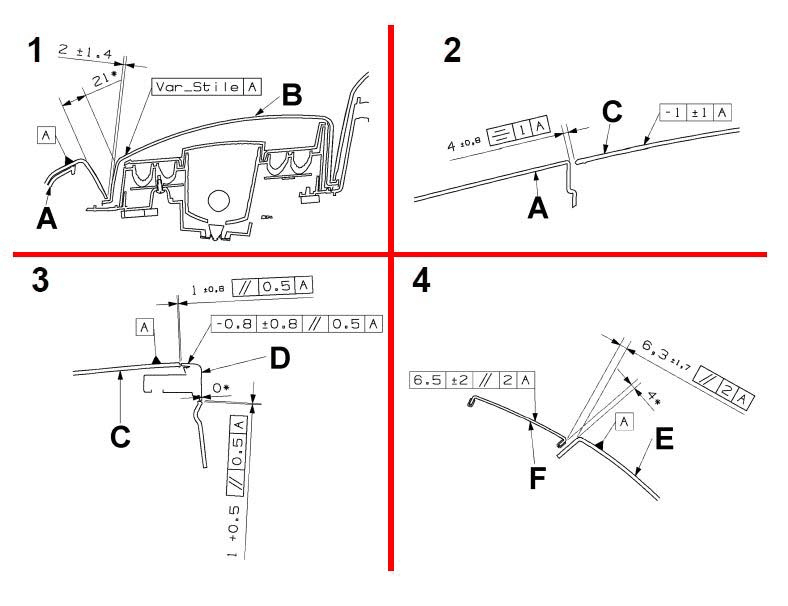

 Courtesy of CHRYSLER GROUP, LLC
|

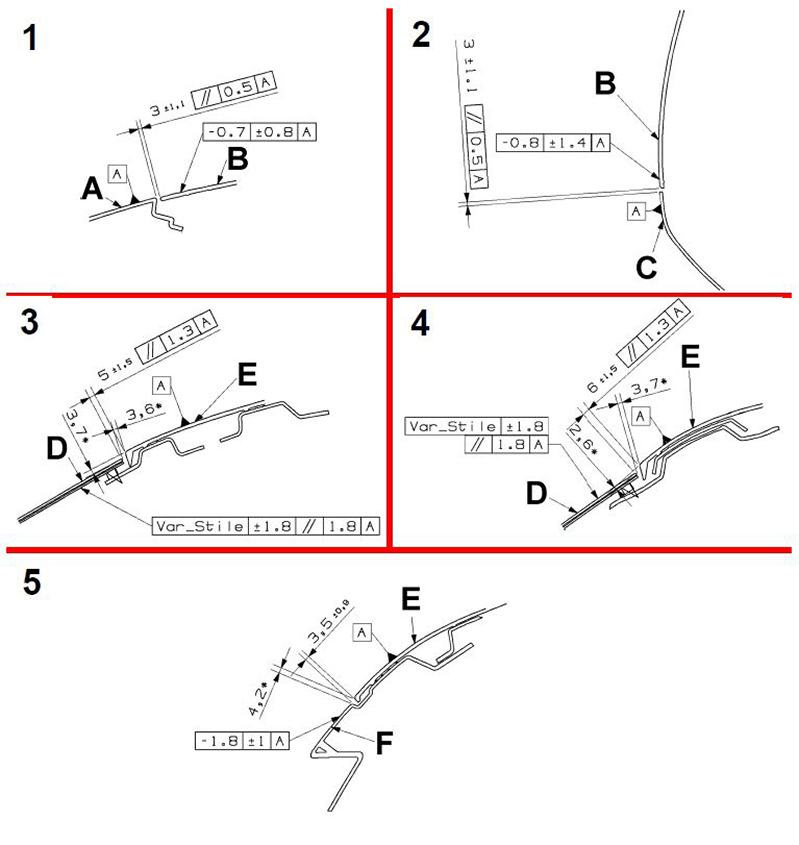

| A: Roof |
C: Liftgate grille trim panel |
E: Rear fascia |
G: Liftgate glass |
| B: Quarter Panel |
D: Liftgate outer edge |
F: Liftgate |
H: Liftgate glass grille trim |

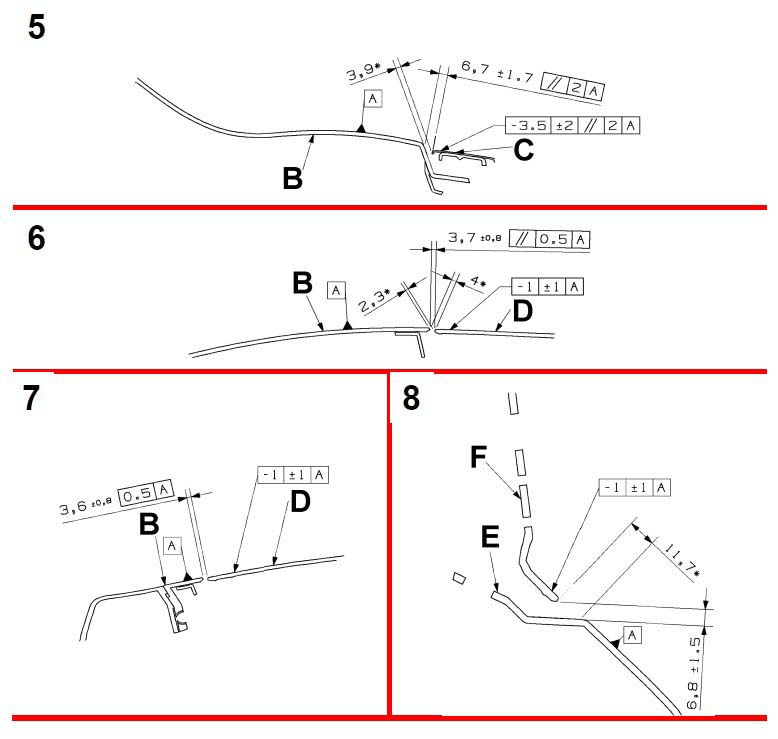

 Courtesy of CHRYSLER GROUP, LLC
|
| A: Roof |
C: Liftgate grille trim panel |
E: Rear fascia |
G: Liftgate glass |
| B: Quarter Panel |
D: Liftgate outer edge |
F: Liftgate |
H: Liftgate glass grille trim |

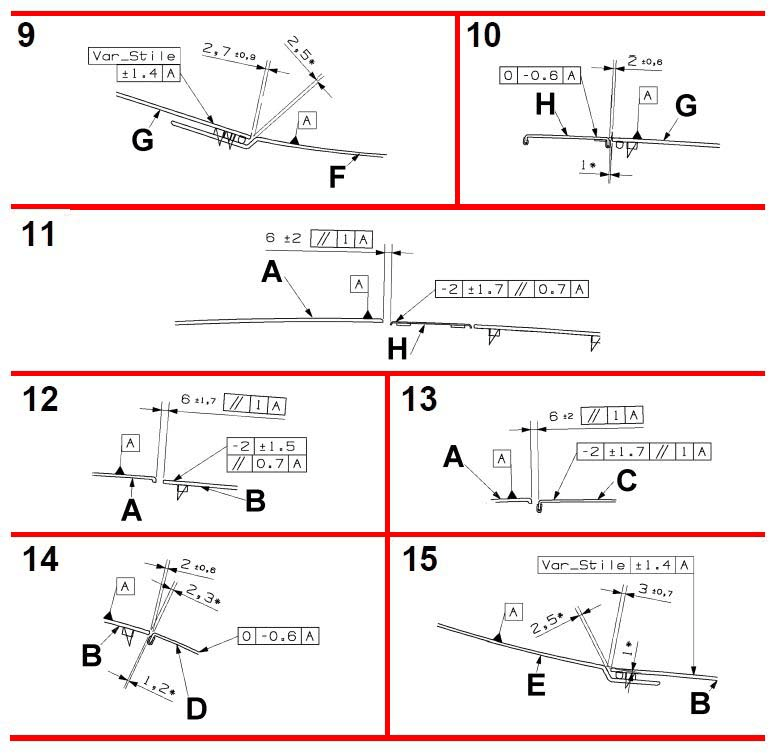

 Courtesy of CHRYSLER GROUP, LLC
|
| A: Roof |
C: Liftgate grille trim panel |
E: Rear fascia |
G: Liftgate glass |
| B: Quarter Panel |
D: Liftgate outer edge |
F: Liftgate |
H: Liftgate glass grille trim |

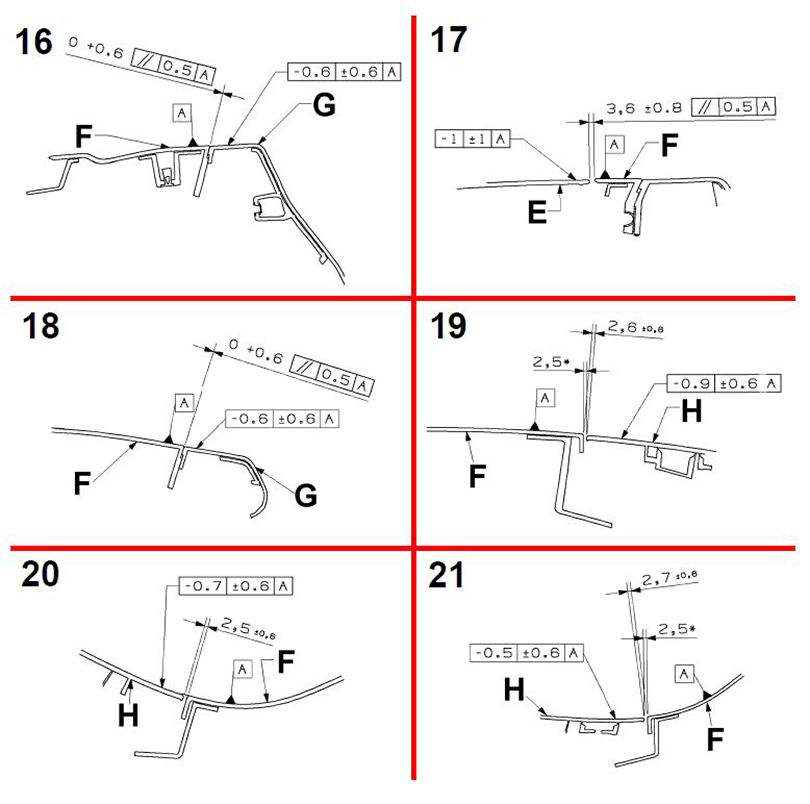

 Courtesy of CHRYSLER GROUP, LLC
|
| A: Roof |
C: Liftgate grille trim panel |
E: Rear fascia |
G: Liftgate glass |
| B: Quarter Panel |
D: Liftgate outer edge |
F: Liftgate |
H: Liftgate glass grille trim |

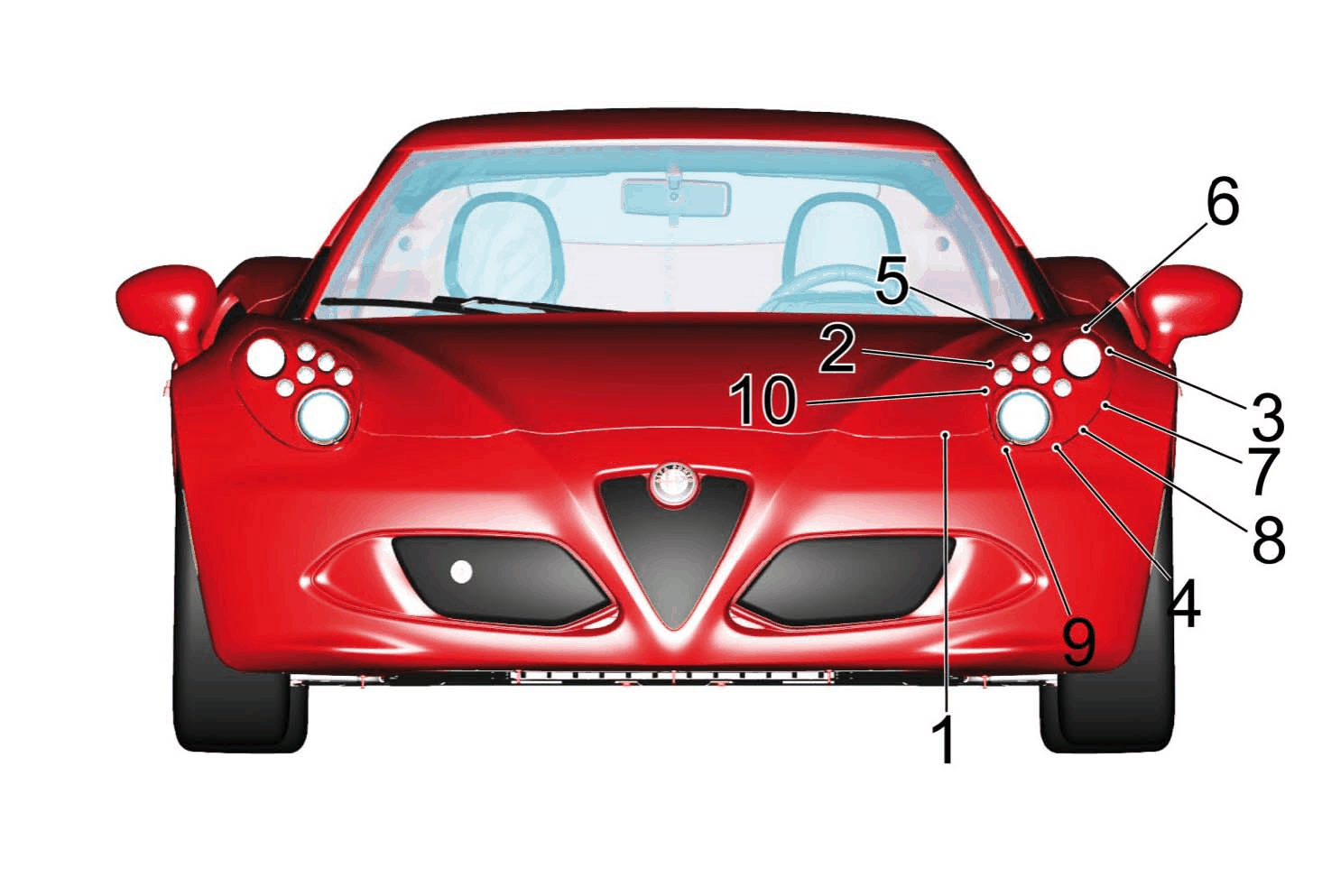

 Courtesy of CHRYSLER GROUP, LLC
|
| 1: Front fascia - Hood |
3, 6 and 7: Headlight trim - Front fender |
| 2, 5 and 10: Hood - Headlight trim |
4, 8 and 9: Headlight trim - Front fascia |

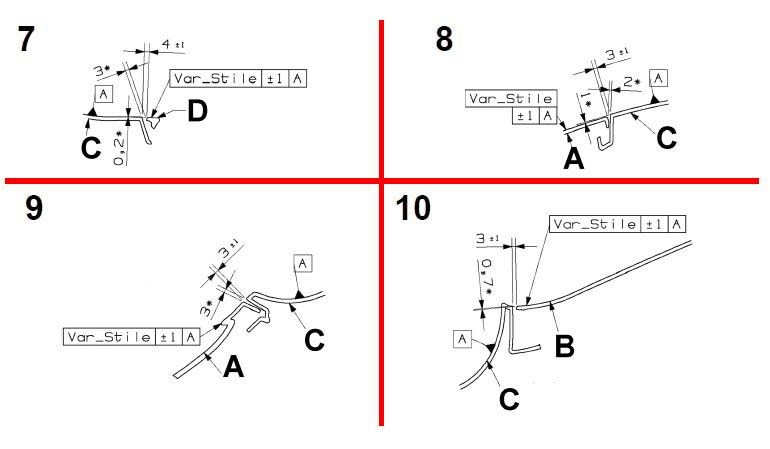

 Courtesy of CHRYSLER GROUP, LLC
|
| A: Front fascia |
C: Headlamp trim |
| B: Hood |
D: Front fender |
 Courtesy of CHRYSLER GROUP, LLC
|
| A: Front fascia |
C: Headlamp trim |
| B: Hood |
D: Front fender |
 Courtesy of CHRYSLER GROUP, LLC
|

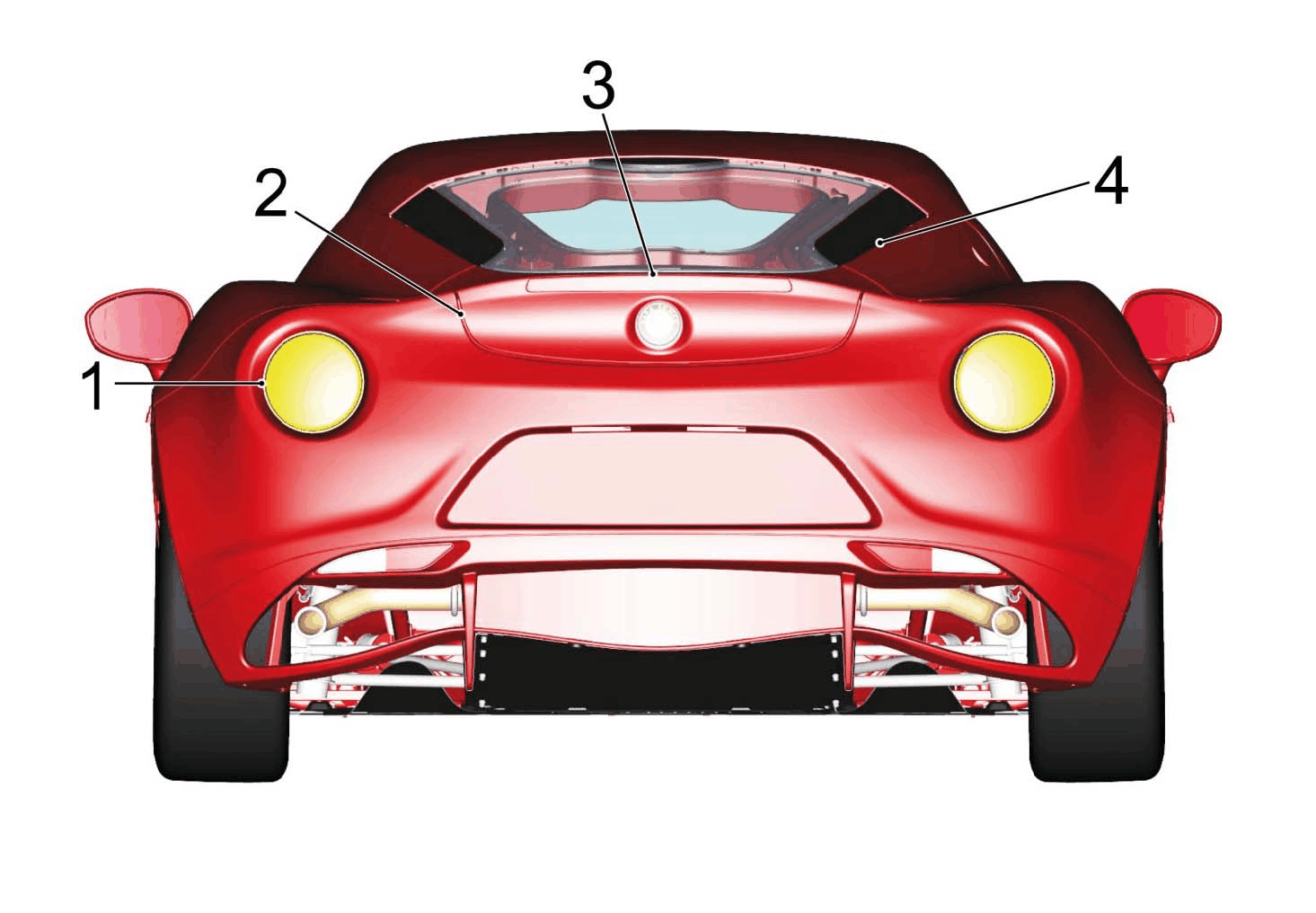

| 1: Rear fascia - Taillamp |
3: Liftgate - Center high mounted stop lamp |
| 2: Rear fascia - Liftgate |
4: Quarter panel - Liftgate grille |
 Courtesy of CHRYSLER GROUP, LLC
|
| A: Rear fascia |
D: Center high mounted stop lamp |
| B: Taillamp |
E: Quarter panel |
| C: Liftgate |
F: Liftgate grille |
 Courtesy of CHRYSLER GROUP, LLC
|

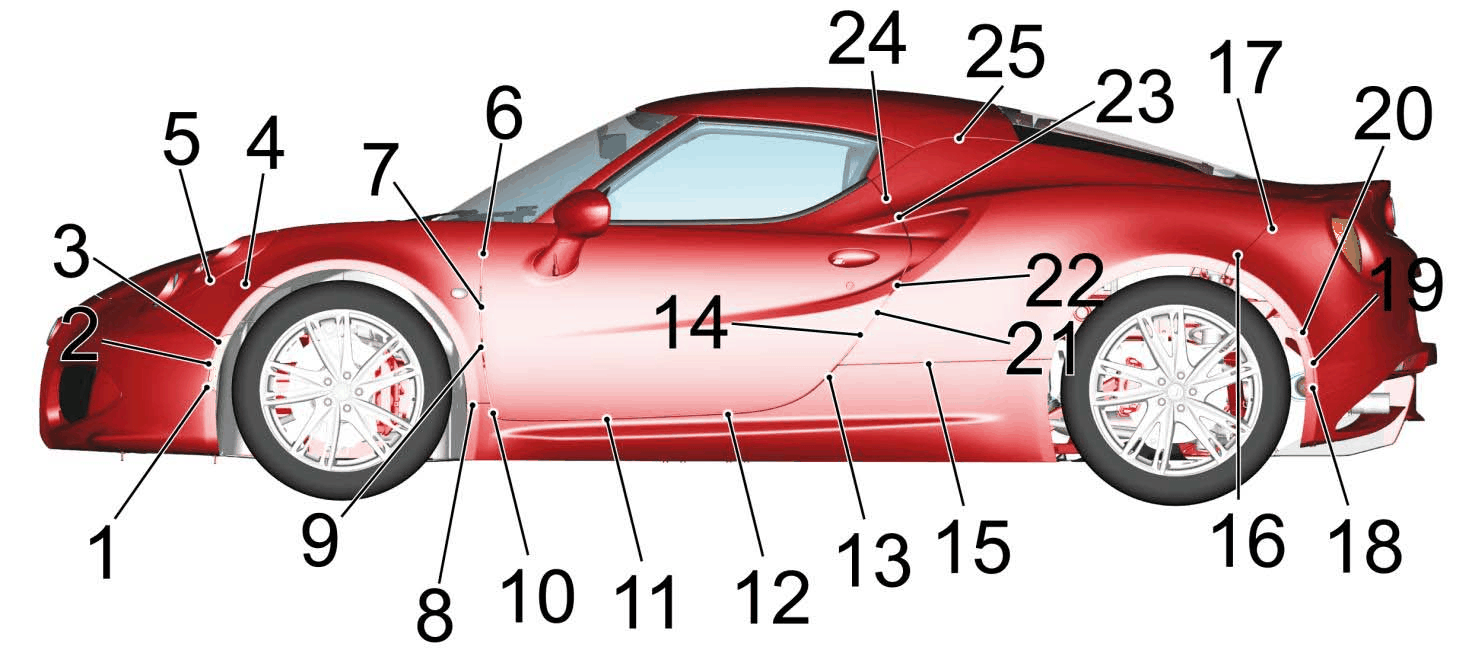

| 1, 2 and 3: Front fascia - Front side marker lamp |
14, 21, 22, 23 and 24: Quarter panel - Door |
| 4 and 5: Front fascia - Front fender |
15: Quarter panel - Sill cladding |
| 6, 7 and 9: Front fender - Door |
16 and 17: Quarter panel - Rear fascia |
| 8: Front fender - Sill cladding |
18, 19 and 20: Rear fascia - Rear side marker lamp |
| 10, 11, 12 and 13: Door - Sill cladding |
25: Quarter panel - Roof |
 Courtesy of CHRYSLER GROUP, LLC
|
| A: Front fascia |
D: Door |
| B: Front side marker lamp |
E: Sill cladding |
| C: Front fender |
|

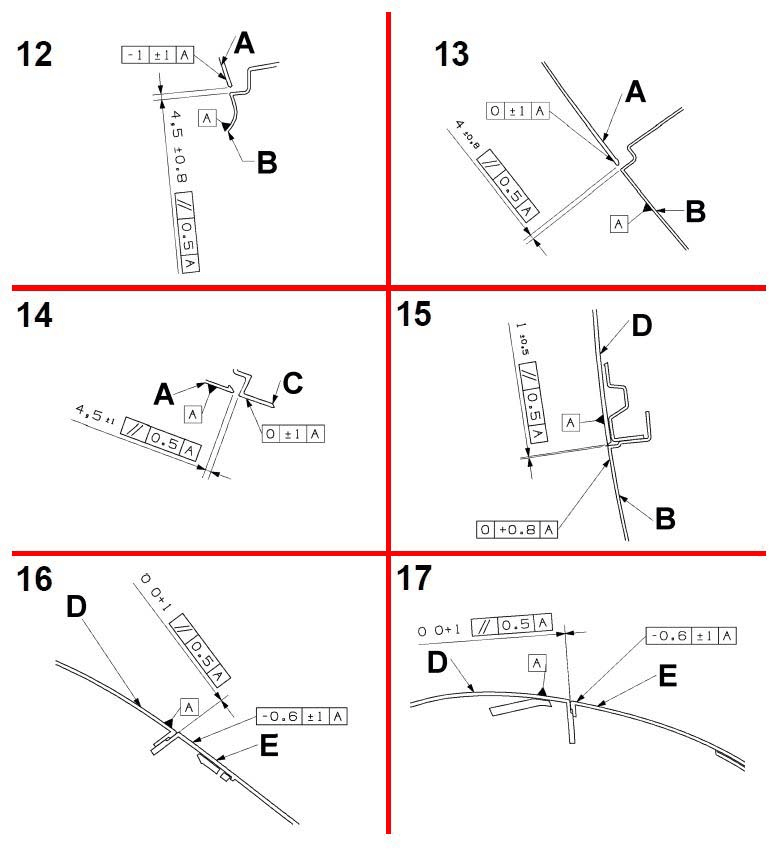

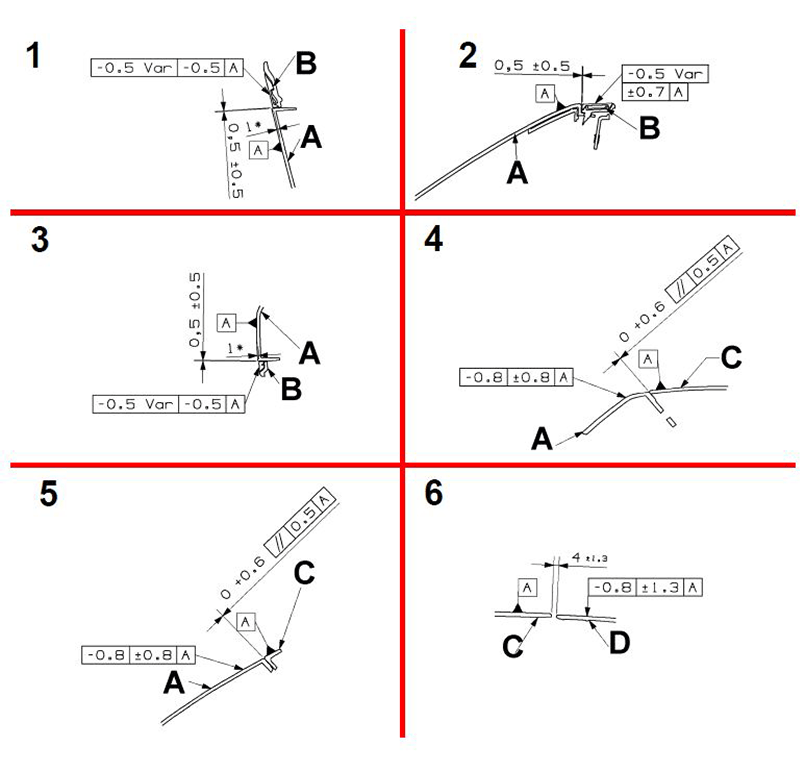

 Courtesy of CHRYSLER GROUP, LLC
|
| A: Front fascia |
D: Door |
| B: Front side marker lamp |
E: Sill cladding |
| C: Front fender |
|
 Courtesy of CHRYSLER GROUP, LLC
|
| A: Door |
D: Quarter panel |
| B: Sill cladding |
E: Rear fascia |
| C: Front fender |
F: Rear side marker lamp |

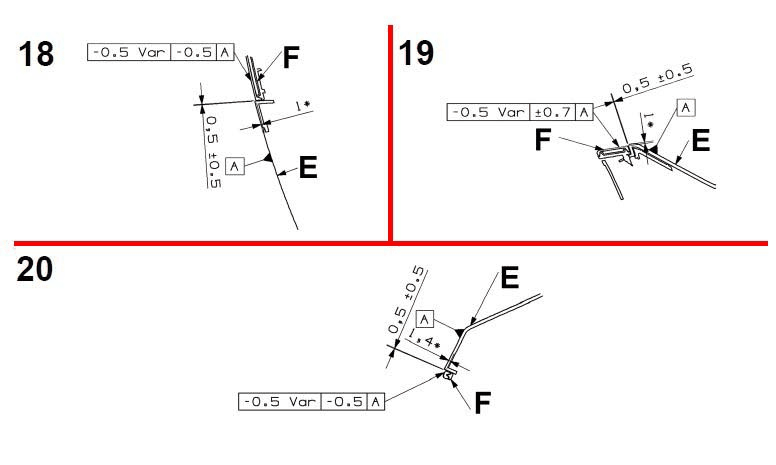

 Courtesy of CHRYSLER GROUP, LLC
|
| A: Door |
D: Quarter panel |
| B: Sill cladding |
E: Rear fascia |
| C: Front fender |
F: Rear side marker lamp |

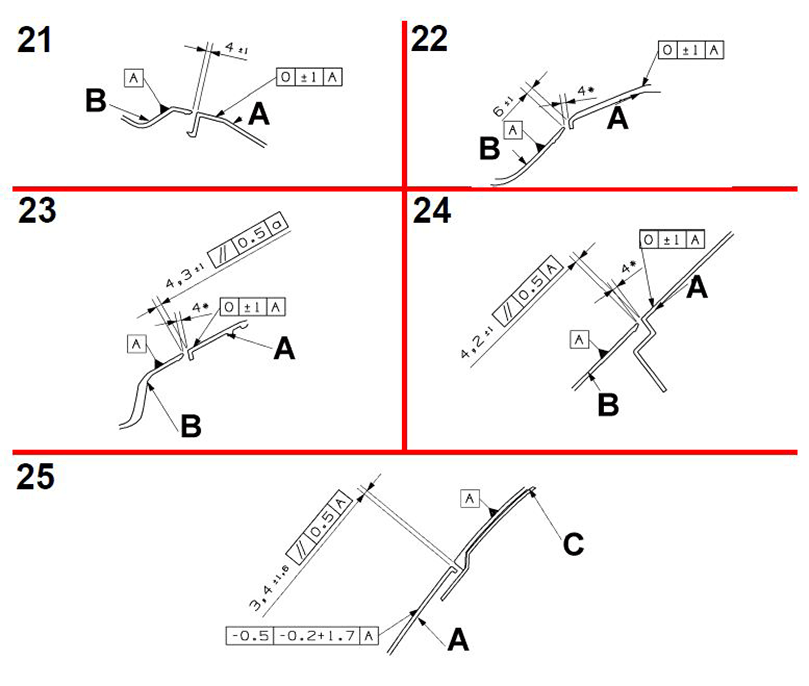

 Courtesy of CHRYSLER GROUP, LLC
|
| A: Quarter panel |
| B: Door |
| C: Roof |
