Repair Procedure

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

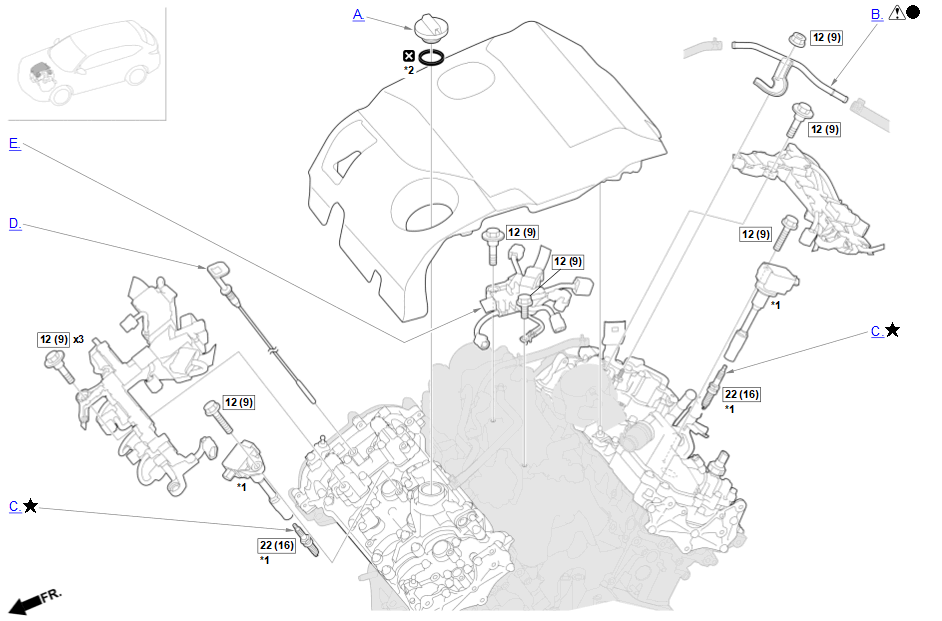

*1: In the illustration, other parts are omitted because the component parts and the removal/installation procedure are the same.

*2: Replace it, when removed from the oil filler cap.

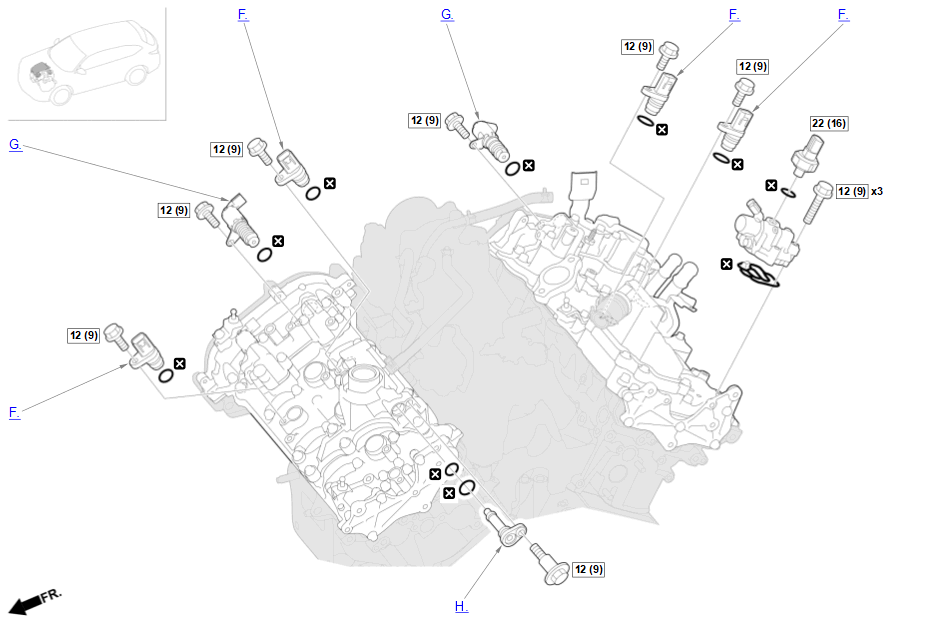

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

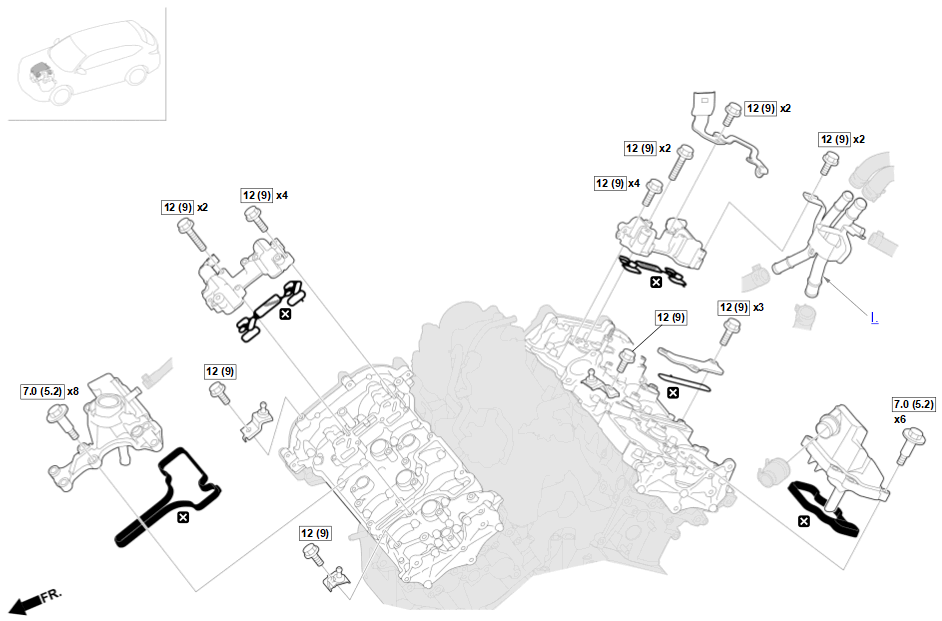

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

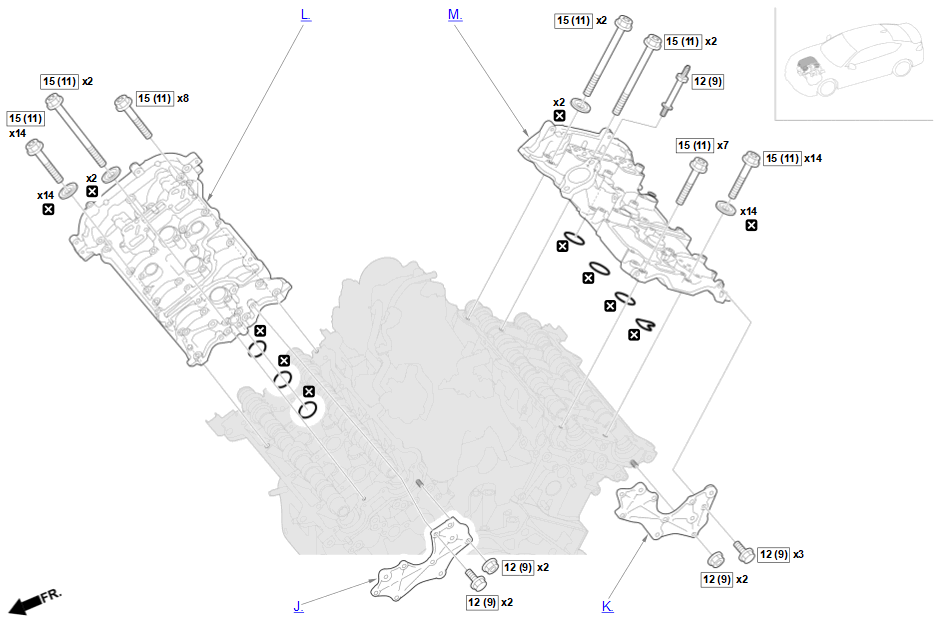

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

1. A.-

   Sub-Procedure

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Engine Oil

2. B.-

   WARNING:

   Flammable - Keep Fire Away

   NOTICE:

   Refer to the Fuel and Emissions Systems Service Precautions before doing the procedure.

   Sub-Procedure

   Installation

   • Make sure the hose clamps are properly positioned and tightened .
3. C.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Screw the spark plugs, finger-tight, then tighten the spark plugs to the specified torque.

   After Installation (With Maintenance Minder System)

   • If the Maintenance Minder required to replace the spark plugs, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder").
4. D.-

   Sub-Procedure

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Engine Oil

5. E.-

   Key Information

   Do the following before starting your work.

   Disconnect:

   • PCV Hose - Refer to: Intake Manifold Area(3.0L Engine) or Intake Manifold Area(3.5L Engine)
6. F.-

   Sub-Procedure

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Engine Oil

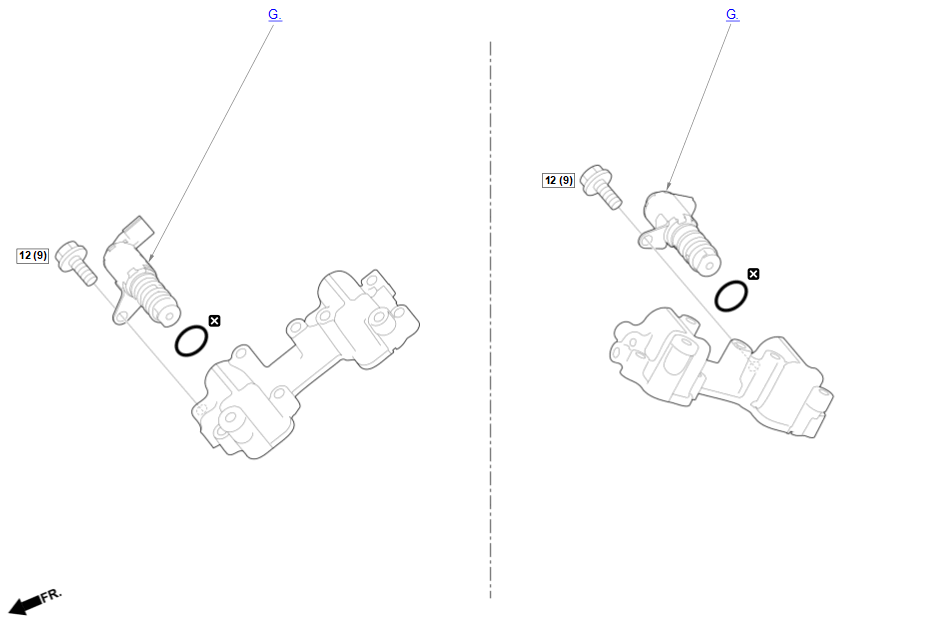

7. G.-

   Sub-Procedure

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Engine Oil

8. H.-

   Key Information

   Do the following before starting your work.

   Move:

   • Breather Pipe

   Sub-Procedure

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Engine Oil

9. I.-

   Preconditions

   • Engine Coolant Drained - Refer to: Coolant Check(3.5L Engine) or Coolant Replacement(3.5L Engine) or Coolant Replacement(3.0L Engine) or Coolant Check(3.0L Engine)

   Key Information

   Do the following before starting your work.

   Remove:

   • Dashboard Upper Cover Extension

   After Installation

   • Engine Coolant Refill - Refer to: Coolant Check(3.5L Engine) or Coolant Replacement(3.5L Engine) or Coolant Replacement(3.0L Engine) or Coolant Check(3.0L Engine)
10. J.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Heat Insulator

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Installation

    • Remove all of the old gasket from the mating surfaces of each part and clean it.

    Lubricant Specifications

    Position	Type	Detail
    a	Liquid Gasket (P/N 08718-0003, 08718-0004, or 08718- 0009)	b	2.5 mm (0.098 in)

    NOTICE:

    • Install the component within 5 minutes of applying the liquid gasket.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
    • Wait at least 30 minutes before filling the engine with oil.
    • Do not run the engine for at least 3 hours after installing the parts.
11. K.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Heat Insulator

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Installation

    • Remove all of the old gasket from the mating surfaces of each part and clean it.

    Lubricant Specifications

    Position	Type	Detail
    a	Liquid Gasket (P/N 08718-0003, 08718-0004, or 08718- 0009)	b	2.5 mm (0.098 in)

    NOTICE:

    • Install the component within 5 minutes of applying the liquid gasket.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
    • Wait at least 30 minutes before filling the engine with oil.
    • Do not run the engine for at least 3 hours after installing the parts.
12. L.-

    NOTICE:

    The cylinder head cover also serves as a camshaft holder, and the camshaft oil seal is fixed between the cylinder head and the cylinder head cover.Since the camshaft oil seal will be damaged when the cylinder head cover is removed, be sure to replace the camshaft oil seal with a new one when removing the cylinder head cover.

    Key Information

    Do the following before starting your work.

    Remove:

    • Camshaft Oil Seal - Refer to: Timing Belt Case/Timing Belt Area(3.0L Engine) or Timing Belt Case/Timing Belt Area(3.5L Engine) (Bank 2 Side)

    Sub-Procedure

    Installation

    1. Remove all of the old gasket from the mating surfaces of each part and clean it.

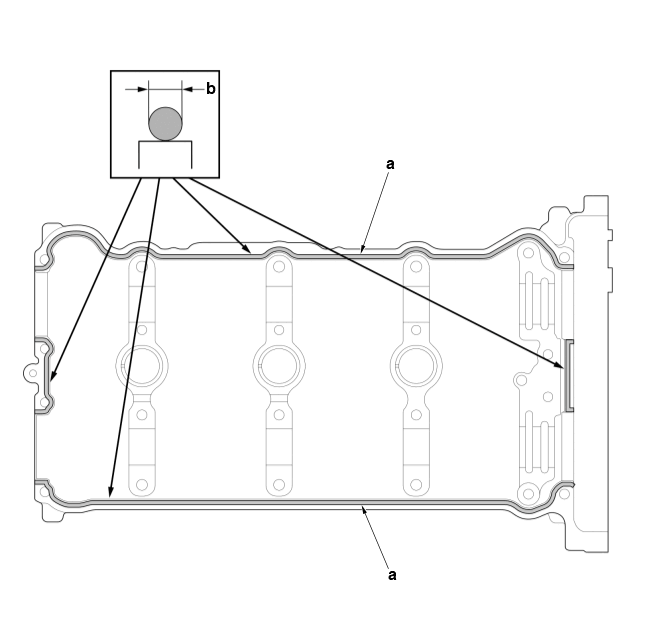

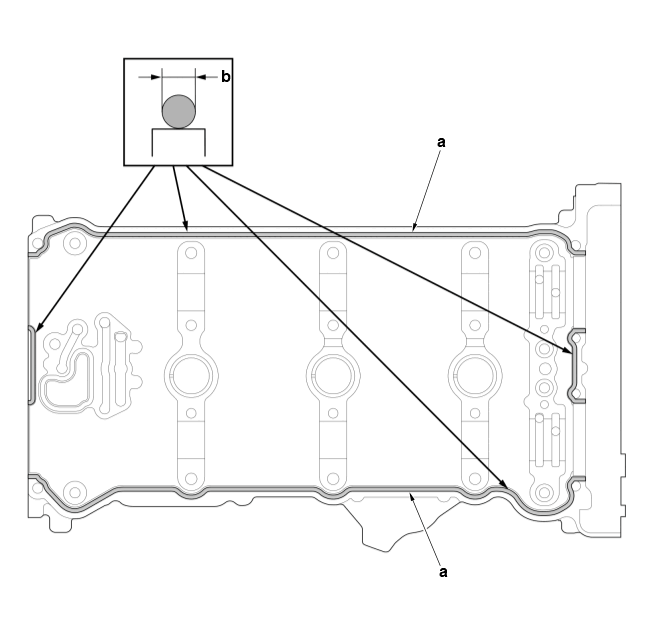

    Lubricant Specifications (Figure 1)

    Position	Type	Detail
    a	Liquid Gasket (P/N 08718-0003, 08718-0004, or 08718- 0009)	b	2.5 mm (0.098 in)

    NOTICE:

    • Install the component within 5 minutes of applying the liquid gasket.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
    • Wait at least 30 minutes before filling the engine with oil.
    • Do not run the engine for at least 3 hours after installing the parts.

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

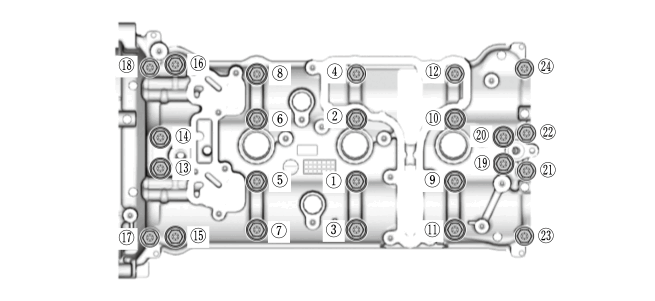

    2. Tighten the bolts, in sequence.

    Installation Information (Figure 2)

    Size
    , , , , , , ,	6 x 34 mm (Without washer)
    , , , , , , , , , , , , ,	6 x 34 mm (With washer)
    ,	6 x 61.5 mm (With washer)

    Tightening Procedure (Figure 2)

    Step	Operation	Object	Detail
    1	Temporarily Tighten	All Bolts	Until they sit on the front cylinder head cover
    2	Tighten	All Bolts	Specified Torque

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

13. M.-

    NOTICE:

    The cylinder head cover also serves as a camshaft holder, and the camshaft oil seal is fixed between the cylinder head and the cylinder head cover. Since the camshaft oil seal will be damaged when the cylinder head cover is removed, be sure to replace the camshaft oil seal with a new one when removing the cylinder head cover.

    Key Information

    Do the following before starting your work.

    Remove:

    • Camshaft Oil Seal - Refer to: Timing Belt Case/Timing Belt Area(3.0L Engine) or Timing Belt Case/Timing Belt Area(3.5L Engine) (Bank 1 side)
    • High Pressure Fuel Pump - Refer to: Intake Manifold Area(3.0L Engine) or Intake Manifold Area(3.5L Engine)

    Sub-Procedure

    Installation

    1. Remove all of the old gasket from the mating surfaces of each part and clean it.

    Lubricant Specifications (Figure 1)

    Position	Type	Detail
    a	Liquid Gasket (P/N 08718-0003, 08718-0004, or 08718- 0009)	b	2.5 mm (0.098 in)

    NOTICE:

    • Install the component within 5 minutes of applying the liquid gasket.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
    • Wait at least 30 minutes before filling the engine with oil.
    • Do not run the engine for at least 3 hours after installing the parts.

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

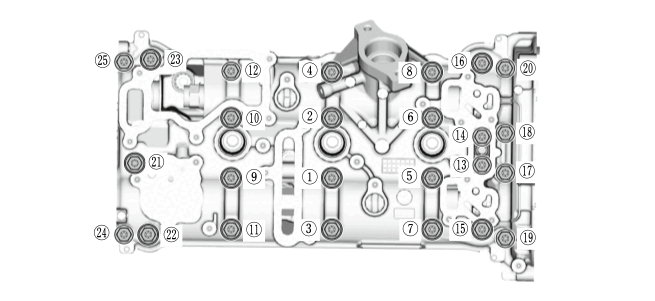

    2. Tighten the bolts, in sequence.

    Installation Information (Figure 2)

    Size
    , , , , , ,	6 x 34 mm (Without washer)
    , , , , , , , , , , , , ,	6 x 34 mm (With washer)
    ,	6 x 61.5 mm (Without washer)
    ,	6 x 61.5 mm (With washer)

    Tightening Procedure (Figure 2)

    Step	Operation	Object	Detail
    1	Temporarily Tighten	All Bolts	Until they sit on the rear cylinder head cover
    2	Tighten	All Bolts	Specified Torque

    Figure 2

    Courtesy of HONDA, U.S.A., INC.
