Repair Procedure

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

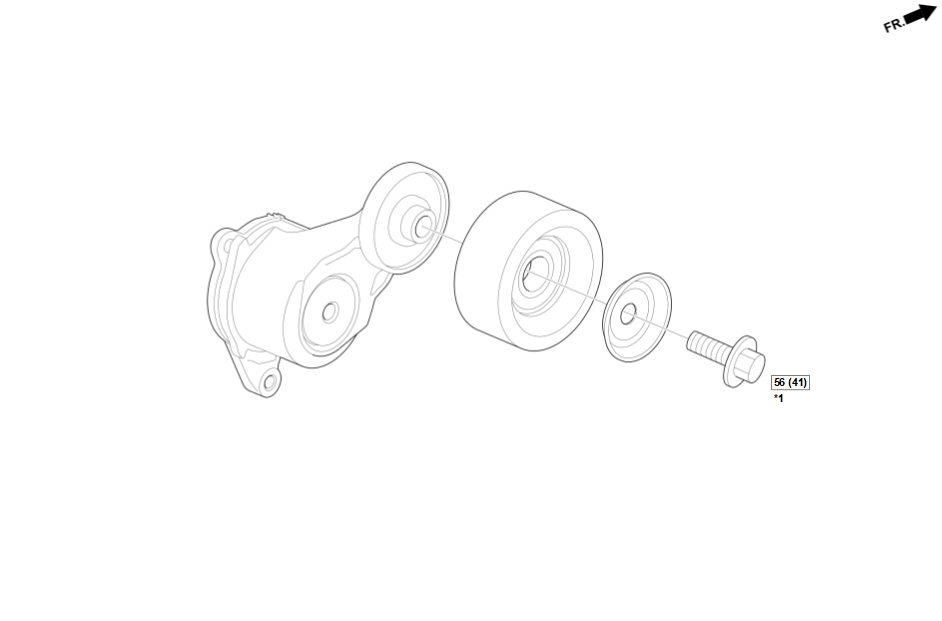

*1: Left-hand threads

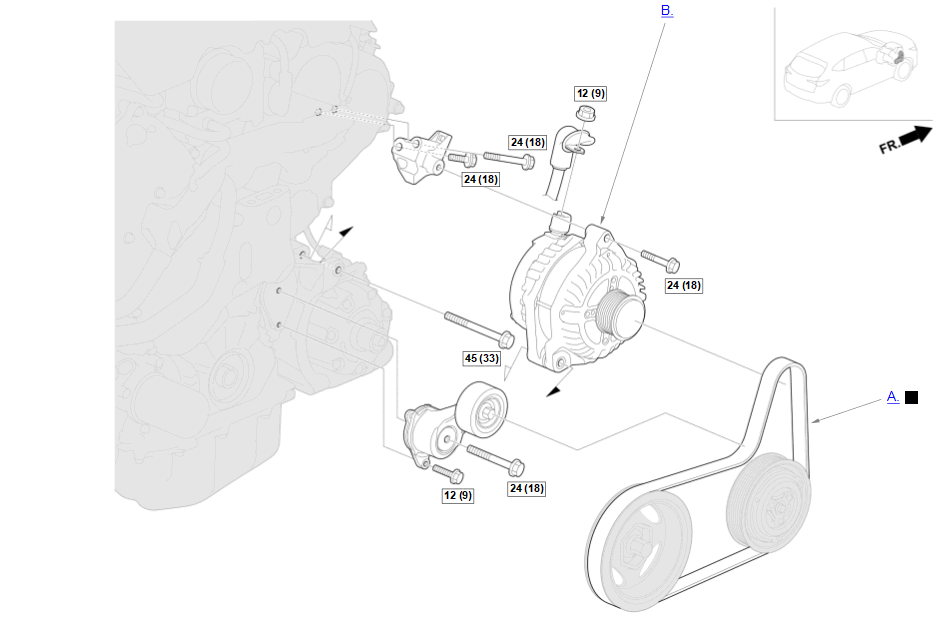

1. A.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Right Front Wheel - Refer to: Front Brake Area(3.5L Engine) or Front Brake Area(3.0L Engine)

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Removal

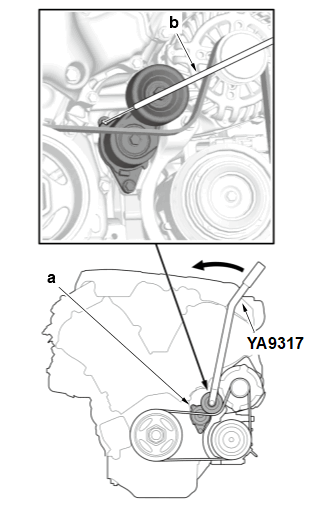

   1. Set a wrench on the drive belt auto-tensioner (a), and slowly turn the wrench in the direction of the arrow. (Figure 1)

   2. Insert a pin (b) into the hole. (Figure 1)

   Pin Specifications (Figure 2)

   Standard Value
   c	6.0 mm (15/64 in)

2. B.-

   Preconditions

   • 12 Volt Battery Negative Terminal Disconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection(3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection(3.0L Engine)

   Key Information

   Do the following before starting your work.

   Remove:

   • A/C Condenser Fan Shroud Assembly - Refer to: Radiator Area(3.5L Engine) or Radiator Area(3.0L Engine)
   • Bolt Collar

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

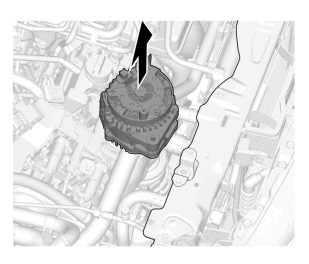

   • Remove the alternator as shown.

   After Installation

   • 12 Volt Battery Negative Terminal Reconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection(3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection(3.0L Engine)
