Repair Procedure

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

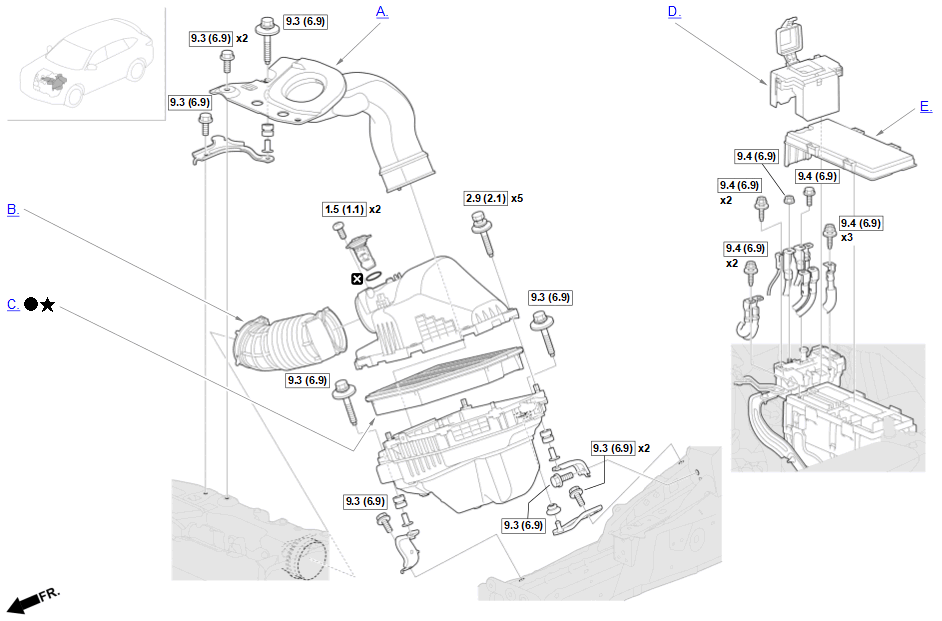

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

1. A.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Grille Cover - Refer to: Front Bumper Area (2025) or Front Bumper Area (2022 2023 2024)
2. B.-

   Sub-Procedure

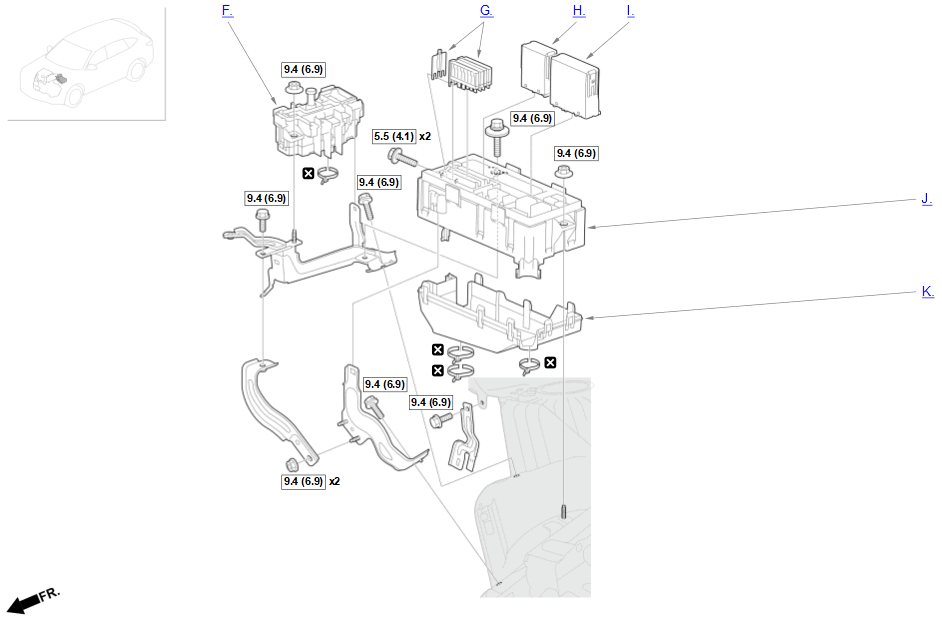

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Specifications

   Standard Value
   a	9-10 mm (0.35-0.39 in)

3. C.-

   After Installation

   • If the idle speed fluctuates, do the idle speed inspection - Refer to: Idle Speed Inspection (3.0L Engine) or Idle Speed Inspection (3.5L Engine) .
   • Maintenance Minder Reset (With Maintenance Minder System)

     NOTE:  If the Maintenance Minder required to replace the air cleaner element, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder").

4. D.-

   Sub-Procedure

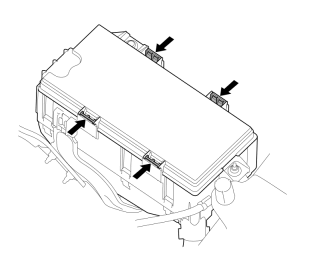

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
5. E.-

   Sub-Procedure

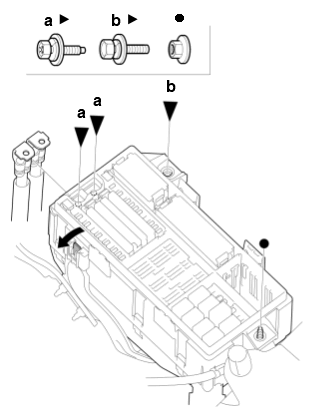

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
6. F.-

   Preconditions

   • 12 Volt Battery Negative Terminal Disconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)

   Sub-Procedure

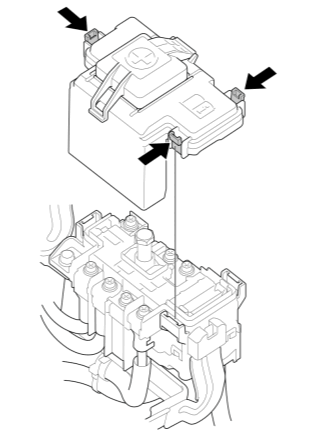

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.

   After Installation

   • 12 Volt Battery Negative Terminal Reconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)
7. G.-

   Preconditions

   • 12 Volt Battery Negative Terminal Disconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)

     NOTE:  Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

   Sub-Procedure

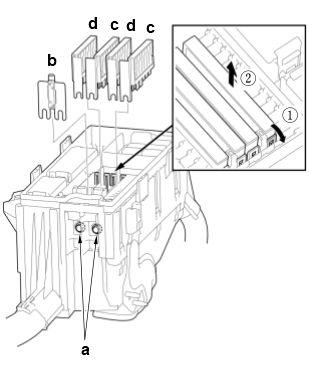

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Loosen the bolts (a).
   • Remove the following parts in the sequence listed below.
   • • Main fuse (b)
     • Multi fuse blocks (c)
     • Multi fuse blocks (d)

   After Installation

   • 12 Volt Battery Negative Terminal Reconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)
8. H.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
9. I.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
10. J.-

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)

      NOTE:  Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    Key Information

    Do the following before starting your work.

    Remove:

    • Air Cleaner Housing

    Sub-Procedure

    Figure 1

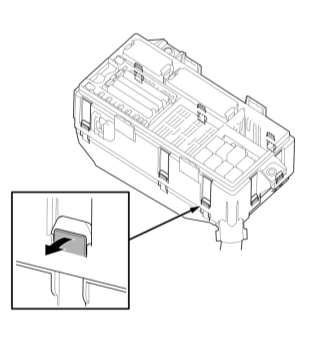

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to figure 1.

    Figure 2

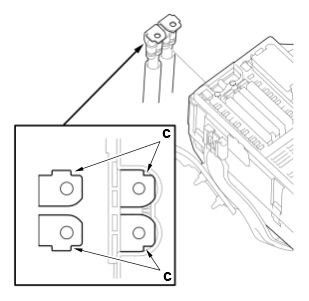

    Courtesy of HONDA, U.S.A., INC.

    Installation

    • Refer to figure 2.

      NOTICE:

      Align the edges (c).

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)
11. K.-

    Sub-Procedure

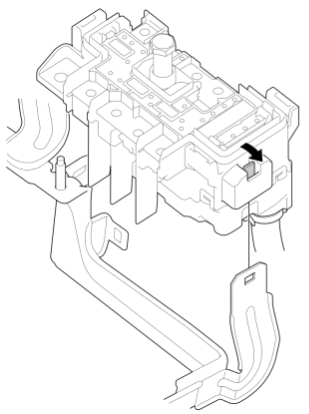

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
