Repair Procedure

How to use this service information .

NOTICE:

• Keep all foreign particles out of the transmission.
• When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

NOTE:  Unless otherwise indicated, illustrations used in the procedure are for 22-24 models.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: 2 types

*2: With ATF cooler

*3: 22-24

*4: 25

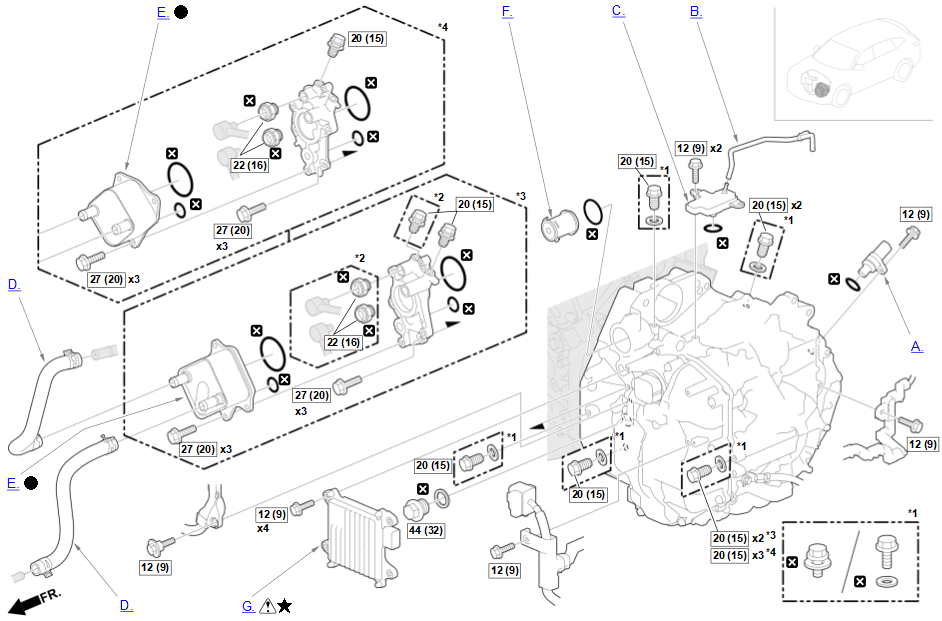

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: 2 types

*2: 22-24

*3: 25

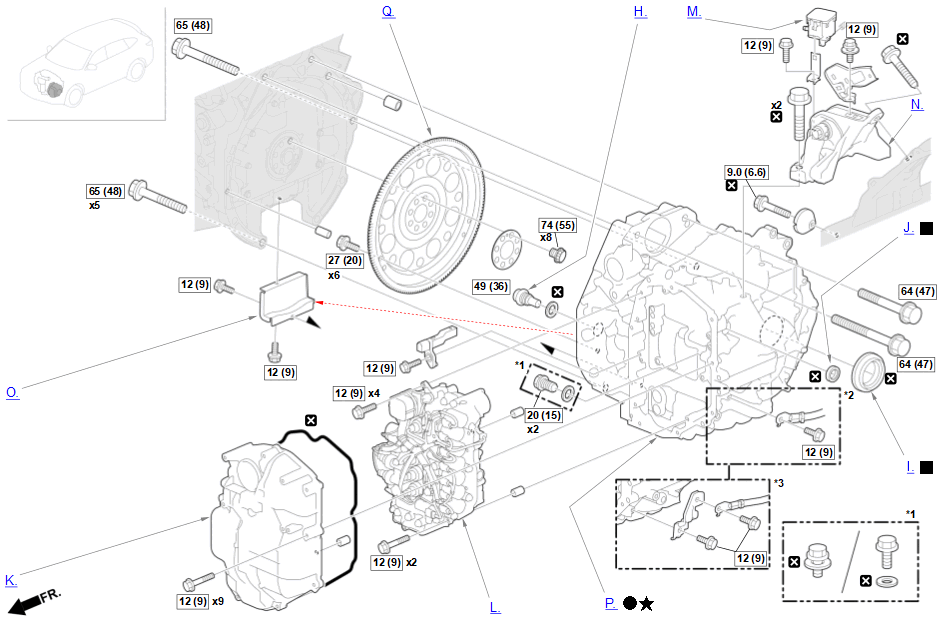

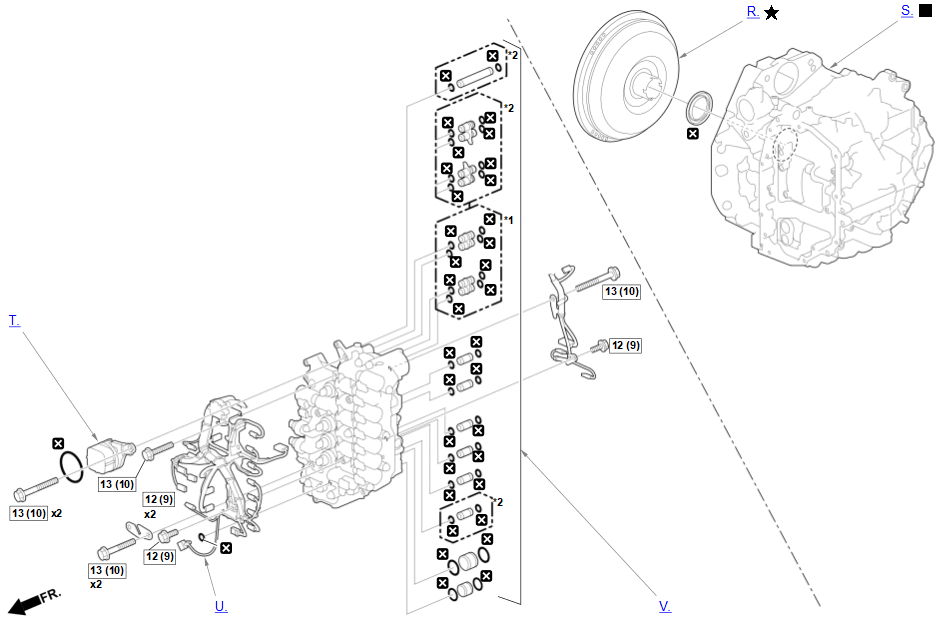

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: 22-24

*2: 25

1. A.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Left Front Wheel - Refer to: Front Brake Area (3.5L Engine) or Front Brake Area (3.0L Engine)

   Sub-Procedure

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	ATF

2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Installation Directions

   Mark	Direction
   a	b	Front

3. C.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Turbocharger Bracket A - Refer to: Starter Area (3.0L Engine) or Starter Area (3.5L Engine)

   Sub-Procedure

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	ATF

4. D.-

   Preconditions

   • Engine Coolant Drained - Refer to: Coolant Check (3.5L Engine) or Coolant Replacement (3.5L Engine) or Coolant Replacement (3.0L Engine) or Coolant Check (3.0L Engine)

   Key Information

   Do the following before starting your work.

   Remove:

   • Splash Shield
   • Turbocharger Joint

   Sub-Procedure

   NOTICE:

   When disconnecting/connecting the hose, do not bend the pipe excessively or it will be damaged or deformed.

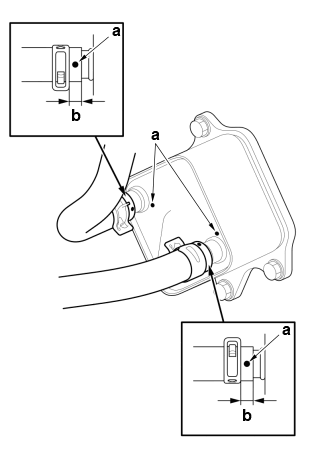

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Connect the hoses until the hose end contacts the bulge while aligning the paint marks (a) as shown.

   Specifications

   Standard Value
   b	7.0 mm (0.276 in)

   After Installation

   • Engine Coolant Refill - Refer to: Coolant Check (3.5L Engine) or Coolant Replacement (3.5L Engine) or Coolant Replacement (3.0L Engine) or Coolant Check (3.0L Engine)
5. E.-

   Preconditions

   • Engine Coolant Drained - Refer to: Coolant Check (3.5L Engine) or Coolant Replacement (3.5L Engine) or Coolant Replacement (3.0L Engine) or Coolant Check (3.0L Engine)

   Key Information

   Do the following before starting your work.

   Remove:

   • Engine Undercover
   • Turbocharger Joint

   Sub-Procedure

   NOTICE:

   The ATF warmer is an aluminum part. Be careful not to damage the ATF warmer.

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	ATF

   After Installation

   • Engine Coolant Refill - Refer to: Coolant Check (3.5L Engine) or Coolant Replacement (3.5L Engine) or Coolant Replacement (3.0L Engine) or Coolant Check (3.0L Engine)
   • ATF Level Check
6. F.-

   Sub-Procedure

   Removal

   • Clean the ATF warmer strainer if necessary. Replace the ATF warmer strainer, if it is clogged or damaged.

     NOTICE:

     • Do not use compressed air to clean the ATF warmer strainer.
     • Soak the ATF warmer strainer thoroughly in ATF.

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Installation Directions

   Position	Direction
   a	Transmission Side

   Lubricant Specifications

   Object	Type
   O-Ring	ATF

7. G.-

   WARNING:

   Before following the procedure, be sure to observe precautions and eliminate static electricity.

   NOTE:

   • The TCM and the valve body assembly are not available separately. Replace them as a set.
   • If you are replacing the TCM, the vehicle cannot be turned to the ON mode until the keyless access system registration procedure is complete.

   Key Information

   Do the following before starting your work.

   Remove:

   • Air Flow Tube - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)
   • Intercooler Inlet Hose
   • ATF Pipe Bracket (With ATF Cooler)

   After Installation

   Procedure After Replacing TCM

   1. Keyless Access System Registration

   2. TCM Set Up

   Connect the HDS to the DLC .

   Select the following menu buttons on the HDS screen in sequence.

   NOTE:  If the procedure is unfinished, try to do it again.

   • AT (System Selection Menu)
   • Adjustment
   • TCM Set up
8. H.-

   Preconditions

   • Vehicle Lifted
   • ATF Drained

   Key Information

   Do the following before starting your work.

   Remove:

   • Engine Undercover

   Sub-Procedure

   Installation

   • Remove metal particles from the magnetic surface of the drain plug.

   After Installation

   • ATF Refill
9. I.-

   Preconditions

   • Vehicle Lifted
   • ATF Drained

   Key Information

   Do the following before starting your work.

   Disconnect:

   • Left Driveshaft Inboard Joint

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Lubricant Specifications

   Position	Type
   a	ATF

   Specifications

   Specification
   b	Flush with Housing

   NOTICE:

   Install the oil seal until the oil seal driver (c) has been fully seated.

   After Installation

   • ATF Refill
10. J.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Air Cleaner Housing - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Installation

    Lubricant Specifications

    Position	Type
    a	ATF

    Specifications

    Specification
    b	Flush with Housing

    Tool Details

    Name
    c	Spacer (Commercially Available)

11. K.-

    Preconditions

    • Vehicle Lifted
    • ATF Drained

    Key Information

    Do the following before starting your work.

    Remove:

    • Undercover Area Parts
    • • -

        Engine Undercover

      • -

        Splash Shield

    • Air Cleaner Housing - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)
    • Intercooler Inlet Hose
    • ATF Pipe Bracket (With ATF Cooler)

    Sub-Procedure

    Installation

    NOTICE:

    • Be careful not to pinch the solenoid wire harness.
    • Tighten the bolts in a crisscross pattern in at least two steps.

    After Installation

    • ATF Refill
12. L.-

    NOTICE:

    Do not disassemble the valve body assembly. If any problem occurs, replace the assembly.

    NOTE:  The valve body assembly and the TCM are not available separately. Replace them as a set.

    Preconditions

    • Park Lock Released - Refer to: A/T Road Test or How to Release Park Lock

    Sub-Procedure

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    Removal

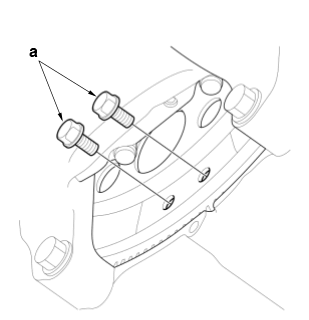

    • Remove the appropriate bolts (a) as shown. (Figure 1)

    Figure 2

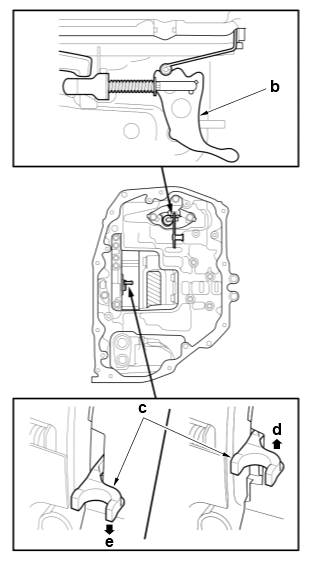

    Courtesy of HONDA, U.S.A., INC.

    Installation

    1. Make sure the control shaft (b) and the two-way clutch (c) are positioned as shown. (Figure 2)

    Specifications (Figure 2)

    Condition	Position
    Except replacing valve body assembly	d	Upper side
    Replacing valve body assembly	e	Lower side

    2. Align the control shaft and the two-way clutch with the valve body assembly.

    After Installation

    • Shift the transmission to P position/mode - Refer to: A/T Road Test or How to Release Park Lock .
13. M.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Air Cleaner Housing - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
14. N.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Engine Undercover
    • Air Cleaner Housing - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Lift and support the transmission with a floor jack (a) and a wood block (b).

    Tool Details

    Name
    a	Floor Jack(Commercially Available)

    Installation

    • Do the mount tightening procedure - Refer to: Engine Mount Tightening Procedure (3.0L Engine) or Engine Mount Tightening Procedure (3.5L Engine) before tightening all of the mount bolts and nuts.
15. O.-

    Preconditions

    • Vehicle Lifted

    Key Information

    Do the following before starting your work.

    Remove:

    • Engine Undercover
16. P.-

    Preconditions

    • Vehicle Lifted
    • ATF Drained
    • Engine Support Hanger Installed - Refer to: Engine Support Hanger Installation (3.0L Engine) or Engine Support Hanger Installation (3.5L Engine)

    Key Information

    NOTE:  For the removal and installation procedure, refer to Transmission Removal and Installation - Refer to: Automatic Transmission Removal and Installation (3.0L Engine) or Automatic Transmission Removal and Installation (3.5L Engine) and the sub-procedure below.

    Sub-Procedure

    NOTICE:

    Use fender covers to avoid damaging painted surfaces.

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    Removal

    1. Remove six bolts (a) while rotating the crankshaft pulley. (Figure 1)

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

    2. Check that the transmission is free of hoses and electrical wiring.

    3. Hold the transmission as shown. (Figure 2)

    Tool Details (Figure 2)

    Name
    b	Transmission Jack (Commercially Available)

    4. Remove the transmission carefully.

    NOTICE:

    Be careful not to drop the torque converter.

    After Installation

    1. Keyless Access System Registration (Only for Replacing Transmission or TCM)

    2. TCM Set Up (Only for Replacing Transmission or TCM)

    Connect the HDS to the DLC .

    Select the following menu buttons on the HDS screen in sequence.

    NOTE:  If the procedure is unfinished, try to do it again.

    • AT (System Selection Menu)
    • Adjustment
    • TCM Set up

    3. ATF Refill

    4. Transmission Operation Check

    Park the vehicle on level ground, and block all four wheels.

    Start the engine.

    NOTE:  Check that the engine starts in P position/mode, and does not start in any other positions/modes.

    While pressing the brake pedal firmly, shift the transmission to each position/mode.

    Make sure the shift position indicator follows the shift operation.

    5. Front Wheel Alignment Check - Refer to: Wheel Alignment (3.0L Engine) or Wheel Alignment (3.5L Engine)

    6. VSA Sensor Neutral Position Memorization - Refer to: VSA Sensor Neutral Position Memorization or VSA Modulator-Control Unit Update

    7. Vehicle Road Test - Refer to: A/T Road Test or How to Release Park Lock

17. Q.-

    Sub-Procedure

    Removal

    • Inspect the drive plate, and replace it if it is damaged.

    Installation

    NOTICE:

    Tighten the bolts in a crisscross pattern in at least two steps.

18. R.-

    Sub-Procedure

    Installation

    • Make sure the torque converter is fully engaged on the transmission. Failure to do so will result in severe transmission or engine damage.

    After Installation

    Procedure After Replacing Torque Converter

    • Torque Converter Correction Value Learning

    NOTE:  Do the torque converter correction value learning only when replacing the original torque converter.

    1. Connect the HDS to the DLC .

    2. Select the following menu buttons on the HDS screen in sequence.

    • AT (System Selection Menu)
    • Adjustment
    • Torque Converter Correction Value Learning
19. S.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Installation

    Lubricant Specifications

    Position	Type
    a	ATF

    Specifications

    Specification
    b	Flush with Housing

    Tool Details

    Name
    c	Spacer (Commercially Available)

20. T.-

    Sub-Procedure

    Installation

    Lubricant Specifications

    Object	Type
    O-Ring	ATF

21. U.-

    Sub-Procedure

    Removal

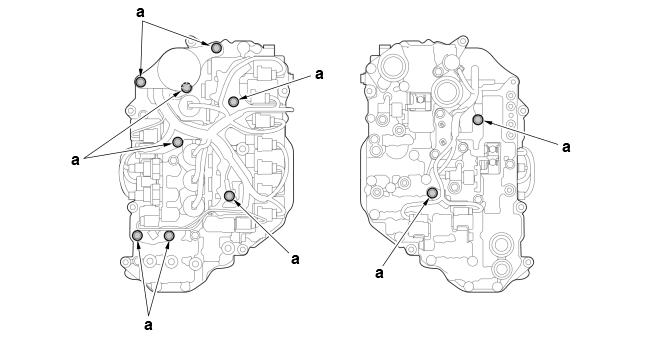

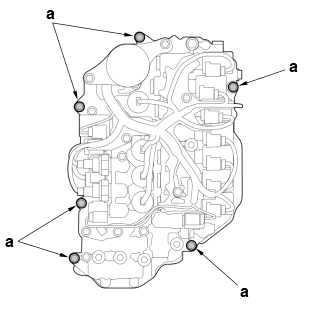

    • Remove the appropriate bolts (a) as shown below. (Figure 1)

      NOTICE:

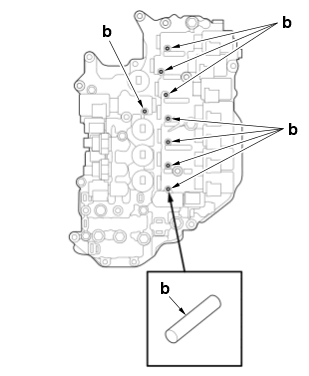

      The valve body assembly includes the rollers (b). Be careful not to drop them while removing the solenoid wire harness. (Figure 2)

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

    Installation

    Lubricant Specifications

    Object	Type
    O-Ring	ATF

22. V.-

    Sub-Procedure

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    Figure 2

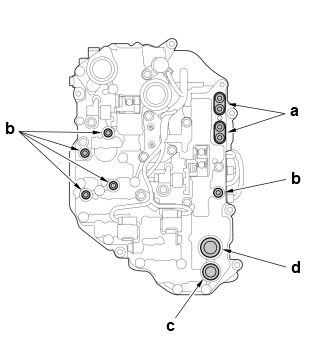

    Courtesy of HONDA, U.S.A., INC.

    Figure 3 (11 x 27 mm Pipe)

    Courtesy of HONDA, U.S.A., INC.

    Figure 4 (Oil Pass Pipe E)

    Courtesy of HONDA, U.S.A., INC.

    Installation

    • Install the pipes at the appropriate point as shown. (Figure 1 and 2)

    Lubricant Specifications

    Object	Type
    O-Ring	ATF

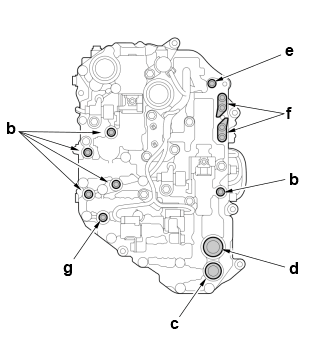

    Installation Information (Figure 1 and 2)

    Size
    a	11 x 24.5 mm Pipe
    b	11 x 27 mm Pipe
    c	20.4 x 19 mm Pipe
    d	25.4 x 19 mm Pipe
    e	10.9 x 64 mm Pipe
    f	Oil Pass Pipe E
    g	10.9 x 22 mm Pipe

    Installation Directions (Figure 3 and 4)

    Object	Position	Direction
    11 x 27 mm Pipe	h	Transmission Side
    Oil Pass Pipe E
