Repair Procedure
How to use this service information .
NOTICE:
When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.
: Torque, N.m (lbf.ft)
: Replace
: Warning/Caution
: Inspection/Adjustment
*: Learning
: SPL Tool
: Required Removal

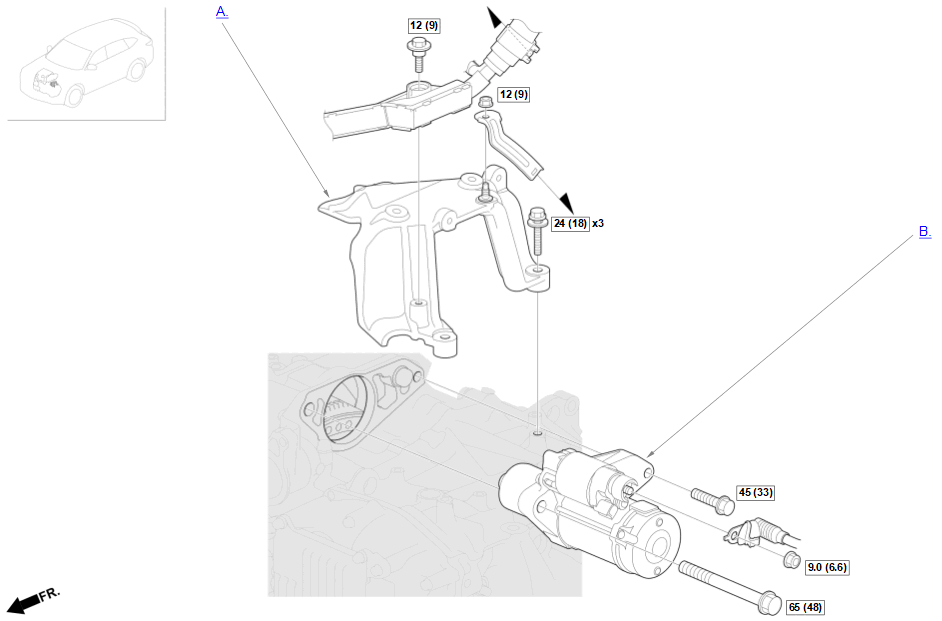

- A.-
Key Information
Do the following before starting your work.
Remove:
- Turbocharger Bracket B
- Upper Transmission Mount - Refer to: Transmission Area (3.5L Engine) or Transmission Area (3.0L Engine)
Sub-Procedure
Installation
- Installing the turbocharger bracket A in the following procedures.
Tightening Procedure

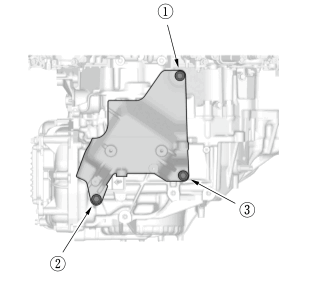

Step Operation Object Detail 1 Temporarily Tighten All bolts ->
->
2 Tighten All bolts ->
->
- B.-
Preconditions
- 12 Volt Battery Negative Terminal Disconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)
Sub-Procedure
Installation
NOTICE:
Make sure the crimped side of the ring terminal faces away from the starter when you connect the positive starter cable.
After Installation
- 12 Volt Battery Negative Terminal Reconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)
Procedure After Replacing Starter
1. Replace the relay circuit board - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine) .
2. Connect the HDS to the DLC .
3. Select the following menu buttons on the HDS screen in sequence.
- PGM-FI (System Selection Menu)
- Adjustment
- IDLE STOP STARTER COUNTER CLEAR
