Repair Procedure

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

NOTE:  Unless otherwise indicated, illustrations used in the procedure are for 22-24 models.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

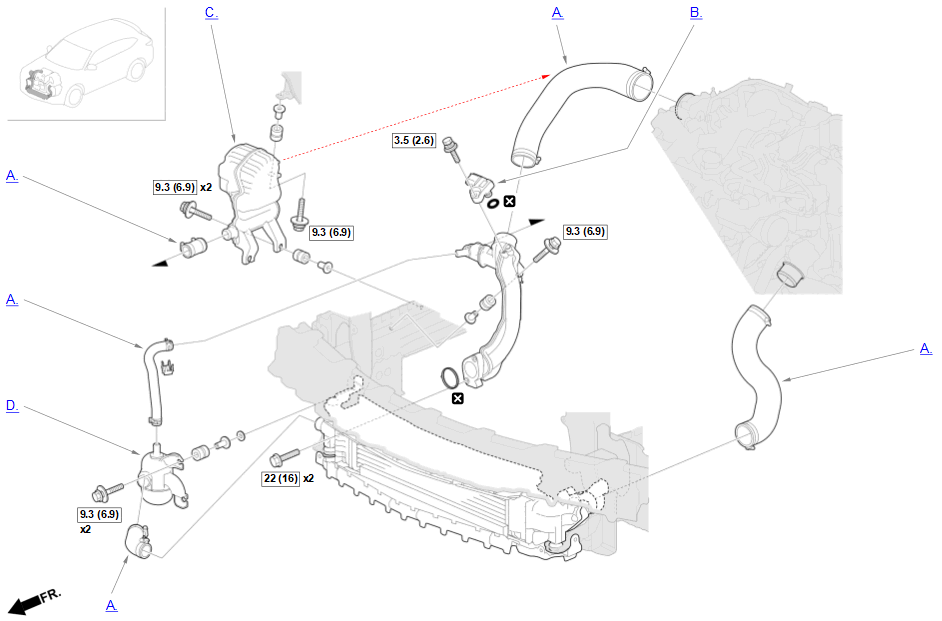

1. A.-

   NOTE:  Review the Intake Air System and Exhaust System Service Precautions before doing repairs or service.

2. B.-

   Sub-Procedure

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Engine Oil

3. C.-

   Courtesy of HONDA, U.S.A., INC.

   Key Information

   Do the following before starting your work.

   Remove:

   • Powertrain Control Module (PCM) - Refer to: Radiator Area (3.5L Engine) or Radiator Area (3.0L Engine)
   • Right Front Wheel - Refer to: Front Brake Area (3.5L Engine) or Front Brake Area (3.0L Engine)

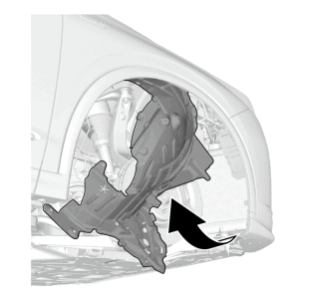

   • Right Front Inner Fender (As Needed)
4. D.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Sub Radiator Intake Duct - Refer to: Radiator Area (3.5L Engine) or Radiator Area (3.0L Engine)
5. E.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Bumper Assembly - Refer to: Front Bumper Area (2025) or Front Bumper Area (2022, 2023, 2024)

   Sub-Procedure

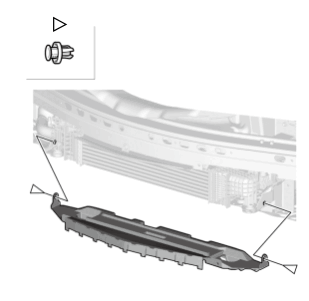

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

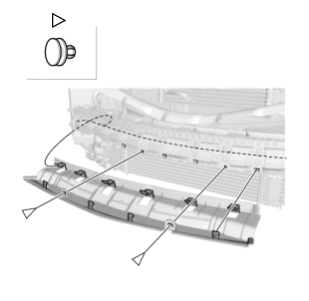

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Refer to figure 1 and 2.
6. F.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Air Flow Tube - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)
   • Sub Radiator Intake Duct - Refer to: Radiator Area (3.5L Engine) or Radiator Area (3.0L Engine)

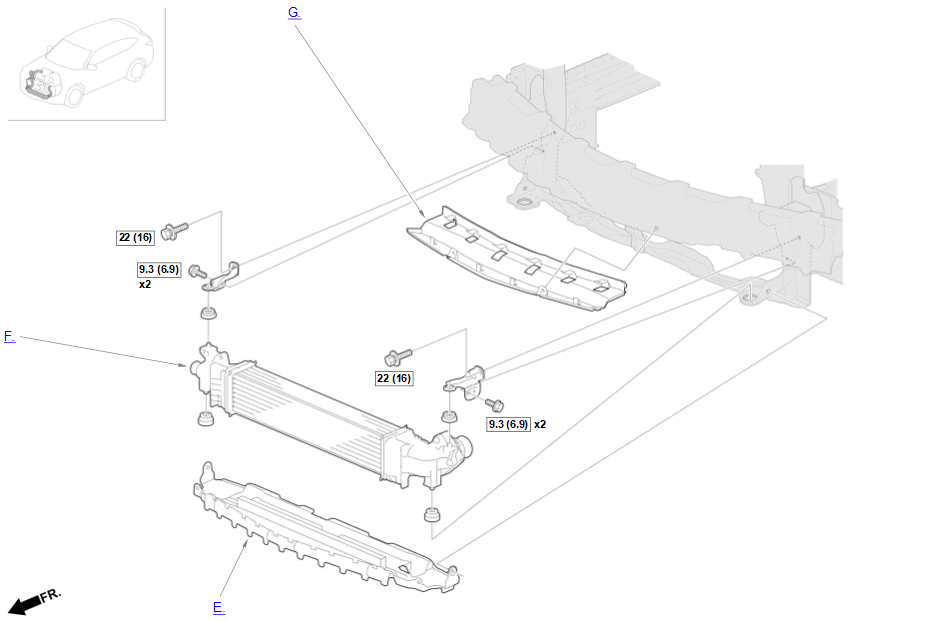

7. G.-

   Sub-Procedure

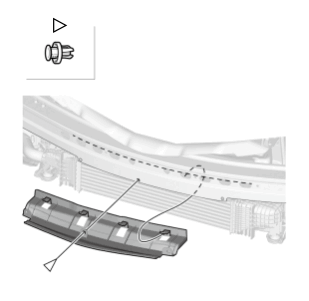

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

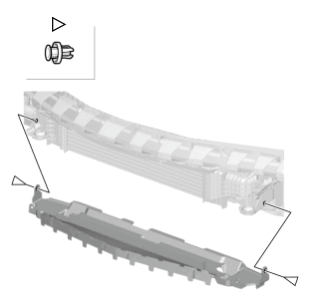

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Refer to figure 1 and 2.
