Repair Procedure

How to use this Service Information .

WARNING:

• SRS components are located in this area. Before doing repairs or service:
• • -

    Review the SRS component locations .

• • -

    Review the precautions and procedures .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

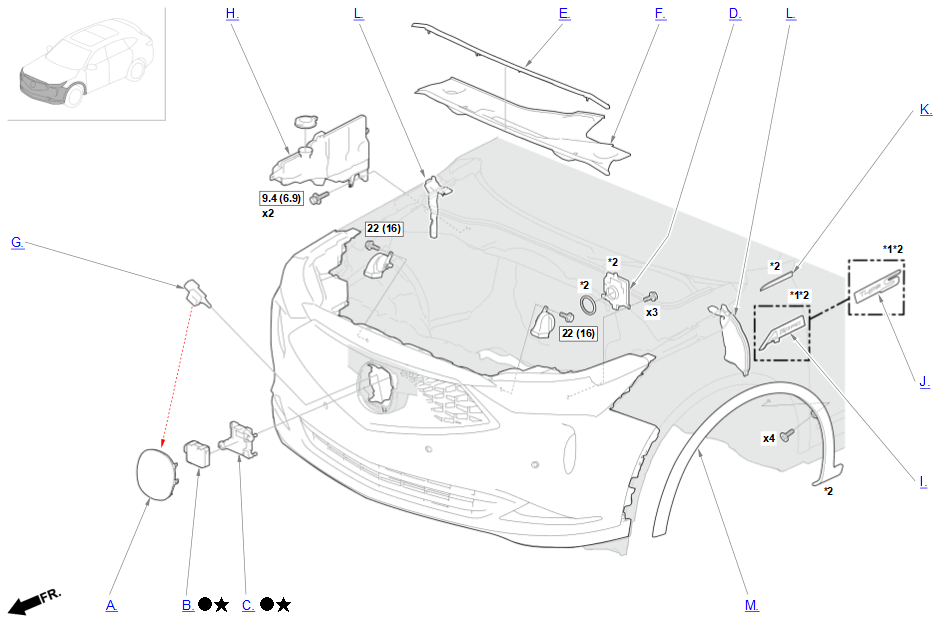

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: For some models

*2: Part(s) are shown for one side only as the procedure is the same for both sides.

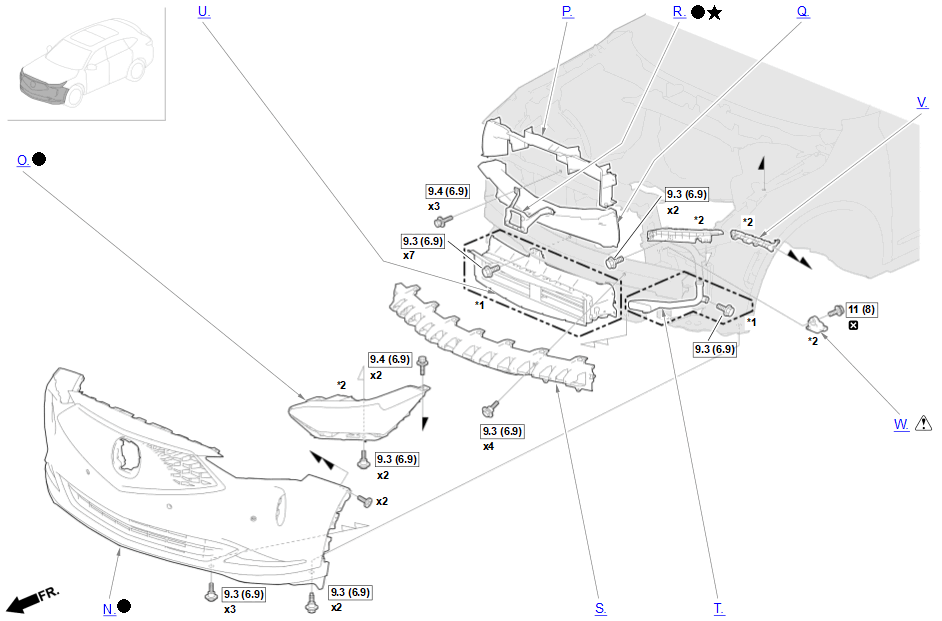

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: 3.5 L Engine

*2: Part(s) are shown for one side only as the procedure is the same for both sides.

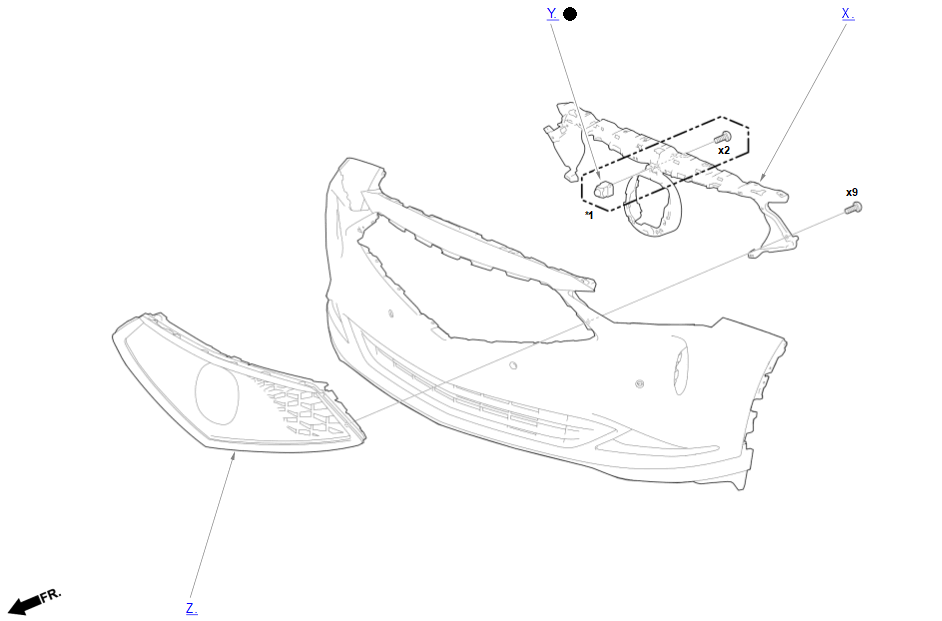

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

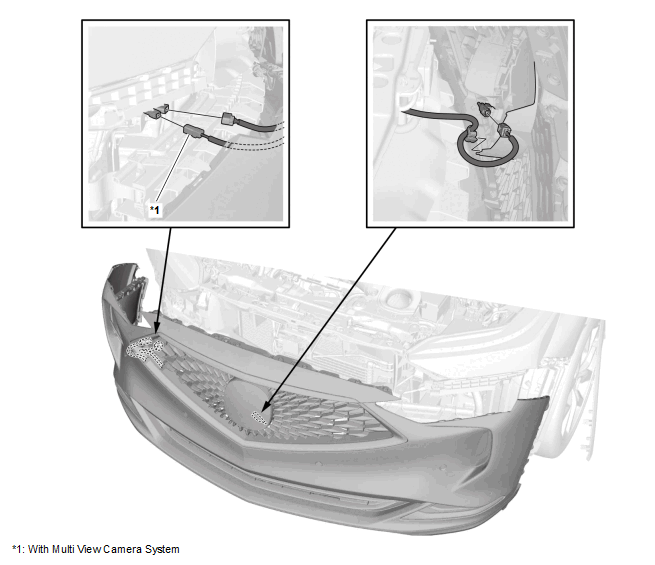

*1: With multi view camera system

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

1. A.-

   Courtesy of HONDA, U.S.A., INC.

2. B.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front "A" Emblem/Radar Cover

   Sub-Procedure

   Removal

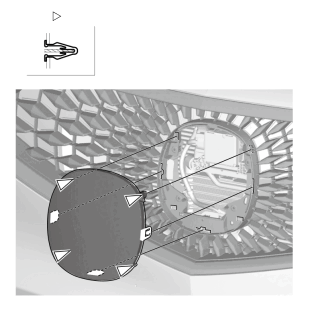

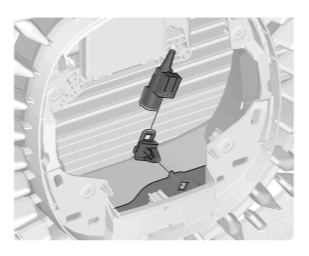

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • Refer to the appropriate Milimeter Wave Radar article

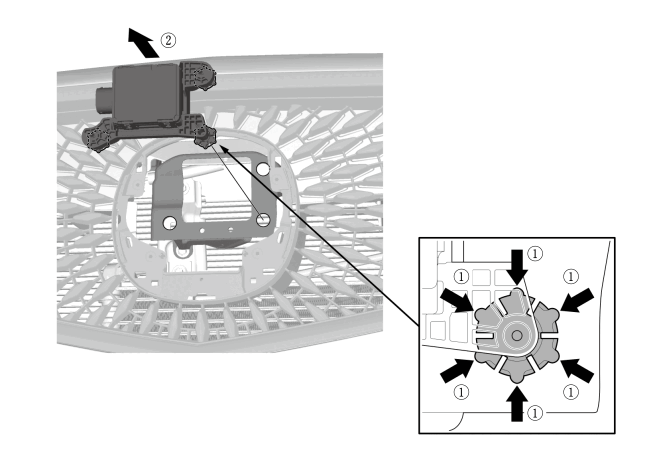

3. C.-

   Sub-Procedure

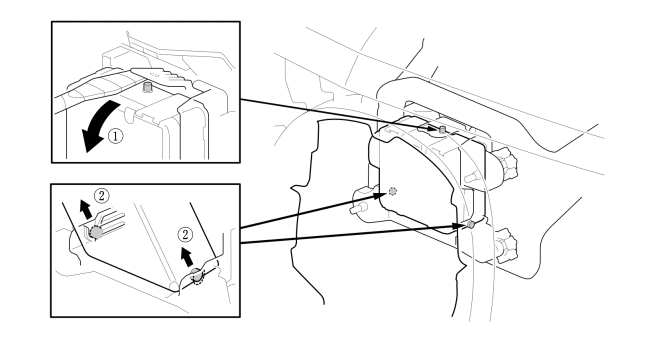

   Removal

   • Refer to the figure 1.

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Measure the length of the stud (a), then adjust the bolts (b) to the same length. (Figure 2)

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • Refer to the appropriate Milimeter Wave Radar article.
4. D.-

   Key Information

   Do the following before starting your work.

   Remove:

   • 3.0 L Engine, Left Side LED Control Unit Assembly: Air Cleaner Housing - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)
   • 3.0 L Engine, Right Side LED Control Unit Assembly: PCM Bracket - Refer to: Radiator Area (3.5L Engine) or Radiator Area (3.0L Engine)
5. E.-

   Courtesy of HONDA, U.S.A., INC.

6. F.-

   Sub-Procedure

   Removal

   1. Refer to the figure 1.

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   2. Refer to the figure 2.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

7. G.-

   Courtesy of HONDA, U.S.A., INC.

8. H.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Right Front Inner Fender (as needed)

   Sub-Procedure

   Removal

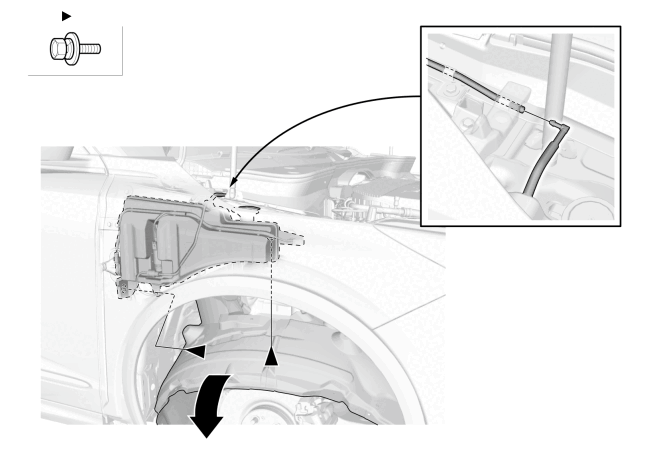

   1. Refer to the figure 1.

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

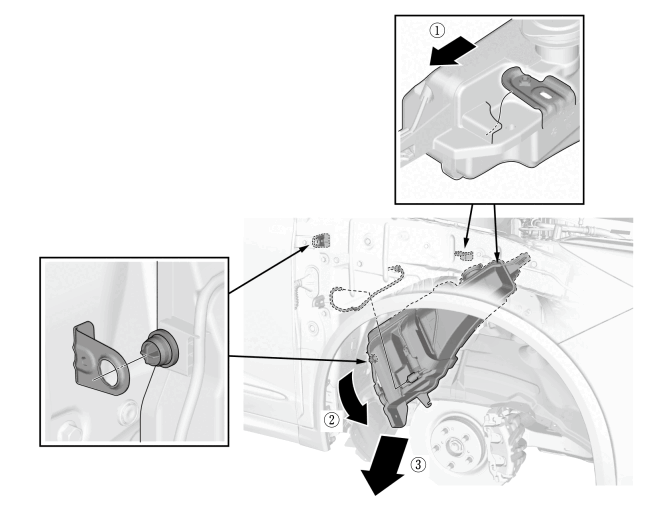

   2. Refer to the figure 2.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Washer Reservoir Specifications

   Capacity
   4.0 L (4.2 Us qt)

9. I.-

   Sub-Procedure

   Installation

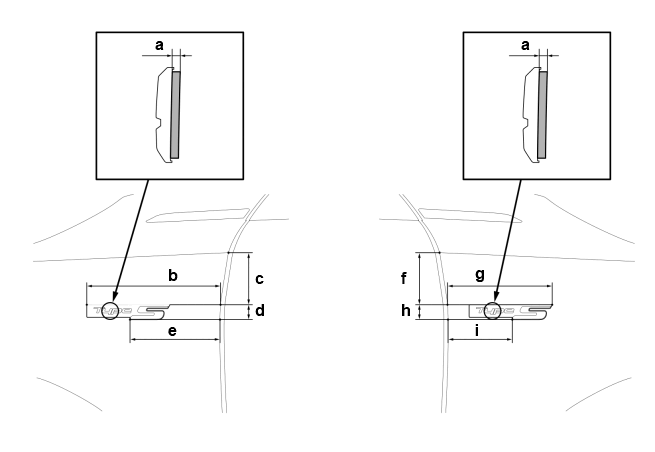

   • Refer to the figure.

     NOTICE:

     After cleaning, keep oil, grease, and water from getting on the surface.

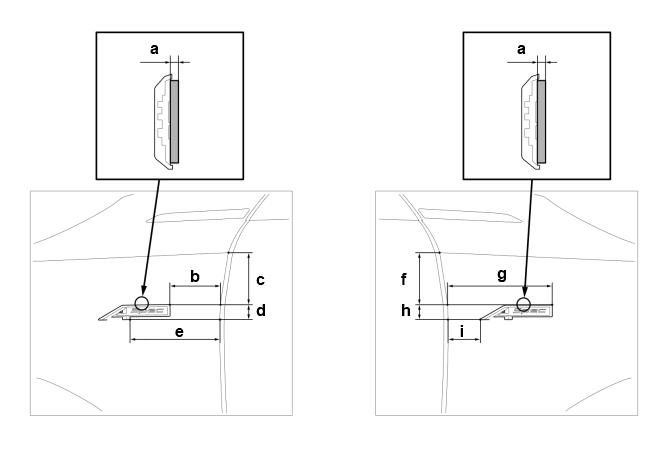

   Adhesive Tape Specifications

   Standard Value
   a	0.8 mm (0.031 in)

   Specifications

   Standard Value
   b	85.4 mm (3.362 in)
   c	89.7 mm (3.531 in)

   Standard Value
   d	28.1 mm (1.106 in)
   e	168.0 mm (6.614 in)
   f	89.7 mm (3.531 in)
   g	211.4 mm (8.323 in)
   h	28.1 mm (1.106 in)
   i	64.3 mm (2.531 in)

   Courtesy of HONDA, U.S.A., INC.

10. J.-

    Sub-Procedure

    Installation

    • Refer to the figure.

      NOTICE:

      After cleaning, keep oil, grease, and water from getting on the surface.

    Adhesive Tape Specifications

    Standard Value
    a	0.8 mm (0.031 in)

    Specifications

    Standard Value
    b	197.5 mm (7.776 in)
    c	87.0 mm (3.425 in)

    Standard Value
    d	23.3 mm (0.917 in)
    e	128.0 mm (5.039 in)
    f	87.0 mm (3.425 in)
    g	195.5 mm (7.697 in)
    h	23.3 mm (0.917 in)
    i	132.5 mm (5.217 in)

    Courtesy of HONDA, U.S.A., INC.

11. K.-

    Sub-Procedure

    Installation

    • Refer to the figure.

      NOTICE:

      After cleaning, keep oil, grease, and water from getting on the surface.

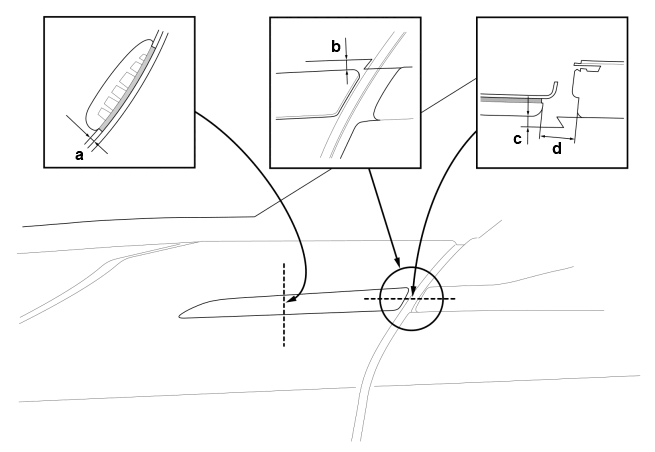

    Adhesive Tape Specifications

    Standard Value
    a	0.8 mm (0.031 in)

    Specifications

    Standard Value
    b	0 0.75 mm (0 0.0295 in)

    Standard Value
    c	0 0.2 mm (0 0.008 in)
    d	12.6 0.5 mm (0.496 0.020 in)

    Courtesy of HONDA, U.S.A., INC.

12. L.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Cowl Cover (as needed)
    • Front Inner Fender (as needed)
    • Right Side: Washer Tank

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

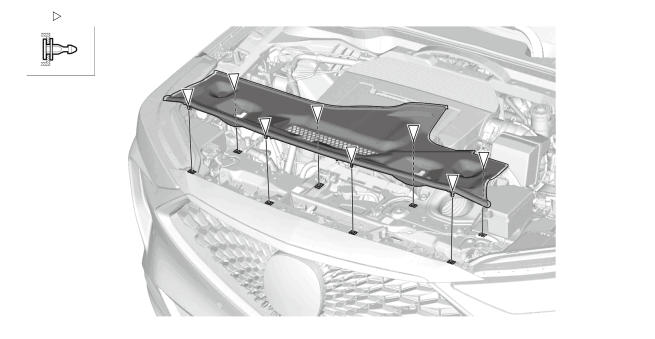

    • Refer to the figure.
13. M.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Front Inner Fender (as needed)

    Sub-Procedure

    Removal

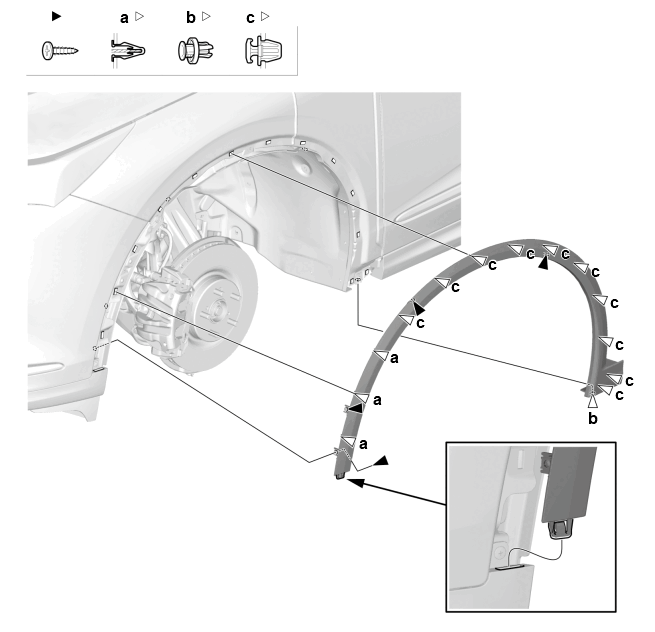

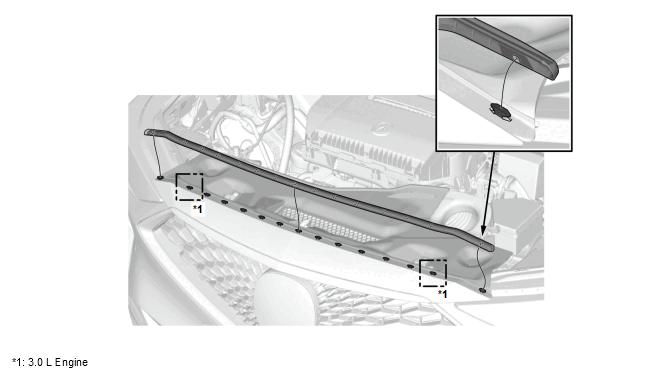

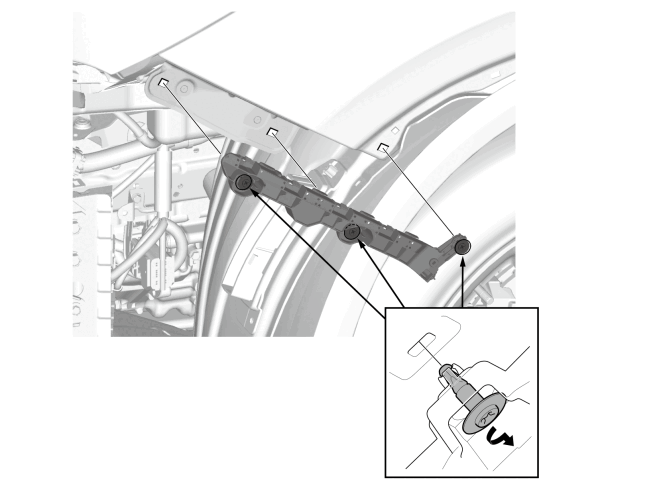

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

14. N.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Front Grille Cover
    • Front Inner Fender (as needed)

    NOTE:  The front bumper can be removed without removing the front "A" emblem/radar cover.

    Sub-Procedure

    Removal

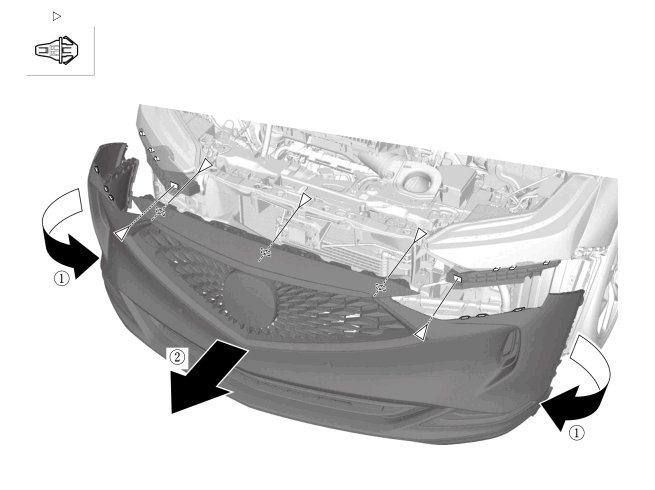

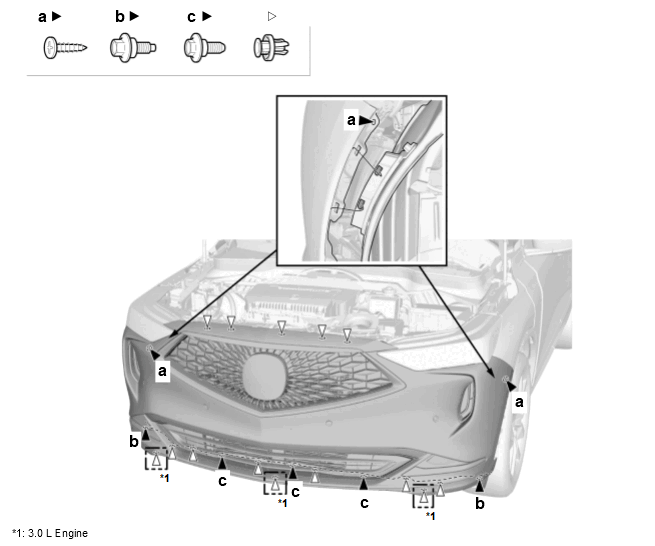

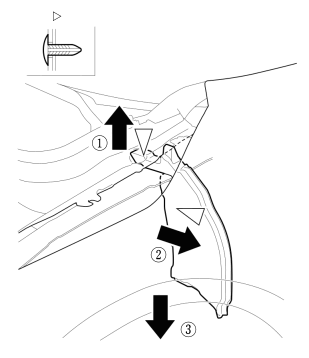

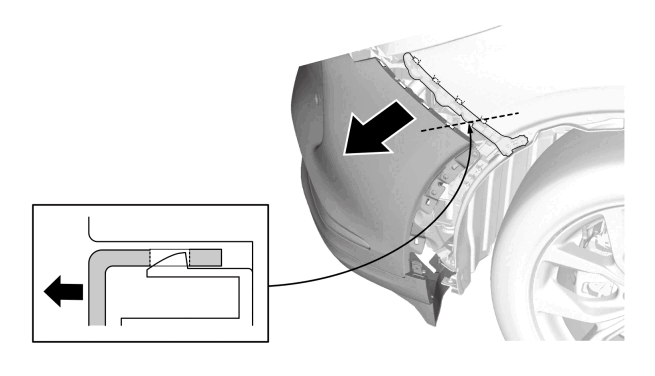

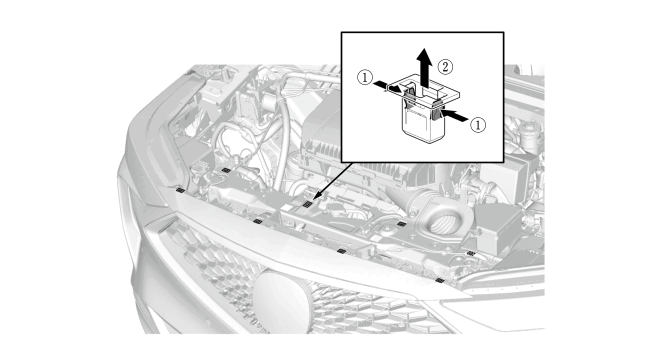

    • Refer to the figure 1, 2, 3, and 4.

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

    Figure 3

    Courtesy of HONDA, U.S.A., INC.

    Figure 4

    Courtesy of HONDA, U.S.A., INC.

    After Installation

    • With Multi View Camera System: Multi View Front Camera Aiming - Refer to: Multi View Camera Picture Inspection or Multi View Camera Aiming
15. O.-

    After Installation

    • Headlight Adjustment
16. P.-

    Courtesy of HONDA, U.S.A., INC.

17. Q.-

    Sub-Procedure

    Removal

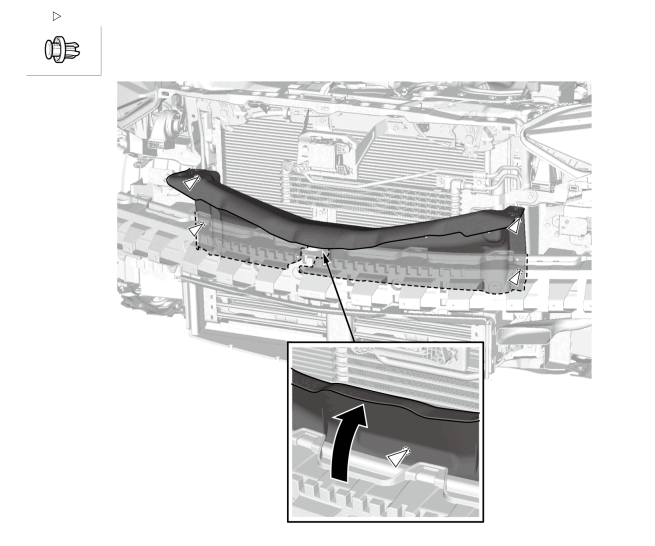

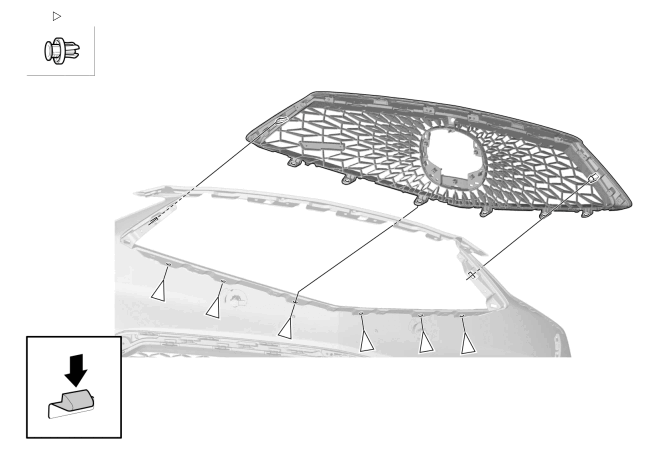

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

18. R.-

    After Installation

    • Refer to the appropriate Millimeter Wave Radar article
19. S.-

    Key Information

    Do the following before starting your work.

    Remove:

    • 3.0 L Engine: Sub Radiator Intake Duct - Refer to: Radiator Area (3.5L Engine) or Radiator Area (3.0L Engine)

    Sub-Procedure

    Removal

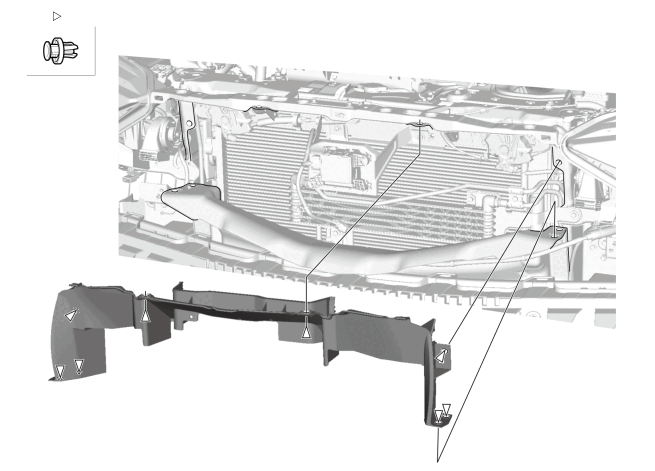

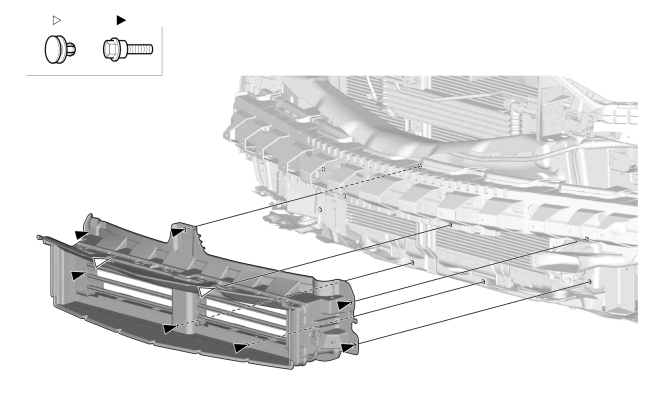

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

20. T.-

    Courtesy of HONDA, U.S.A., INC.

21. U.-

    Courtesy of HONDA, U.S.A., INC.

22. V.-

    Sub-Procedure

    Removal

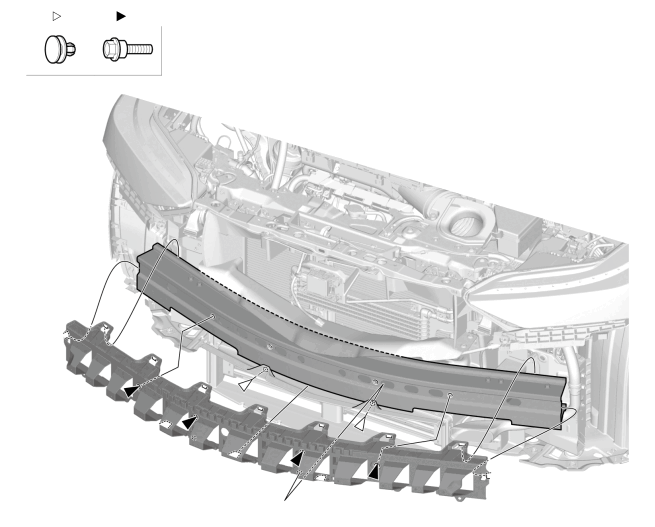

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

23. W.-

    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    NOTICE:

    • If you are replacing the front impact sensor after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: SRS Component Replacement/Inspection After Deployment or Airbag and Tensioner Disposal for a complete list of other parts that must also be replaced.
    • Be careful not to bump (by impact wrench, hammer, etc.) the area around the front impact sensor.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)

    Sub-Procedure

    Installation

    NOTE:  Before installing the front bumper, make sure the SRS indicator works normally.

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)
    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
24. X.-

    Sub-Procedure

    Removal

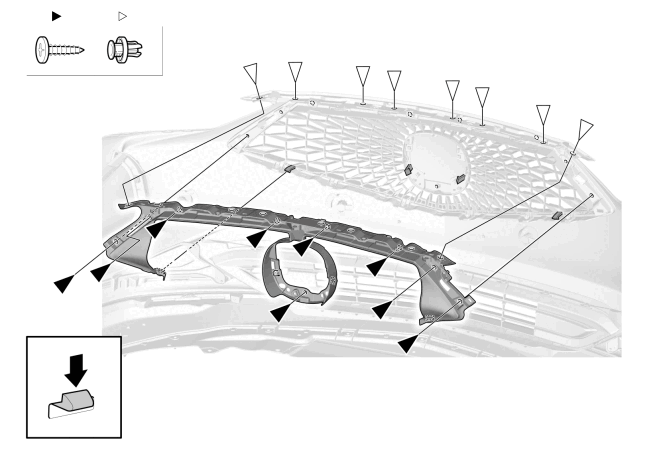

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

25. Y.-

    After Installation

    • With Multi View Camera System: Multi View Front Camera Aiming - Refer to: Multi View Camera Picture Inspection or Multi View Camera Aiming

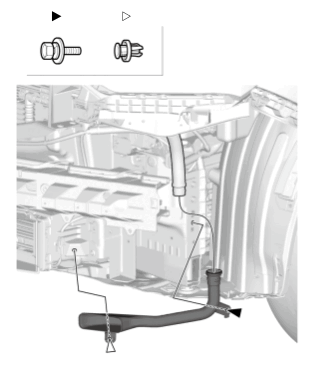

26. Z.-

    Sub-Procedure

    Removal

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

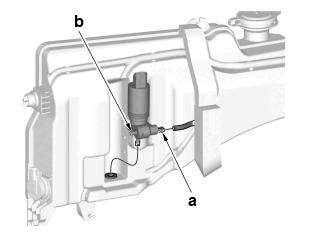

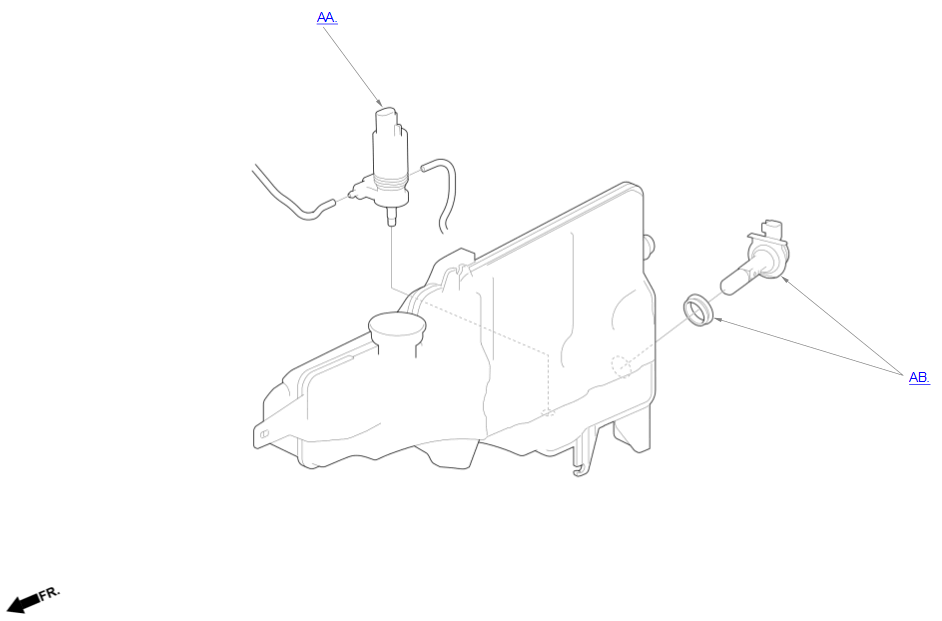

27. AA.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Installation

    • Refer to the figure.

    Installation Directions

    Position	Connected to Direction
    a	Front Washer
    b	Rear Washer

28. AB.-

    Sub-Procedure

    Installation

    NOTICE:

    Inspect the grommet for damage. If damaged, replace it.
