Exploded View
For replacement of components listed below, see Repair Procedure
Center Console Assembly Removal
*1: With 25 speakers
: Torque, N.m (lbf.ft)
: Replace
: Warning/Caution
: Inspection/Adjustment
*: Learning
: SPL Tool
: Required Removal
*1: Without AC power outlet
*2: With AC power outlet

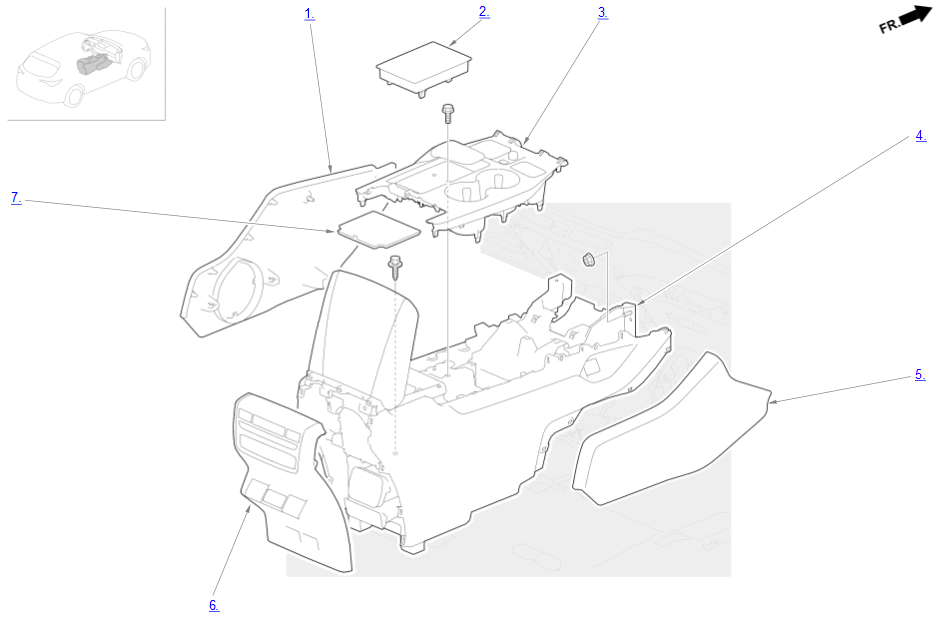

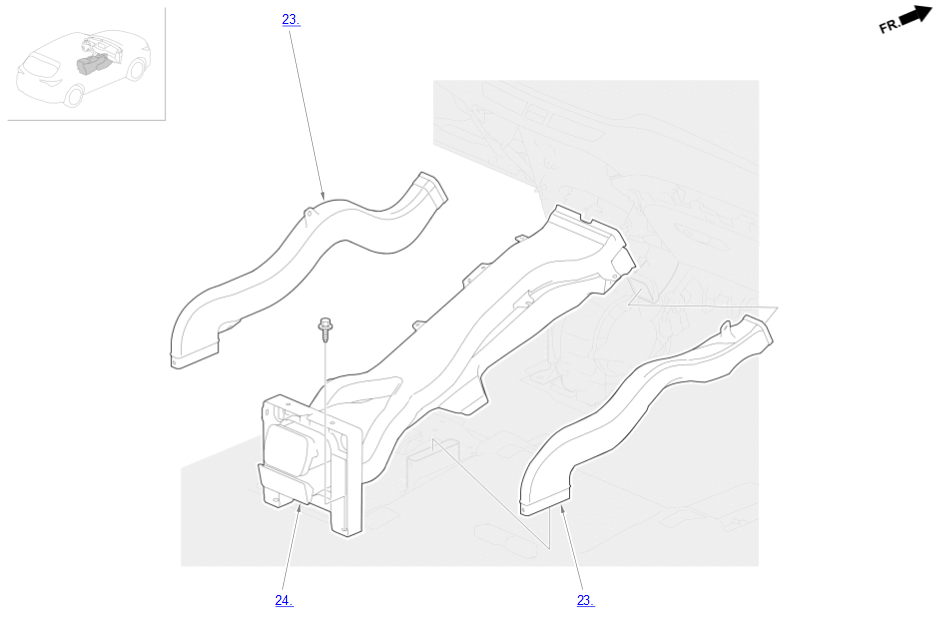

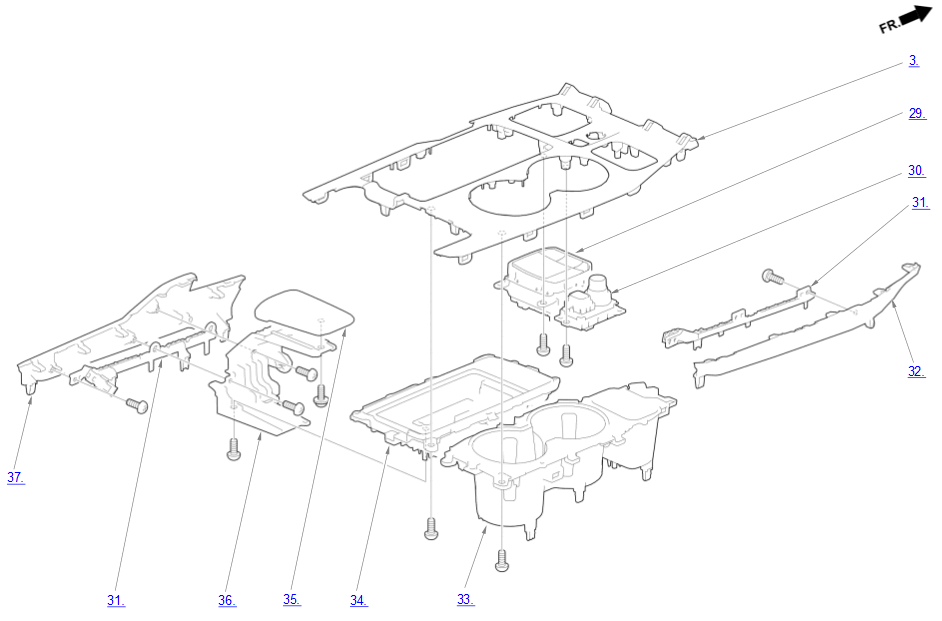

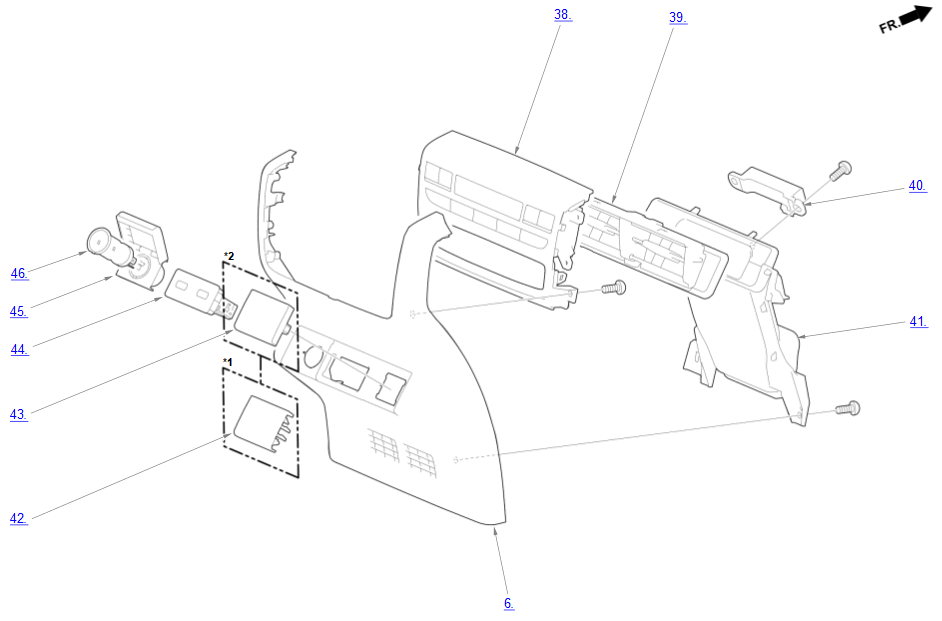

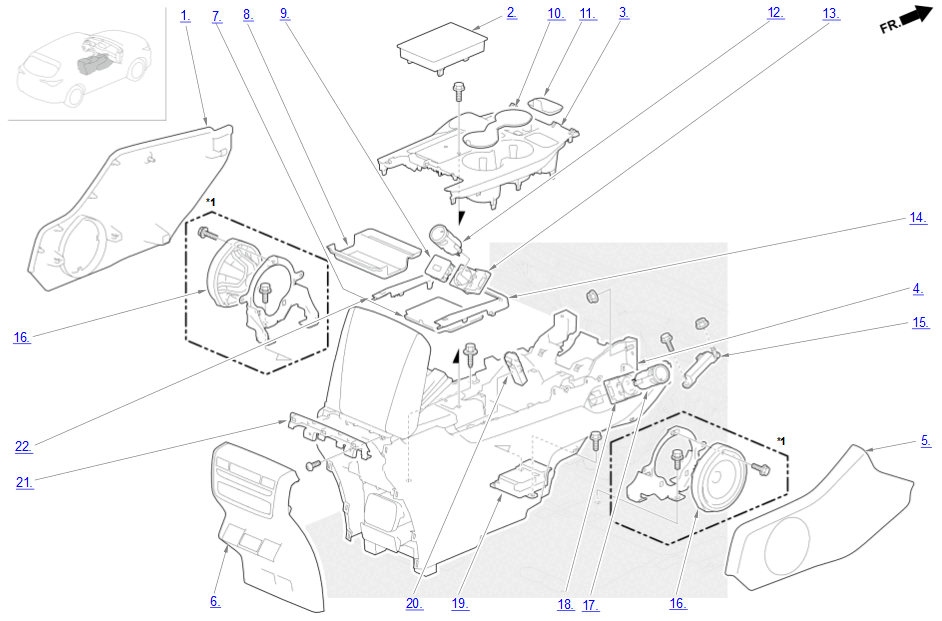

Center_Console_Area_(2022_2023_2024) Components
| Component Name | Callout |
|---|---|
| Driver's Center Console Cover | 1 |
| Wireless Charger Unit | 2 |
| Center Console Panel | 3 |
| Center Console | 4 |
| Passenger's Center Console Cover | 5 |
| Center Console Rear Panel | 6 |
| Console Box Mat | 7 |
| Armrest Tray Mat | 8 |
| USB Port | 9 |
| Cup Holder Mat | 10 |
| Pocket Mat | 11 |
| Front Console Accessory Power Socket | 12 |
| Front Console Accessory Power Socket Housing | 13 |
| Passenger's Center Console Upper Box | 14 |
| Front Interior LF Antenna | 15 |
| Center Console Speaker | 16 |
| Front Accessory Power Socket | 17 |
| Front Accessory Power Socket Housing | 18 |
| SRS Unit | 19 |
| Console Box Light | 20 |
| Center Console Box Rear Trim | 21 |
| Driver's Center Console Upper Box | 22 |
| Rear Heater Joint Duct | 23 |
| Rear Heater Center Joint Duct | 24 |
| Driver's Center Console Panel | 25 |
| Passenger's Center Console Panel | 26 |
| Center Console Frame | 27 |
| Center Console Armrest | 28 |
| Touchpad Unit | 29 |
| Volume and Seek Switch | 30 |
| Console Ambient Light | 31 |
| Passenger's Trim | 32 |
| Center Console Cup Holder | 33 |
| Center Console Tray | 34 |
| Palmrest Cover | 35 |
| Palmrest | 36 |
| Driver's Trim | 37 |
| Rear Climate Control Panel | 38 |
| Rear Vent | 39 |
| Middle Interior LF Antenna | 40 |
| Rear Duct | 41 |
| Hole Lid | 42 |
| AC Power Outlet | 43 |
| USB Charger Unit (Rear Console) | 44 |
| Rear Console Accessory Power Socket Housing | 45 |
| Rear Console Accessory Power Socket | 46 |
