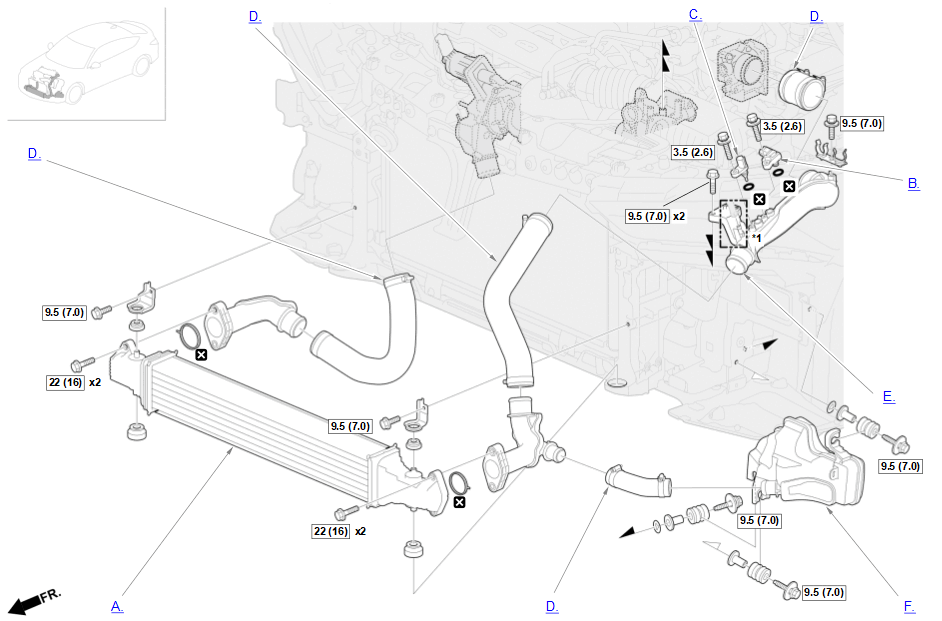

Repair Procedure

How to use this service information .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: USA and Canada models

1. A.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Bumper - Refer to: Front Bumper Area (Except Type-S) or Front Bumper Area (Type-S) (2024 2025)
2. B.-

   Sub-Procedure

   ■ Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Engine Oil

3. C.-

   Sub-Procedure

   ■ Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Engine Oil

4. D.-
   NOTE:

   Review the Intake Air System and Exhaust System Service Precautions before doing repairs or service.

5. E.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Air Cleaner Housing Cover - Refer to: Air Cleaner Area (1.5L Engine) or Air Cleaner Area (2.0L Engine) (2024 2025)
6. F.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Left Front Wheel - Refer to: Front Brake Area (Type-S) (2024 2025) or Front Brake Area (Except Type-S)
   • Undercover Area Parts - Refer to: Undercover Area (Type-S) (2024 2025) or Undercover Area (Except Type-S)
   • • -

       Engine Undercover

     • -

       Left Front Inner Fender (as needed)
