Repair Procedure

How to use this service information .

USA and Canada Models

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

USA and Canada Models

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

USA and Canada Models

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

USA and Canada Models

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Mexico Models

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Mexico Models

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Mexico Models

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Mexico Models

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

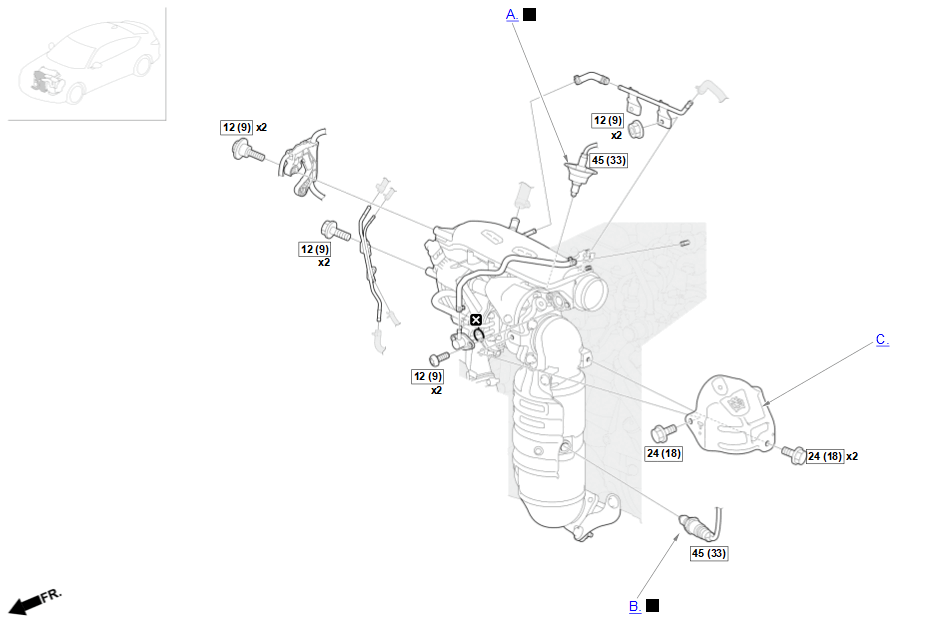

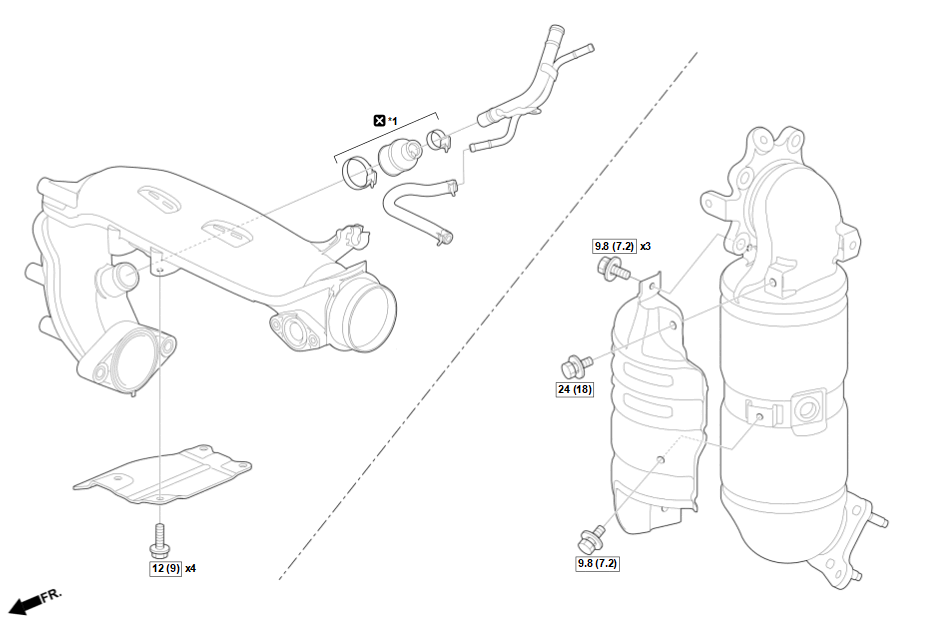

*1: Replace it, if the break head band was used.

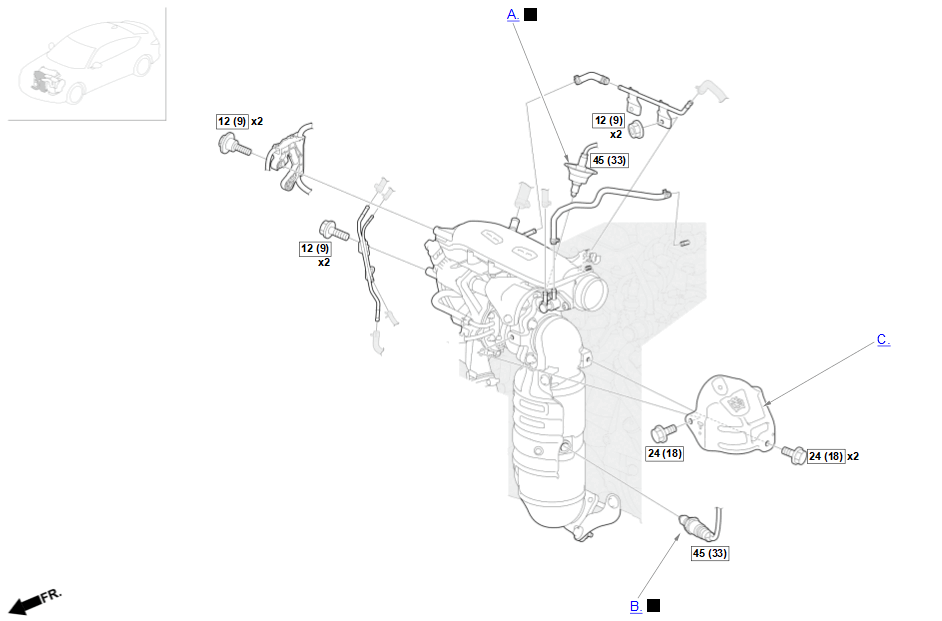

1. A.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   ■ Removal/Installation

   • Refer to the figure.

   Tool Details

   Name
   a	O2 Sensor Wrench (Snap-on S6176 or equivalent)

2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   ■ Removal/Installation

   • Refer to the figure.

   Tool Details

   Name
   a	O2 Sensor Wrench (Snap-on S6176 or equivalent)

3. C.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Air Flow Tube - Refer to: Air Cleaner Area (1.5L Engine) or Air Cleaner Area (2.0L Engine) (2024 2025)

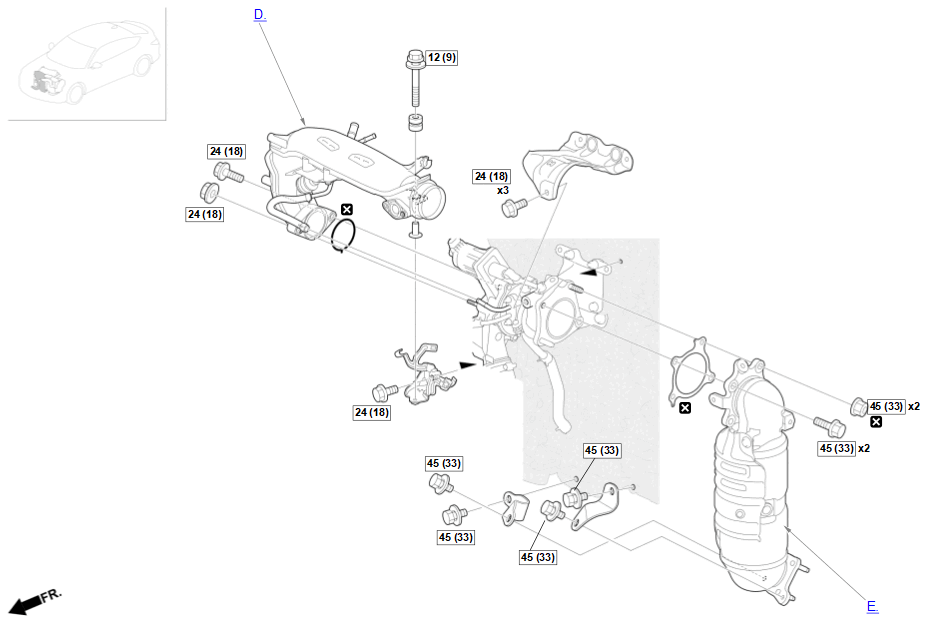

4. D.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Air Flow Tube - Refer to: Air Cleaner Area (1.5L Engine) or Air Cleaner Area (2.0L Engine) (2024 2025)
5. E.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Air Flow Tube - Refer to: Air Cleaner Area (1.5L Engine) or Air Cleaner Area (2.0L Engine) (2024 2025)
   • Exhaust Pipe A - Refer to: Exhaust Pipe/Muffler Area (2.0L Engine) (2024 2025) or Exhaust Pipe/Muffler Area (1.5L Engine)

   Sub-Procedure

   ■ Removal

   NOTE:

   Due to the high temperatures of the exhaust system, the exhaust nuts, studs, and bolts may seize preventing easy removal. If you encounter a seized condition, do the following.

   • Apply rust penetrant to the nut/stud or bolt.
   • Allow the penetrant to sit. The amount of time may vary.
   • Lightly tap the nut/stud or bolt with a hammer.
   • Slowly loosen the nut or bolt.
   • If the nut or bolt still will not loosen, repeat steps 1 to 4.

   ■ Installation

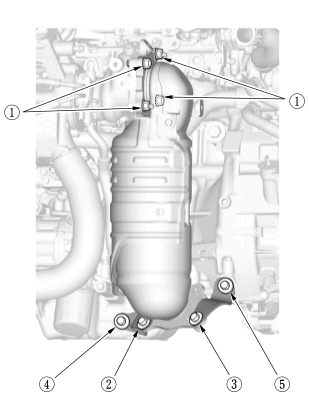

   • Installing the three way catalytic converter and the converter brackets in the following procedures.

   Tightening Procedure

   Step	Operation	Object	Detail
   1	Temporarily Tighten	All Bolts and Nuts	-> -> -> ->
   2	Tighten	All Bolts and Nuts	-> -> -> ->

   Courtesy of HONDA, U.S.A., INC.

6. F.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

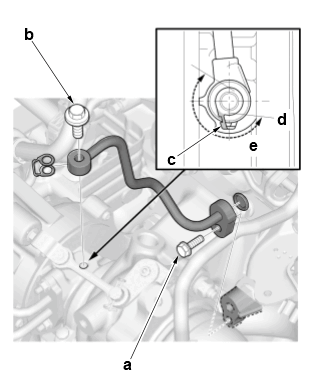

   1. Tighten the bolt (a) and the bolt (b) until the oil feed pipe sits on the turbocharger and the engine block.

   Lubricant Specifications

   Position		Type
   b	Threads	Engine Oil
   	Flange

   2. Tighten the bolt (a) to the specified torque.

   3. Set the washer portion (c) to the direction (d).

   4. Tighten the bolt (b) to the specified torque.

   5. Make sure the washer is positioned within area (e) as shown.

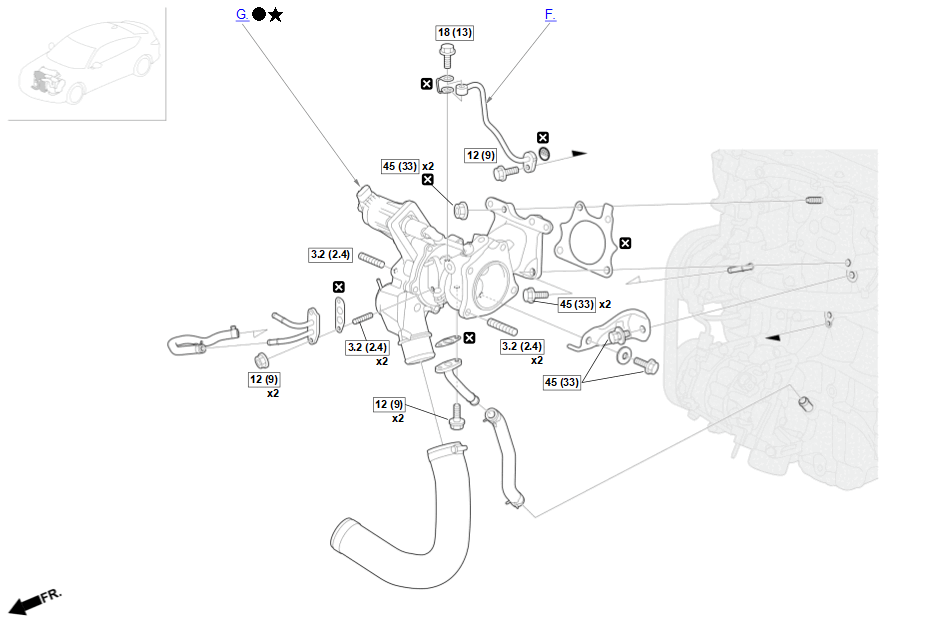

7. G.-

   Preconditions

   • Engine Coolant Drained - Refer to: Coolant Replacement (2.0L Engine) (2024 2025) or Coolant Check (2.0L Engine) (2024 2025) or Coolant Check (1.5L Engine) or Coolant Replacement (1.5L Engine)

   Key Information

   NOTE:

   For the removal and installation procedure, refer to Turbocharger Removal and Installation - Refer to: Turbocharger Removal and Installation (1.5L Engine) or Turbocharger Removal and Installation (2.0L Engine) (2024 2025) and the sub-procedure below.

   Sub-Procedure

   NOTICE:

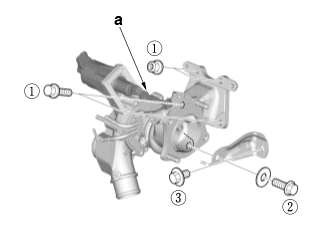

   Hold the turbocharger at an area other than the turbocharger wastegate control actuator (a).

   ■ Installation

   • Installing the turbocharger and the turbocharger bracket in the following procedures.

   Tightening Procedure

   Step	Operation	Object	Detail
   1	Temporarily Tighten	All Bolts and Nuts	-> ->
   2	Tighten	All Bolts and Nuts	-> ->

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • Engine Oil Level Check - Refer to: Engine Oil Replacement (1.5L Engine) or Engine Oil Replacement (2.0L Engine) (2024 2025) or Engine Oil Level Check
   • Engine Coolant Refill - Refer to: Coolant Replacement (2.0L Engine) (2024 2025) or Coolant Check (2.0L Engine) (2024 2025) or Coolant Check (1.5L Engine) or Coolant Replacement (1.5L Engine)
   • PCM Reset - Refer to: PCM Reset or PCM Update (When replacing the turbocharger)
   • PCM Idle Learn (When replacing the turbocharger)
