Exterior Lights Circuit Diagram (3.5L Engine)

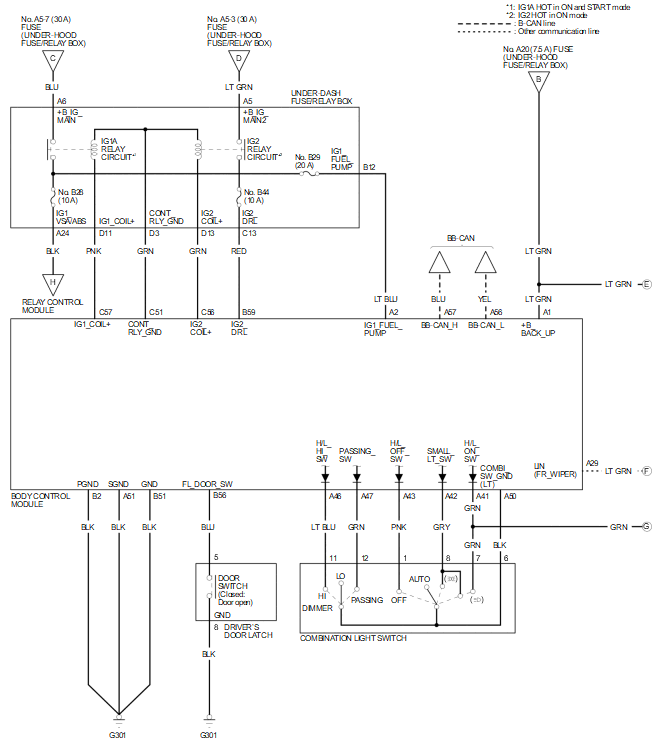

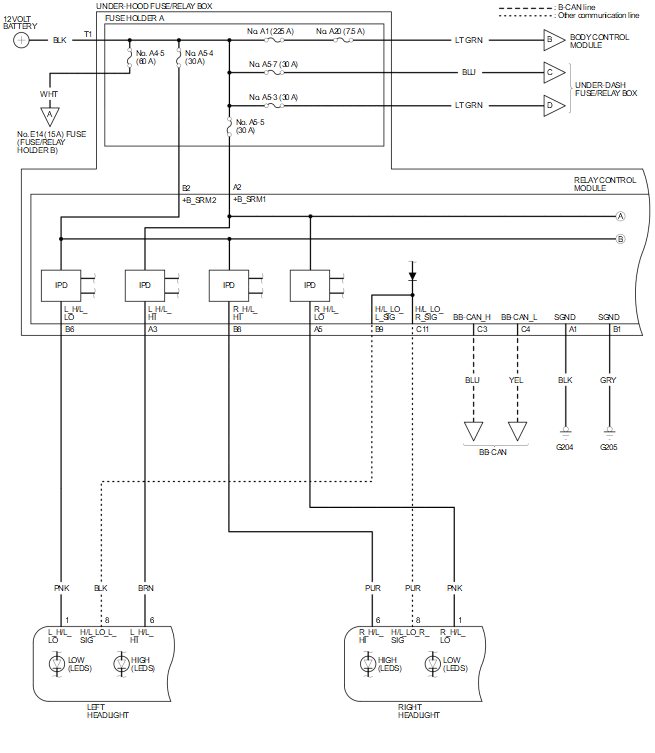

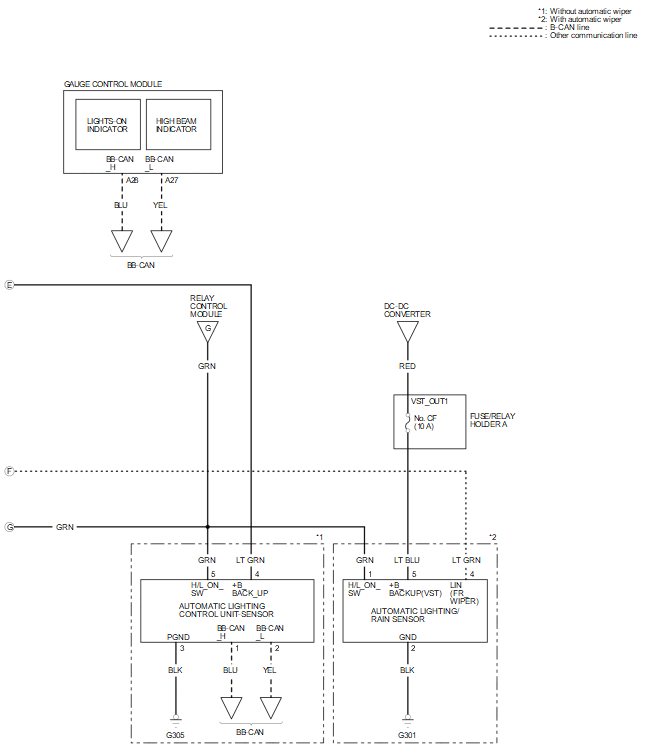

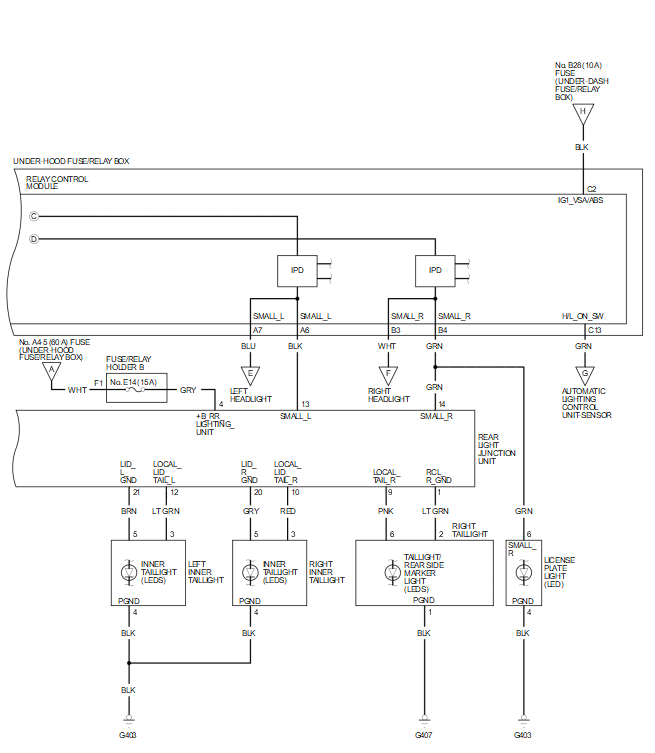

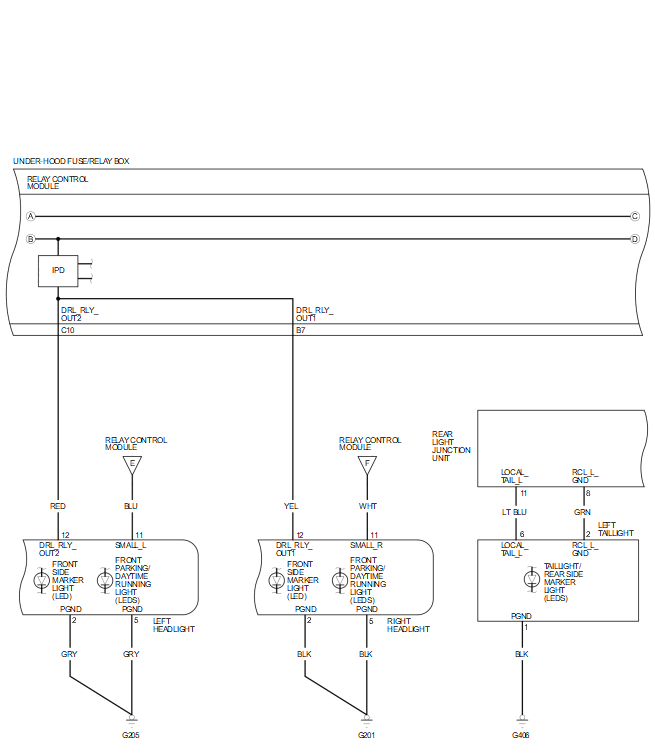

Headlights/Parking Lights/Daytime Running Lights/Taillights/License Plate Light/Side Marker Lights

NOTE: For details of the CAN circuit, refer to the Network Communications Circuit Diagram.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

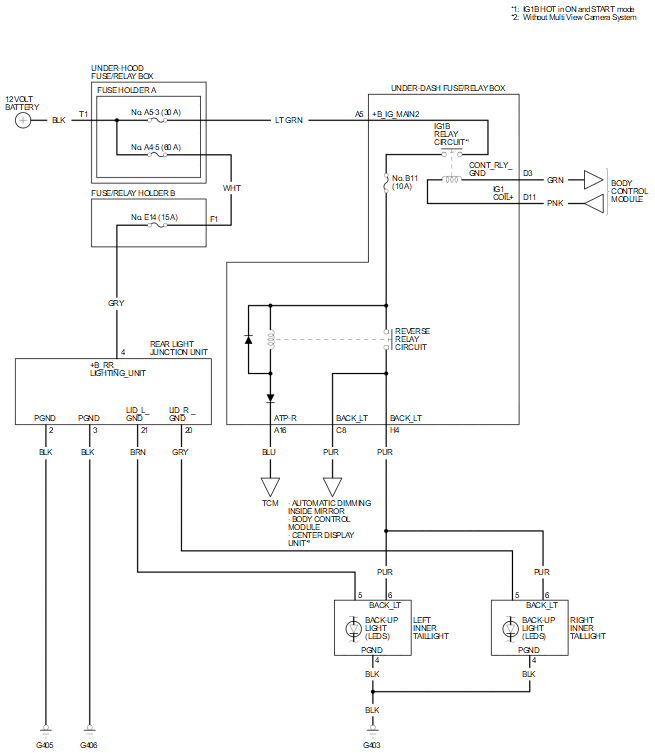

Back-Up Lights

Courtesy of HONDA, U.S.A., INC.

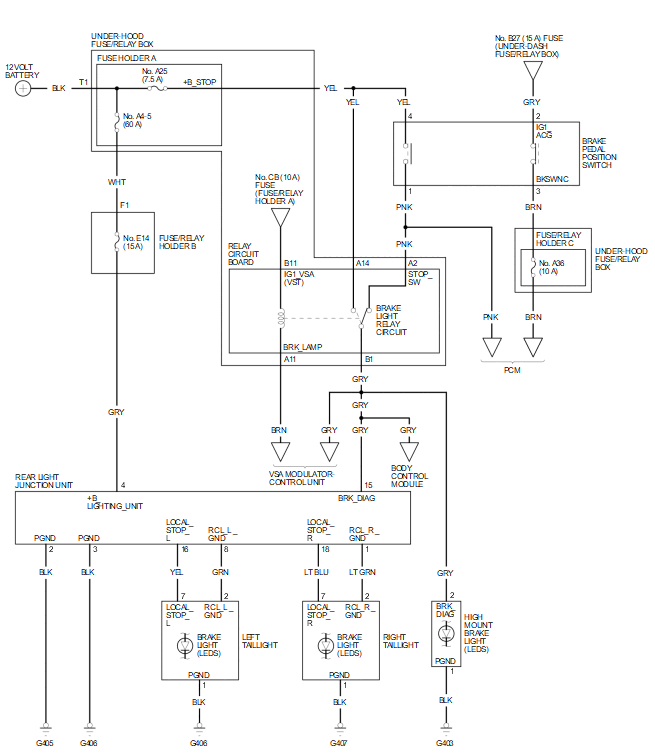

Brake Lights

Courtesy of HONDA, U.S.A., INC.

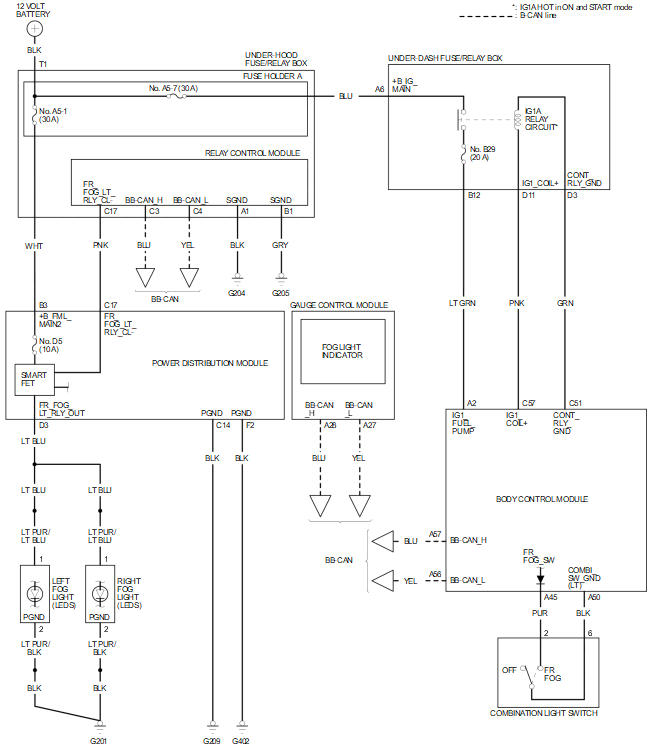

Fog Lights

NOTE: For details of the CAN circuit, refer to the Network Communications Circuit Diagram.

Courtesy of HONDA, U.S.A., INC.
