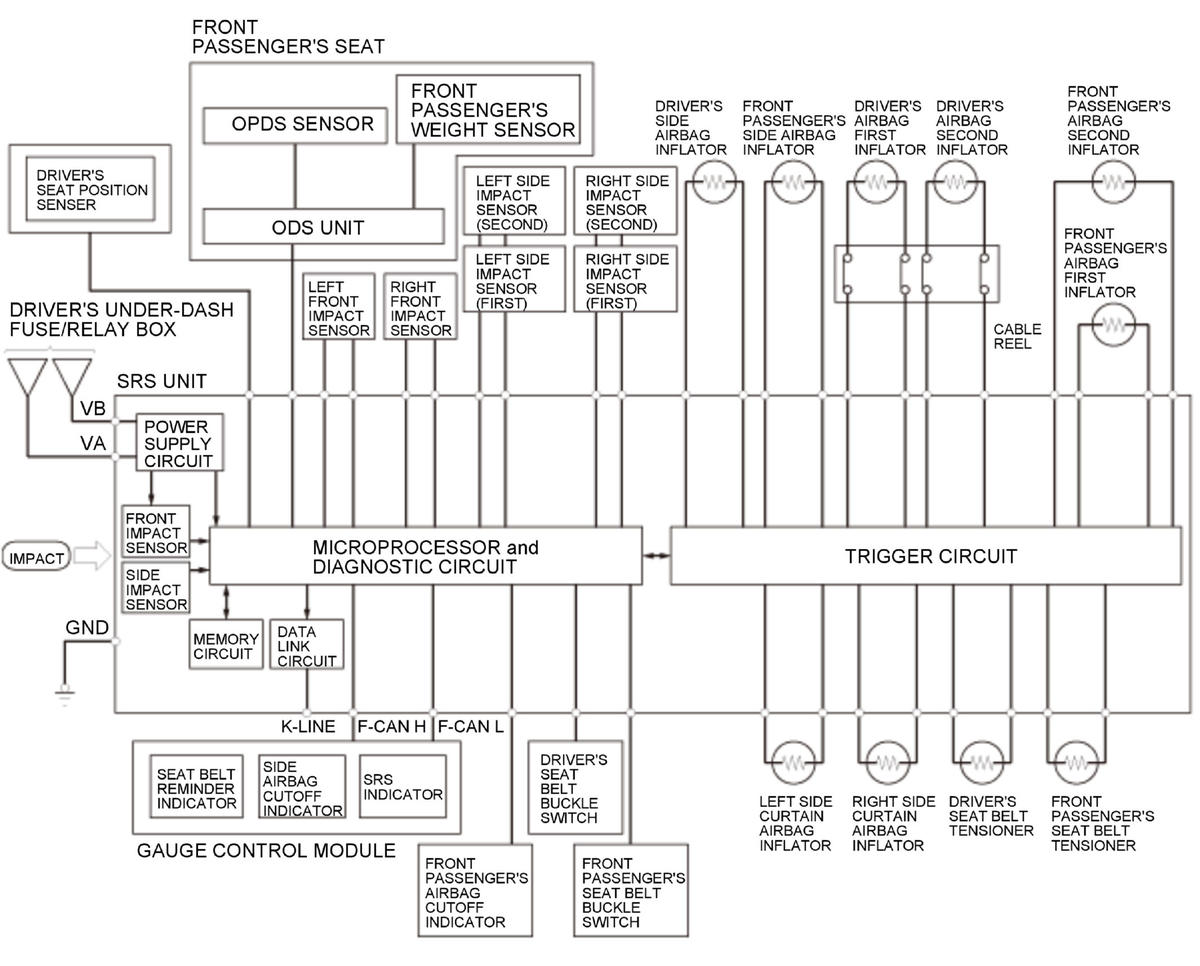

Home >> Acura >> 2022 >> ILX >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System (SRS) - Testing & Troubleshooting (Except Hybrid) >> System Description >> SRS System Description - SRS Unit (2013 2014 2015) >> System Diagram >> USA and Canada models
