Mexico models

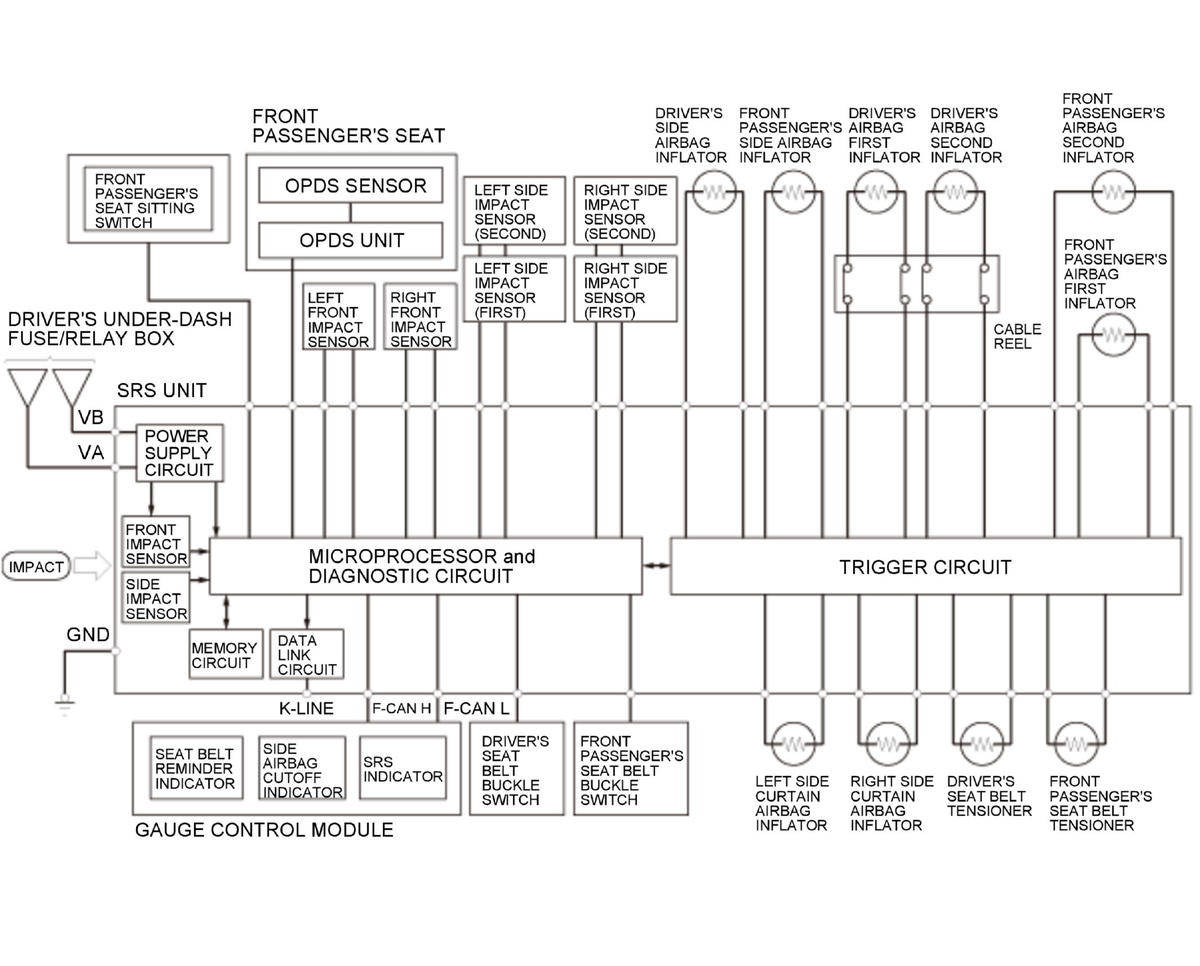

GHH475103Courtesy of HONDA, U.S.A., INC.

When airbags or seat belt pretensioners are to be deployed, a large amount of current passes through the SRS unit. After the airbags and seat belt pretensioners are deployed, the interior of the SRS unit gets damaged, and is therefore unfit for reuse.
