Side airbag and side curtain airbag deployment conditions

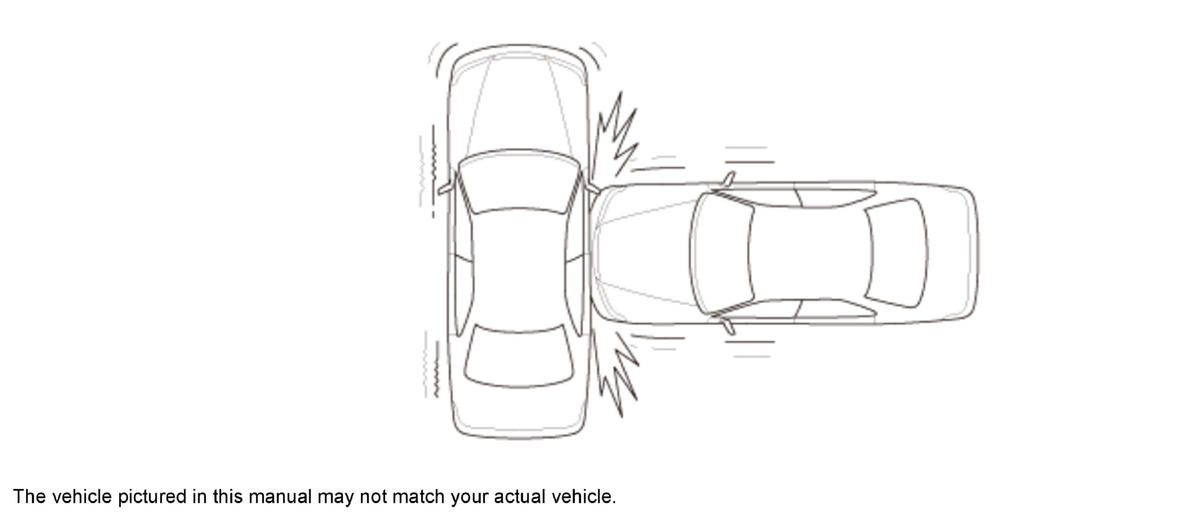

When the vehicle is subject to strong side impact and the side impact G sensor detects an impact that exceeds the preset threshold value, the side airbags and side curtain airbags on the side receiving the impact will deploy.

NOTE: The side curtain airbags may deploy along with the front airbags during a front-end collision in order to protect the heads of occupants if the collision force to the side of the vehicle exceeds a certain value.
GHH475099Courtesy of HONDA, U.S.A., INC.
