Conditions in which side airbag and side curtain airbag may not deploy

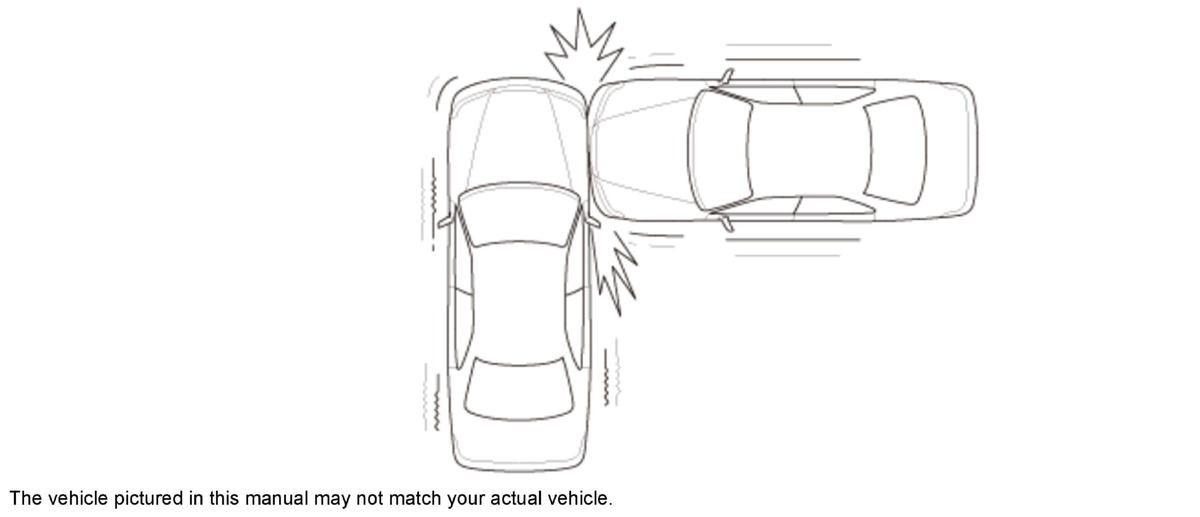

Since the side airbags and the side curtain airbags are designed to deploy when an impact force to the vehicle side exceeds a preset value, they may not deploy when impact forces are reduced by the vehicle's crush zone, or when a side impact is applied in the front or behind the passenger compartment. Also, these airbags may deploy in the case of side slip collision or when the vehicle rollovers, but in such cases, will not provide full occupant protection.

GHH475100Courtesy of HONDA, U.S.A., INC.
