SRS System Description - Driver's And Front Passenger's Airbag
SRS Airbag (Driver's and Front Passenger's Airbag)

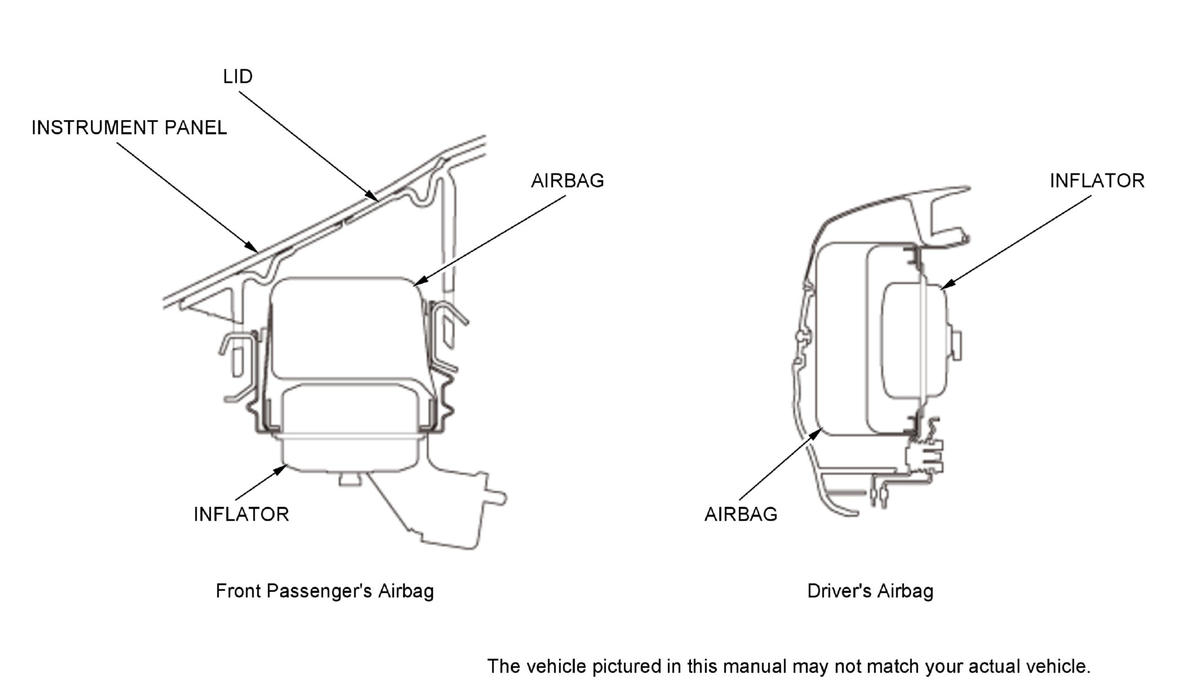

The driver's airbag is equipped in the center of the steering wheel. The front passenger's airbag is equipped in the dashboard on the front passenger's side.

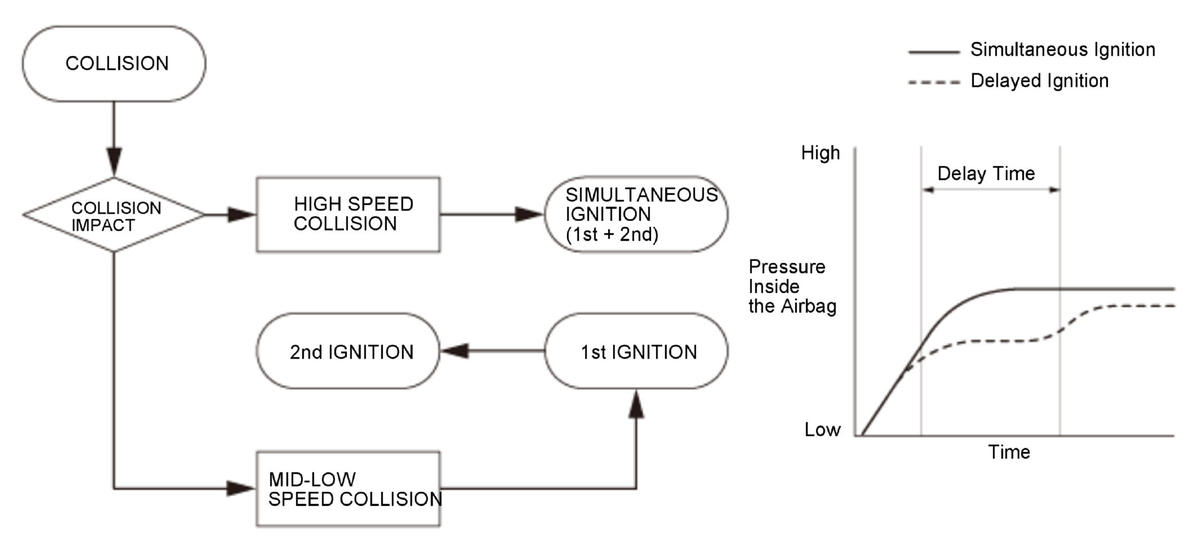

Dual Inflators
The airbag modules adopt dual inflators for the driver's and the front passenger's airbag. The dual inflators increase airbag effectiveness by properly adjusting the timing when the two inflators to be ignited (together or sequentially) referring to the collision speed or collision impact.
