How to Troubleshoot Circuits at the Waterproof SRS Connectors
Special Tools Required
Pin Probe Male 07ZAJ-RDJA110

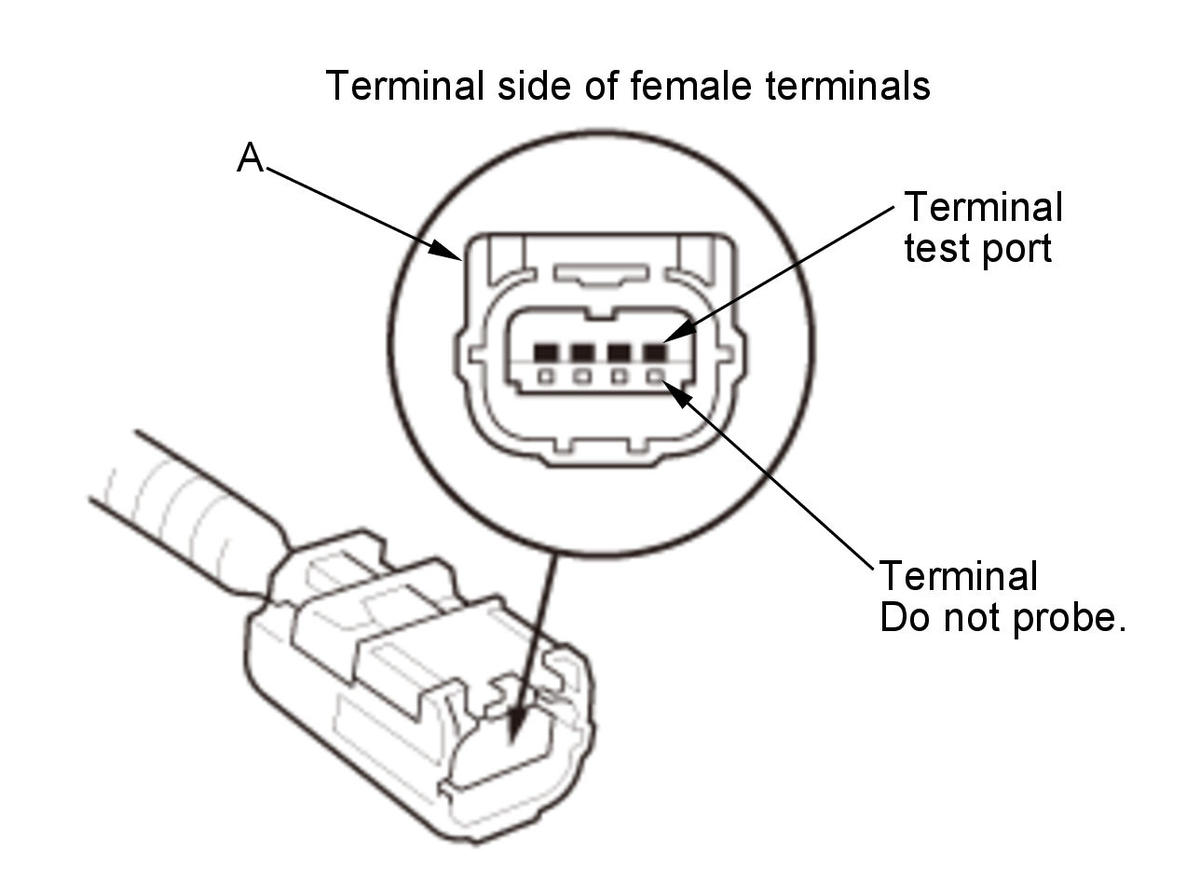

1. When diagnosis or troubleshooting is done at waterproof SRS connectors (A), use the terminal test port above the terminal you need to check. Gently insert the pin probe of the tester or jumper wire at the terminal test port from the terminal side.
NOTE:
- Do not insert the pin probes of the tester or a jumper wire into the terminal.
- To prevent damage to the connector terminals, do not insert the test equipment probes, paper clips, or other substitutes as they can damage the terminals. Damaged terminals can cause a poor connection and an incorrect measurement.

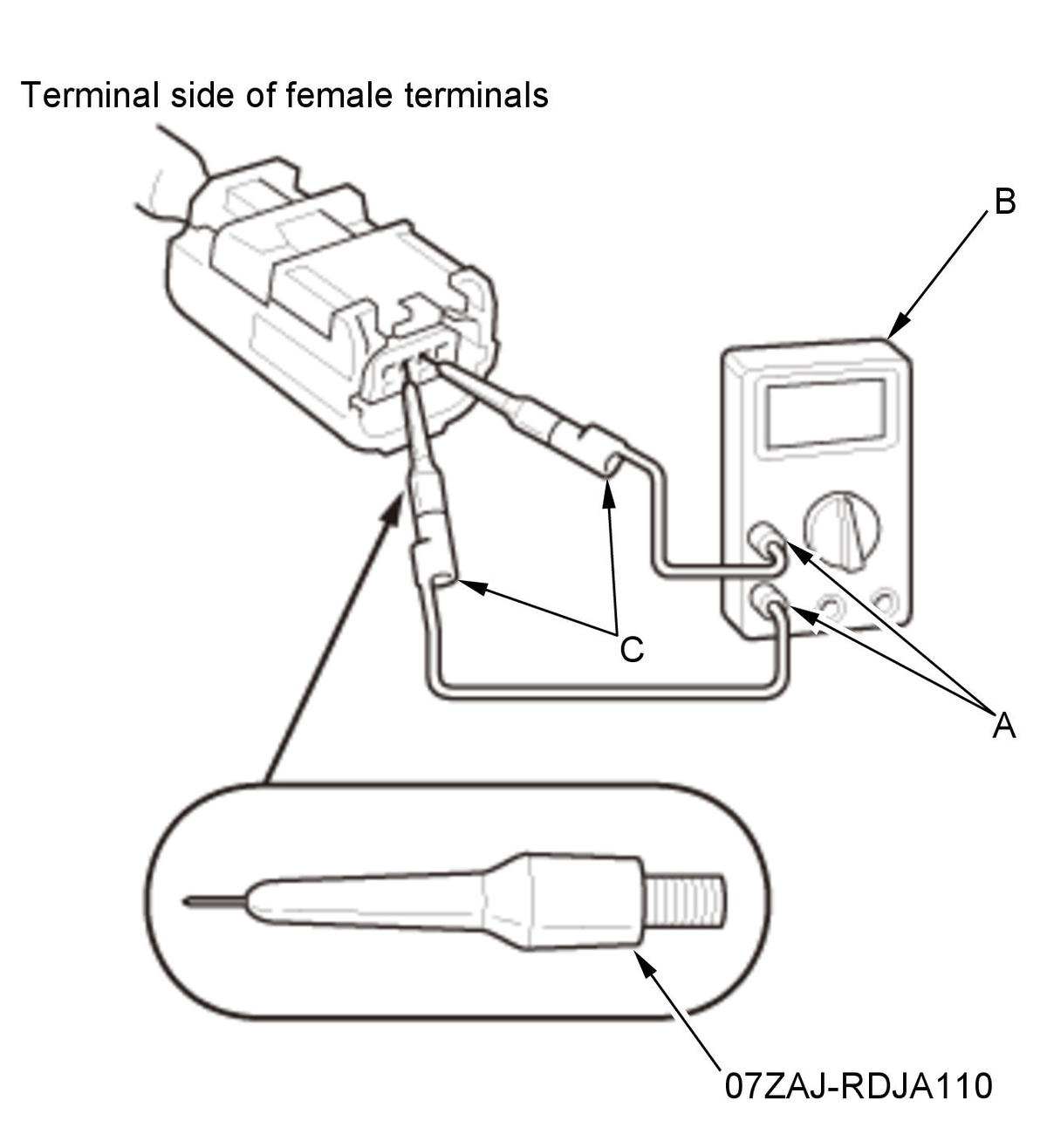

2. Connect one side of the patch cord terminals (A) to a commercially available digital multimeter (B), and connect the other side of the terminals (C) to the pin probe male.
3. Gently contact the pin probe male at the terminal test port from the terminal side. Do not force the tips into the terminals.
NOTE:
- For accurate results, always use the pin probe male.
- To prevent damage to the connector terminals, do not insert test equipment probes, paper clips, or other substitutes. Damaged terminals cause a poor connection and an incorrect measurement.
- Do not puncture the insulation on a wire. Punctures can cause poor or intermittent electrical connections.
