SRS Unit Connector For Inputs And Outputs (2013 2014 2015)
USA and Canada models

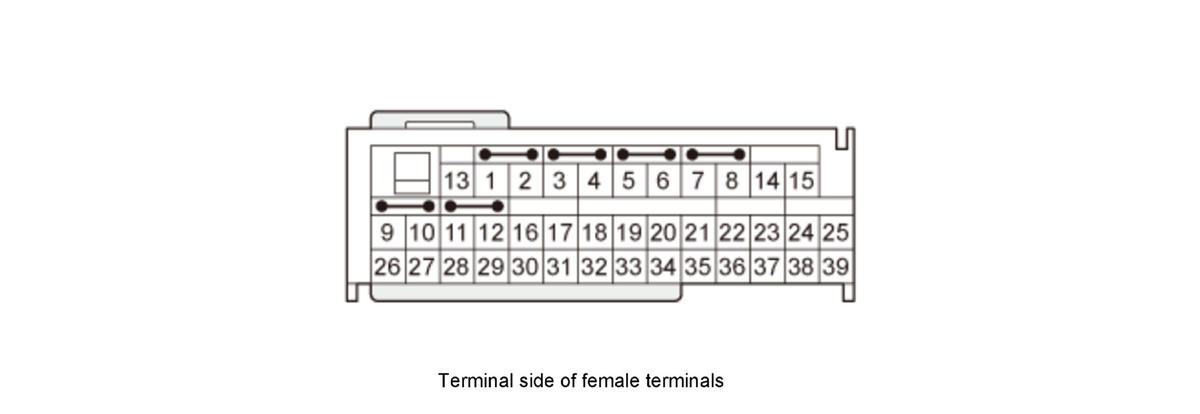

SRS Unit Inputs and Outputs at Connector A (39P)
SRS Unit Inputs and Outputs at Connector A (39P)
| Terminal Number | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | LT GRN* | RA2+ | Power source for the front passenger's airbag second inflator |
| 2 | LT BLU* | RA2- | Ground for the front passenger's airbag second inflator |
| 3 | GRN* | LA2+ | Power source for the driver's airbag second inflator |
| 4 | PUR* | LA2- | Ground for the driver's airbag second inflator |
| 5 | YEL* | RA1+ | Power source for the front passenger's airbag first inflator |
| 6 | BLU* | RA1- | Ground for the front passenger's airbag first inflator |
| 7 | LT BLU* | LA1+ | Power source for the driver's airbag first inflator |
| 8 | BRN* | LA1- | Ground for the driver's airbag first inflator |
| 9 | Not Used | Not Used | - |
| 10 | Not Used | Not Used | - |
| 11 | Not Used | Not Used | - |
| 12 | Not Used | Not Used | - |
| 13 | Not Used | Not Used | - |
| 14 | Not Used | Not Used | - |
| 15 | Not Used | Not Used | - |
| 16 | Not Used | Not Used | - |
| 17 | BLU* | OFF PTT | Front passenger's airbag cutoff indicator output line |
| 18 | Not Used | Not Used | - |
| 19 | LT BLU* | K-LINE | Sends and receives scan tool signal (serial data) |
| 20 | WHT* | F CAN-H | Sends and receives communication signal |
| 21 | RED* | F CAN-L | Sends and receives communication signal |
| 22 | Not Used | Not Used | - |
| 23 | Not Used | Not Used | - |
| 24 | Not Used | Not Used | - |
| 25 | Not Used | Not Used | - |
| 26 | GRN* | RFS+ | Power source for the right front impact sensor |
| 27 | LT BLU* | RFS- | Ground for the right front impact sensor |
| 28 | RED* | LFS+ | Power source for the left front impact sensor |
| 29 | BRN* | LFS- | Ground for the left front impact sensor |
| 30 | Not Used | Not Used | - |
| 31 | Not Used | Not Used | - |
| 32 | Not Used | Not Used | - |
| 33 | Not Used | Not Used | - |
| 34 | Not Used | Not Used | - |
| 35 | Not Used | Not Used | - |
| 36 | BLK* | GND | Ground circuit for the SRS unit (G505) |
| 37 | BLK* | GND | Ground circuit for the SRS unit (G505) |
| 38 | RED* | VB | SRS dedicated power (dedicated booster circuit) |
| 39 | YEL* | VA | SRS sub power (common with ODS) |
*: Wire colors may be substituted in this table.

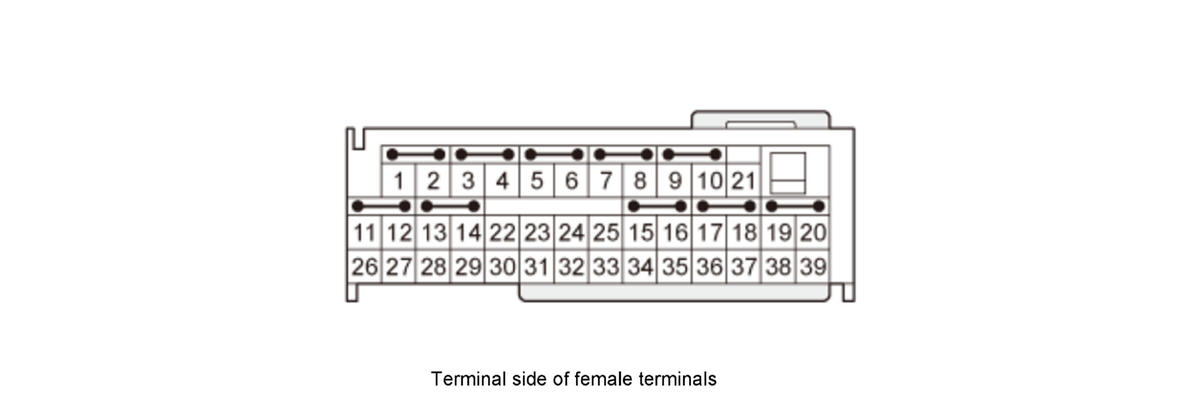

SRS Unit Inputs and Outputs at Connector B (39P)
SRS Unit Inputs and Outputs at Connector B (39P)
| Terminal Number | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | BRN* | LCA+ | Power source for the left side curtain airbag inflator |
| 2 | BLU* | LCA- | Ground for the left side curtain airbag inflator |
| 3 | WHT* | RSA+ | Power source for the front passenger's side airbag inflator |
| 4 | BLU* | RSA- | Ground for the front passenger's side airbag inflator |
| 5 | GRN* | LSA+ | Power source for the driver's side airbag inflator |
| 6 | RED* | LSA- | Ground for the driver's side airbag inflator |
| 7 | Not Used | Not Used | - |
| 8 | Not Used | Not Used | - |
| 9 | Not Used | Not Used | - |
| 10 | Not Used | Not Used | - |
| 11 | GRY* | RCA+ | Power source for the right side curtain airbag inflator |
| 12 | RED* | RCA- | Ground for the right side curtain airbag inflator |
| 13 | Not Used | Not Used | - |
| 14 | Not Used | Not Used | - |
| 15 | Not Used | Not Used | - |
| 16 | Not Used | Not Used | - |
| 17 | GRY* | RRP+ | Power source for the front passenger's seat belt tensioner |
| 18 | LT BLU* | RRP- | Ground for the front passenger's seat belt tensioner |
| 19 | RED* | LRP+ | Power source for the driver's seat belt tensioner |
| 20 | BRN* | LRP- | Ground for the driver's seat belt tensioner |
| 21 | GRY* | ODS | Sends and receives communication signal with the ODS unit |
| 22 | BLU* | FRBC | Front passenger's seat belt buckle switch |
| 23 | Not Used | Not Used | - |
| 24 | YEL* | FLBC | Driver's seat belt buckle switch |
| 25 | Not Used | Not Used | - |
| 26 | BRN* | RS1+ | Power source for the right side impact sensor (first), right side impact sensor (second) |
| 27 | YEL* | RS1- | Ground for the right side impact sensor (first), right side impact sensor (second) |
| 28 | PNK* | LS1+ | Power source for the left side impact sensor (first), left side impact sensor (second) |
| 29 | BLU* | LS1- | Ground for the left side impact sensor (first), left side impact sensor (second) |
| 30 | Not Used | Not Used | - |
| 31 | Not Used | Not Used | - |
| 32 | Not Used | Not Used | - |
| 33 | Not Used | Not Used | - |
| 34 | Not Used | Not Used | - |
| 35 | Not Used | Not Used | - |
| 36 | Not Used | Not Used | - |
| 37 | LT GRN* | SS+ | Driver's seat position sensor |
| 38 | Not Used | Not Used | - |
| 39 | Not Used | Not Used | - |
*: Wire colors may be substituted in this table.
Mexico models
SRS Unit Inputs and Outputs at Connector A (39P)
SRS Unit Inputs and Outputs at Connector A (39P)
| Terminal Number | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | LT GRN* | RA2+ | Power source for the front passenger's airbag second inflator |
| 2 | LT BLU* | RA2- | Ground for the front passenger's airbag second inflator |
| 3 | GRN* | LA2+ | Power source for the driver's airbag second inflator |
| 4 | PUR* | LA2- | Ground for the driver's airbag second inflator |
| 5 | YEL* | RA1+ | Power source for the front passenger's airbag first inflator |
| 6 | BLU* | RA1- | Ground for the front passenger's airbag first inflator |
| 7 | LT BLU* | LA1+ | Power source for the driver's airbag first inflator |
| 8 | BRN* | LA1- | Ground for the driver's airbag first inflator |
| 9 | Not Used | Not Used | - |
| 10 | Not Used | Not Used | - |
| 11 | Not Used | Not Used | - |
| 12 | Not Used | Not Used | - |
| 13 | Not Used | Not Used | - |
| 14 | Not Used | Not Used | - |
| 15 | Not Used | Not Used | - |
| 16 | Not Used | Not Used | - |
| 17 | Not Used | Not Used | - |
| 18 | Not Used | Not Used | - |
| 19 | LT BLU* | K-LINE | Sends and receives scan tool signal (serial data) |
| 20 | WHT* | F CAN-H | Sends and receives communication signal |
| 21 | RED* | F CAN-L | Sends and receives communication signal |
| 22 | Not Used | Not Used | - |
| 23 | Not Used | Not Used | - |
| 24 | Not Used | Not Used | - |
| 25 | Not Used | Not Used | - |
| 26 | GRN* | RFS+ | Power source for the right front impact sensor |
| 27 | LT BLU* | RFS- | Ground for the right front impact sensor |
| 28 | RED* | LFS+ | Power source for the left front impact sensor |
| 29 | BRN* | LFS- | Ground for the left front impact sensor |
| 30 | Not Used | Not Used | - |
| 31 | Not Used | Not Used | - |
| 32 | Not Used | Not Used | - |
| 33 | Not Used | Not Used | - |
| 34 | Not Used | Not Used | - |
| 35 | Not Used | Not Used | - |
| 36 | BLK* | GND | Ground circuit for the SRS unit (G505) |
| 37 | BLK* | GND | Ground circuit for the SRS unit (G505) |
| 38 | RED* | VB | SRS dedicated power (dedicated booster circuit) |
| 39 | YEL* | VA | SRS sub power (common with OPDS) |
*: Wire colors may be substituted in this table.
SRS Unit Inputs and Outputs at Connector B (39P)
| Terminal Number | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | BRN* | LCA+ | Power source for the left side curtain airbag inflator |
| 2 | BLU* | LCA- | Ground for the left side curtain airbag inflator |
| 3 | WHT* | RSA+ | Power source for the front passenger's side airbag inflator |
| 4 | BLU* | RSA- | Ground for the front passenger's side airbag inflator |
| 5 | GRN* | LSA+ | Power source for the driver's side airbag inflator |
| 6 | RED* | LSA- | Ground for the driver's side airbag inflator |
| 7 | Not Used | Not Used | - |
| 8 | Not Used | Not Used | - |
| 9 | Not Used | Not Used | - |
| 10 | Not Used | Not Used | - |
| 11 | GRY* | RCA+ | Power source for the right side curtain airbag inflator |
| 12 | RED* | RCA- | Ground for the right side curtain airbag inflator |
| 13 | Not Used | Not Used | - |
| 14 | Not Used | Not Used | - |
| 15 | Not Used | Not Used | - |
| 16 | Not Used | Not Used | - |
| 17 | GRY* | RRP+ | Power source for the front passenger's seat belt tensioner |
| 18 | LT BLU* | RRP- | Ground for the front passenger's seat belt tensioner |
| 19 | RED* | LRP+ | Power source for the driver's seat belt tensioner |
| 20 | BRN* | LRP- | Ground for the driver's seat belt tensioner |
| 21 | GRY* | ODS | Sends and receives communication signal with the OPDS unit |
| 22 | BLU* | FRBC | Front passenger's seat belt buckle switch |
| 23 | Not Used | Not Used | - |
| 24 | YEL* | FLBC | Driver's seat belt buckle switch |
| 25 | Not Used | Not Used | - |
| 26 | BRN* | RS1+ | Power source for the right side impact sensor (first), right side impact sensor (second) |
| 27 | YEL* | RS1- | Ground for the right side impact sensor (first), right side impact sensor (second) |
| 28 | PNK* | LS1+ | Power source for the left side impact sensor (first), left side impact sensor (second) |
| 29 | BLU* | LS1- | Ground for the left side impact sensor (first), left side impact sensor (second) |
| 30 | Not Used | Not Used | - |
| 31 | Not Used | Not Used | - |
| 32 | Not Used | Not Used | - |
| 33 | Not Used | Not Used | - |
| 34 | Not Used | Not Used | - |
| 35 | Not Used | Not Used | - |
| 36 | Not Used | Not Used | - |
| 37 | LT GRN* | SS+ | Front passenger's seat sitting switch |
| 38 | Not Used | Not Used | - |
| 39 | Not Used | Not Used | - |
*: Wire colors may be substituted in this table.
