SRS Circuit Diagram (KA, Kc Models) (2017 2018 2019 2020 2021 2022)

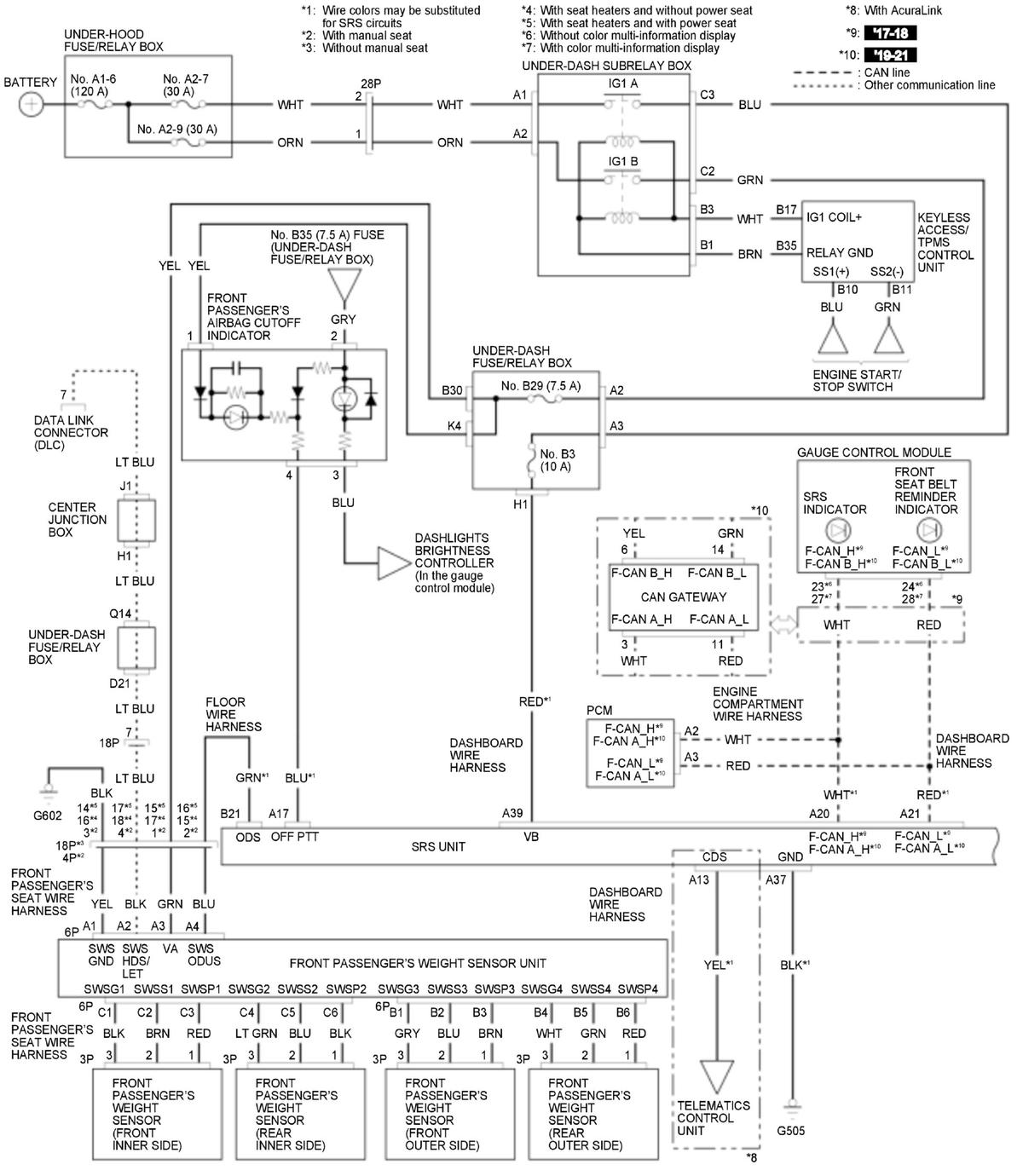

GHH474962

Courtesy of HONDA, U.S.A., INC.

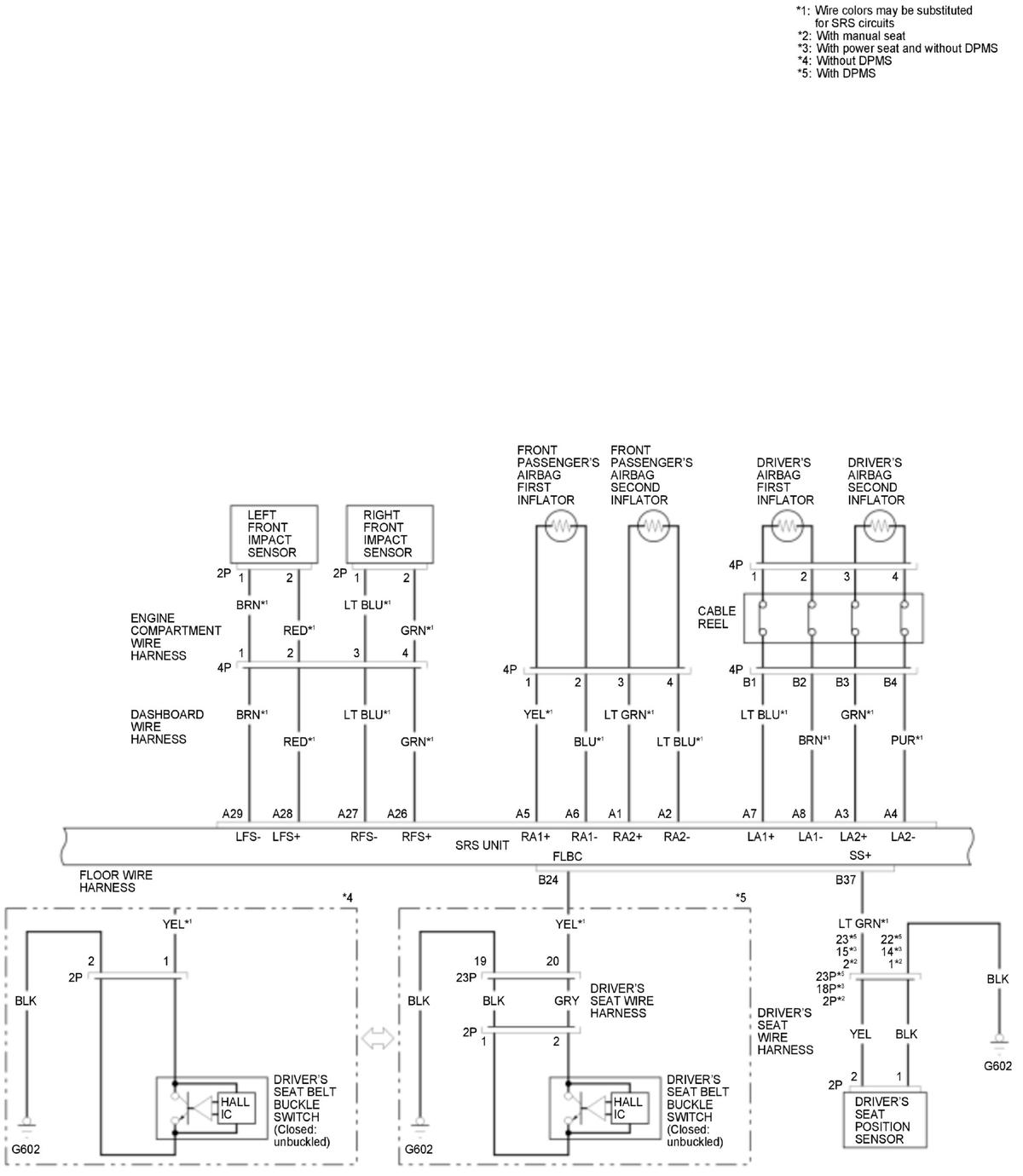

GHH474963

Courtesy of HONDA, U.S.A., INC.

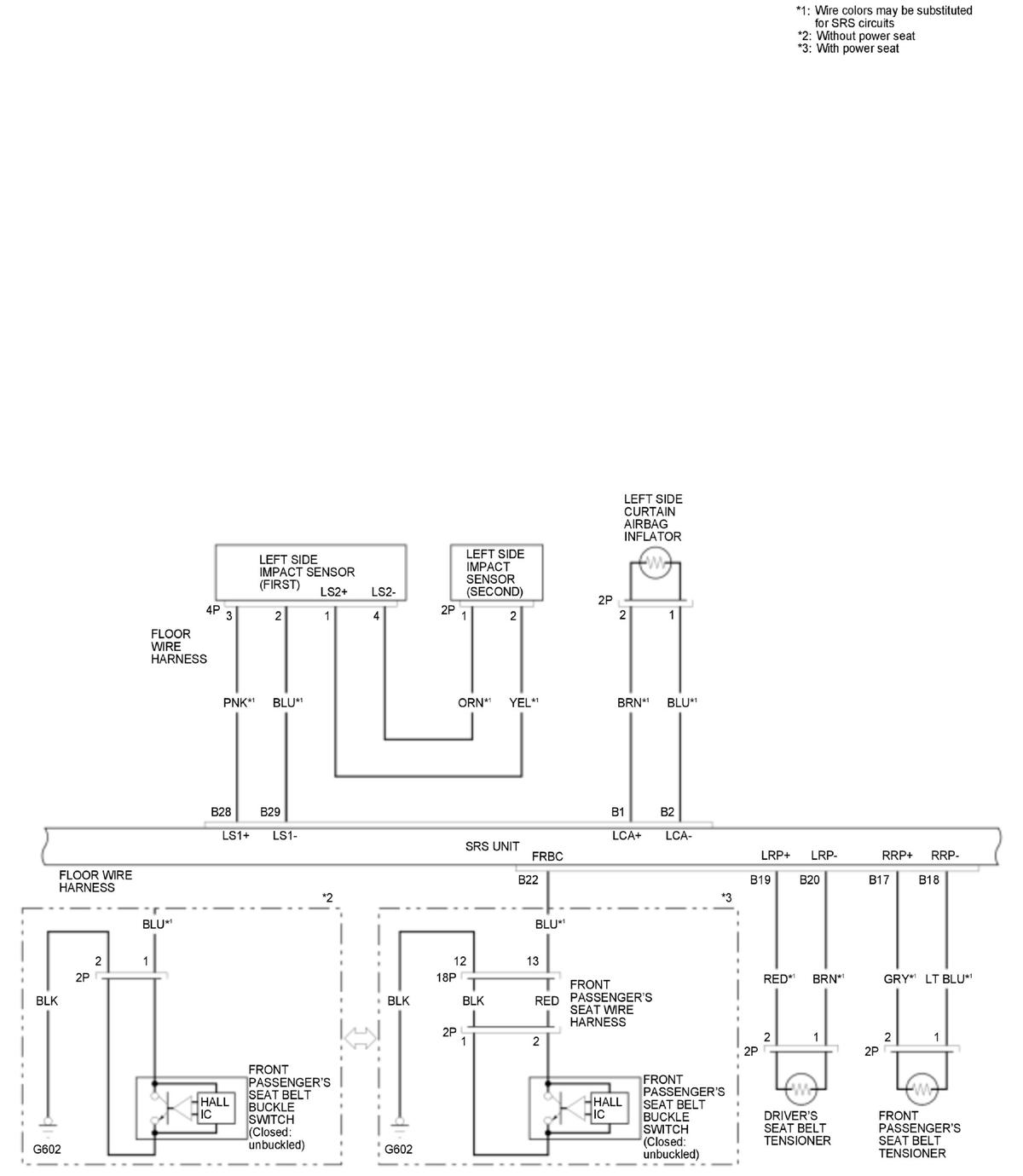

GHH474964

Courtesy of HONDA, U.S.A., INC.

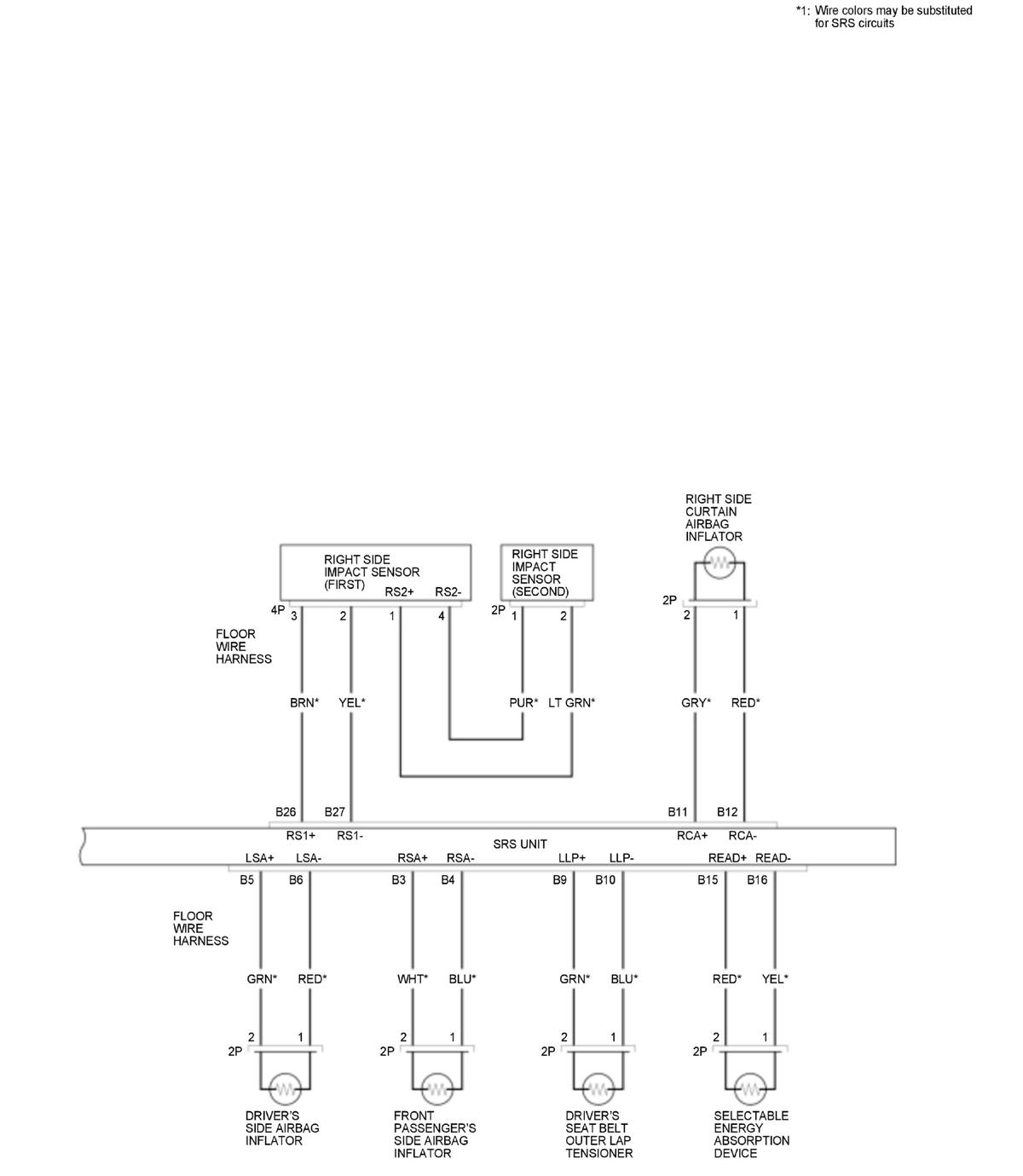

GHH474965

Courtesy of HONDA, U.S.A., INC.
