SRS Circuit Diagram (KA, Kc Models) (2016)

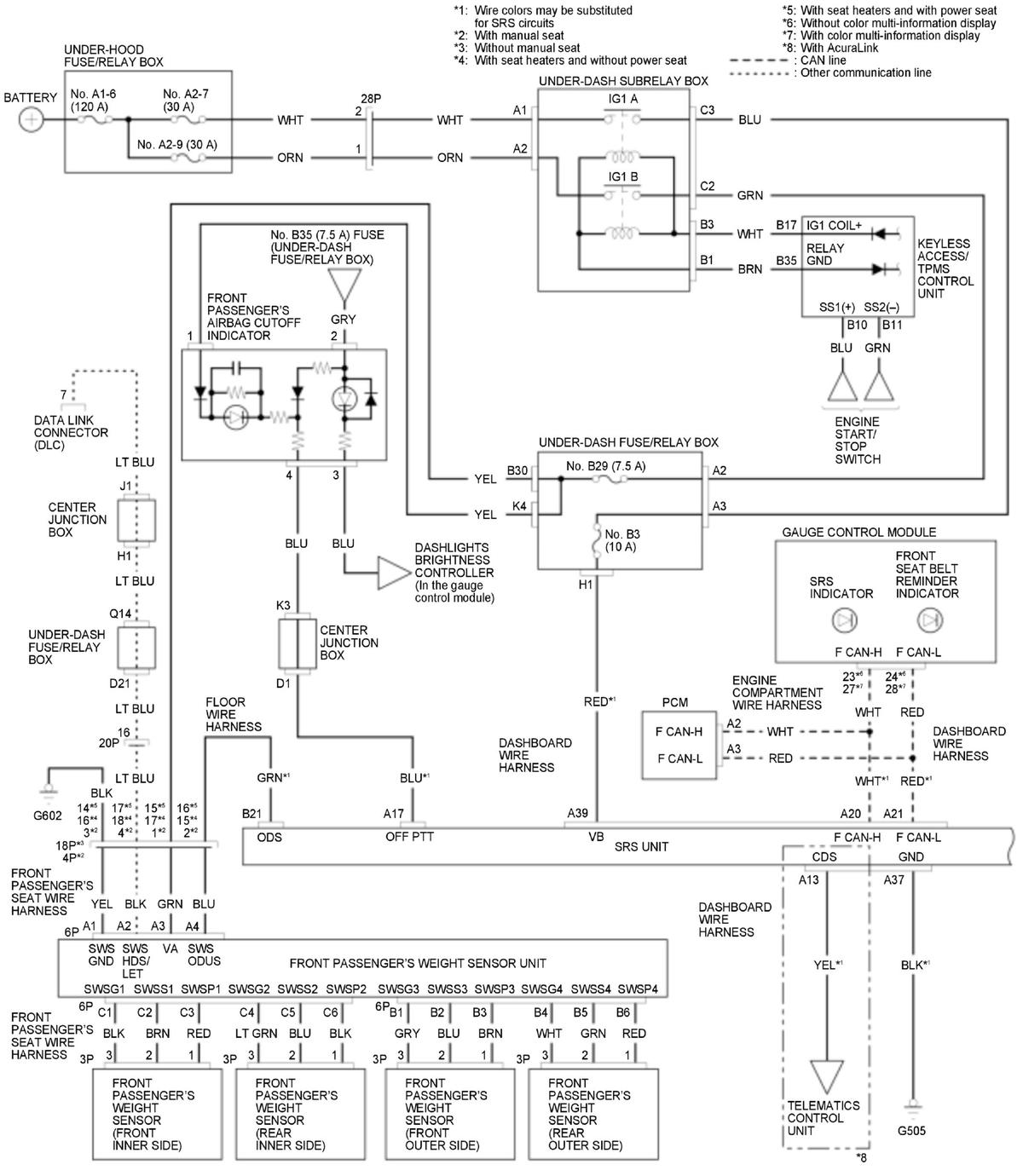

GHH474958

Courtesy of HONDA, U.S.A., INC.

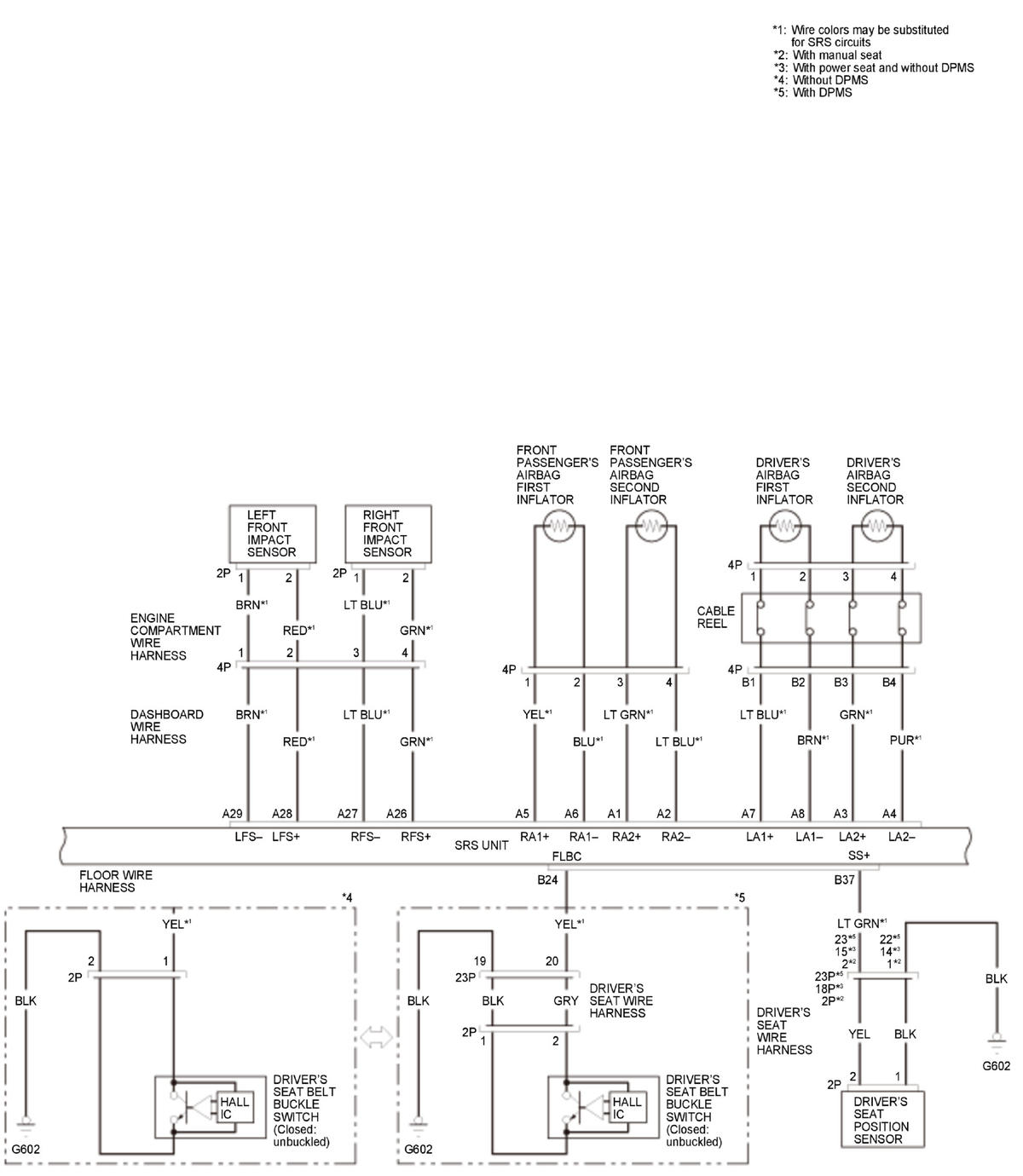

GHH474959

Courtesy of HONDA, U.S.A., INC.

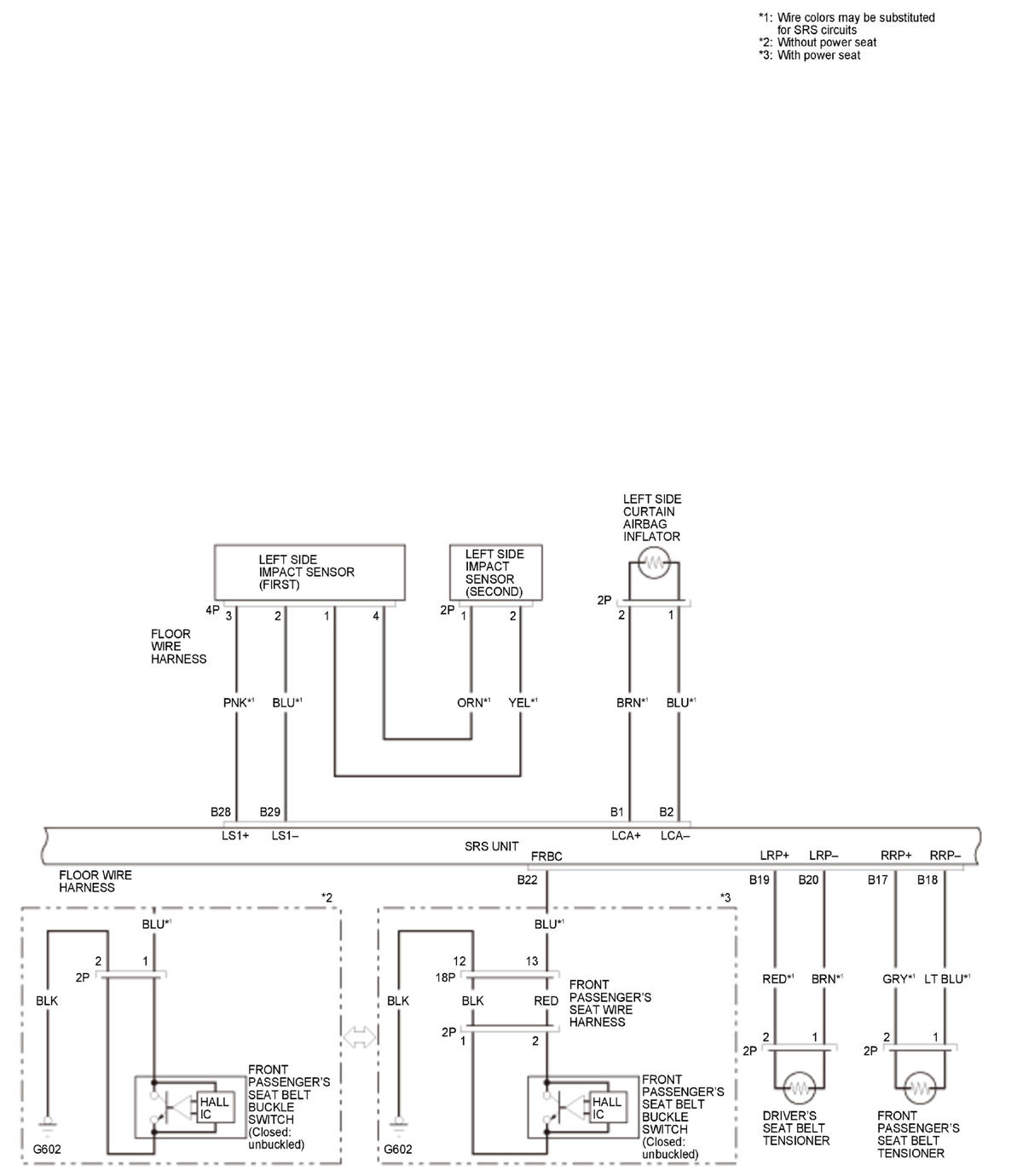

GHH474960

Courtesy of HONDA, U.S.A., INC.

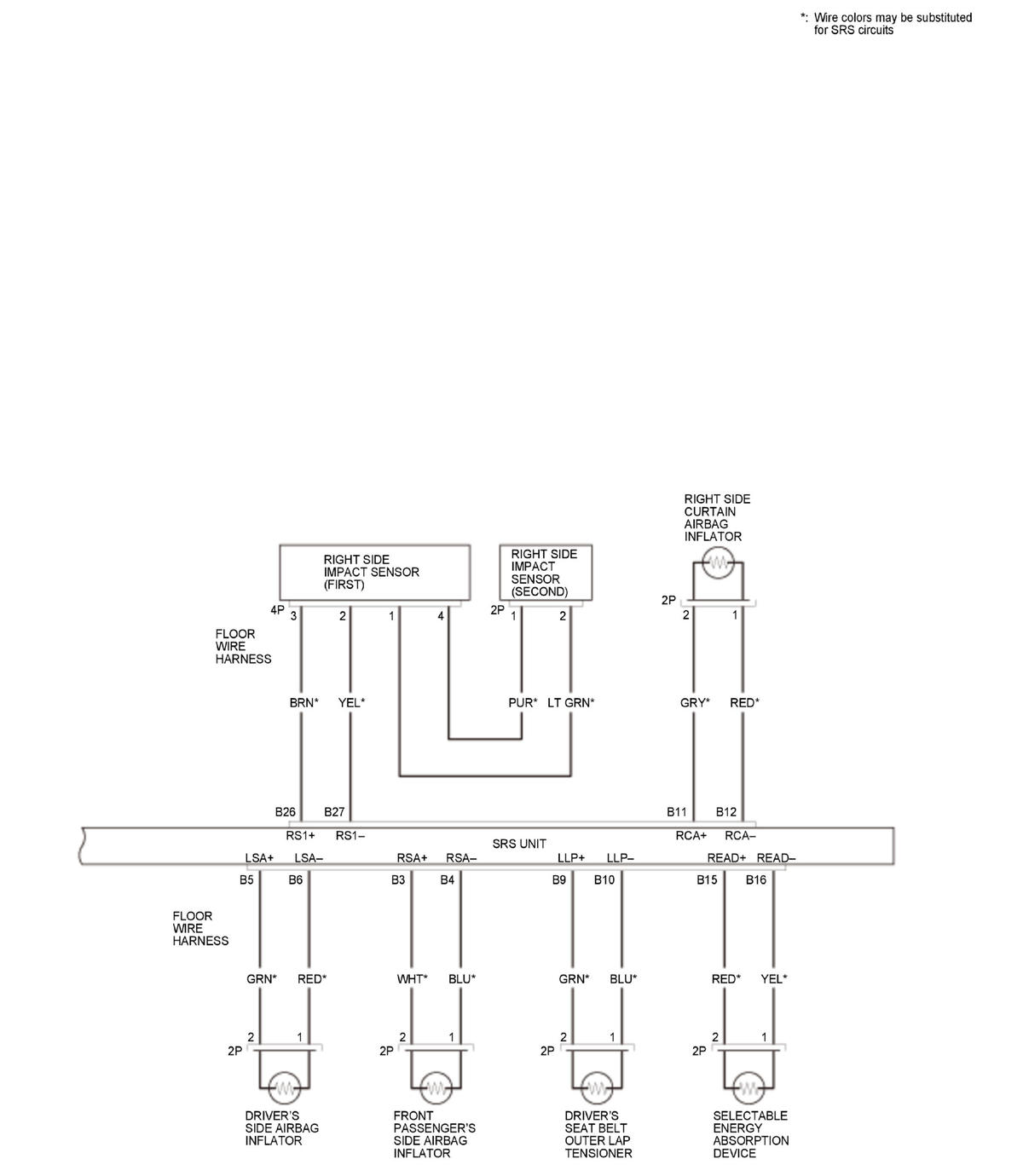

GHH474961

Courtesy of HONDA, U.S.A., INC.
