SRS Circuit Diagram (KA, Kc Models) (2014 2015)

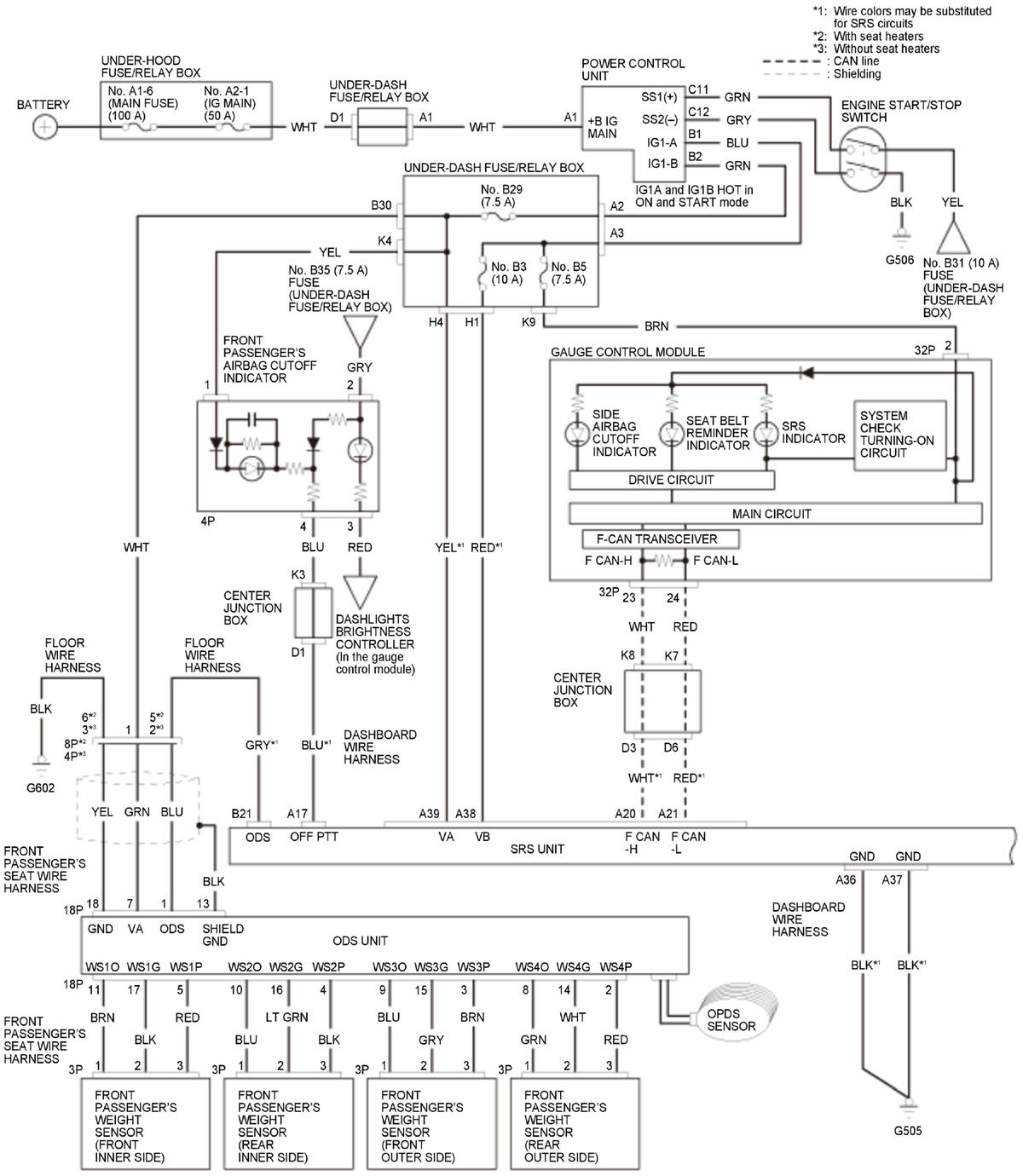

GHH474954

Courtesy of HONDA, U.S.A., INC.

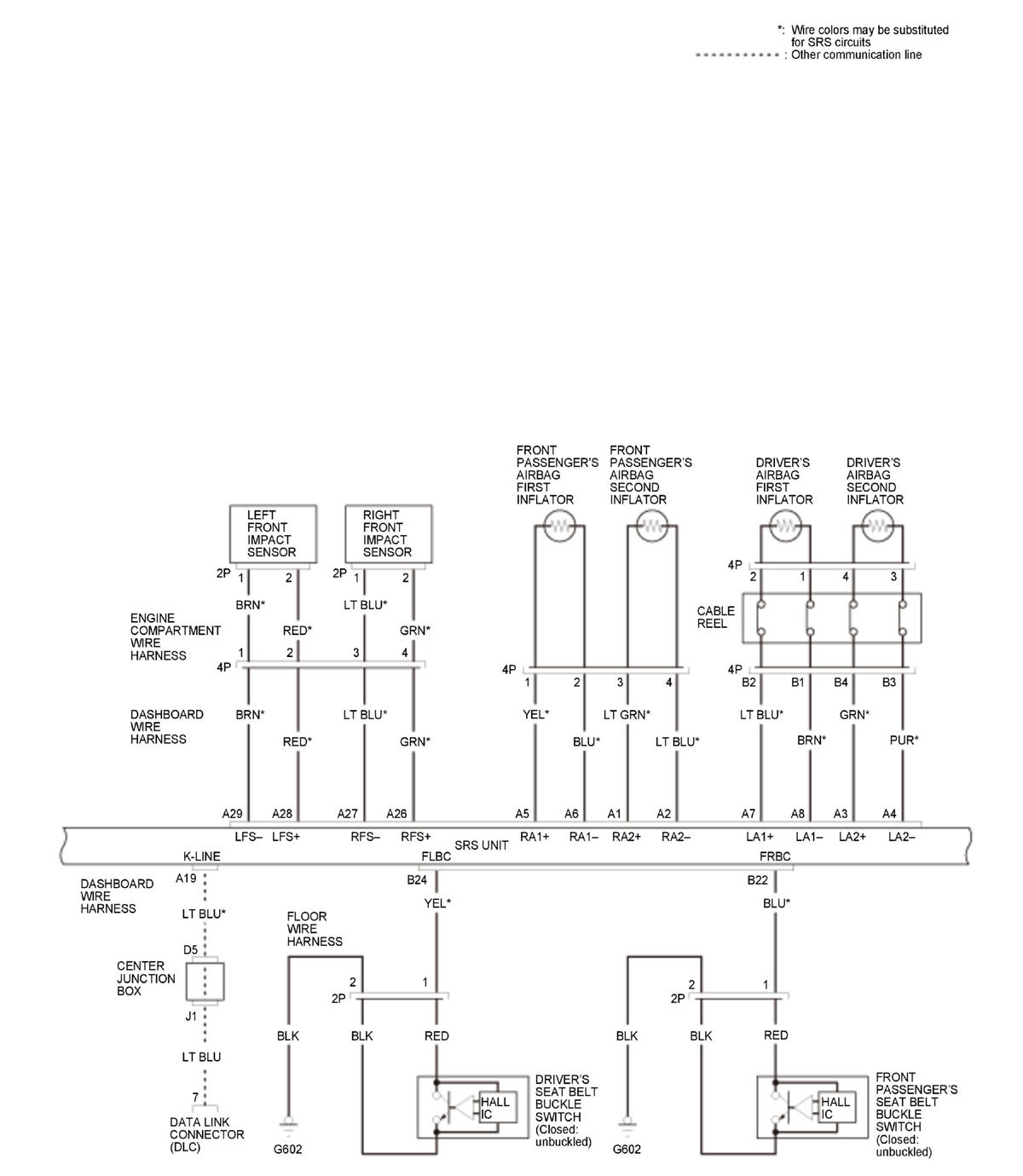

GHH474955

Courtesy of HONDA, U.S.A., INC.

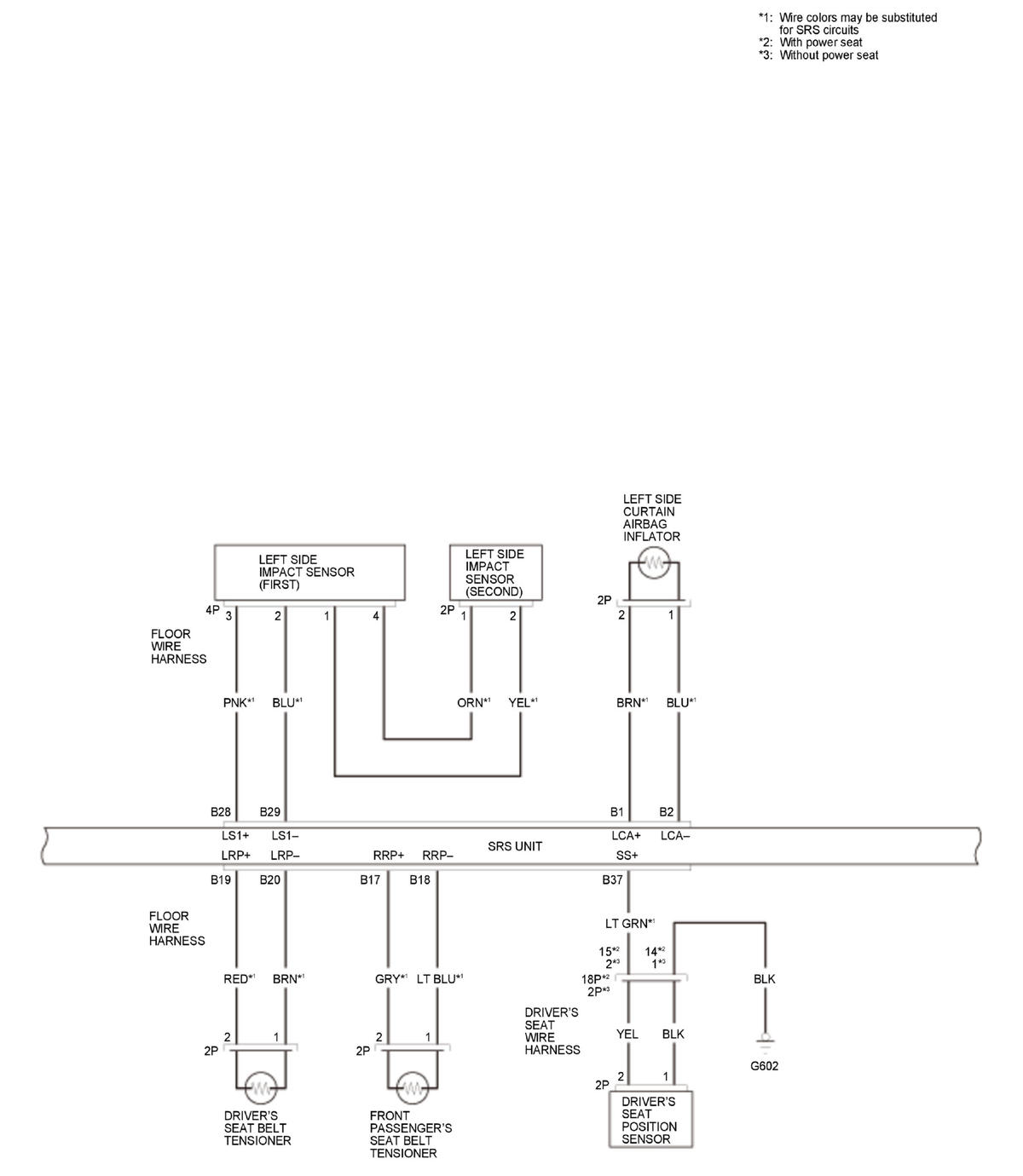

GHH474956

Courtesy of HONDA, U.S.A., INC.

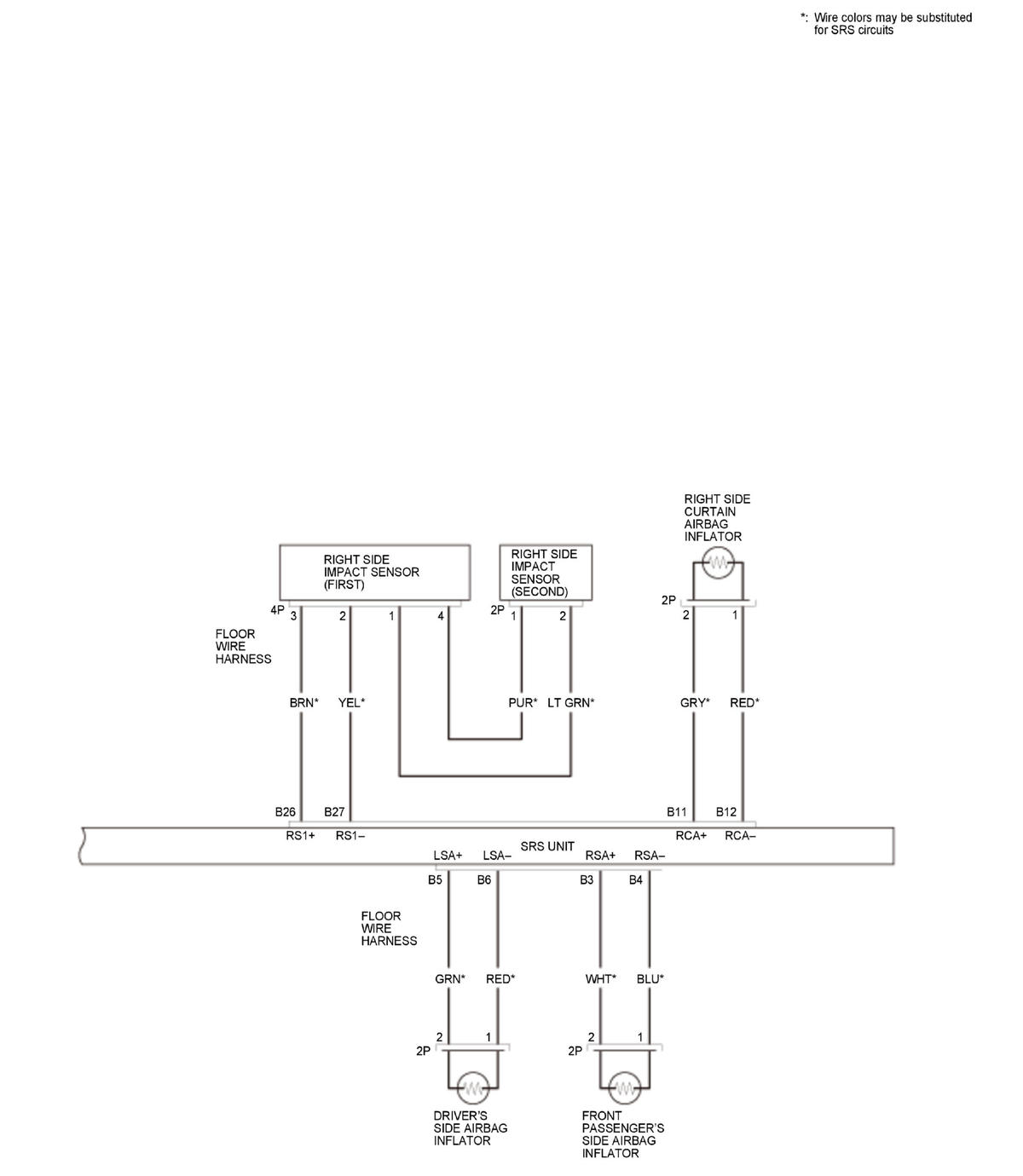

GHH474957

Courtesy of HONDA, U.S.A., INC.
