SRS Circuit Diagram (KA, Kc Models) (2013)

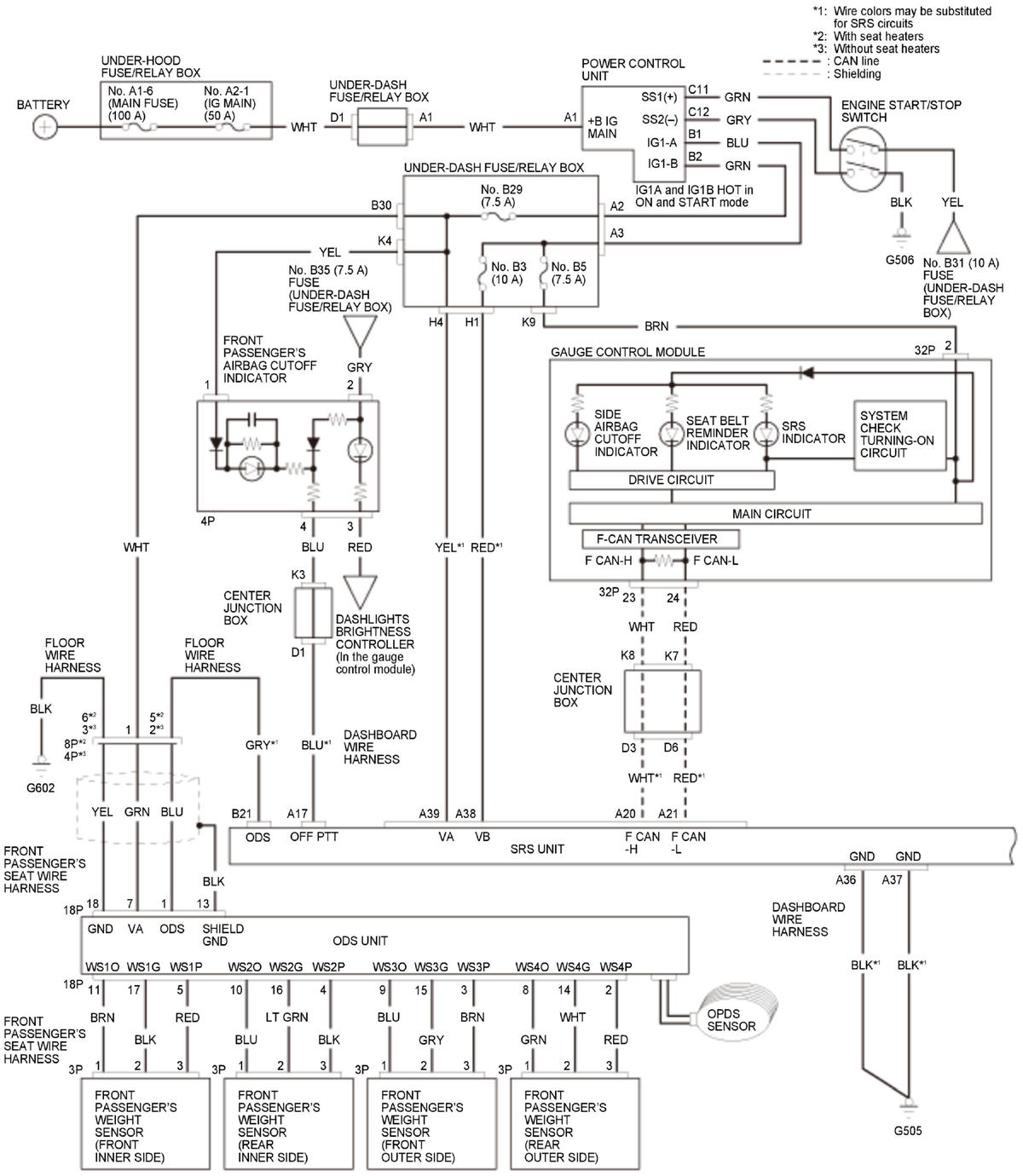

GHH474950

Courtesy of HONDA, U.S.A., INC.

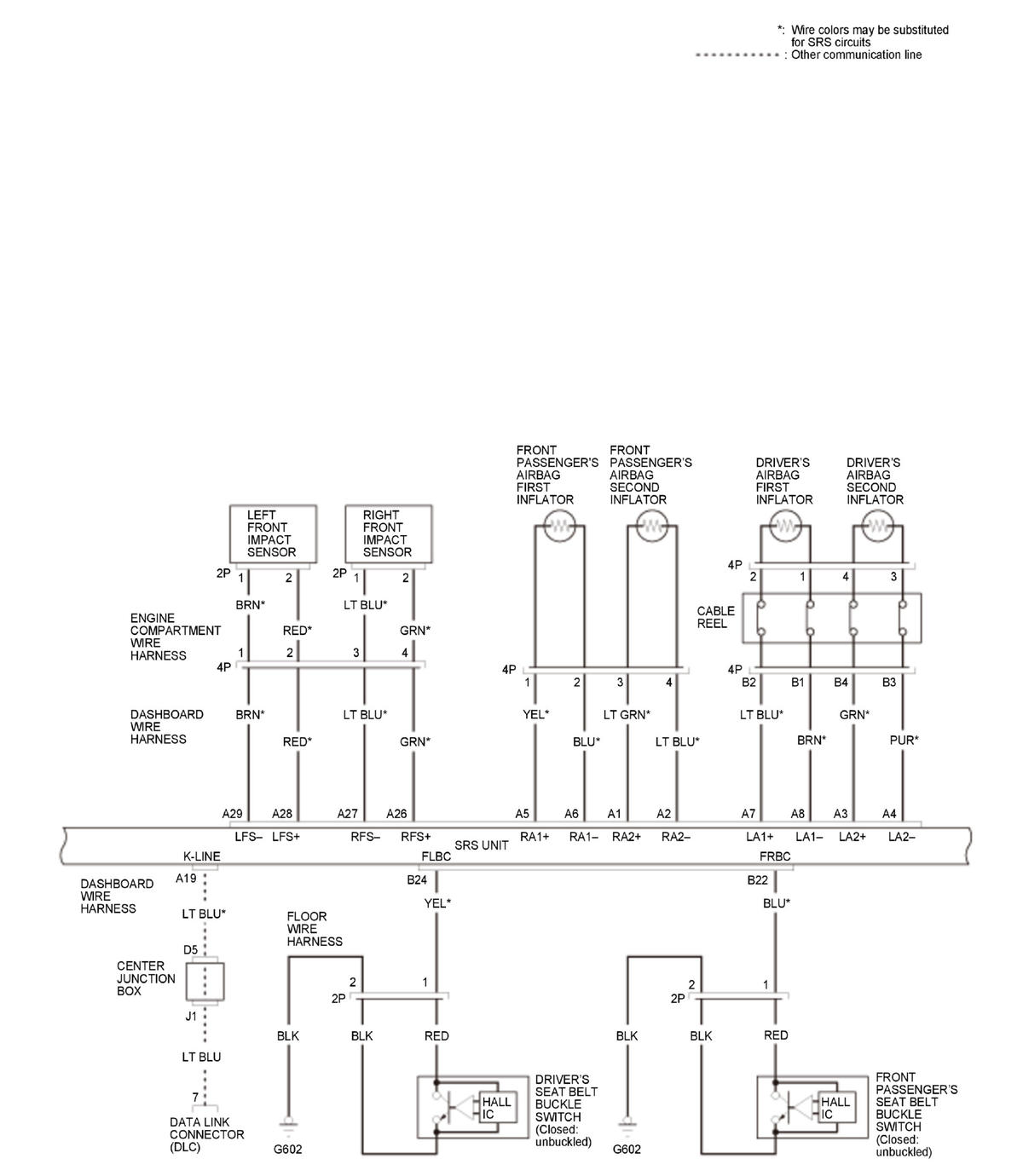

GHH474951

Courtesy of HONDA, U.S.A., INC.

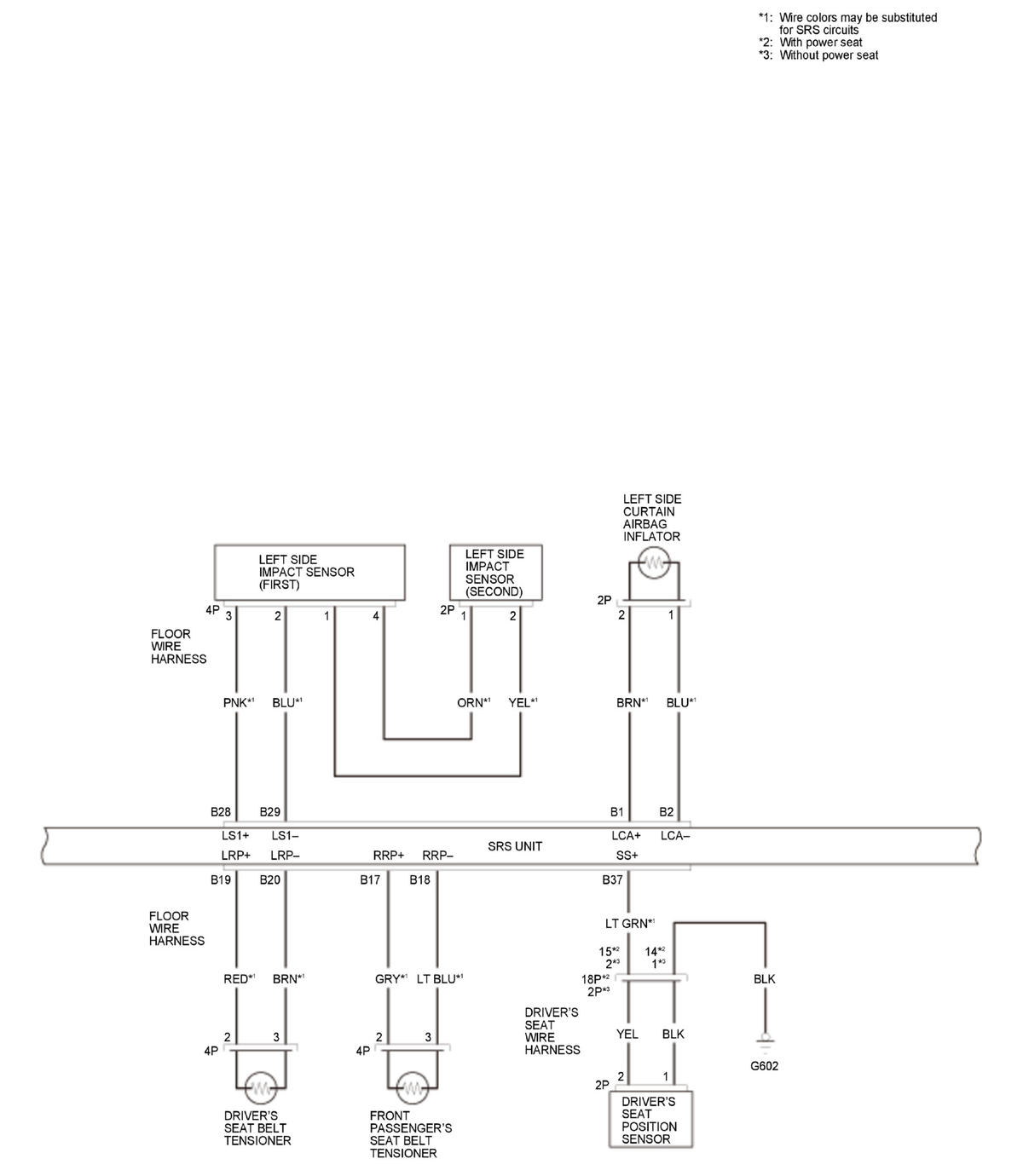

GHH474952

Courtesy of HONDA, U.S.A., INC.

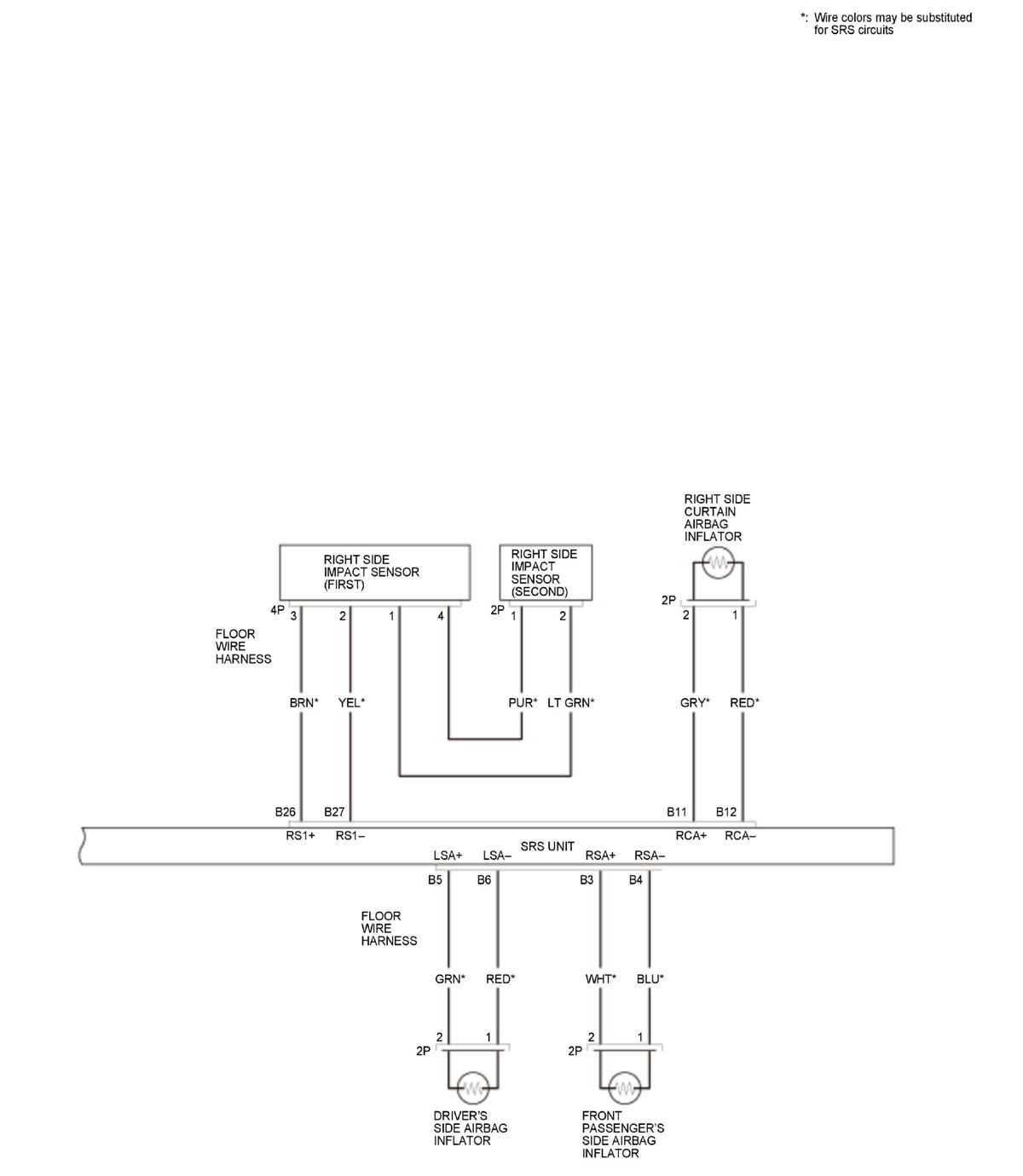

GHH474953

Courtesy of HONDA, U.S.A., INC.
