Driver's Seat Position Sensor Operation Check: Procedure

NOTE: Check the driver's seat position sensor operation after the driver's seat position sensor replacement or removal.

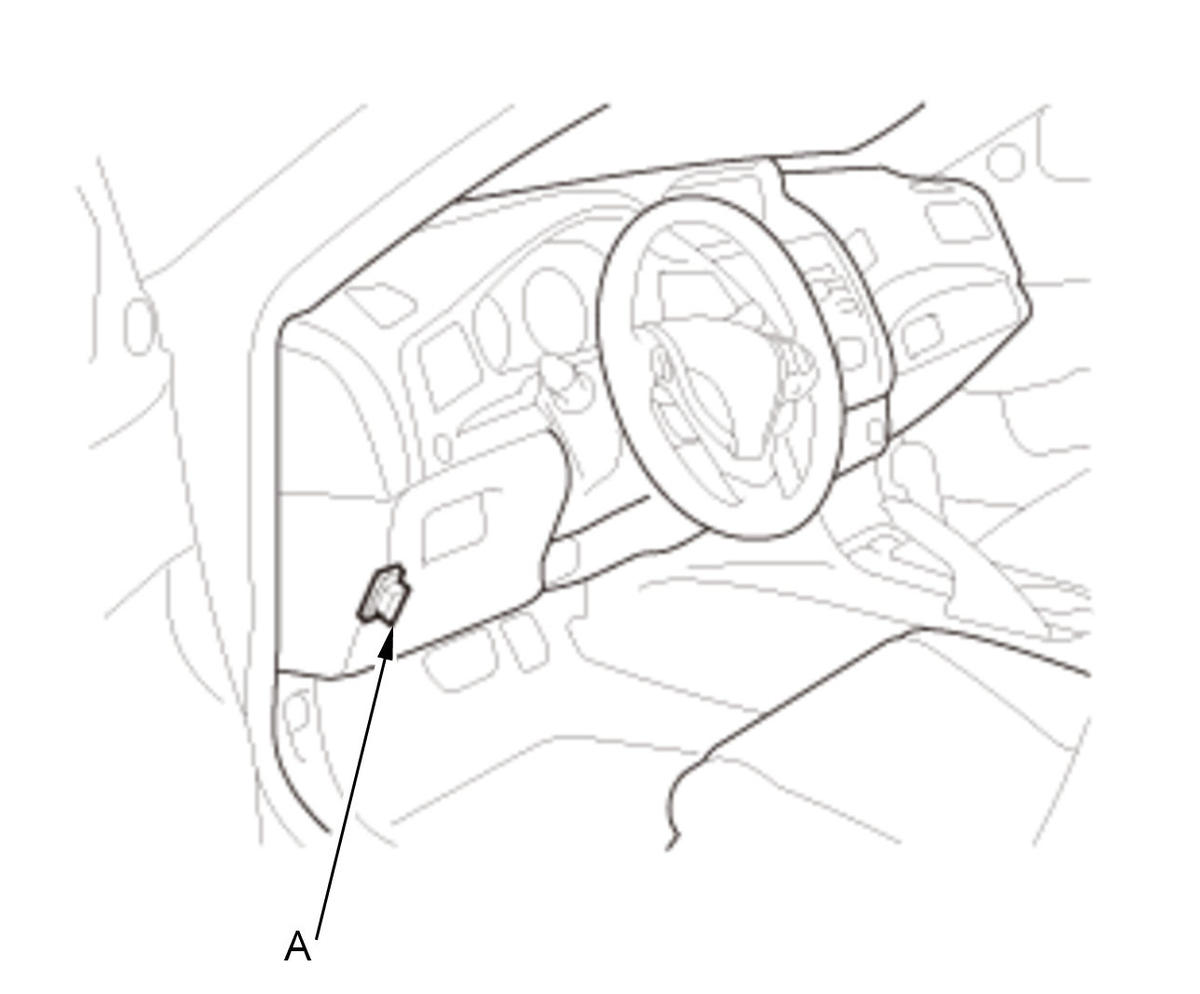

HDS - Connect

Courtesy of HONDA, U.S.A., INC.

1. Press the engine start/stop button to select the OFF mode.

2. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

3. Press the engine start/stop button to select the ON mode.

4. Make sure the HDS communicates with vehicle. If it does not communicate, go to the DLC circuit troubleshooting

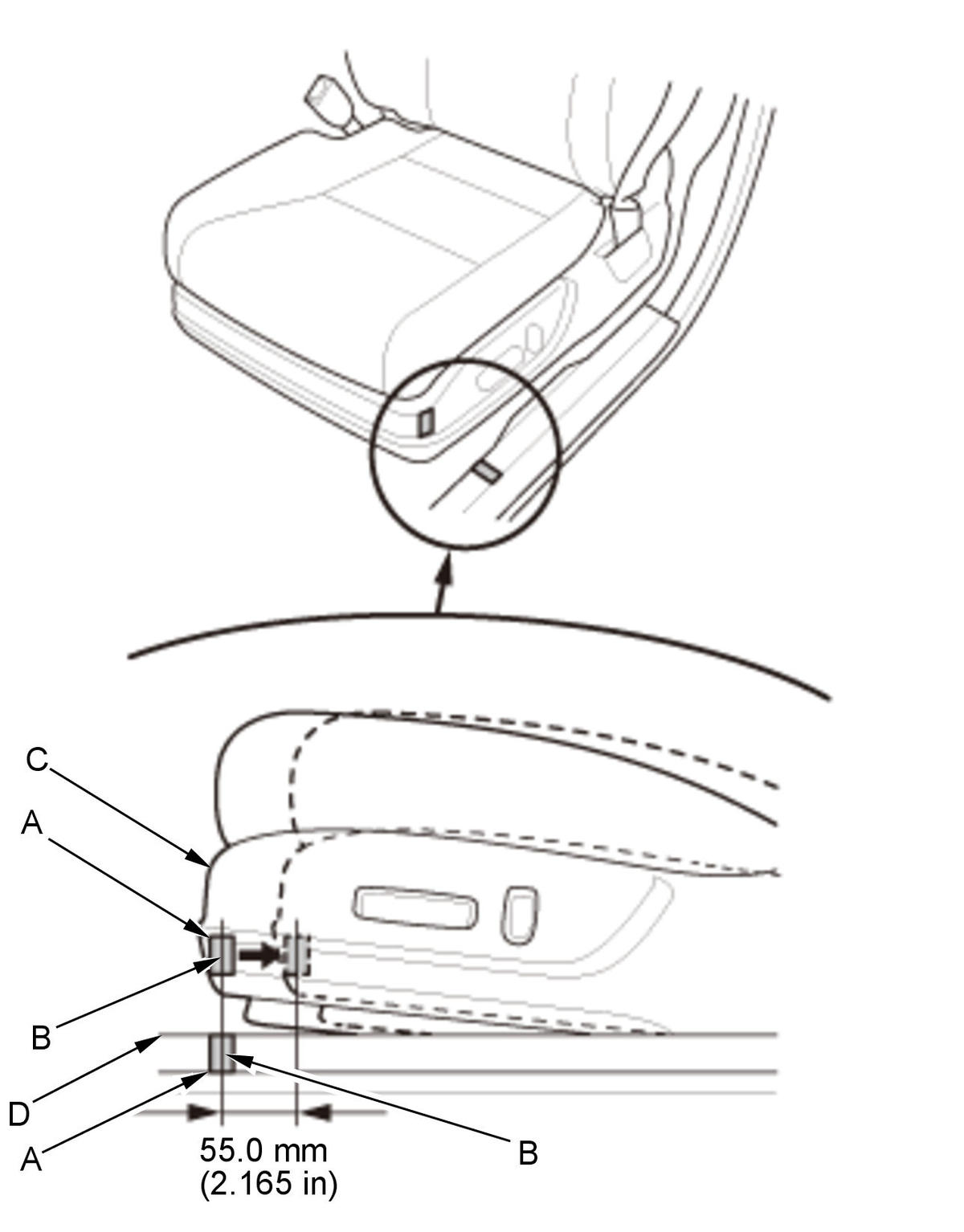

Driver's Seat Position Sensor - Operation Check

Courtesy of HONDA, U.S.A., INC.

1. Make sure the driver's seat is in the full forward position.

2. From the HDS Main Menu, select SRS, then Data List.

3. Using two pieces of tape (A), make alignment marks (B) on the recline cover (C) and the front door sill trim (D) as shown. The driver's seat position sensor should read NEAR on the HDS.

4. Move the seat back in small increments (about 5 mm, 0.20 in) until the driver's seat position sensor reads NOT NEAR on the HDS. The seat should be about 55.0 mm (2.165 in) from the front.

NOTE: It takes a few seconds for the HDS to change display, so wait for about 5 seconds between each movement. If the driver's seat position sensor data does not work as described above, check the driver's seat position sensor for damage, and replace parts as needed.

5. Press the engine start/stop button to select the OFF mode.
