Side Impact Sensor (First): Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. - Install

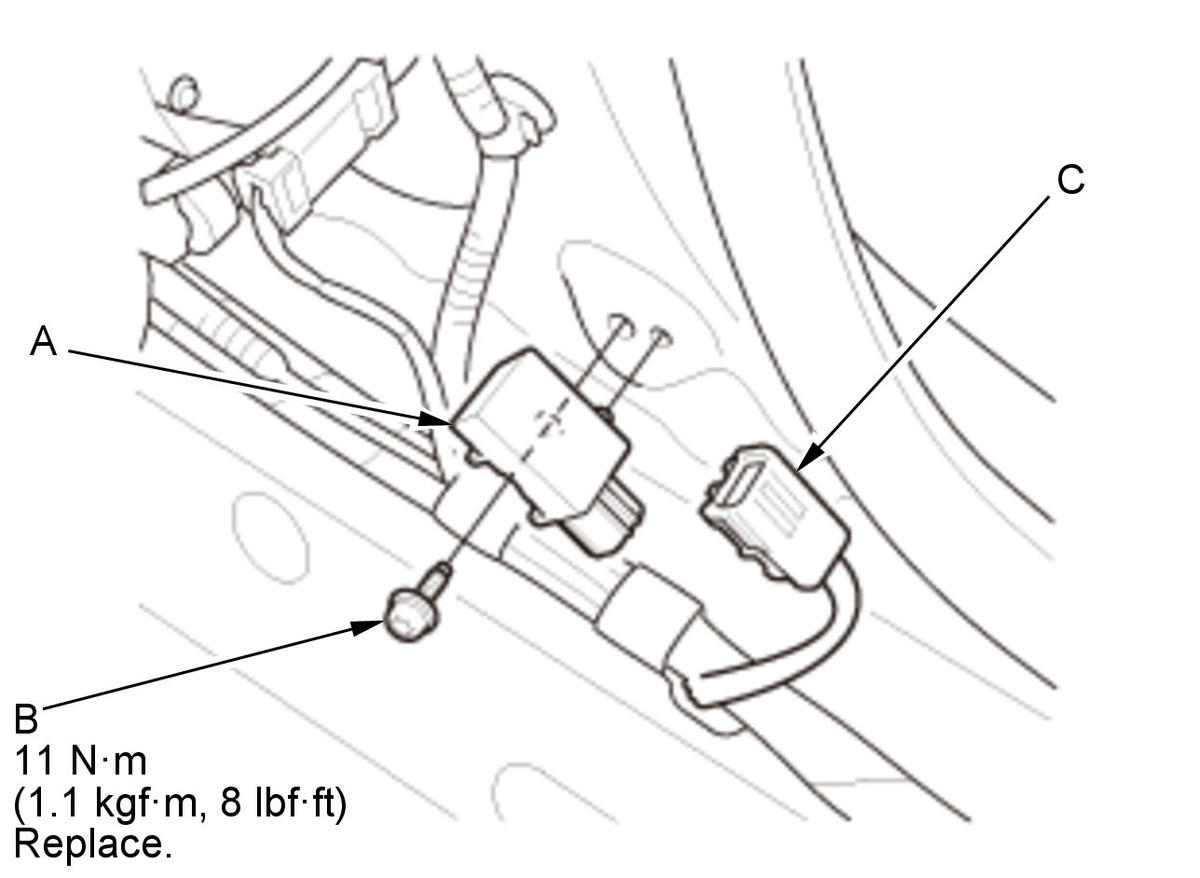

   Fig 1: Side Impact Sensor (First) With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Install the side impact sensor (first) (A) with the new TORX bolt (B), using a TORX T30 bit. 2. Connect the side impact sensor (first) connector (C) on the floor wire harness.

2. Battery Terminal - Connect

   1. Do the battery terminal reconnection procedure .

3. DTC - Clear

   1. Clear any DTCs with the HDS.

4. SRS Operation - Confirm

   1. Press the engine start/stop button to select the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

5. B-Pillar Lower Trim - Install

   1. Install the B-pillar lower trim .
