Side Curtain Airbag: Removal
SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
NOTE:
- If replacing the side curtain airbag after deployment, refer to Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.
- Review the interior trim replacement procedure before doing repair or service .
- Removal of the side curtain airbag must be done according to Precaution and Procedures .
- Battery Terminal - Disconnect
1. Do the battery terminal disconnection procedure , then wait at least 3 minutes before starting work. - Headliner - Remove
1. Remove the headliner . - Side Curtain Airbag Inflator Connector - Disconnect

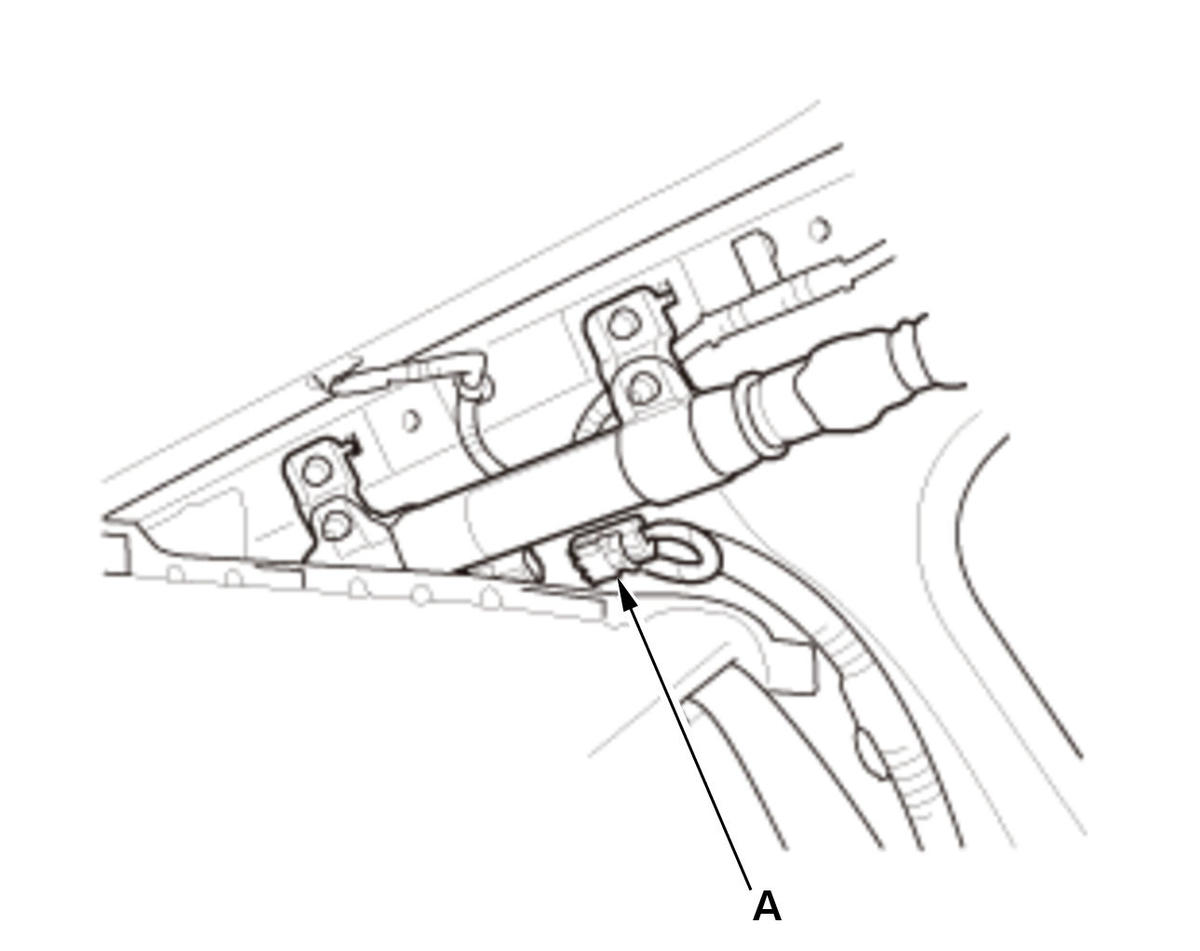

1. Disconnect the side curtain airbag inflator connector (A) on the floor wire harness. - Side Curtain Airbag - Remove

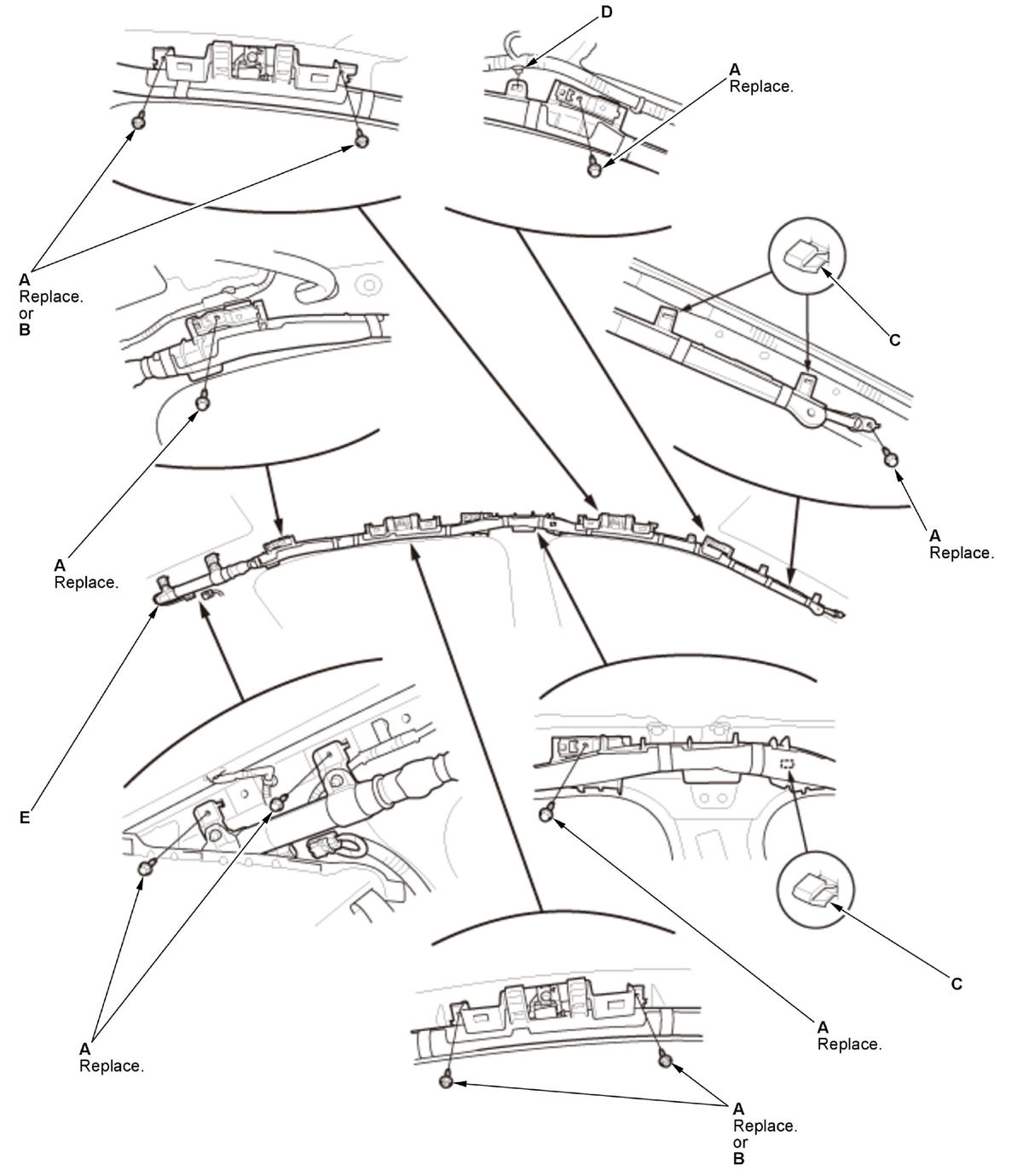

1. Remove the side curtain airbag mounting bolts (A), the mounting bolts (B), the hooks (C), and the clip (D), then remove the side curtain airbag (E).
